Galletti ESTRO FL 06 fan coil unit - 3.81/2.93 kW

Roll over image to zoom in Click on image to zoom

Galletti ESTRO FL 06 fan coil unit - 3.81/2.93 kW

Name: Galletti ESTRO FL 06 fan coil unit - 3.81/2.93 kW
Brand: Galletti
SKU: EF06LLX
Price: 400.91 EUR
Availability: InStock

Save 30%

GallettiSKU: EF06LLX

Price:

€400,91 €574,62

Quantity:

Share this product

Code: EF06LLX
ID code: EEB431
Pre-code: GAT
Short description: Galletti ESTRO FL 06 fan coil unit - Heating output 3.81 kW - Cooling output 2.93 kW
Category: Fan coils
Series: ESTRO FL
Benefits
Width x Height x Depth (mm): 984X564X226
Weight (kg): 27
Inverter: No
Installation type: Floor-mounted
WiFi: No
Cooling capacity (kW): 2.93
Heating capacity (kW): 3.81
Power supply: Water-fed
Minimum sound power – dB(A): 36
Maximum sound power – dB(A): 48
Minimum sound pressure – dB(A): 29
Maximum sound pressure – dB(A): 43

Download technical specifications

Galletti ESTRO FL 06 fan coil unit - 3.81/2.93 kW

Heating output 3.81 kW - Cooling output 2.93 kW

Ideal heating output for rooms up to 39 m2 with an average height of 2.7 m

Ideal cooling performance for rooms up to 30 m2 with an average height of 2.7 m

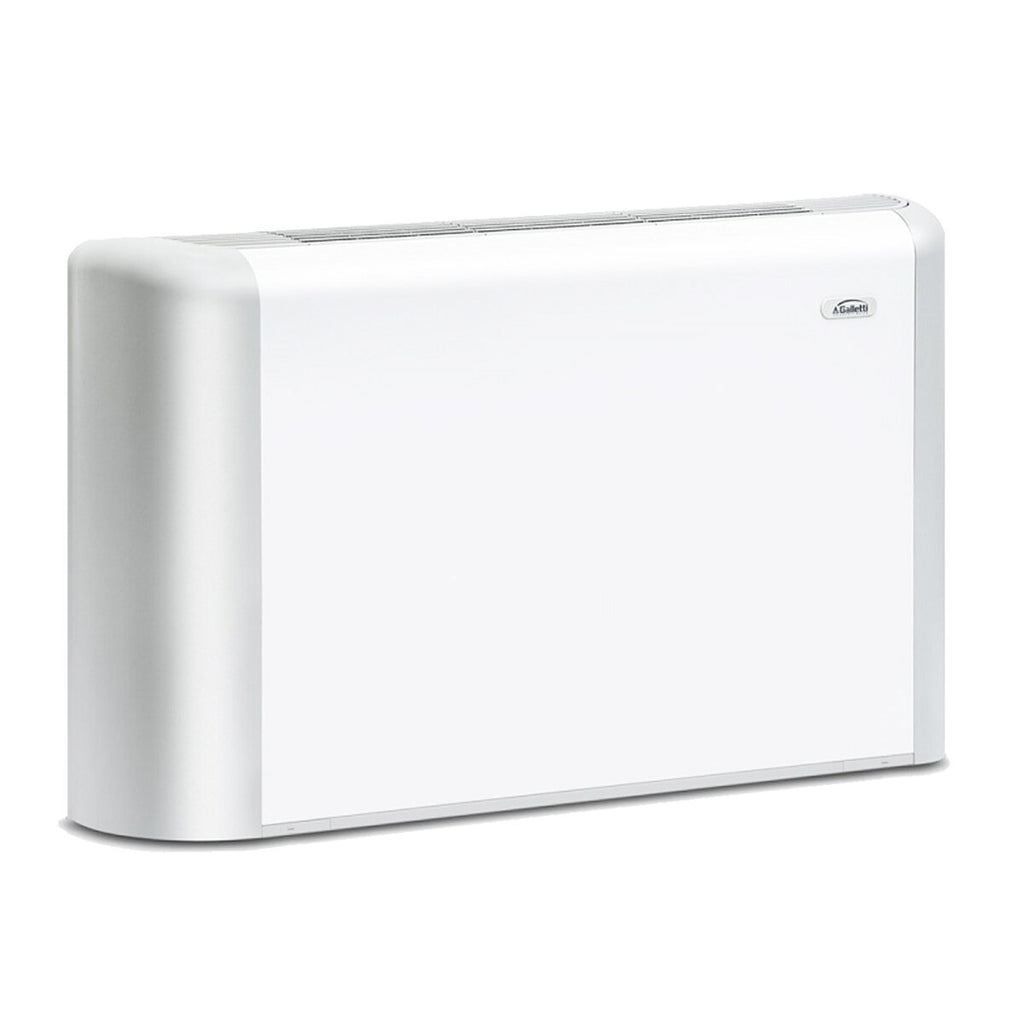

The Galletti ESTRO FL fan coil unit is designed for floor-standing installation and combines refined design , quality materials , and maximum operational efficiency . The rounded shapes integrate perfectly into any environment, making this fan coil unit extremely versatile.

Robust and modern structure : high-thickness steel sheet cover cabinet (10/10 mm) with side panels and 180° adjustable ABS outlet grille . The side doors allow quick access to the technical compartments and the control panel (optional) .

Resistant base unit: made of galvanized sheet metal up to 15/10 mm , with insulation in self-extinguishing class 1 thermo-insulating panels , to guarantee optimal safety and thermal insulation.

High-efficiency heat exchanger : copper tubing and aluminum fins , with brass manifolds and air vents . It is installed with hydraulic connections on the left , but can be rotated 180° for greater installation flexibility. The hydraulic connections are reversible during installation.

Silent and reliable electric motor : 3 or 6 speeds , mounted on anti-vibration supports and equipped with thermal protection and permanently inserted capacitor .

Double-inlet centrifugal fans , statically and dynamically balanced , made of antistatic ABS to ensure uniform and quiet airflow. The fans are housed in a high-efficiency ABS casing.

Regenerable honeycomb polypropylene air filter, easily removable and washable , mounted on a galvanized sheet metal frame with protective mesh and quick ¼ turn fixing.

The result is an elegant, solid and functional fan coil unit, ideal for residential or commercial environments that require comfort, efficiency and ease of maintenance .

DIMENSIONS

Width 984 mm_Height 564 mm_Depth 226 mm

Weight 27 kg

WARRANTY

The guarantee is the official Galletti one and lasts 2 years .
