Geberit Combifix module with Sigma 8 cistern for wall hung toilet, 109 cm.
Geberit Combifix Sigma 8 is the complete solution for bathroom systems: designed for masonry construction, built-in installation and suspended toilets.
The Geberit Combifix Sigma 8 installation module provides maximum long-lasting performance and ease of assembly on site. In fact, all Geberit modules are assembled in the factory so that they can be quickly installed on the construction site and connected to the water supply and drain pipes with the utmost ease. An advantage that also takes into account possible changes and future renovations. Sigma 8 cisterns are reliable as they are leak tested and have a 25 year spare parts availability guarantee. In addition, the flush volume of the Geberit Sigma8 concealed cistern can be limited to 4.5 liters. Therefore, it is exemplary in terms of water saving and has consistently achieved high scores, acquiring the WELL (Water Efficiency Label) brand .
The Geberit Combifix module is complete with accessories, such as soundproofing mat, drain bend, stop cock and mounting hardware.
Rinsing in one quantity, two quantities or with a chain.
Features:
- Powder coated mounting frame
- Mounting frame coated with four fixing flanges
- Pre-assembled plaster holder net
- Technical curve mountable without tools
- Built-in flush cistern with front operation
- Built-in cistern isolated against condensation
- With the default setting possibility of immediate additional rinse
- Assembly and maintenance work on the concealed cistern without tools
- Water connection top left
- Site protection with shortenable inspection opening, suitable for flush-mounted control plates
- Equipped with lining tube for water connection of Geberit AquaClean bidet toilet
- With the possibility of fixing for electrical connection
Supplied material
- R 1/2 water connection, MF compatible, with integrated shut-off valve and knob
- Technical curve in PE-HD, ø 90 mm
- 2 M12 threaded rods
- Fixing material
- Site protection with inspection opening
- Toilet connection set, ø 90 mm
- 2 protective caps
- Decoupling set

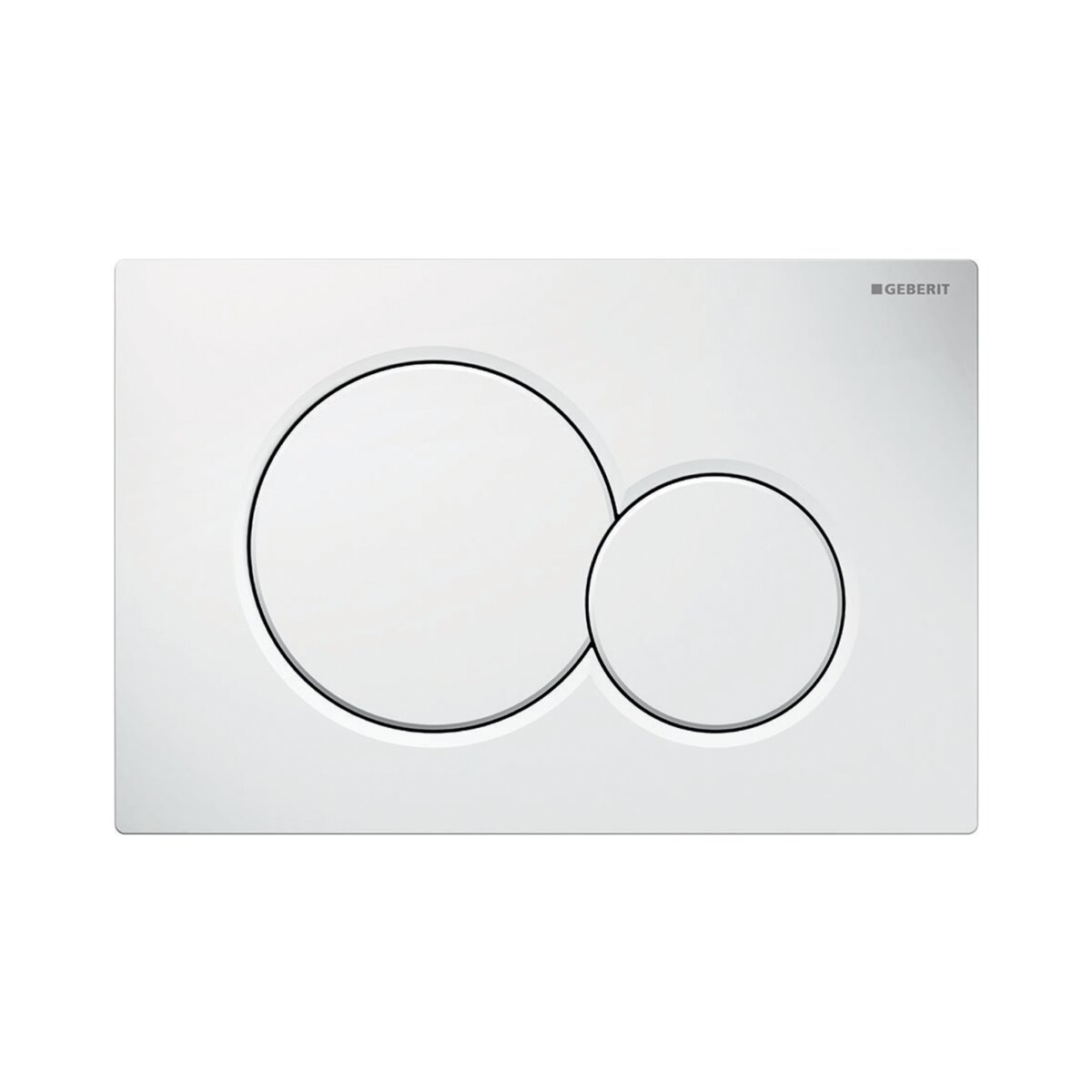

Geberit Sigma01 white flush plate with double button
The Geberit plates of the Sigma series represent the element that can give an original touch to the bathroom. With the Sigma01 plate , the Geberit brand has managed to combine style, elegance and functionality in a single product.
The Geberit control plates are the element of modernity that gives character to even the most minimal bathroom furnishings. The square lines, together with the double rounded frets, give an attractive appearance to the design, favored by the thinness of the edges and the more classic white color.
Geberit front plates not only look attractive, they also have versatile functions. Among them is the toilet sanitizer, suitable for most of the Geberit control plates of the Sigma series, through which it is possible to insert the sanitizing stick and give cleanliness and freshness to each rinse. Furthermore, the double controls allow to obtain a considerable water saving thanks to the two-quantity rinsing.
Thanks to continuous research and technology, Geberit Sigma flush plates are the perfect combination of function and comfort:
- Contactless rinsing
- Overflow rinse
- Sanitizing system for the toilet
- Flush wall installation
Property
- Dimensions (HxWxD) 246 mm x 164 mm x 13 mm
- Front operation
- Acoustically insulated control pins, quick adjustment without tools
- Actuation force <20 N
Supplied material
- Fixing frame
- 2 spacer pins
- 2 control pins
