Hisense Ducted Air Conditioner ADT 24000 BTU R32 Turbo Inverter A++The air conditioner kit is equipped with the following indoor units:
- 1 x 24000 BTU - Ideal for rooms from 80 to 100 sqm with an average height of 2.7 m

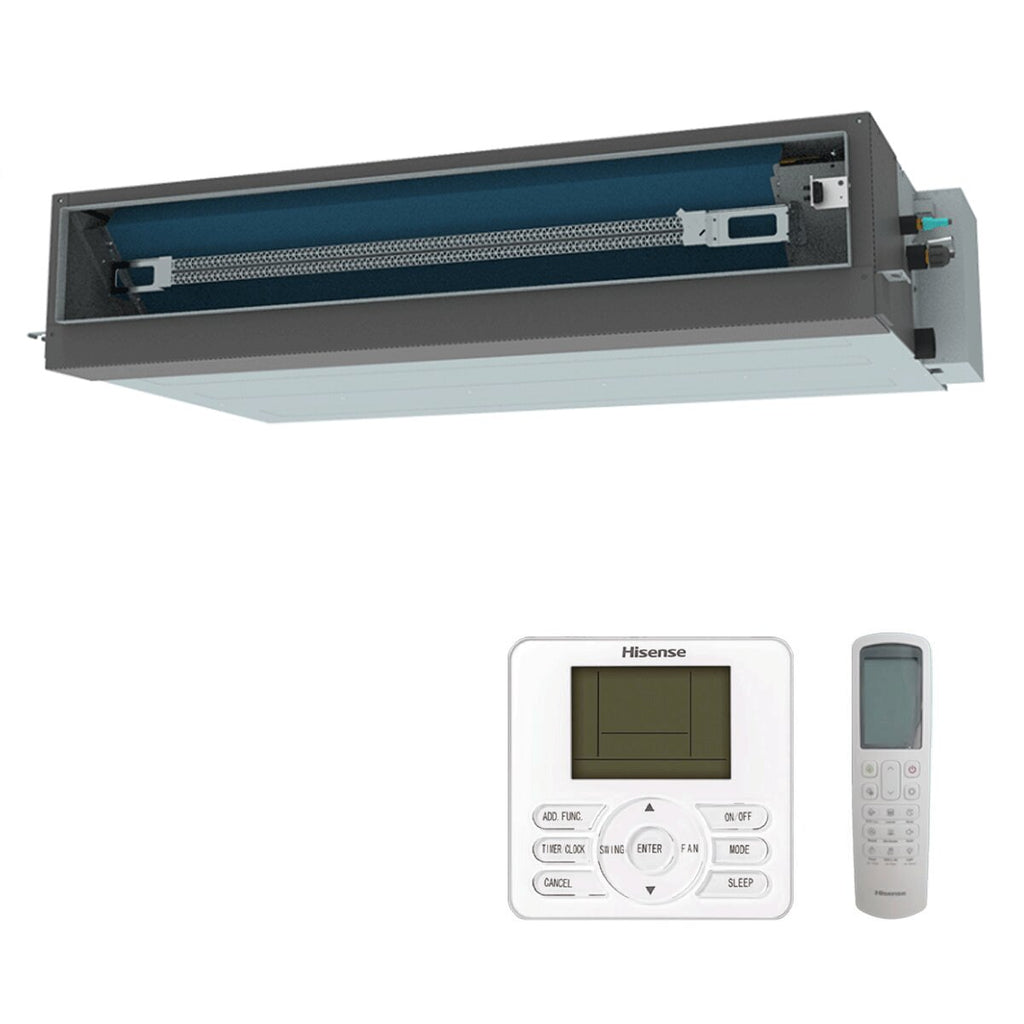

The indoor unit of the Hisense ADT series Ductable air conditioner represents a focal point for commercial and residential air conditioning. It is mounted in a hidden position, generally in a false ceiling and the air is diffused into the room through the special ventilation opening. The ductable air conditioner offers the great advantage of being invisible in fact, hiding the internal unit favors the aesthetics of the rooms and gives the possibility of using the walls for furnishings. It follows that, with the installation of a built-in air conditioner, there is well-being but there isn't... the air conditioner!
The Hisense ductable indoor units of the ADT Series are used together with the Inverter outdoor units to create combinations of Commercial and Residential monosplit and multisplit air conditioners with excellent energy performance, up to energy class A++ in cooling and A+ in heating .
DESIGN
The internal unit of the Hisense ADT Series ductable air conditioner has a linear and modern design adaptable to any working environment such as an office, a commercial activity, a hotel, etc ... but it is also ideal for home air conditioning by virtue of its defined but delicate contours that make it an integral and imperceptible part of your home, almost invisible to the eye, perfectly in harmony with any style and decor. The new design includes the aesthetic and technological innovation of the AIR 3D panel (optional and available only for the 2.6 kW and 5.2 kW models) designed for optimal air distribution thanks to the motorized grille which will allow directing homogeneous and automatic air flow towards the points of greatest interest, avoiding direct contact and promoting maximum environmental comfort.
CLEAN AIR AND WELL-BEING
The Hisense ADT Series ductable internal unit is equipped with a filter that retains dust and impurities present in the air, with simple removal and reinsertion to facilitate cleaning operations. It is also compatible with the HI-NANO air purification system (optional) which inhibits viruses and bacteria thanks to the release of negative and positive ions in every corner of the room to be air-conditioned; this system releases one million ions per cm³ into the air, preventing its proliferation and achieving, in just one hour, the removal of more than 90% of the H1N1 virus, and of the Sars-Cov2 virus.
TECHNOLOGY AND COMFORT
The internal unit of the Hisense ADT ductable air conditioner includes technology and well-being in a single product , offering a perfect climate and unparalleled comfort up to energy class A++. Equipped with a powerful and high-performance DC fan Inverter motor , this ductable indoor unit contains advanced technologies to guarantee efficiency, energy saving, silence and comfort. A series of functions that can be set make their use simple and practical, such as for example the Cooling, Heating, Dehumidification, Ventilation functions or the Auto function, which allow you to set the comfort temperature seasonally and in relation to your needs; weekly programming, Timer/Sleep, parameter control and many other modes that can be easily managed via remote control and can be further known and explored using the supplied user manual. The Hisense ADT Series ductable indoor units allow you to adjust the static pressure in order to facilitate assembly; on all the ductable units it will be possible to set the static pressure to ensure greater installation flexibility. Furthermore, the ADT Series models offer a dual installation and air inlet mode : if there is a limited distance between the wall and the unit, it will be possible to remove the lower panel of the indoor unit by opting for an air inlet. lower rather than rear air; this represents an excellent alternative in the presence of architectural impediments, however it is preferable to opt primarily for a rear air inlet as a lower air inlet could raise the noise level up to 5dB. It also has a float to control the water level and an integrated condensate drain pump which, working in synergy, allow you to manage the humidity in the rooms by conveying it into the indoor unit and expelling it correctly and gradually outside (especially during dehumidification). The Automatic restart provides for the restoration of the normal functionality of the indoor unit after a sudden stop of the electric current.
The Hisense ductable air conditioner is the ideal choice for hotel complexes, as in addition to the many technological and aesthetic features that make it one of the best options on the market, it also has an ON/OFF contact for hotel room control and fire control and lends itself to Twin, Triple and Quadri applications in the multi-split version.
The indoor units of this series are extremely silent and can also be managed via the Wi-Fi system (optional).
ACCESSORIES SUPPLIED AS STANDARD
- Remote control
- Wired control with remote control receiver (can NOT be used with centralized control).
WARRANTY
The guarantee is the official Hisense one and has a duration of 24 months.

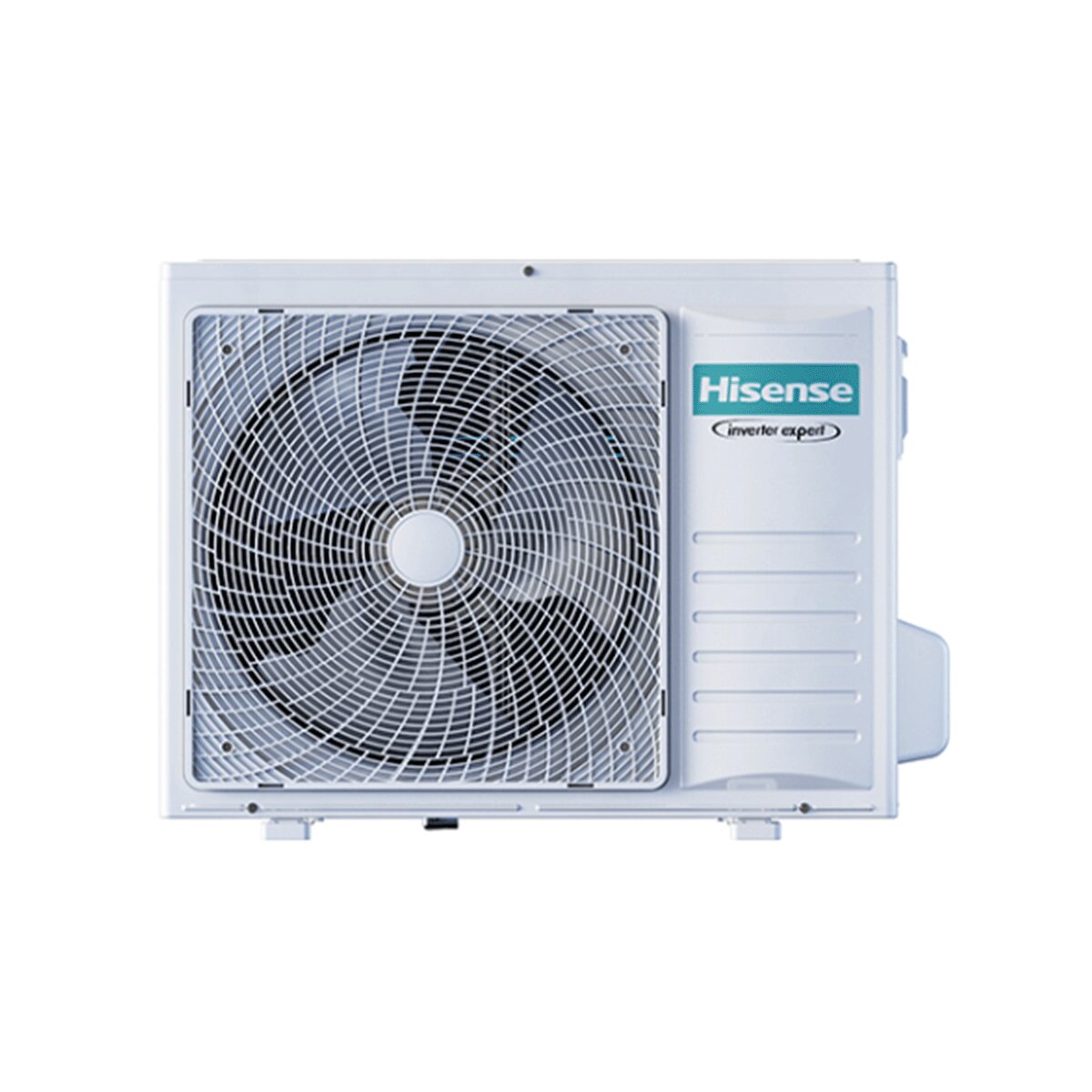

THE OUTDOOR UNIT
The Turbo external unit of the Hisense Commercial Line represents the most powerful engine in its range. Being able to cool environments down to 10°C , it is ideal for applications where low temperatures are essential for carrying out the commercial activity of the installation room: cellars , ice cream parlors , supermarkets , rooms for food storage and processing, canteens , etc.
Its efficiency and performance are of the highest level, giving the rooms maximum comfort and the right liveability.
These external units allow you to connect only one internal unit and specifically that of the power for which they are designed; in association with the internal unit, they are generally used to air condition a single room.
However, this unit is universal , i.e. it can be connected to any type of internal unit of the commercial line (CAC), whether cassette , ducted , console or ceiling/floor mounted.
TECHNOLOGY, EFFICIENCY AND SAVINGS
The universal outdoor unit from the Hisense commercial line amazes with its modernity and innovation: DC motor and heat pump make it a real gem. The brand new and high-performance Turbo Inverter technology controls the modulations of the compressor for excellent performance and allows maximum performance to be obtained while reducing consumption, so as to always have the desired temperatures, reducing waste of electricity, benefiting both from an economic and management point of view but especially protecting the environment. The use of R32 gas , which has a low environmental impact, i.e. a GWP - Global Warming Potential or Impact on Global Warming, equal to one third compared to that of its predecessor R410A, is part of the same objective of environmental protection and efficiency. The heat pump allows year-round use of the system, functioning regularly both in winter in heating and in summer in cooling. Also equipped with a DC Inverter compressor which works at different speeds based on air conditioning needs, avoiding thermal and energy changes, and contributing, in synergy with the entire DC Inverter range with which it is equipped, to reducing consumption and optimizing final performance of the plant.
The Hisense Super Inverter external unit has further incredible advantages that certainly make it among the most competitive commercial external units on the market. It can operate in cooling in a temperature range between -15° and 52°C and in heating between -20° and 24°C.
To ensure maximum comfort, a refrigerant control has been provided which blocks the operation of the machine as a form of preventive protection should the refrigerant level drop excessively, warning users.
There is also a direct current electronic expansion valve to guarantee low noise and high efficiency not only at full load, but also at partial load.
Hisense for its universal external unit uses a new corrugated fin that optimizes the heat exchange capacity. Particularly resistant to bad weather and atmospheric agents, the external unit can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Hisense one and lasts 2 years.
