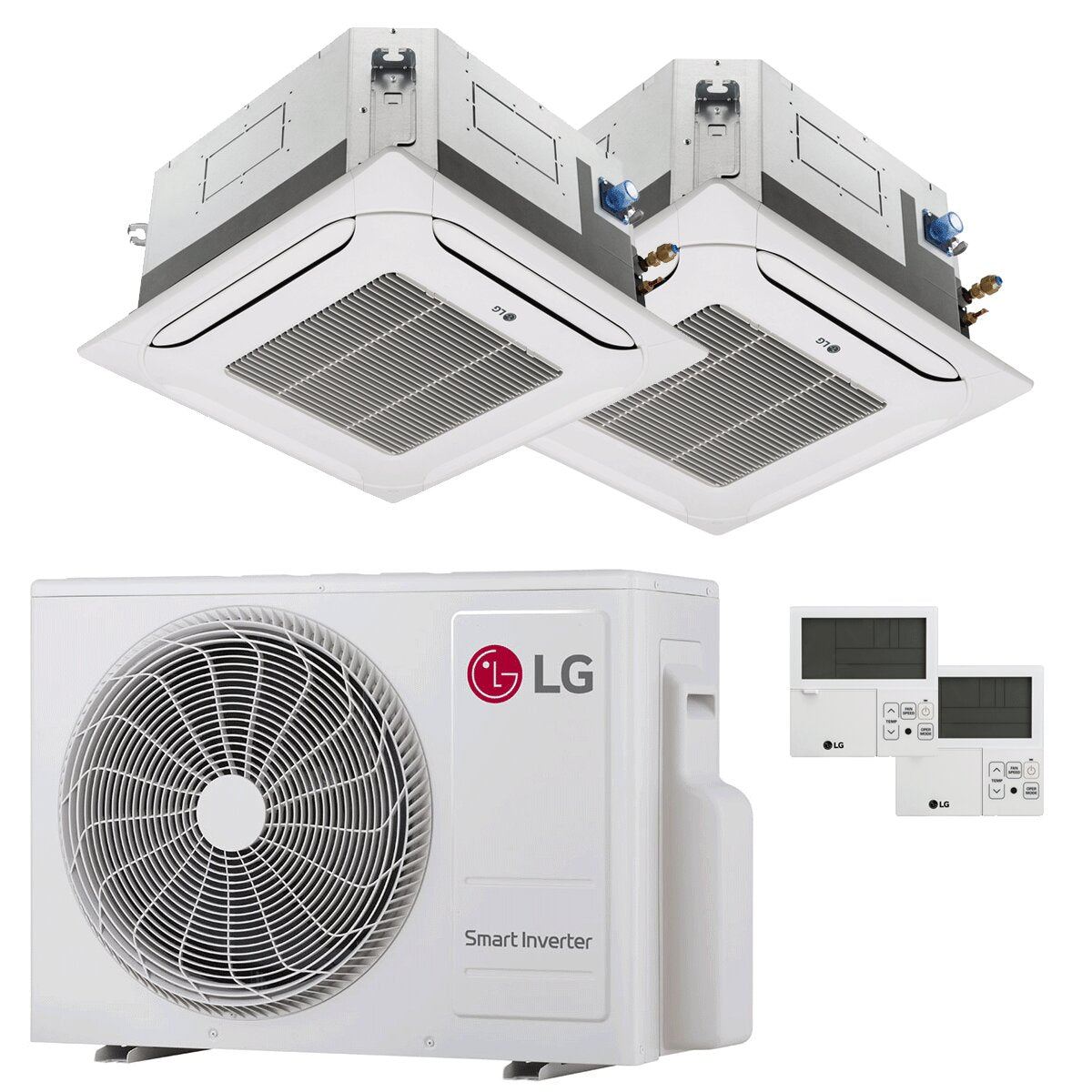

LG Air Conditioner 4-way cassette LG dual split 9000+18000 BTU inverter A+++ external unit 5.3 kW The air conditioner kit is equipped with the following indoor units:
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 18000 BTU - Ideal for rooms from 50 to 60 sqm with an average height of 2.7 m

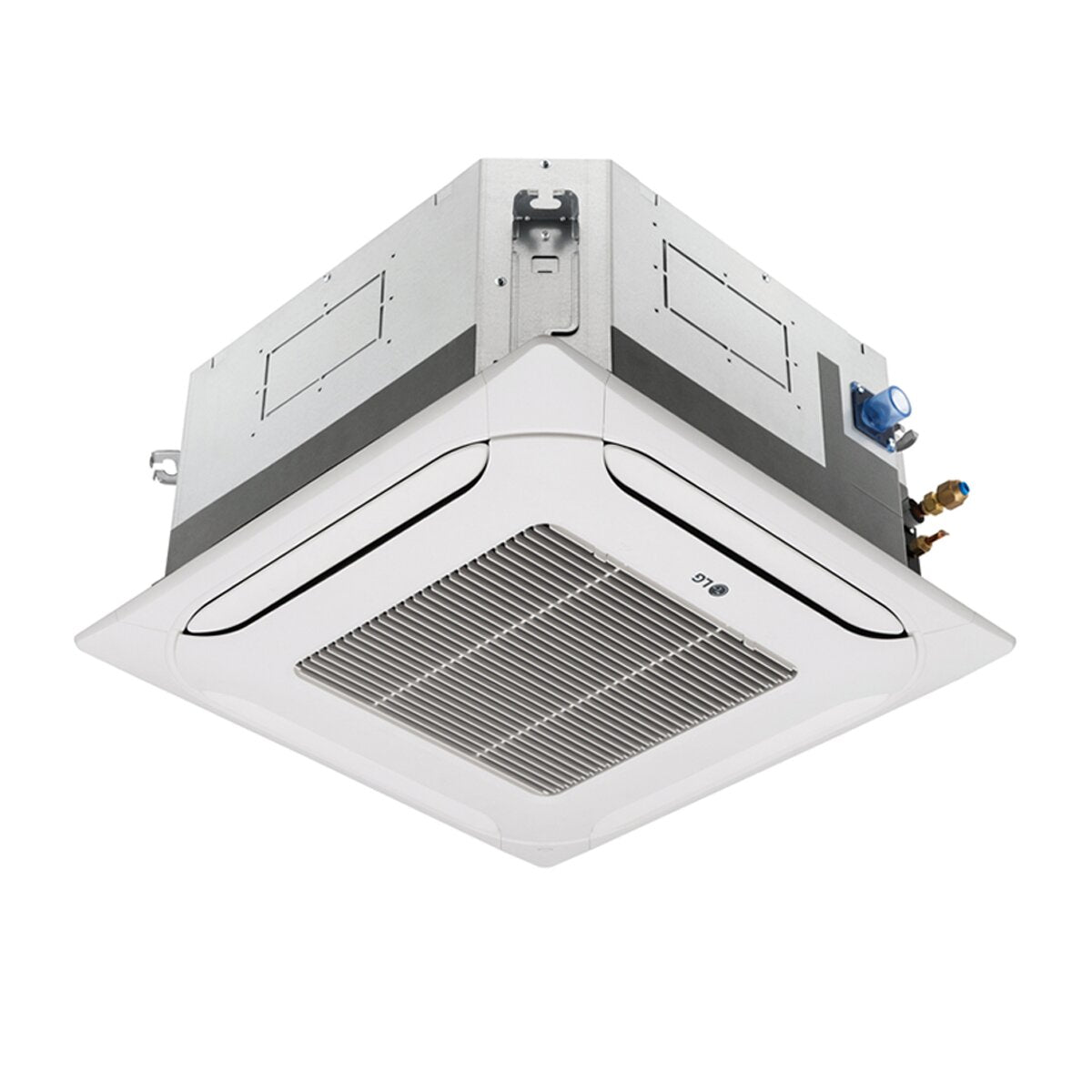

The LG 4-Way Cassette air conditioner is the ideal solution for medium to large commercial and residential spaces, where efficiency, discreet design, and even air distribution are key. Cassette air conditioners are perfect for those seeking discreet, powerful, and uniform air conditioning without compromising the aesthetics of the space. Unlike wall-mounted units, they are fully integrated into the ceiling, leaving walls free and reducing visual clutter. Furthermore, they offer greater area coverage than traditional models, ensuring comfort even in very large or irregularly arranged spaces.
Silent operation, ideal for offices, meeting rooms, restaurants and shops but also for residential installations, they are equipped with Inverter technology, use the low environmental impact R32 refrigerant gas and are capable of energy performance up to class A++/A+ cold/heat.
DESIGN AND AIR QUALITY
The LG 4-way cassette air conditioner stands out for its modern, minimalist, and elegant design , designed to blend discreetly into any environment, whether commercial or residential. The panel visible once installed is flat, thin, and perfectly integrated into the false ceiling for minimal visual impact, clean lines , and a tidy appearance. Its neutral color, thanks to a matte white finish (bright white for sizes 24-30-36) , easily matches any architectural or color scheme, without attracting attention but rather becoming a perfect, pleasing, and unobtrusive furnishing accessory.
They are equipped with LG PT-AAGW0 panels (sizes 24-30-36) and PT-QAGW0 (sizes 9-12-18), both designed for LG 4-way cassettes, but have significant differences in terms of size, functionality and design. The first panel, measuring 950 x 950 mm, suitable for standard cassettes (approximately 840 x 840 mm), is equipped with Dual Vane : double motorized and independent vanes on each side for customized airflow control; the second panel, measuring 620 x 620 mm, compatible with compact cassettes (approximately 600 x 600 mm), is a compact front panel with a central grille for return air inlet.
LG 4-way cassette air conditioners are equipped with a long-lasting washable filter that offers advanced filtration against fine dust and suspended particles, ensuring healthy environments and excellent air quality. The removable corners of the panel facilitate maintenance and access to the filter and indoor unit.
TECHNOLOGY, EFFICIENCY AND COMFORT OF LG 4-WAY CASSETTE AIR CONDITIONERS
The LG 4-way Cassette air conditioner is efficient and high-performance, capable of energy performance up to class A++/A+ and quality components such as the high-efficiency exchanger that allows for increased cooling and heating performance and the Full 3D Turbo fan that reduces air resistance, allowing for high efficiency, lower noise and better air flow.
LG 4-way cassette units offer a wide range of adjustable features designed to ensure comfort, efficiency and flexibility in both residential and commercial environments. Features include: advanced airflow control with independent louver orientation , where each louver can be adjusted separately to optimize air distribution based on the room configuration; ESP ( Extended Fan Speed ) adjustment: Allows you to adapt the fan speed for installations with ceilings up to 4.2 meters high; Dual temperature sensor : Room temperature can be detected by both the sensor built into the unit and the one in the wired controller, using the lower value for optimal comfort.
The 24-30-36 sizes are equipped with the new Dual Vane panel which not only allows each individual deflector to be oriented independently in relation to the geometry of the spaces, but also to have wider supply and return , therefore a faster air flow thanks to the large mesh grille ; this panel also features the indirect air diffusion mode, ideal for those who want to air condition their rooms without annoying direct air jets, creating comfort and liveability in a natural way. The eight directional fins (two per side) present only in the Dual Vane models, allow advanced customization of the air flow with different settable modes: Power mode which activates operation at maximum power to cool or heat the room in the shortest possible time; Indirect Wind , the air is diffused away from people, preventing the flow from directly hitting those in the room; Up/Down Swing activates a continuous movement of the fins up and down creating a dynamic and diffused air flow; Direct Wind is ideal for high ceilings; Smart Mode automatically adjusts operation based on room temperature, humidity, and, if present, the presence sensor (optional); Refresh Mode maintains a stable temperature and distributes air almost imperceptibly, so as not to distract or annoy.
All models feature multiple traditional operating modes such as Cooling/Heating/Dehumidification and Fan for maximum comfort; Automatic Restart , which allows the unit to resume previous settings in the event of a power outage; Silent Mode , which reduces operating noise for a quieter environment; and a Timer , which allows you to set automatic on/off times on a daily or weekly basis. Additional programmable modes can be viewed in the user manual provided with the product. Advanced features can also be integrated using optional accessories, which can be purchased separately.
The LG 4-way Cassette air conditioner can be managed via the included wired remote control , or with the addition of the Wi-Fi module code PWFMDD202.ENCXCOM (optional accessory to be purchased separately) , the unit can be controlled remotely via smartphone or tablet, offering the possibility of managing the settings even when you are not at home. By integrating the Wi-Fi module, the unit becomes compatible with voice assistants such as Google Home and Alexa , allowing voice control of the main functions, including on/off, temperature adjustment and selection of operating modes.
Installation and any maintenance and/or repair operations are made easier thanks to the One Touch corners : each corner of the front panel can be removed to facilitate access to the internal unit.
STANDARD ACCESSORIES
- Wired control
WARRANTY
The warranty is the official LG Italy one and lasts 2 years with a 10-year extension on the compressor.

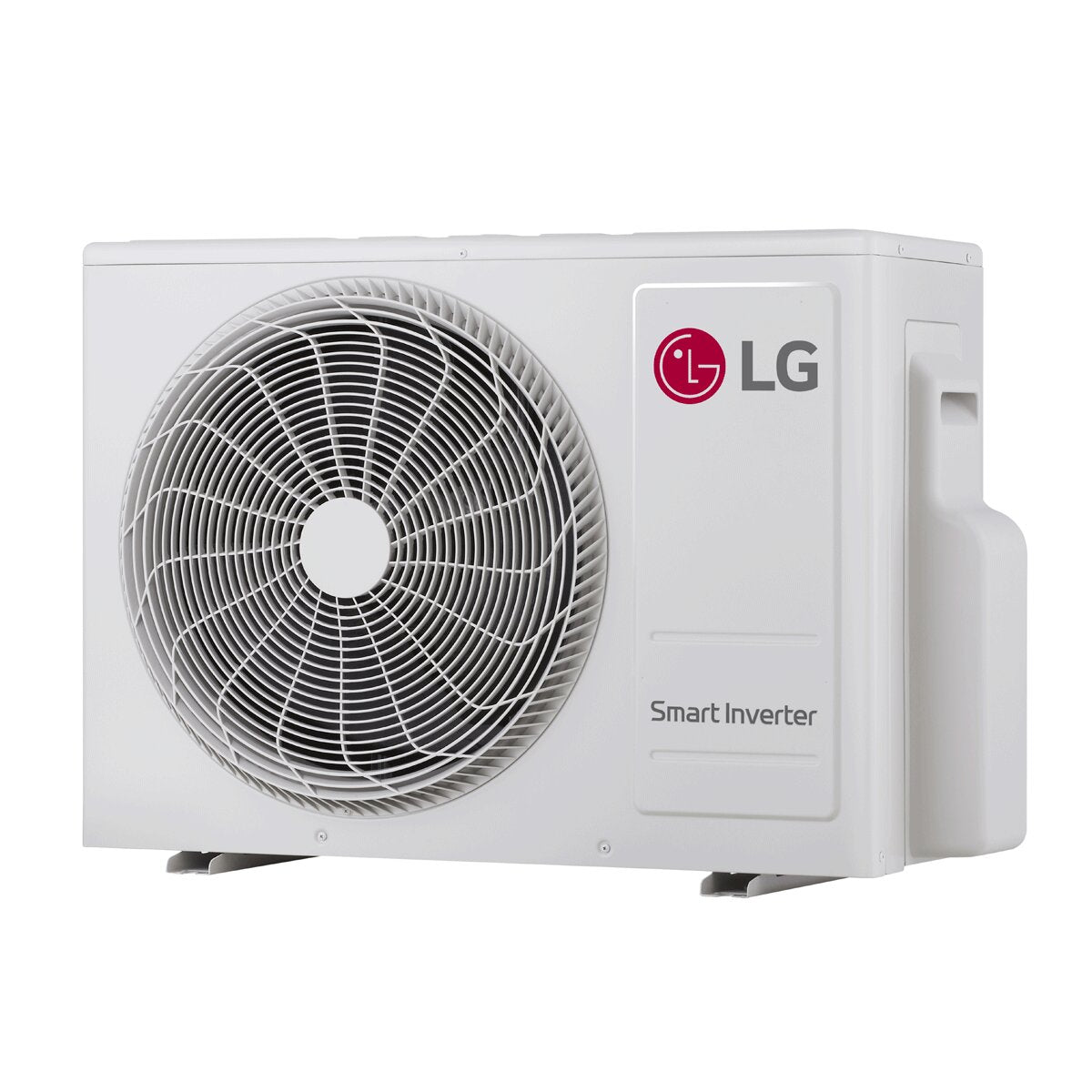

THE OUTDOOR UNIT
LG's Multi outdoor unit is particularly innovative and very attentive to the environment thanks to the adoption of R32 gas with low environmental impact. In fact, R32 gas has a GWP - Global Warming Potential or Impact on Global Warming, equal to a third compared to that of its predecessor R410A.
The three-connection external unit presented here has inverter and heat pump technology for both cooling and heating operation and represents the heart of the air conditioner.
The external units for multisplits offer the great advantage of air conditioning multiple rooms using a single external unit and one internal unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this air conditioning component on the facade of the property unit to be air conditioned.
This external unit allows you to connect and power three LG internal units , even with different powers; the internal units will always operate independently and each will be equipped with its own control.
GUARANTEED SAVINGS
The strong point is flexibility, because these inverter air conditioners are so flexible that they can vary the rotation speed of the compressor; this allows for significant energy savings, because less electricity is used to maintain the set temperature as well as to air-condition the room more quickly upon start-up. These units are in fact equipped with a hermetic Twin Rotary BLDC inverter compressor with direct start, linear capacity control with a range of action between a minimum of 10% up to a maximum of 130%. Furthermore, the heat exchanger with LG's exclusive Black Fin coating is designed to provide the best performance even in extremely corrosive environments.
Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment . It guarantees the achievement of the highest energy classes and reduces waste to a minimum . This also ensures minimal vibration and noise, placing it among the quietest outdoor units on the market . It has a heat exchange fan with a helical-type exterior with suction on the rear side and horizontal delivery on the front side with an air flow rate of 35 m3/min. Type of BLDC inverter motor with air flow and low noise.
Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately. Installation and maintenance are facilitated by the removable right panel for connection operations with the refrigerant circuit, with integrated handle to facilitate transport and positioning of the unit; from the removable upper cover to access the control components with integrated handle on the right side to facilitate transport and positioning of the unit and from the protection grille on the air expulsion.
WARRANTY
The warranty is the official LG one and lasts 2 years.

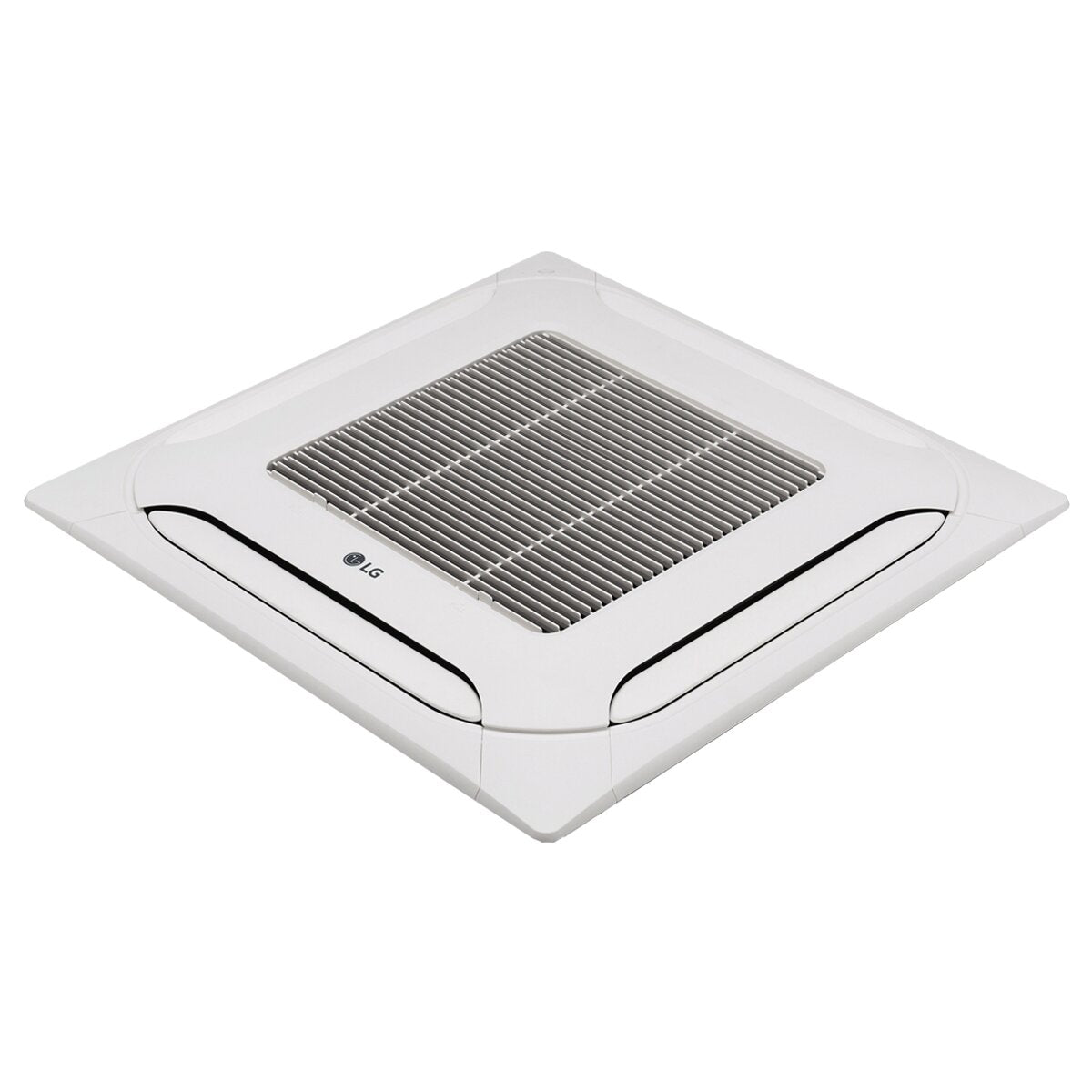

LG PT-QAGW0 Panel for LG 620X620 4-Way Cassette Air Conditioners
The LG PT-QAGW0 panel is a compact front grille designed for the 4-way cassette indoor units of LG air conditioning systems. With dimensions of 620 x 620 x 34 mm and a weight of approximately 3 kg, it features an elegant design in white (RAL 9003) that integrates harmoniously into various environments. The panel is equipped with adjustable fins that allow for uniform air distribution, improving environmental comfort.
WARRANTY
The warranty is the official LG one and lasts 2 years.

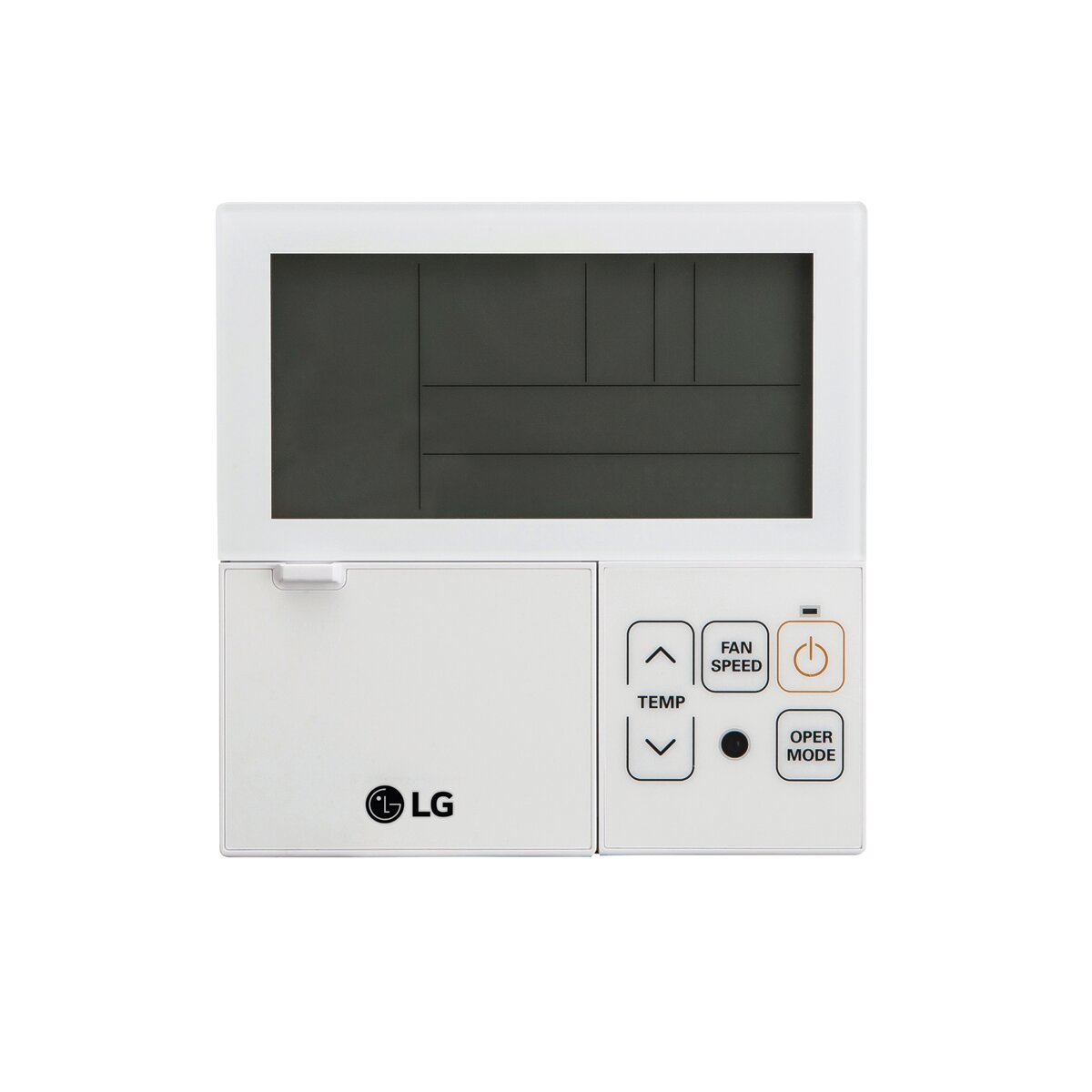

LG PREMTB001 Standard Wired Controller for LG Air Conditioning Systems
The LG PREMTB001 Standard wired control allows the management of LG air conditioning systems. The large LCD display, the blue backlighting and the elegant design make this accessory a complement that enhances the spaces. The use of the wired control allows the use of a weekly program for the management of the unit and allows the detection of the room temperature directly from the position in which it is located.
It has the following features and functions:
- ON-OFF function
- Fan speed
- Temperature regulation
- Display Backlight
- Infrared control receivers
- Sensor for detecting ambient temperature
- Air flow direction flap control
- Weekly timer (2 on/off cycles per day).
Compatible with LG series: Libero Smart - Atmosphere - ARTCOOL Mirror - Deluxe - 4-way cassette - Low prevalence ducted - Medium prevalence ducted - Ceiling - Console.
Includes 10m long cable supplied.
DIMENSIONS
- Width 120 mm_Height 120 mm_depth 15 mm
WARRANTY
The warranty is the official LG one and lasts 2 years.
