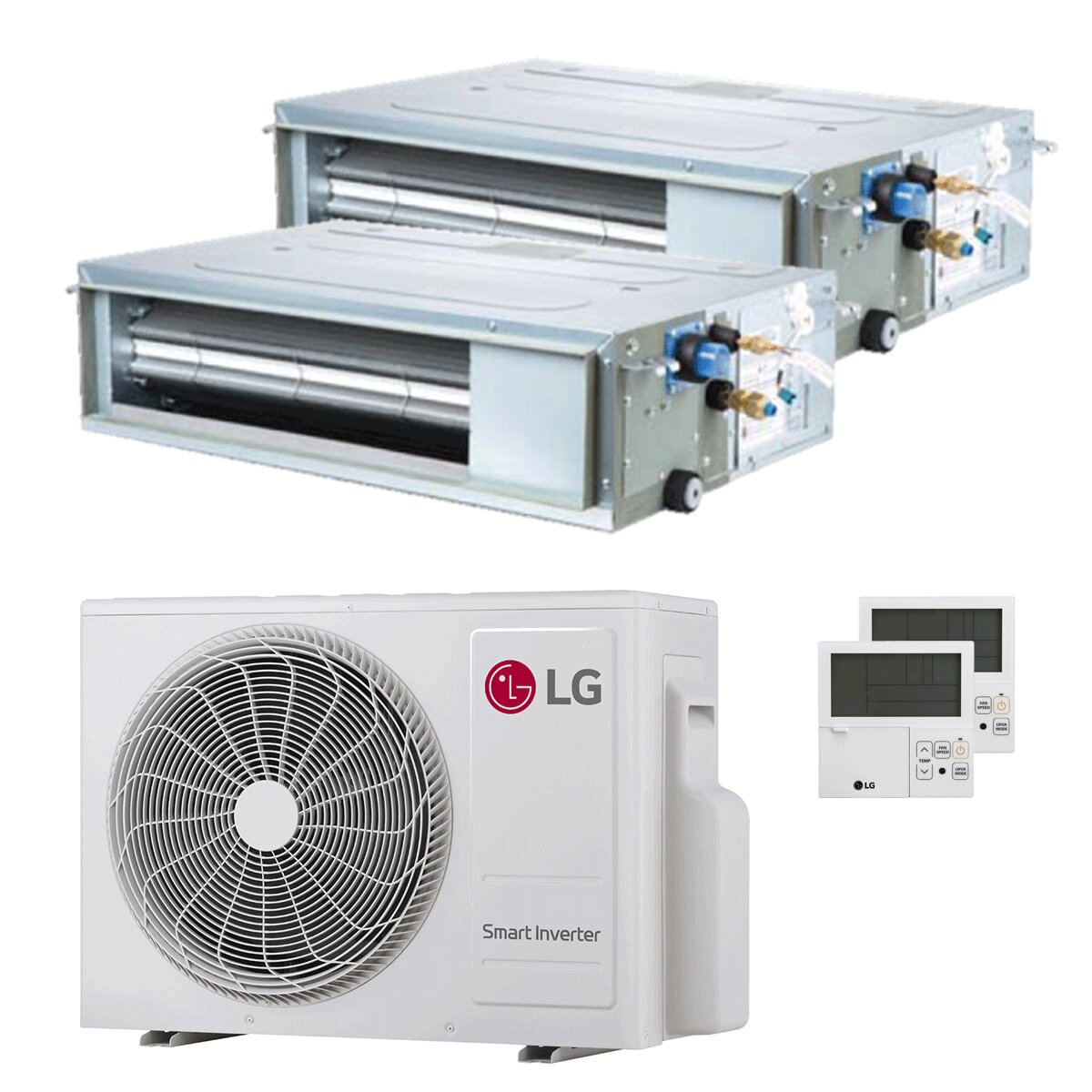

LG Ducted Air Conditioner CL dual split 9000+12000 BTU inverter A+++ external unit 4.7 kW The air conditioner kit is equipped with the following indoor units:
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m

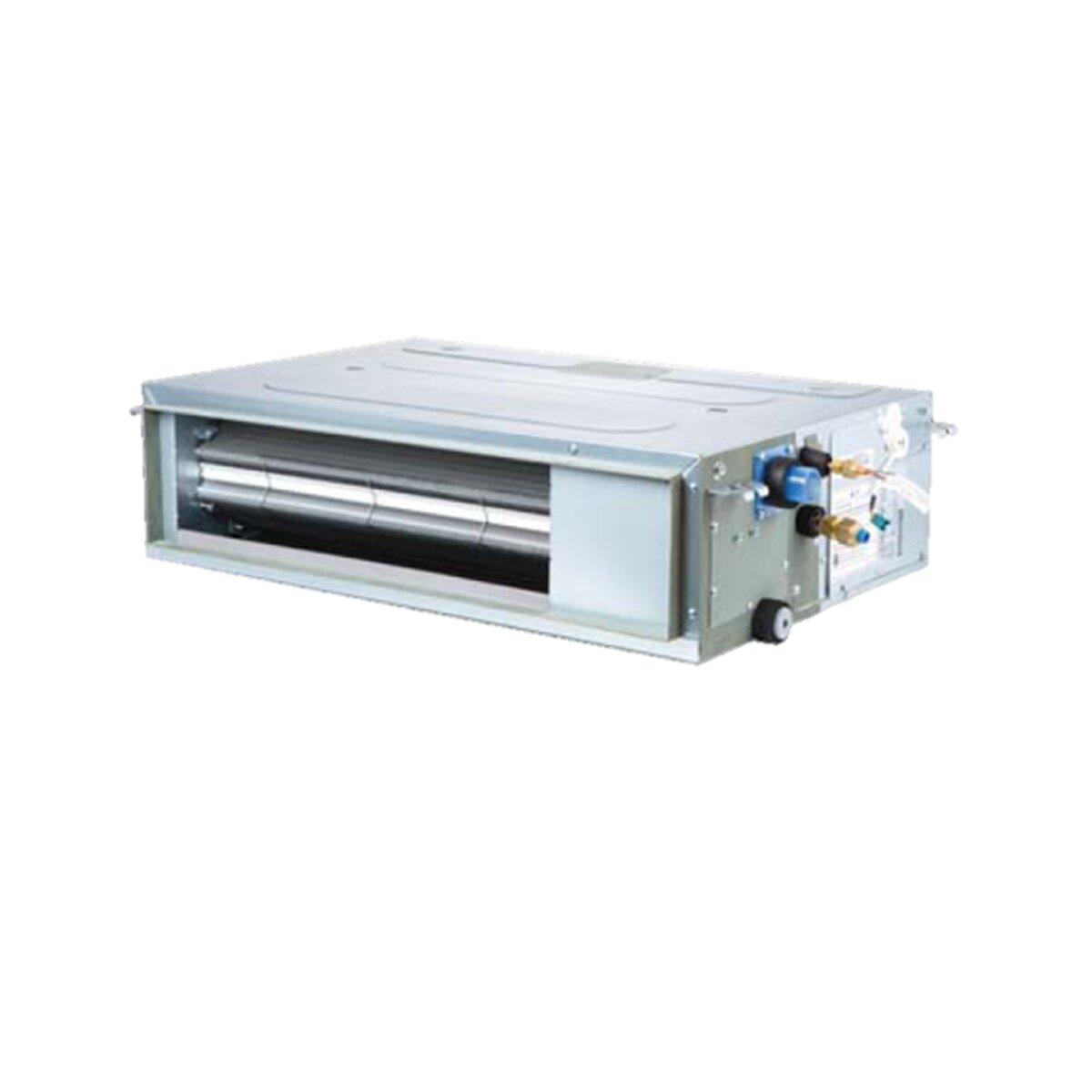

LG ducted air conditioners are designed for discreet installation and seamless integration into residential and commercial environments. The slim design maximizes space without compromising performance, making them ideal for installation in suspended ceilings or spaces with limited headroom. Because they are ducted, the air conditioner is invisible within the room. Only the air supply and return vents remain exposed, contributing to a clean, modern aesthetic.
The main difference between LG low-head and high-head ducted units is the available static pressure (ESP) , or the indoor unit's ability to push air through the ducts. The low-head system is designed for small and medium distances, ensuring uniform thermal comfort in every corner of the room; while the high-head system allows air to be pushed even through long ducts, with bends or multiple vents , making it ideal for larger spaces or more complex distributions (offices, homes, B&Bs, etc.).

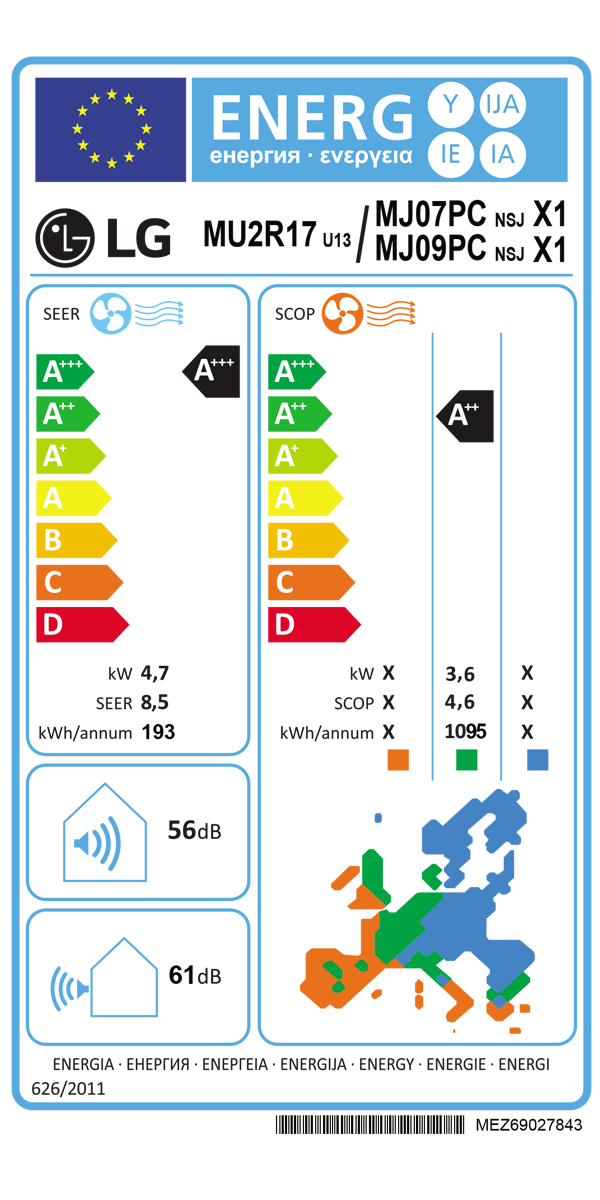

LG ducted air conditioners are equipped with inverter technology, use the low environmental impact R32 refrigerant gas and are capable of energy performance up to class A++/A+.
AIR QUALITY AND WELL-BEING
The LG ducted unit features a dual-protection filter designed to improve indoor air quality. This filter captures dust particles and other airborne contaminants, helping maintain a healthier environment. The filter is easily removable, allowing for convenient cleaning even in confined spaces.
LG LOW AND HIGH PRESSURE DUCTED A/C
The LG ducted indoor unit offers several features designed to ensure optimal comfort and efficient management of the air-conditioned environment.
A series of functional technical features are available to ensure optimal use of the air conditioner: Cooling/Heating/Dehumidification and Ventilation operating modes for optimal seasonal comfort; fan speed control allows you to adjust the fan speed to multiple levels to adapt the airflow to your needs; programmable timer: allows you to set the unit to automatically turn on and off at specific times, optimizing energy consumption and ensuring comfort at the desired time; dual thermistor control: the internal temperature can be detected both via the sensor integrated into the unit and via the sensor in the wired remote control; this dual detection ensures more precise regulation of the room temperature. Additional programmable modes can be viewed in the user manual provided with the product.
Ducted units include a condensate drain pump for draining condensate when gravity drainage isn't possible. The ability to lift condensate up to 700 mm ensures a solution to any problem.
The prevalence of the unit's fans can be changed linearly using the wired control: it is possible to change the rotation speed of the internal unit's fan and associate the machine with ducts of various sizes.
It is also possible, in the low prevalence Standard Inverter ducted units, to choose the direction of air intake (from below or from the rear) . This flexibility facilitates installation in different configurations and environments, adapting to the structural needs of the space.
Furthermore, using suitable spiral ducts (built-in or flexible) and a flow chamber, it is possible to operate in cooling/heating mode for multiple rooms simultaneously using a single indoor unit. This function requires the appropriate optional accessory.
The noise level of the low-head ducted units has been considerably reduced, while increasing the useful static head; in fact, the sound pressure level starting from 27 dB(A) is among the lowest on the market for units of the same type, ensuring discreet operation, a quiet environment and optimised silence .
Management is via the included wired control , or with the addition of the Wi-Fi module code PWFMDD202.ENCXCOM (optional accessory to be purchased separately) , the unit can be controlled remotely via smartphone or tablet, offering the possibility of managing the settings even when you are not at home. By integrating the Wi-Fi module, the unit becomes compatible with voice assistants such as Google Home and Alexa , allowing voice control of the main functions, including on/off, temperature adjustment and selection of operating modes.
Installation and any maintenance and/or repair operations are made easy. In fact, in these cases it will not be necessary to open the entire panel since it is divided into a panel for the heat exchanger and one for the motor/fan, making access to the internal components simple and quick.
STANDARD ACCESSORIES
- Wired control
WARRANTY
The warranty is the official LG Italy one and lasts 2 years with a 10-year extension on the compressor.

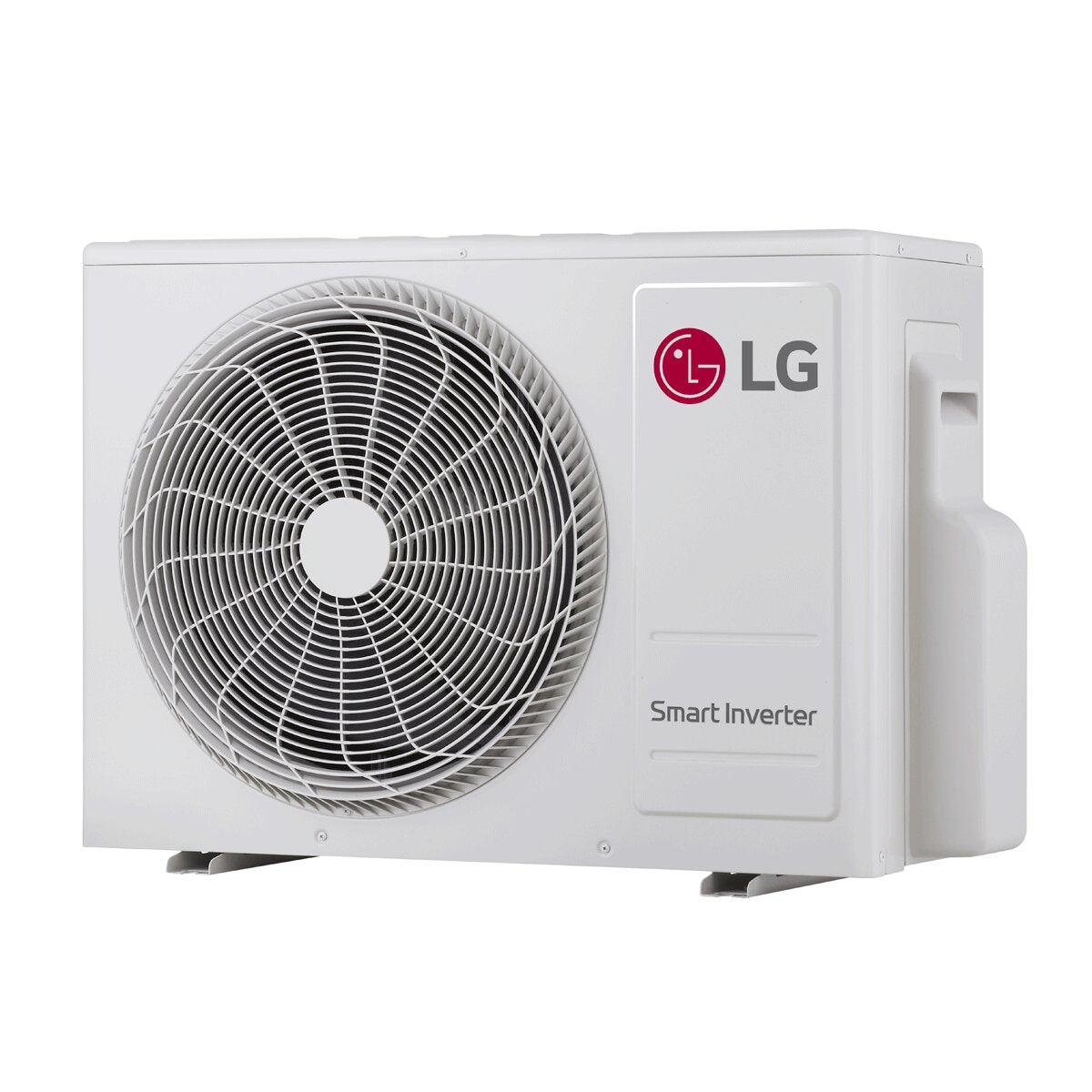

THE OUTDOOR UNIT
LG's Multi outdoor unit is particularly innovative and very attentive to the environment thanks to the adoption of R32 gas with low environmental impact. In fact, R32 gas has a GWP - Global Warming Potential or Impact on Global Warming, equal to a third compared to that of its predecessor R410A.
The two-connection external unit presented here has inverter and heat pump technology for both cooling and heating operation and represents the heart of the air conditioner.
The external units for multisplits offer the great advantage of air conditioning multiple rooms using a single external unit and one internal unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this air conditioning component on the facade of the property unit to be air conditioned.
This external unit allows you to connect and power two LG internal units , even with different powers; the internal units will always operate independently and each will be equipped with its own control.
GUARANTEED SAVINGS
The strong point is flexibility, because these inverter air conditioners are so flexible that they can vary the rotation speed of the compressor; this allows for significant energy savings, because less electricity is used to maintain the set temperature as well as to air-condition the room more quickly upon start-up. These units are in fact equipped with a hermetic Twin Rotary BLDC inverter compressor with direct start, linear capacity control with a range of action between a minimum of 10% up to a maximum of 130%. Furthermore, the heat exchanger with LG's exclusive Black Fin coating is designed to provide the best performance even in extremely corrosive environments.
Thanks to the Inverter system, the unit is able to implement correct power modulation resulting in high energy savings, excellent performance and particular attention to the environment . It guarantees the achievement of the highest energy classes and reduces waste to a minimum . This also ensures minimal vibration and noise, placing it among the quietest outdoor units on the market . It has a heat exchange fan with a helical-type exterior with suction on the rear side and horizontal delivery on the front side with an air flow rate of 35 m3/min. Type of BLDC inverter motor with air flow and low noise.
Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately. Installation and maintenance are facilitated by the removable right panel for connection operations with the refrigerant circuit, with integrated handle to facilitate transport and positioning of the unit; from the removable upper cover to access the control components with integrated handle on the right side to facilitate transport and positioning of the unit and from the protection grille on the air expulsion.
WARRANTY
The warranty is the official LG one and lasts 2 years.

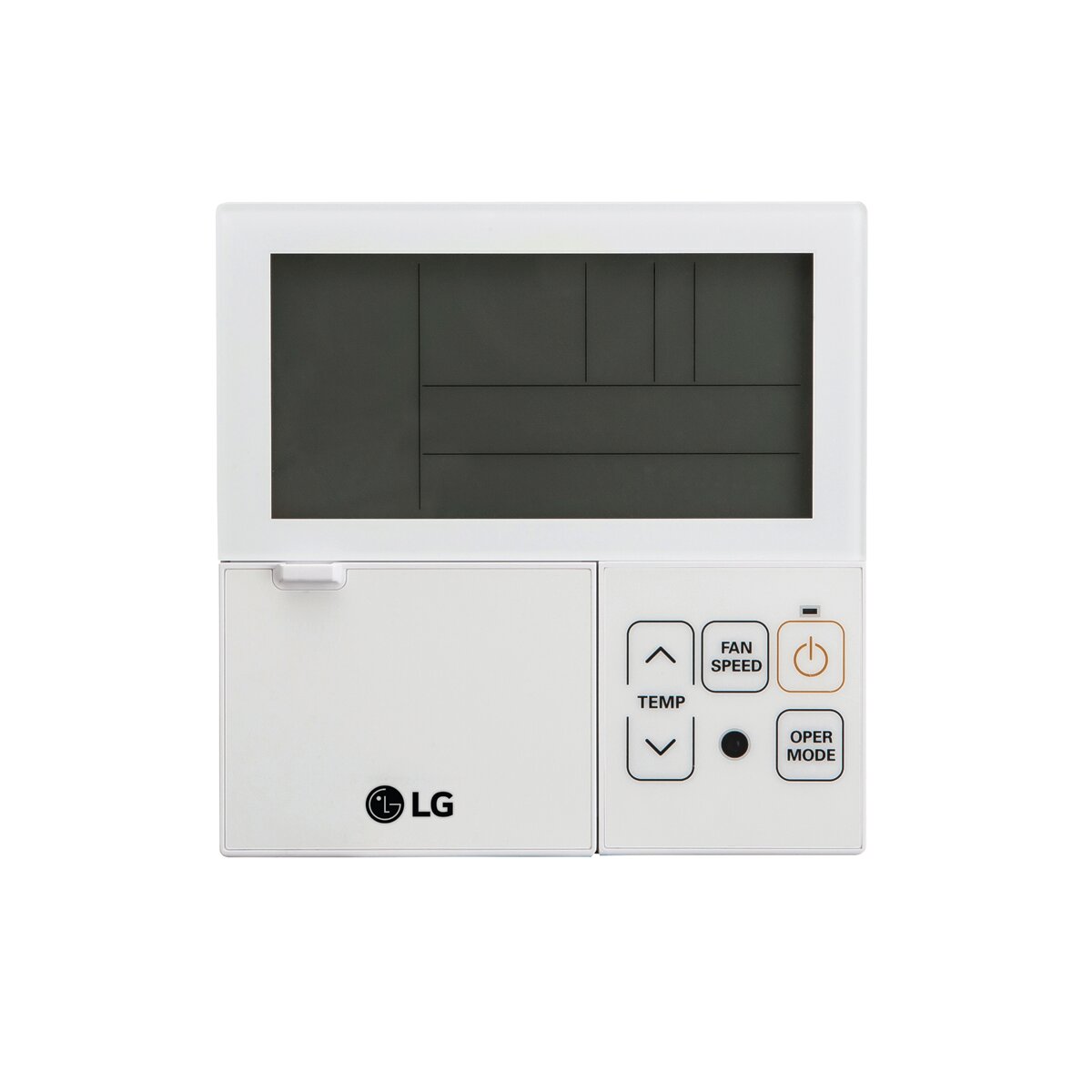

LG PREMTB001 Standard Wired Controller for LG Air Conditioning Systems
The LG PREMTB001 Standard wired control allows the management of LG air conditioning systems. The large LCD display, the blue backlighting and the elegant design make this accessory a complement that enhances the spaces. The use of the wired control allows the use of a weekly program for the management of the unit and allows the detection of the room temperature directly from the position in which it is located.
It has the following features and functions:
- ON-OFF function
- Fan speed
- Temperature regulation
- Display Backlight
- Infrared control receivers
- Sensor for detecting ambient temperature
- Air flow direction flap control
- Weekly timer (2 on/off cycles per day).
Compatible with LG series: Libero Smart - Atmosphere - ARTCOOL Mirror - Deluxe - 4-way cassette - Low prevalence ducted - Medium prevalence ducted - Ceiling - Console.
Includes 10m long cable supplied.
DIMENSIONS
- Width 120 mm_Height 120 mm_depth 15 mm
WARRANTY
The warranty is the official LG one and lasts 2 years.
