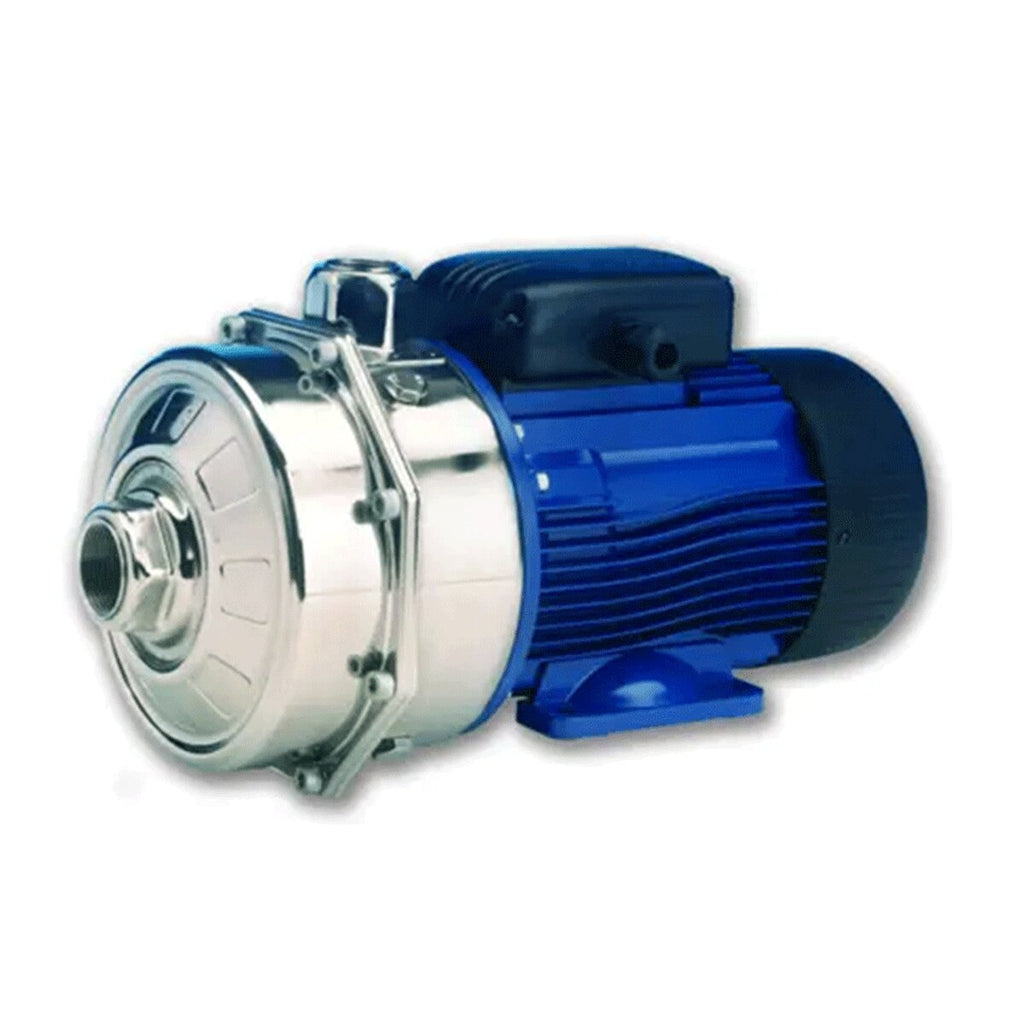

Lowara Xylem CAM 70/44/C single-phase clear water twin-impeller centrifugal pump 1.5 HP/1.1 kW

Lowara Xylem CAM 70/44/C single-phase clear water twin-impeller centrifugal pump 1.5 HP/1.1 kW

Power 1.1 kW - Head 33.4/48 m - Flow rate 4.8/1.8 m3/h

The Lowara CAM 70/44 pump is a horizontal twin-impeller centrifugal electric pump with axial suction and radial delivery ideal for civil, agricultural and industrial applications . Specifically, this pump is useful for the transport of clean water and liquids free from contamination, therefore chemically non-aggressive, for water supply and pressurization, irrigation and water circulation in air conditioning systems.

The Lowara CAM 70/44 pump is a real gem, both from a hydraulic and mechanical point of view. Analyzing the construction characteristics, the AISI 304 stainless steel impeller is highlighted, keyed directly onto the motor shaft protrusion and special coupling lantern for an excellent assembly, a mix that ensures stability, precision and high performance. The mechanical seals are in Ceramic/Carbon with elastomers and O-rings in NBR and remaining parts in stainless steel, therefore a perfect balance between flexibility and solidity designed to obtain maximum thermal efficiency and composition. Back pull out execution , i.e. the possibility of carrying out maintenance on the pump without removing it from the pipes, allowing quick and simplified removal of the impeller, lantern and motor. The Rp 1¼ suction and Rp 1 delivery ports are both threaded and have a support foot on the motor.

Further technical characteristics concern: short-circuited cage motor of the closed type with external ventilation, single phase 220-240 V, 50 Hz, 2 Poles, with IE2 efficiency level; condensate drain plugs; degree of protection: IP 55 as motor (EN 60034-1) - IP X5 as electric pump (EN 60335-1); built-in automatic reset overload protection; the rotation is anti-clockwise if you look at the pump from the side of the suction port and performance according to EN 60034-1. Some precautions are then fundamental for correct use: max ambient temperature of use 45°C ; temperature of the pumped liquid from -10°C to +85°C ; maximum operating pressure 8 bar .

The installation must be carried out by expert and qualified personnel; further information regarding installation methods and technical specifications is contained in the instruction booklet supplied with the product, which we recommend viewing before starting.

DIMENSIONS

- Width 208 mm_Height 242 mm_Depth 420 mm

- Weight 16 kg

WARRANTY

The warranty is the official Lowara Xylem one and lasts 2 years.
