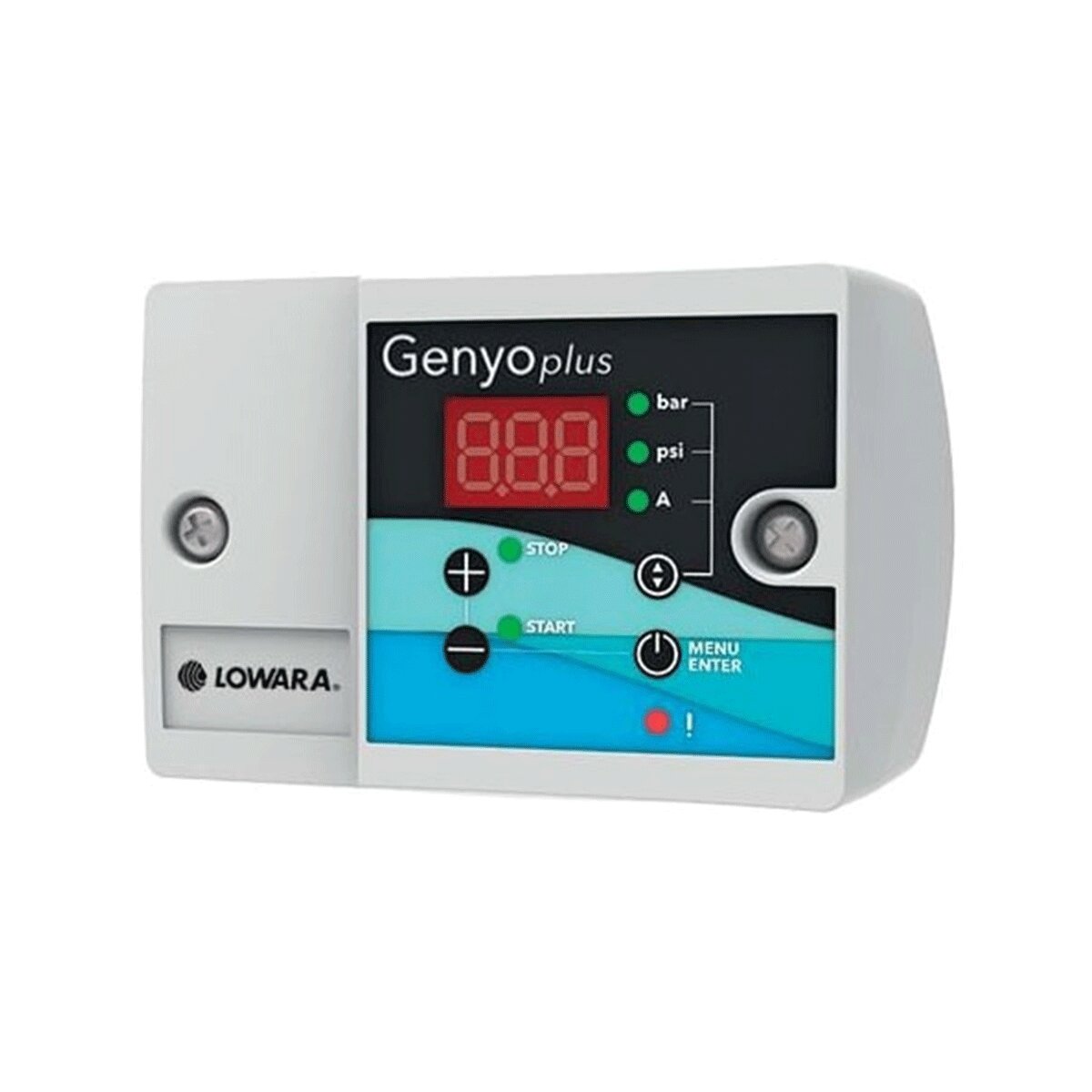

Lowara Xylem Genyo Plus electronic pressure switch 16A/R 0.5 -8 110 230 V

Lowara Xylem Genyo Plus electronic pressure switch 16A/R 0.5 -8 110 230 V

Lowara Xylem Genyo Plus is an electronic pressure switch with integrated digital pressure gauge and complete set of pump protection ; its function is to manage the start and stop of single-phase electric pumps up to 3 HP (2.2 kW). In fact, the pressure switch is a pressure regulator that allows you to automatically control the starting and turning off of the electric pump according to the actual water demand, avoiding pressure variations, optimizing the activity, performance and average life of the pump. electric pump with benefits for the entire system, and with the result of reliable and constant pressure where and when needed.

It is equipped with an intuitive interface through which to set the pressure adjustment, activation and deactivation points, created to manage the settings in a simple but precise way; it also includes instant current reading and overcurrent protection, dry running and rapid cycle as well as three operating modes (differential, reverse and synchronized) which guarantee extreme versatility of the product of its kind. By virtue of its technical characteristics it offers complete protection of the pump : protection against dry running with automatic reset test; overcurrent protection; rapid cycle protection, in fact the unit detects potential leaks which can lead to frequent starts-stops which are harmful to the system and activates an alarm.

Lowara Xylem Genyo Plus is suitable for multiple fields of application : drinking water supply, gardening, groundwater supply. As for the first, it is WRAS certified for use with drinking water and can be applied to any 2-pump booster set, managing the cyclic exchange between the two pumps and balancing the operating times; as for the second, Genyo plus can be combined with any surface pump (up to 2.2kW single-phase) to provide a gardening irrigation system with the adequate pressure and finally, to provide the right pressure to the water table it can be combined with a submersible pump in order to meet domestic water needs, powering toilets, washing machines and other household appliances.

The Lowara Xylem Genyo plus electronic pressure switch, optimized with a pressure vessel, can significantly extend the life of the pump while simultaneously ensuring excellent performance and significant energy savings.

The installation must be carried out by expert and authorized technical personnel .

TECHNICAL FEATURES

- Power supply: 1 X 115 – 230V

- Frequency: 50/60 Hz

- Maximum current: 16A

- Maximum pump power: 2.2kW (3HP)

- Input pressure range: 0.5-7 bar

- Cut-off pressure range: 1 – 8 bar

- Protection class: IP55

- Maximum ambient temperature: 50°C.

DIMENSIONS

Width: 112 mm - Height: 75 mm - Depth: 75 mm

Weight: 0.5kg.

WARRANTY

The warranty is the official Lowara one and lasts 2 years.
