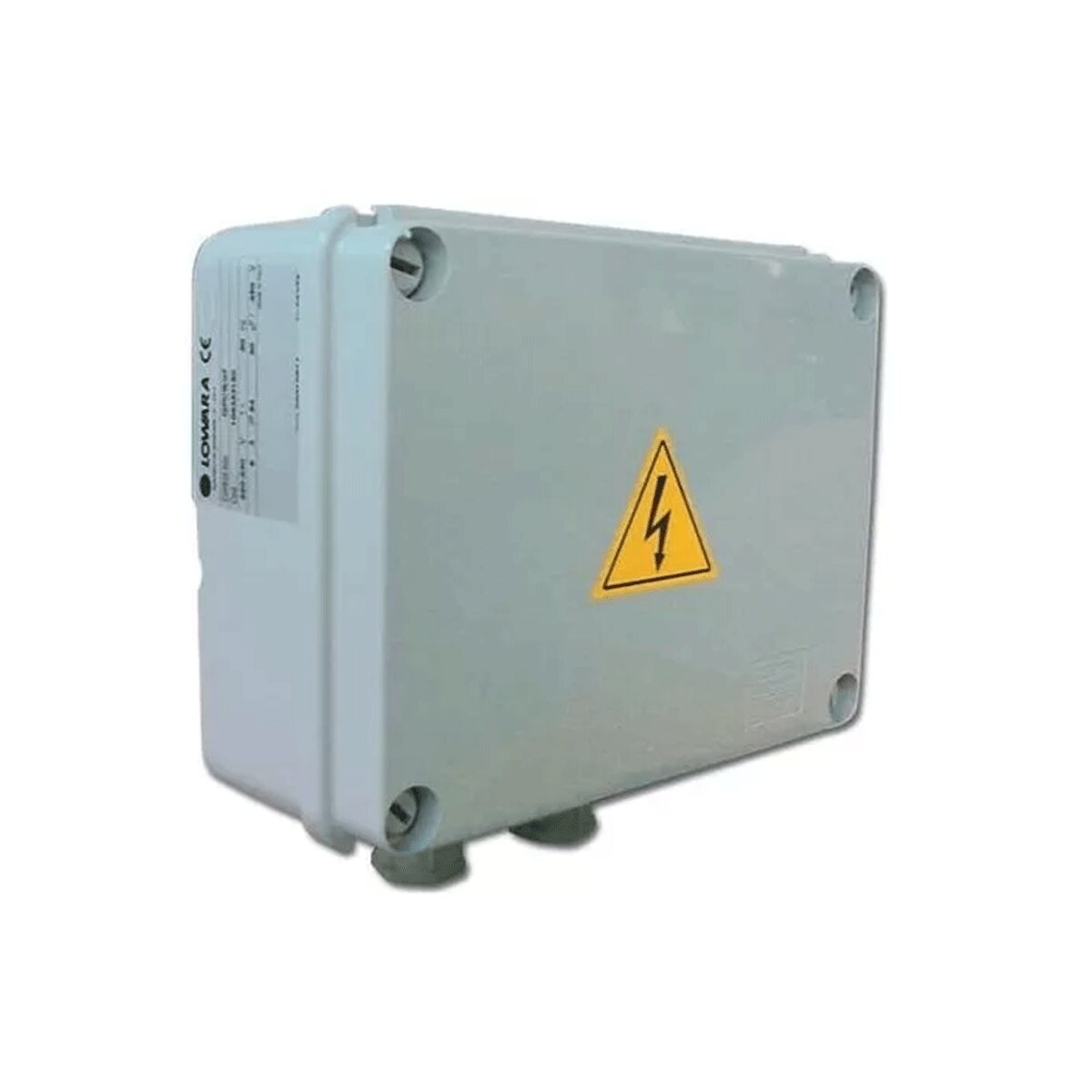

Lowara Xylem QPC/11 Electrical Panel for single-phase submersible electric pump 4 1.5 HP/1.1 kW
The Lowara QPC series has been specifically designed for the protection and control of a single-phase submersible electric pump 4.
Protective shell in plastic material, this electrical panel has a series of technical features designed to guarantee efficiency, functionality and safety. The presence of the built-in capacitor , for example, ensures stability and coordination with the other electronic components, avoiding the risk of voltage fluctuations and guaranteeing the correct functioning of the system.
But not only that , the Lowara ) and voltage indicator light; IP54 protection degree and power supply voltage 1 x 230 V ±10%, frequency 50 hZ.
Some precautions are then fundamental: first of all, preliminarily check that the current absorption of the pump is included in the operating range of the panel and that the installation site is suitable with an ambient temperature of -5 to +40 °C and a maximum relative humidity of 50 % at +40 °C as long as there are no condensation phenomena. Connect the power supply with a cable of suitable section, in any case not less than 3G1.5, following the instructions in the diagram inside the panel and taking care to prepare the protection devices relating to the power supply itself.
The electrical panel is installed on the wall with the supplied fins by expert and qualified personnel ; further information on installation methods and the technical characteristics of the product is contained in the instruction booklet supplied, which we always recommend consulting beforehand.
DIMENSIONS
- Width 170 mm_Height 170 mm_Depth 75 mm
- Weight 1.1kg
WARRANTY
The warranty is the official Lowara Xylem one and lasts 2 years .
