Multilayer fitting series 679 chrome 16x2 - 23 p.1,5 connections for Caleffi valves and lockshields

Fitting for CALEFFI 679 Series multilayer with 16X2 - 23 P. 1.5 connections for Valves and Lockshields

Code 679024

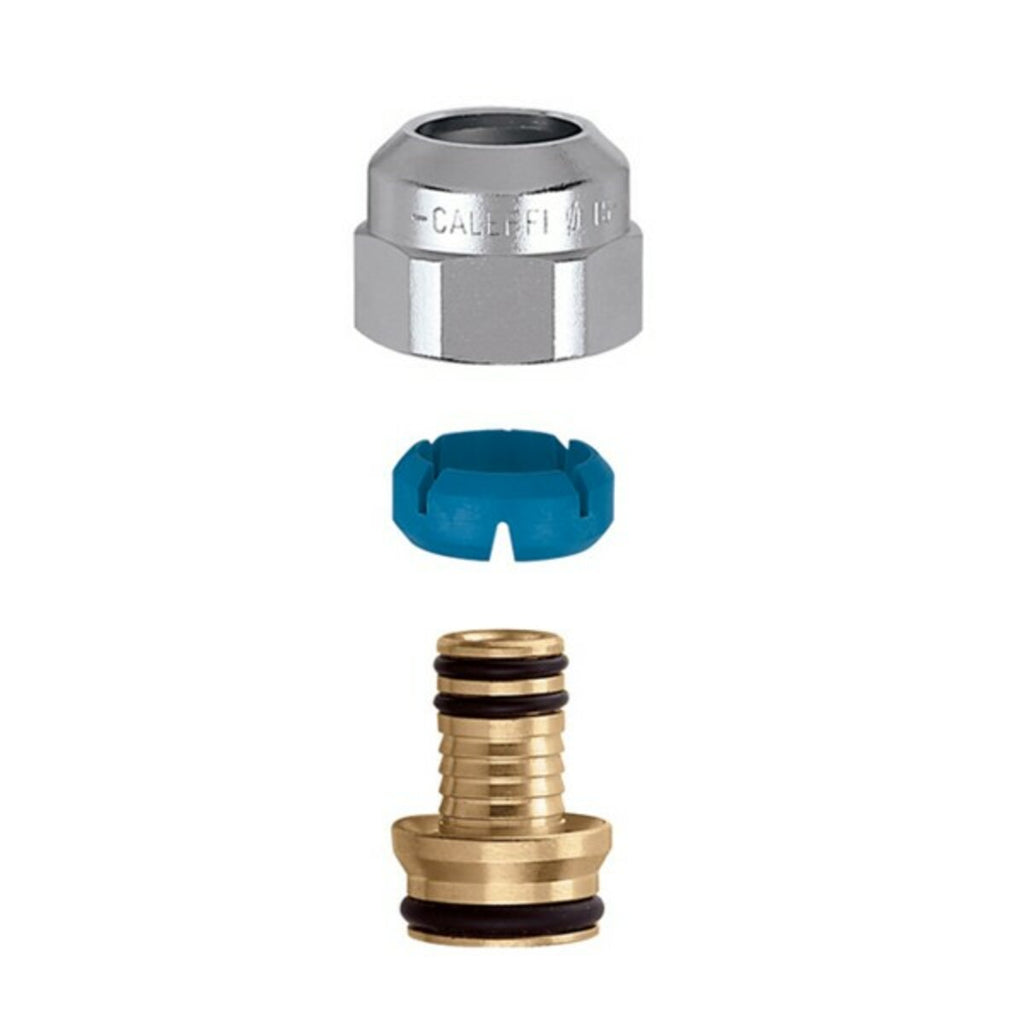

The CALEFFI 679 Series Multilayer Fitting is used to make the connection between the CALEFFI Valve or Lockshield and the 16X2 multilayer pipe that feeds the heating radiators.

GUARANTEED SAVINGS AND HIGH COMFORT

The CALEFFI 679 Series Connector for Plywood expresses the particular care that Caleffi dedicates to both the design and construction of the articles.

The square shape allows it to be installed in all cases where the pipes are positioned on the same fixing wall as the radiator, the dimensions of the body allow it to be installed on all radiator models.

The body is made of EN 12165 CW617N brass in a chromed color for a particular efficiency and durability over time, the hydraulic seals already incorporated are in EPDM, the hose ring is made of a high-strength polymer.

It can be used with a carrier fluid temperature range from 0 to 95°C and max operating pressure: 10 bar.

Installation is also quick because it does not require additional elements such as gaskets or hydraulic hemp; the dimensions are very small.

DIMENSIONS

Connections Ø 16X2 on the Pipe - 23 P.1,5 on the Valve or Lockshield

WARRANTY

The guarantee is the Official CALEFFI one and has a duration of 2 years.
