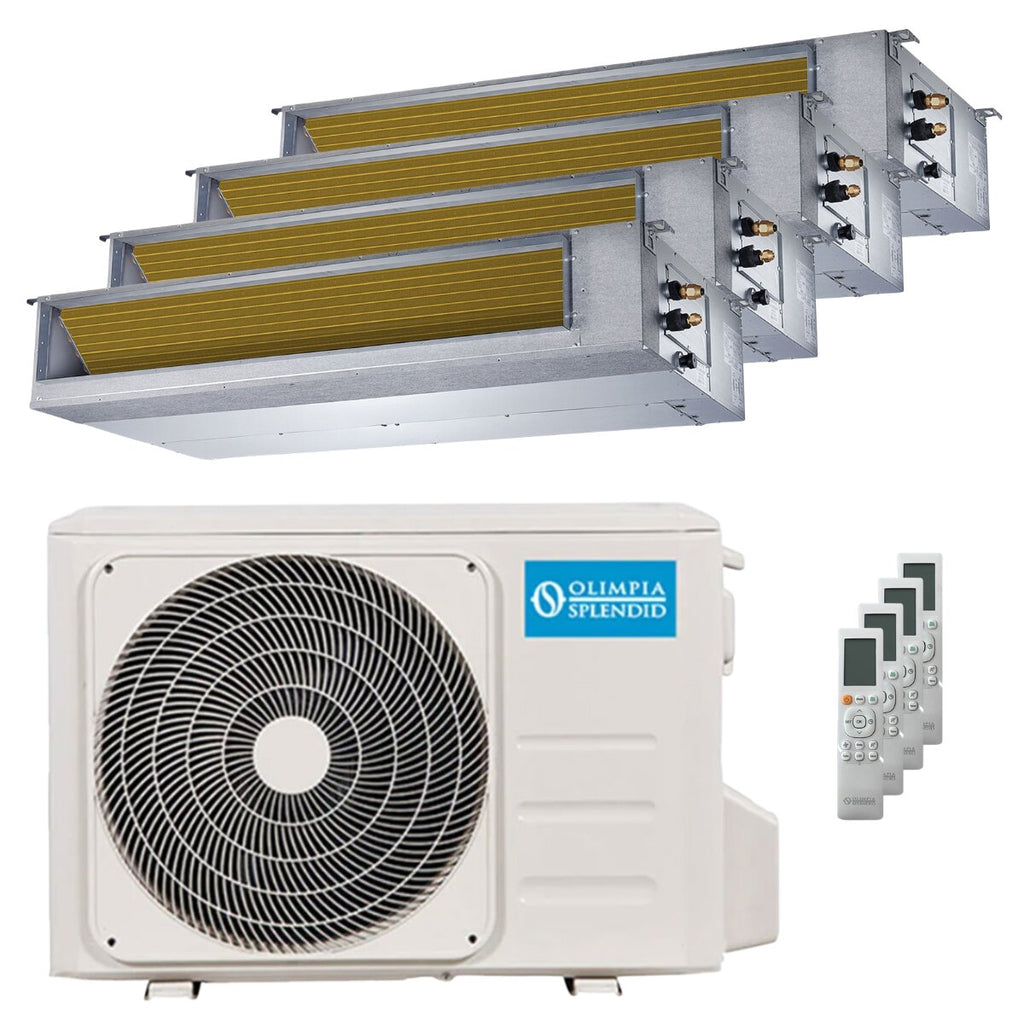

Olimpia Splendid Nexya S6 E Duct quad split air conditioner 9000+9000+9000+9000 BTU inverter A+ external unit 8.2 kW

The air conditioner kit is equipped with the following indoor units:

• 4 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m

The Olimpia Splendid Nexya E Duct [OS5/S6+IS6] range represents the new generation of ducted inverter air conditioners designed for commercial applications and for the air conditioning of large spaces. The system uses high-efficiency DC Inverter technology with eco-friendly , low-GWP R32 refrigerant, ensuring high cooling and heating performance, optimized consumption, and silent operation.

Ducted installation allows for uniform air distribution through ducts and vents, keeping the indoor unit completely concealed in the false ceiling, leaving only the outlet grilles visible. This solution improves the aesthetics of the rooms, ensures uniform comfort even in large spaces, and allows for more discreet and effective air conditioning compared to traditional wall-mounted split systems.

The Nexya E Duct S6 series also stands out for its great installation flexibility thanks to the compact size of the internal units, the reversible air intake and the automated management of the air flow.

Design, air quality and environmental comfort

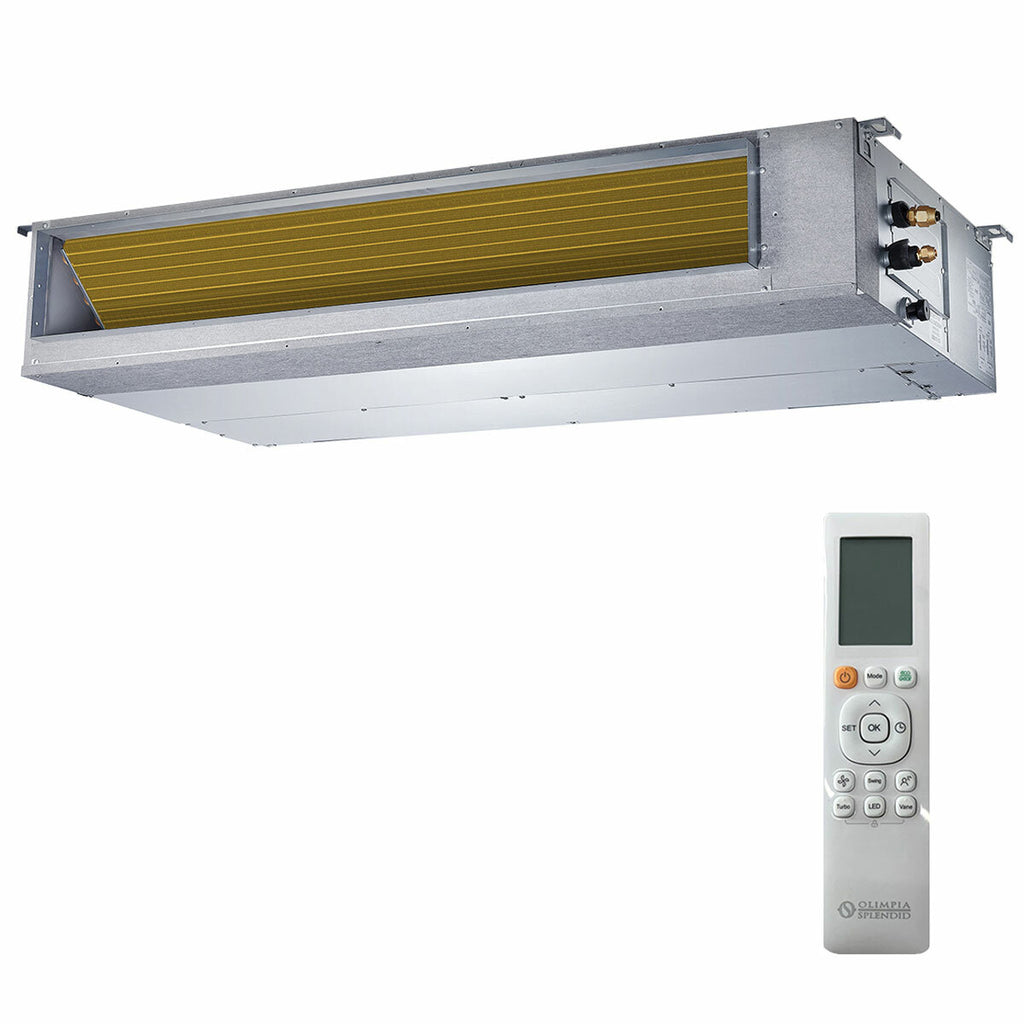

Nexya E Duct S6 indoor units are designed to adapt to different system configurations. The reversible air intake function allows the intake duct to be moved from the rear to the bottom of the unit by simply replacing a sheet metal panel. This allows the system to be installed even in suspended ceilings or utility rooms with limited space or unusual configurations.

The system also integrates an automated air flow function, which automatically adjusts operation based on the ducts connected to the unit, optimising comfort, available pressure and air distribution.

To improve indoor air quality, the units are equipped with:

• dust filtration
• dedicated intakes for external or fresh air
• Self Clean function, which automatically cleans and dries the evaporator, helping to reduce residual humidity, mold and impurities inside the unit.

The internal units also include:

• integrated condensate lifting pump
• external digital display to improve the reception of remote control signals
• adjustable static pressure up to 160 Pa, ideal even for more complex ducted systems.

Technology, functions and system management

The Nexya E Duct S6 range integrates numerous advanced functions dedicated to climate comfort, intelligent system management and energy optimisation.

The system manages: cooling, heating, dehumidification, ventilation ; Auto Mode: the Auto Mode function automatically selects the most suitable operating mode based on the room temperature, optimizing comfort and consumption; Sleep Mode: the Sleep mode automatically adjusts temperature and ventilation during the night to improve comfort and reduce energy consumption; Silent Mode: the Silent Mode function reduces the noise of the indoor unit to ensure maximum acoustic comfort, particularly useful during night-time operation or in professional environments; Turbo Mode: the Turbo mode allows you to quickly reach the desired temperature by temporarily increasing the power of the air conditioner; Eco Mode: the Eco Mode function optimizes energy consumption while maintaining high performance and reducing electricity consumption during continuous operation; Power Gear: the Power Gear function allows you to select different operating power levels to balance performance and energy consumption based on the needs of the room; Temperature Sensor: the system uses the temperature sensor integrated into the remote control to detect the temperature in the area actually occupied by users more precisely; Self-diagnosis: the self-diagnosis function detects any operating anomalies, facilitating maintenance and technical assistance; Auto-restart: In the event of a power outage, the Auto-restart function automatically restarts the air conditioner, maintaining the last settings stored before the blackout; Timer: The Timer allows you to program the air conditioner to automatically turn on and off according to your daily usage needs.

The system also features:

• terminals for remote ON/OFF control
• alarm contact for synchronization with external systems
• compatibility with Airzone control systems for advanced management of ducted air conditioning.

Management is via the remote control supplied as standard , intuitive and practical, furthermore, the Nexya E Duct S6 Olimpia Splendid series is set up for advanced management of the system via optional accessories to be purchased separately ( 4-wire wireless wall control B1234, wall-mounted wired control B0969, optional Wi-Fi disk kit B0970 for remote control of the air conditioner).

ACCESSORIES INCLUDED AS STANDARD

- Remote control.

WARRANTY

The warranty is the official one from Olimpia Splendid and lasts 2 years.

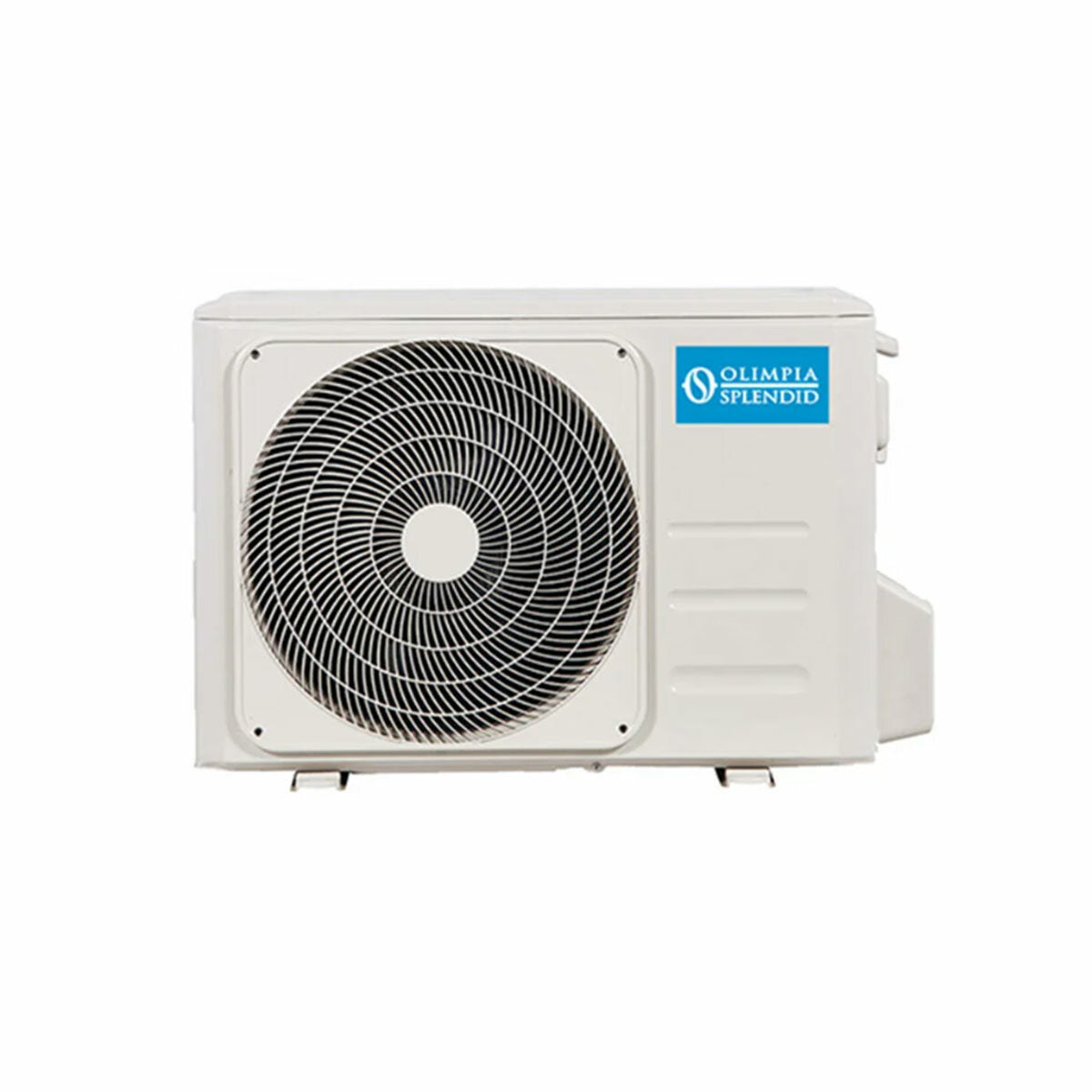

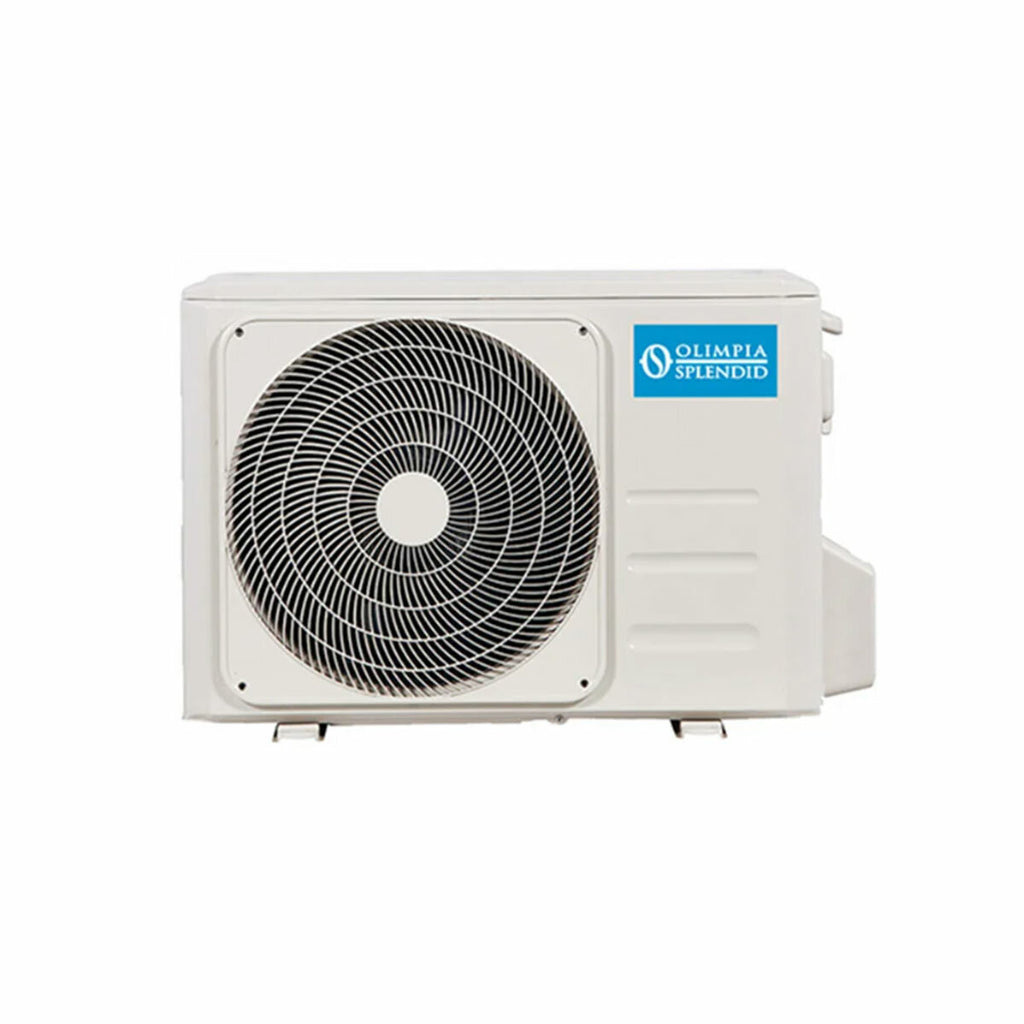

THE EXTERNAL UNIT

The External Unit for Olimpia Splendid multisplit air conditioners with four connections is equipped with a heat pump and inverter technology and represents the true heart of the air conditioner.

Multisplit outdoor units offer the great advantage of air conditioning multiple rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where space is limited for installing multiple outdoor units or when you want to reduce the visual impact of this air conditioning component on the facade of the property being air-conditioned. This outdoor unit allows you to connect and power two, three, or four OLIMPIA SPLENDID indoor units from all compatible series, even with different power ratings; the indoor units will always operate independently and each will be equipped with its own control.

GUARANTEED SAVINGS

The OLIMPIA SPLENDID multisplit outdoor unit for air conditioners always provides power truly proportionate to the number of indoor units operating and offers the option of installing the right air conditioner for the room being air-conditioned. The remarkable performance of the outdoor unit allows the connected indoor units to offer great comfort to users, whether using the system for cooling in the summer or heating in the winter. The Olimpia Splendid high-efficiency compressor ensures maximum efficiency with minimal electricity consumption; the inverter system increases savings and keeps set temperatures constant and without temperature fluctuations, ensuring maximum user comfort. The heat pump allows the air conditioner to be used both for cooling in the summer and for heating in the winter.

The very silent compressor helps you to respect your sleep and that of your neighbors.

For operation it uses R32 gas which has a very low environmental impact and therefore contributes significantly to respecting nature and reduces energy consumption , thus benefiting the cost of the bill.

The external unit of the Olimpia Splendid monosplit NEXIA S4 E inverter air conditioner can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.

WARRANTY

The guarantee is the official Olimpia Splendid one and lasts 24 months.
