Natural Circulation - Solar panel 1.52 sqm, Capacity 140 litres, pitched roof fixings and flat roof bracket.
EGO 150
Ideal for the water demand of 2-3 people
THE SOLAR THERMAL SYSTEM
Finally he has arrived!

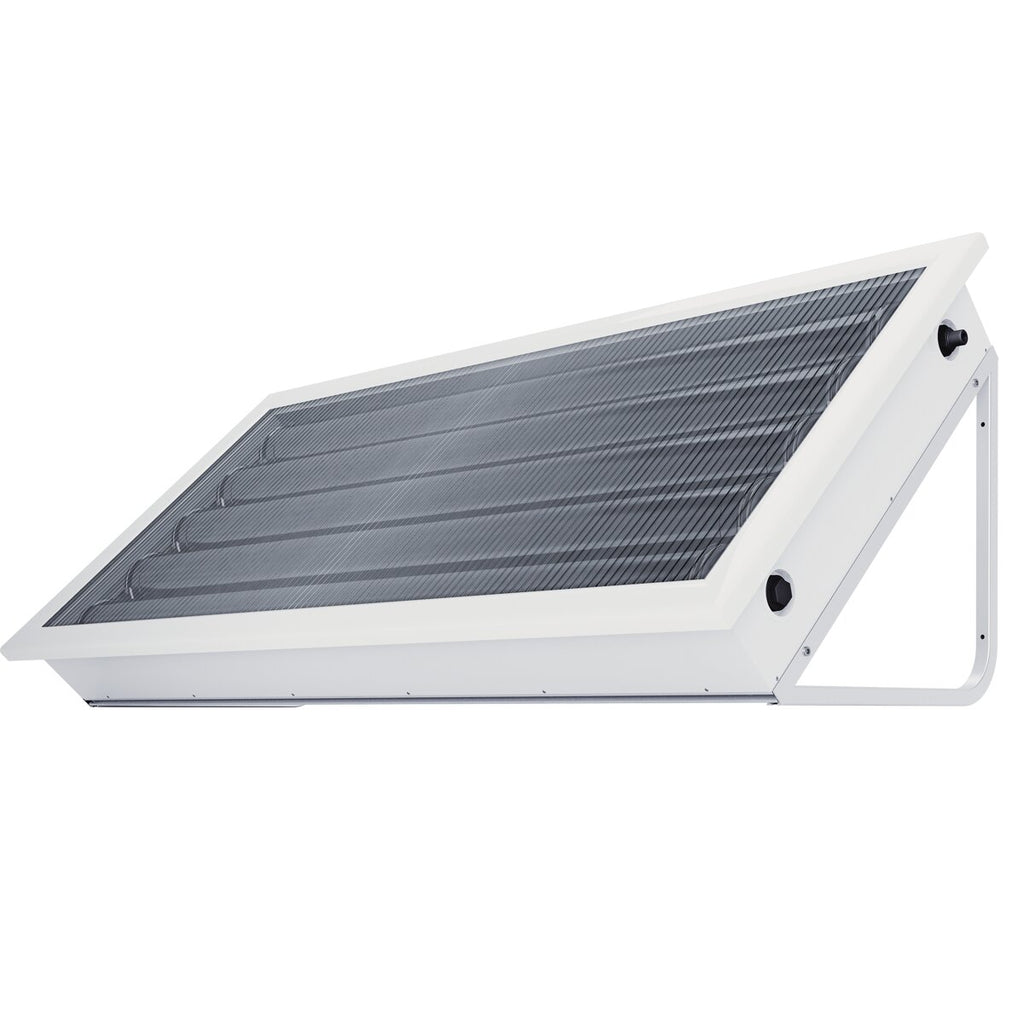

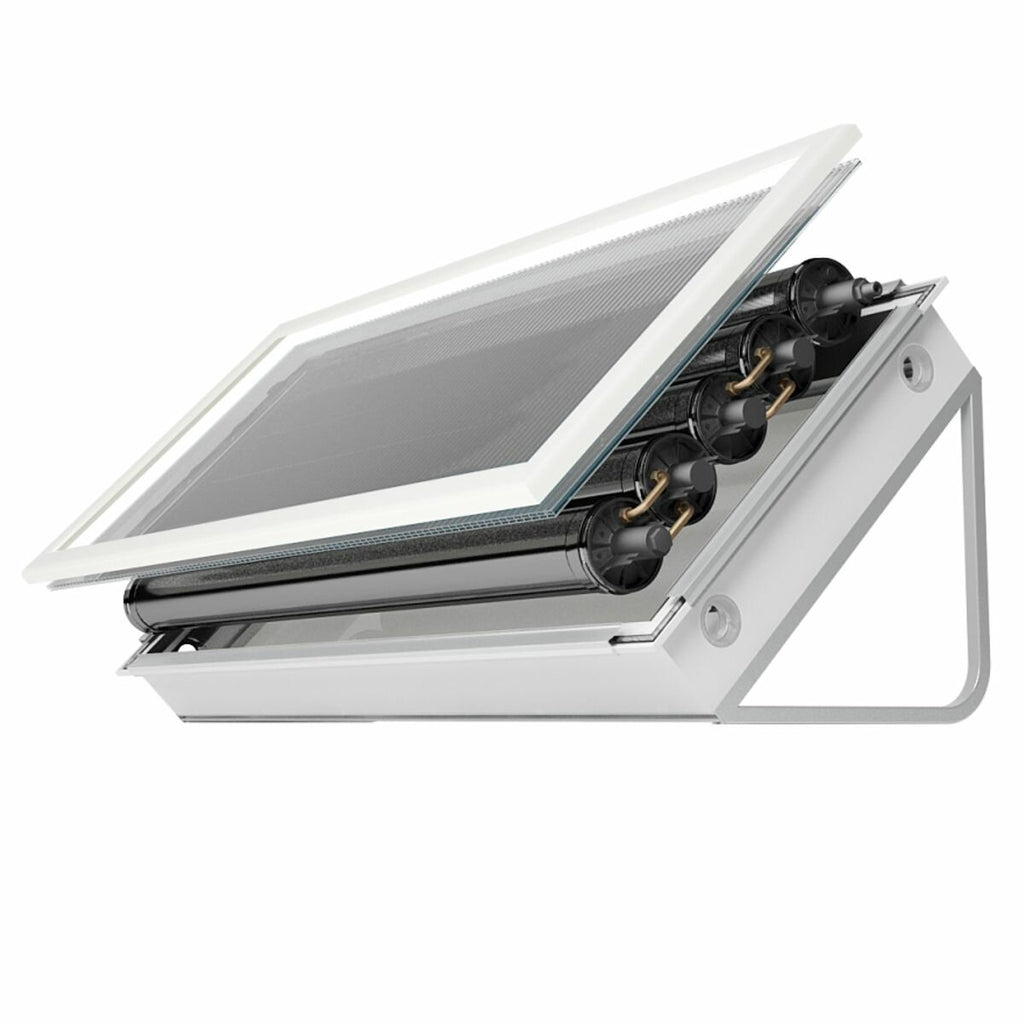

The era of unsightly solar panels with cylindrical tanks that, however efficient and convenient, horribly disfigure the aesthetics of buildings, is over. The PLEION EGO solar collector (SMART SOLAR BOX) is the solar system with natural circulation without visible accumulation; nice to look at because it has the shape of a roof window and because it is offered with a frame which as standard can be in “lunar white” or “tile brown” colour, which can be perfectly integrated anywhere because it is extremely thin. PLEION has succeeded where only a few had simply dared: EGO represents the great novelty of natural circulation solar systems because it is an all-in-one integrated solution that eliminates the unsightly external boiler and replaces it with special steel pipes through which the water flows and is heated by the sun's rays. It is available in five sizes that vary in storage capacity and overall dimensions. Designed to offer maximum efficiency and built to last, all materials used are of the highest quality. The domestic hot water storage tank is made of stainless steel for marine applications and is suitable for storing drinking water, it is integrated in the panel and is made with a highly resistant to corrosion alloy; the innovative Lexan sheet reduces heat dispersion, eliminates the condensation effect and makes the PLEION EGO collector particularly resistant to atmospheric agents because it is anti-hail; the insulation was made with top quality materials and with great care; the PVC structure makes the whole block compact, light, thin and resistant.
Ideal for both flat and sloping roofs, it is equipped with support brackets in 100% recyclable material, light and with an elegant design. The EGO solar kit is light, ready to use and can be installed easily and very quickly; the installation kit already includes the standard mounting brackets for installation on pitched roofs, the basic supports for installation on flat roofs, the air ventilation valve and the safety valve.
GUARANTEED SAVINGS AND HIGH COMFORT
The PLEION EGO natural circulation solar panel allows incredible savings on the production of domestic hot water which will really be supplied at “ zero cost ”. It does not require any electrical connection unless you choose to integrate it with the electrical resistance (optional). The possibility of choosing the most suitable capacity size for the number of occupants in the home allows you to easily find the model that best suits your needs.
TECHNICAL FEATURES
- High efficiency eco-sustainable green system
- Complete, ALL-IN-ONE (ACCUMULATOR + COLLECTOR)
- Natural circulation (use gravity)
- Weight 43 Kg
- Removable, interchangeable frame
- Pipes in special steel or plastic material
- Corrosion resistant alloy tank
- Basic support brackets
- Sheet in LEXAN® which significantly reduces heat loss
- Dimensions: mm. 2136x906x220
- Gross area 1.93 m²
- Opening area 1.48 m²
- Absorption surface 1.13 m²
- Empty weight 43 Kg
- Operating weight 183 Kg
- Number of internal pipes 4x35 lt
- Maximum inlet water pressure 3 bar
- Maximum working pressure 400 kPa
- Bottom and side pure insulation 30/25 mm
- Maximum temperature 90°C
- Thermal integration electric heater (optional): power 1.0/2.0 kW, voltage-frequency 220-50 V-Hz, regulation +48:+53 °C
- Antifreeze electric heater (optional): power 300 W, voltage-frequency 220-50 V-Hz, regulation +4:+8 °C
- Tilt range 15°-60°
- Recommended number of people: 2-3.
DIMENSIONS
Length 2136 mm - Width 906 mm - Height 220 mm.
WARRANTY
The warranty is the official PLEION one and has a duration of 2 years.
