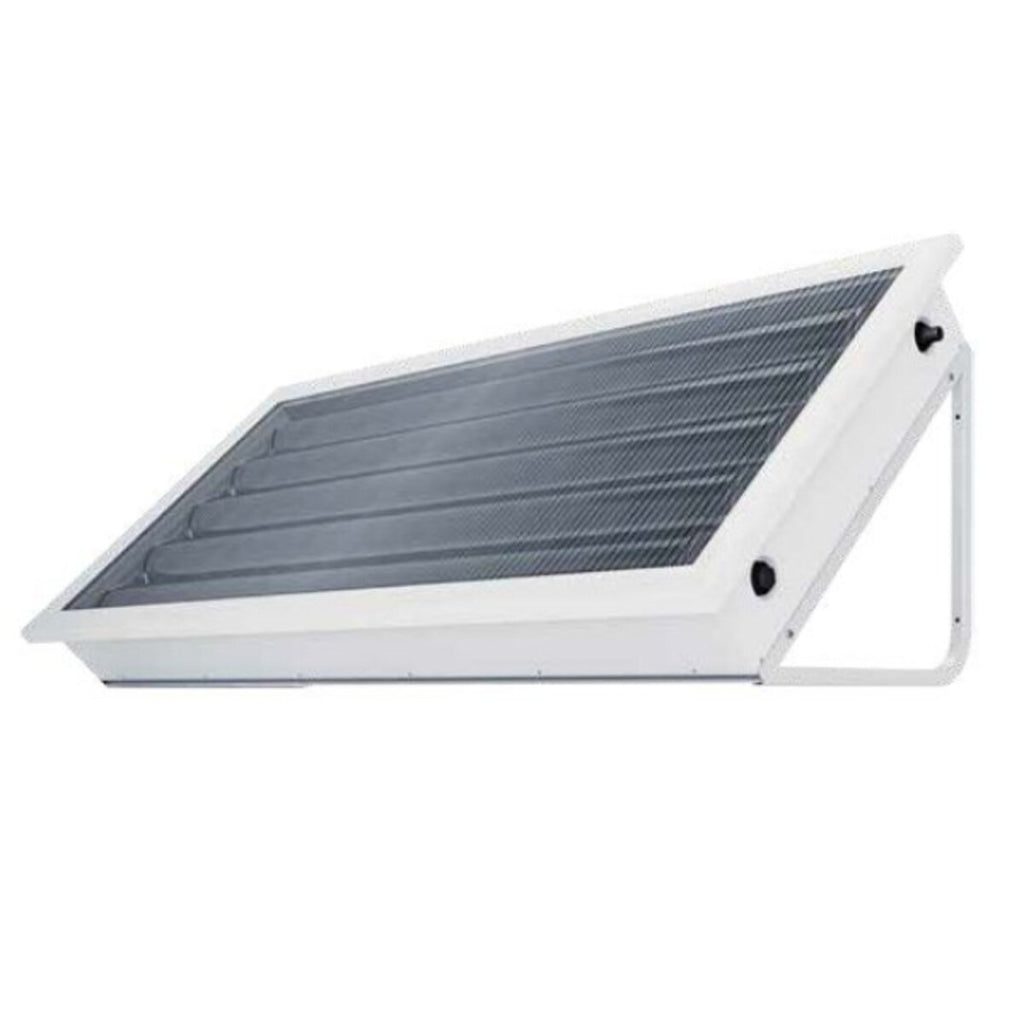

Pleion Ego 220 white natural circulation solar panel 210 liters flat and sloping roof

Natural Circulation - 2.77 SQM solar panel, 210 liter capacity, pitched roof fixings and flat roof bracket.

EGO 220

Ideal for the water demand of 4-5 people

THE SOLAR THERMAL SYSTEM

Finally he has arrived !

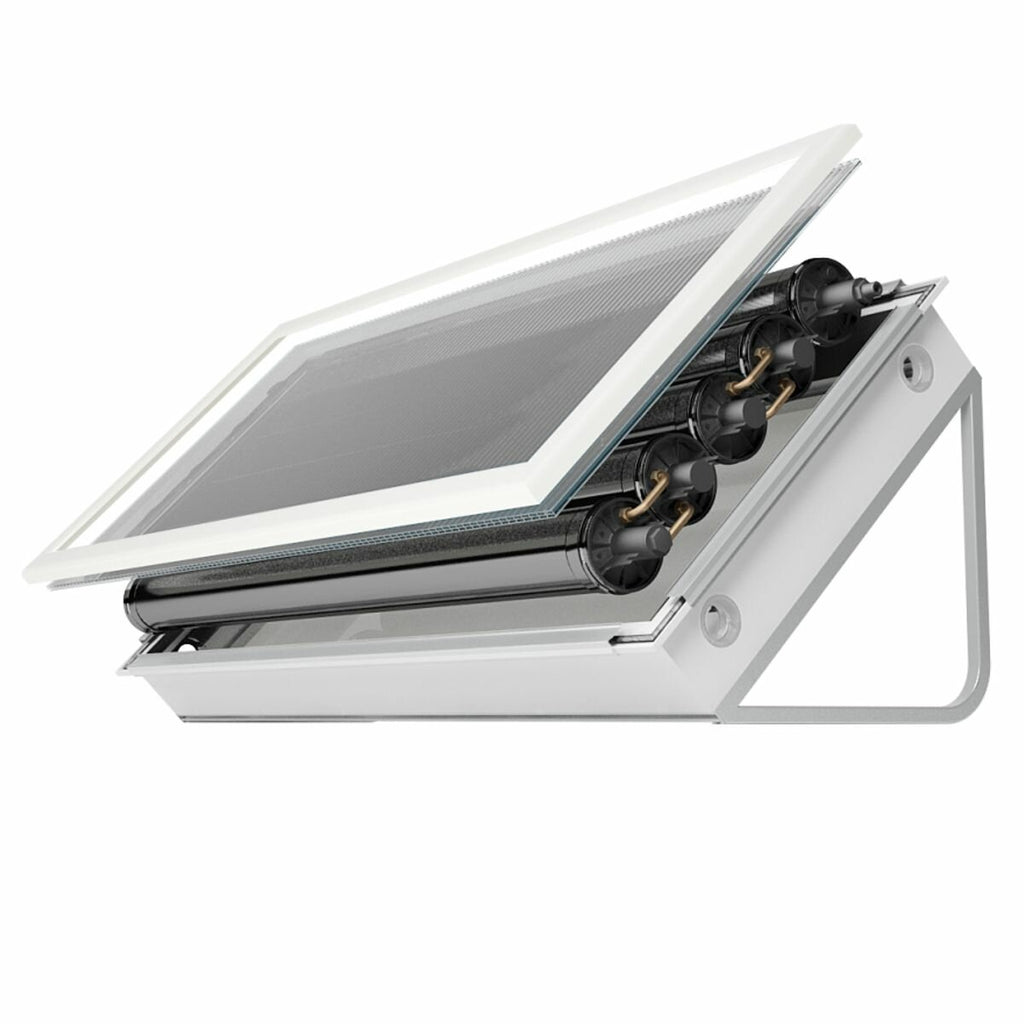

The era of unsightly solar panels with cylindrical tanks which, however efficient and convenient, horribly disfigure the aesthetics of buildings, is over. The PLEION EGO solar collector (SMART SOLAR. BOX.) is the natural circulation solar system without visible storage ; beautiful to look at because it has the shape of a roof window and because it is offered with a frame which as standard can be colored "lunar white" or "brown tile", which can be perfectly integrated anywhere because it is extremely thin. PLEION has succeeded where only a few had simply dared: EGO represents the great innovation of natural circulation solar systems because it is an all-in-one integrated solution that eliminates the unsightly external boiler and replaces it with the special steel tubes through which the Water flows and is heated by the sun's rays. It is available in five sizes that vary in storage capacity and overall dimensions. Designed to offer maximum efficiency and built to last, all materials used are of the highest quality . The domestic hot water storage tank is made of stainless steel for marine applications and is suitable for storing drinking water , it is integrated into the panel and is made with a highly corrosion-resistant alloy; the innovative Lexan sheet reduces heat dispersion, eliminates the condensation effect and makes the PLEION EGO collector particularly resistant to atmospheric agents because it is hailproof; the insulation was made with top quality materials and with great care; the PVC structure makes the whole block compact, light, thin and resistant.

Ideal for both flat and sloping roofs, it is equipped with support brackets made of 100% recyclable material, lightweight and with an elegant design. The EGO solar kit is lightweight, ready to use and installs easily and very quickly; the installation kit already includes as standard the mounting brackets for installation on the pitched roof , the basic supports for installation on the flat roof , the air ventilation valve and the safety valve .

GUARANTEED SAVINGS AND HIGH COMFORT

The PLEION EGO natural circulation solar panel allows incredible savings on the production of domestic hot water which will truly be supplied at " zero cost ". It does not require any electrical connection unless you choose to integrate it with the electrical resistance (optional). The possibility of choosing the capacity size best suited to the number of occupants in the home allows you to easily find the model best suited to your needs. The purchase can be incentivized through the Conto Termico contribution from the GSE.

TECHNICAL FEATURES

- High efficiency eco-sustainable green system

- Complete, ALL-IN-ONE (STORAGE + COLLECTOR)

- Natural circulation (uses gravity)

- Weight 57 kg

- Removable, interchangeable frame

- Tubes in special steel or plastic material

- Corrosion resistant alloy accumulation

- Basic support brackets

- LEXAN® sheet which significantly reduces heat dispersion

- Dimensions: mm. 2136x1296x220

- Gross surface area 2.77 m²

- Opening surface 2.25 m²

- Absorption surface 1.69 m²

- Empty weight 57 kg

- Operating weight 267 kg

- Number of internal pipes 6x35 lt

- Maximum inlet water pressure 3 bar

- Maximum operating pressure 400 kPa

- Bottom and side insulation 30/25 mm

- Maximum temperature 90°C

- Thermal integration electric resistance (optional): power 1.0/2.0 kW, voltage-frequency 220-50 V-Hz, regulation +48:+53 °C

- Antifreeze electric heater (optional): power 300 W, voltage-frequency 220-50 V-Hz, regulation +4:+8 °C

- Tilt range 15°-60°

- Recommended number of people: 4-5.

DIMENSIONS

Length 2136 mm - Width 1296 mm - Height 220 mm.

WARRANTY

The guarantee is the official PLEION one and lasts 2 years.
