Pleion FREE S 200/1 (Sloped Roof) Natural Circulation – 1 solar panel 2.02 m² + 200 litre boiler + fixings for sloping roof
Ideal for the water needs of 4 people
The solar thermal system

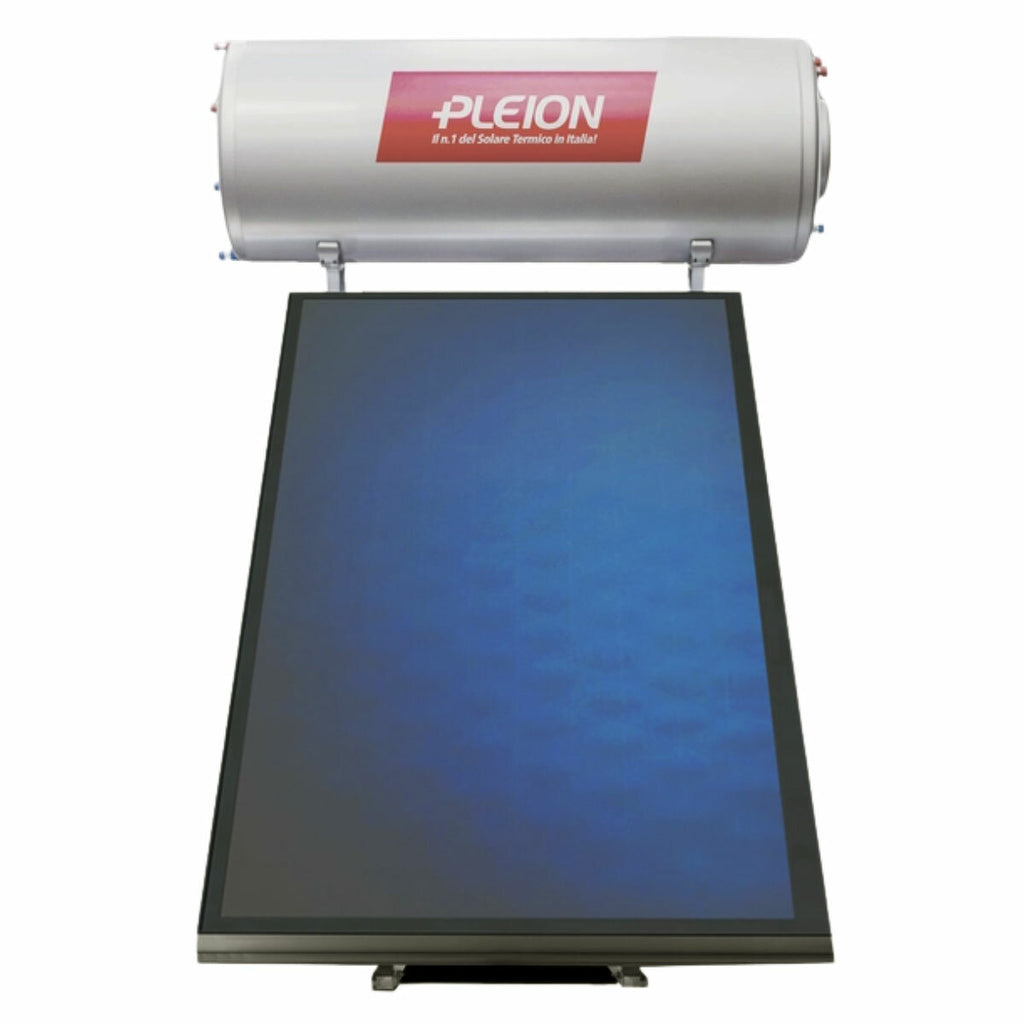

The new PLEION FREE S 200/1 natural circulation solar system is one of the brand's most high-performance systems. Suitable for pitched roofs, this system consists of a KSF-S20 solar panel and a 200-liter boiler .
The panels are among the most innovative on the market as they guarantee maximum light transmission and therefore offer high efficiency, savings and excellent performance even in periods of mediocre irradiation. The KSF-S20 solar collector consists of a large absorbing surface that captures and converts solar radiation into heat, through tempered glass that maximizes the amount of solar radiation absorbed. The frame, which is also very lightweight, has a resistant, robust structure and offers high protection against deterioration, thanks to the welded profiles and the above-average aluminum structure. The KSF-S20 collector can be installed both vertically and horizontally. The absorber is made of aluminum welded to the copper circuit using laser technology, with a peak collector power of 1444 W. The U1 class tempered glass cover is highly resistant; the internal rock wool insulation ensures minimal heat loss. The collectors are Solar Keymark certified .
The PLEION FREE S 200/1 natural circulation solar system combines a 200-litre boiler with the two panels. The boiler is of the cavity type for DHW, with optimal heat transmission via the cavity exchanger . This tank is certified (DIN 4753-3) , safe and efficient with a protective magnesium anode and thermal insulation guaranteed by the 50 mm insulation in self-extinguishing 45 kg/m3 rigid polyurethane foam with pre-painted sheet metal cladding. High-performance and durable over time, resistant to atmospheric agents.
The system is ready for installation ; it is supplied complete with a pitched roof installation system, a hydraulic kit for connecting the collector, a 1kW electric resistance and solar antifreeze liquid.
*NB : The pitched roof fixing system included in the package is for fixing to tiles/roof tiles using screws . It is possible to opt for fixing using under-tile hooks by purchasing a specific optional PLEION Hook System kit separately, which varies depending on installation requirements.
SAVINGS AND COMFORT GUARANTEED
The PLEION FREE S 200/1 solar system guarantees respect for the environment and a high level of comfort as well as significant energy savings , typical of the exploitation of natural energy. The PLEION FREE S 2 00/1 natural circulation solar panel allows incredible savings on the production of domestic hot water, which will be provided at truly “ zero cost ”.
OVERALL DIMENSIONS
Collector dimensions (single panel): height 2006 mm - width 1007 mm - depth 85 mm
Kettle dimensions: diameter 580 mm x length 1280 mm
WARRANTY
The warranty is the official Pleion one and lasts 2 years .
