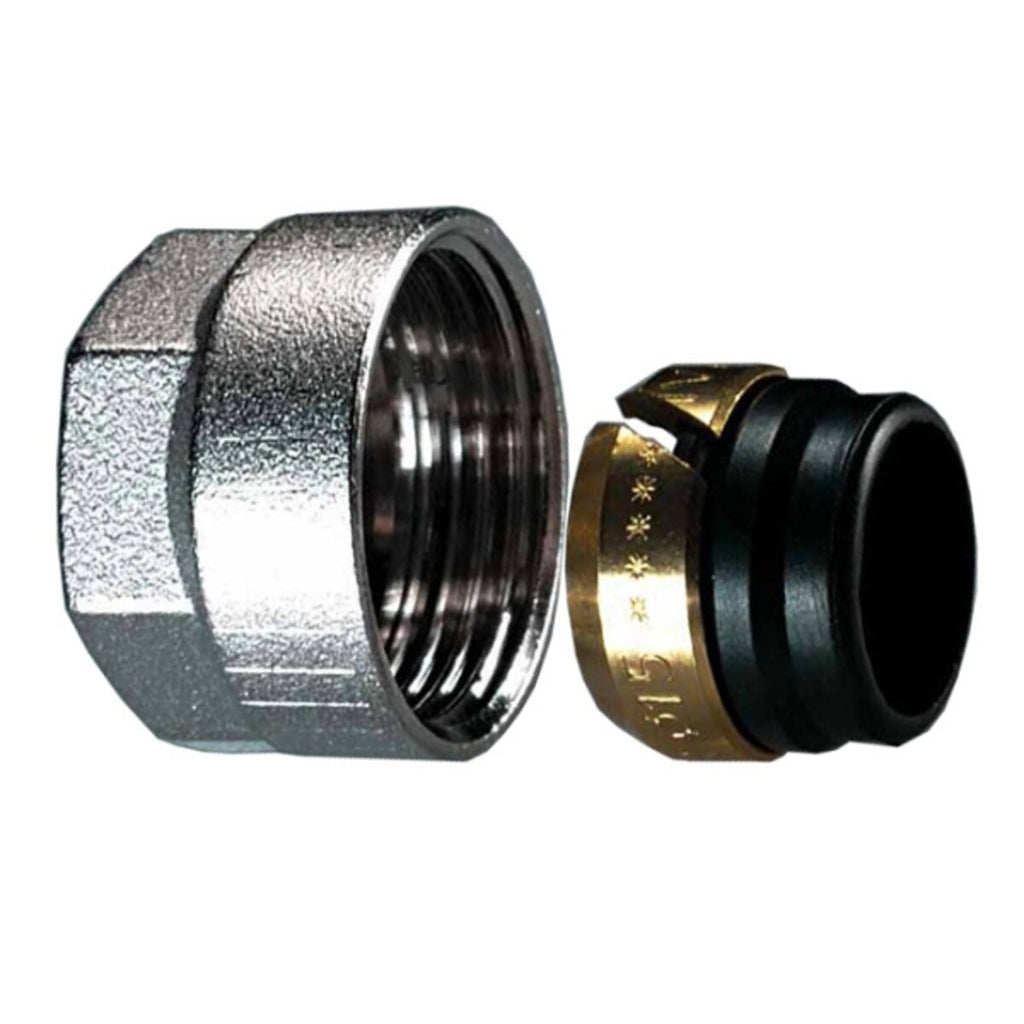

Rubber lockshield valve fitting for copper pipe 12mmx1 for Ivar lockshield valves

TR 4430 Fitting for IVAR copper pipe with 12X1 connections for valves and lockshields.

The IVAR copper pipe fitting is used to make the connection between the IVAR valve or lockshield valve and the 12X1 size copper pipe that feeds the heating radiators.

GUARANTEED SAVINGS AND HIGH COMFORT

The IVAR copper pipe fitting is made with particular constructional care.

The body is made of brass for greater efficiency and durability, the hydraulic seals already incorporated are made of EPDM, the hose ring is made of brass.

It can be used with a carrier fluid temperature range from 0 to 95°C and max operating pressure: 10 bar.

Installation is also quick because it does not require additional elements such as gaskets or hydraulic hemp; the dimensions are very small.

DIMENSIONS

Connections Ø 12X1 on the copper pipe.

WARRANTY

The guarantee is the Official IVAR one and has a duration of 2 years.
