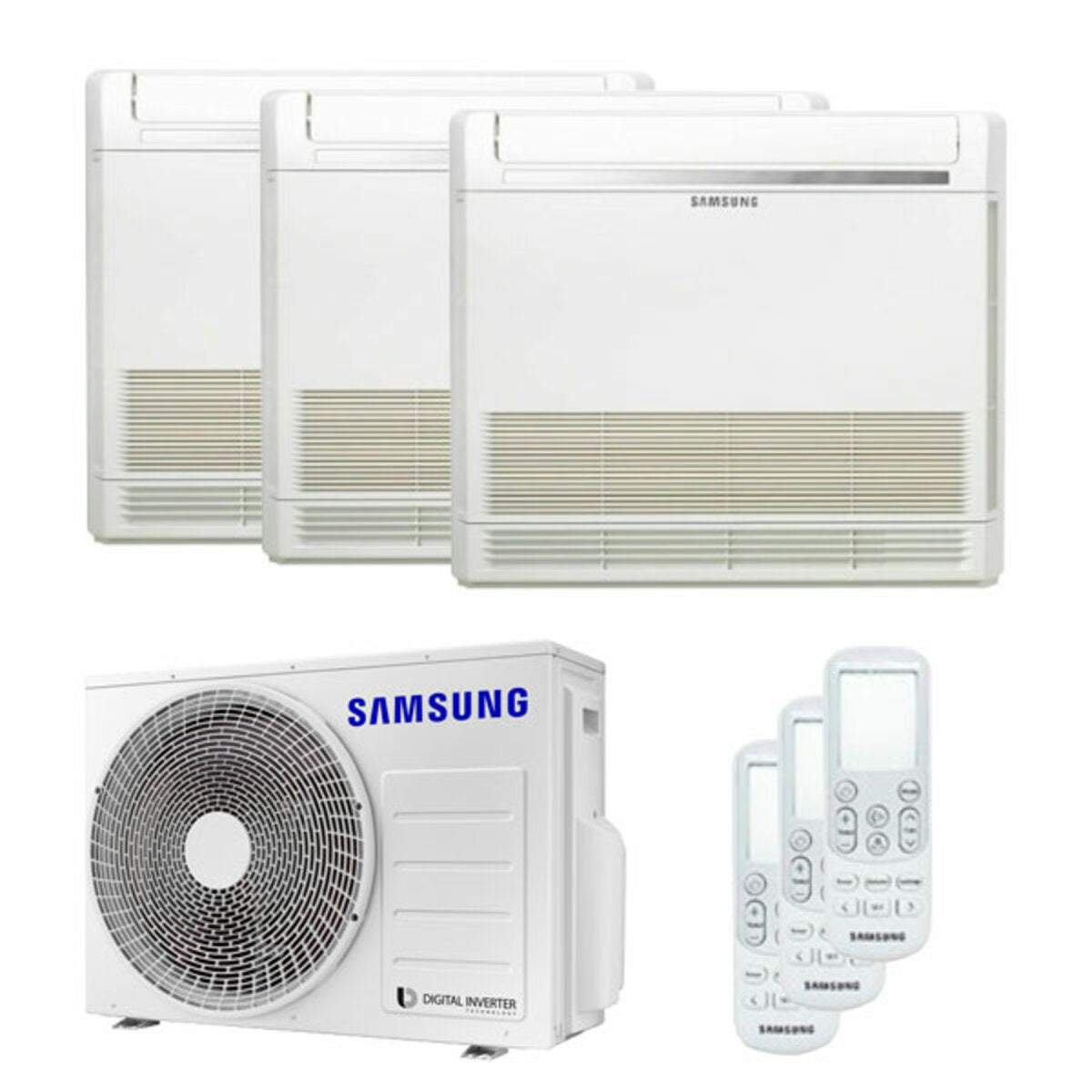

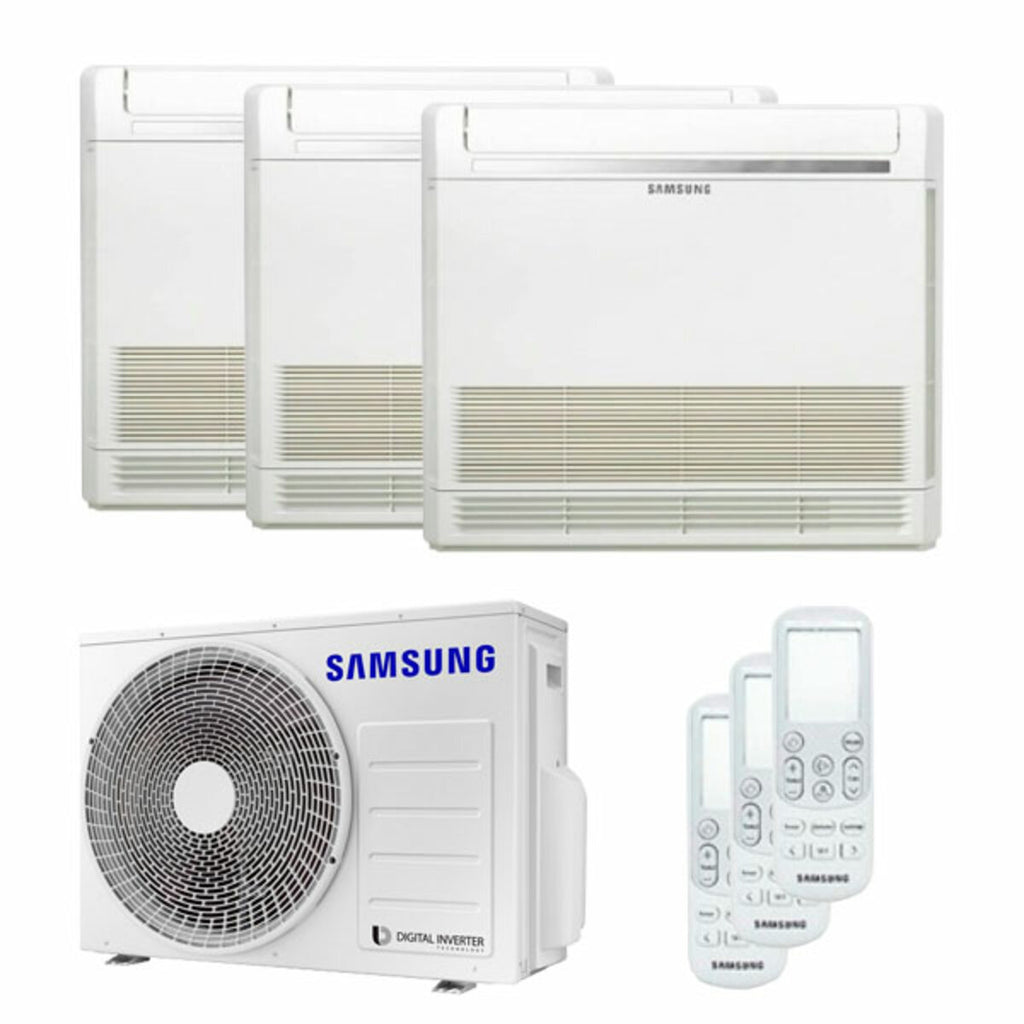

Samsung console trial split air conditioner 9000+9000+12000 BTU inverter A++ external unit 5.2 kWThe air conditioner kit is equipped with the following indoor units:
- 2 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m

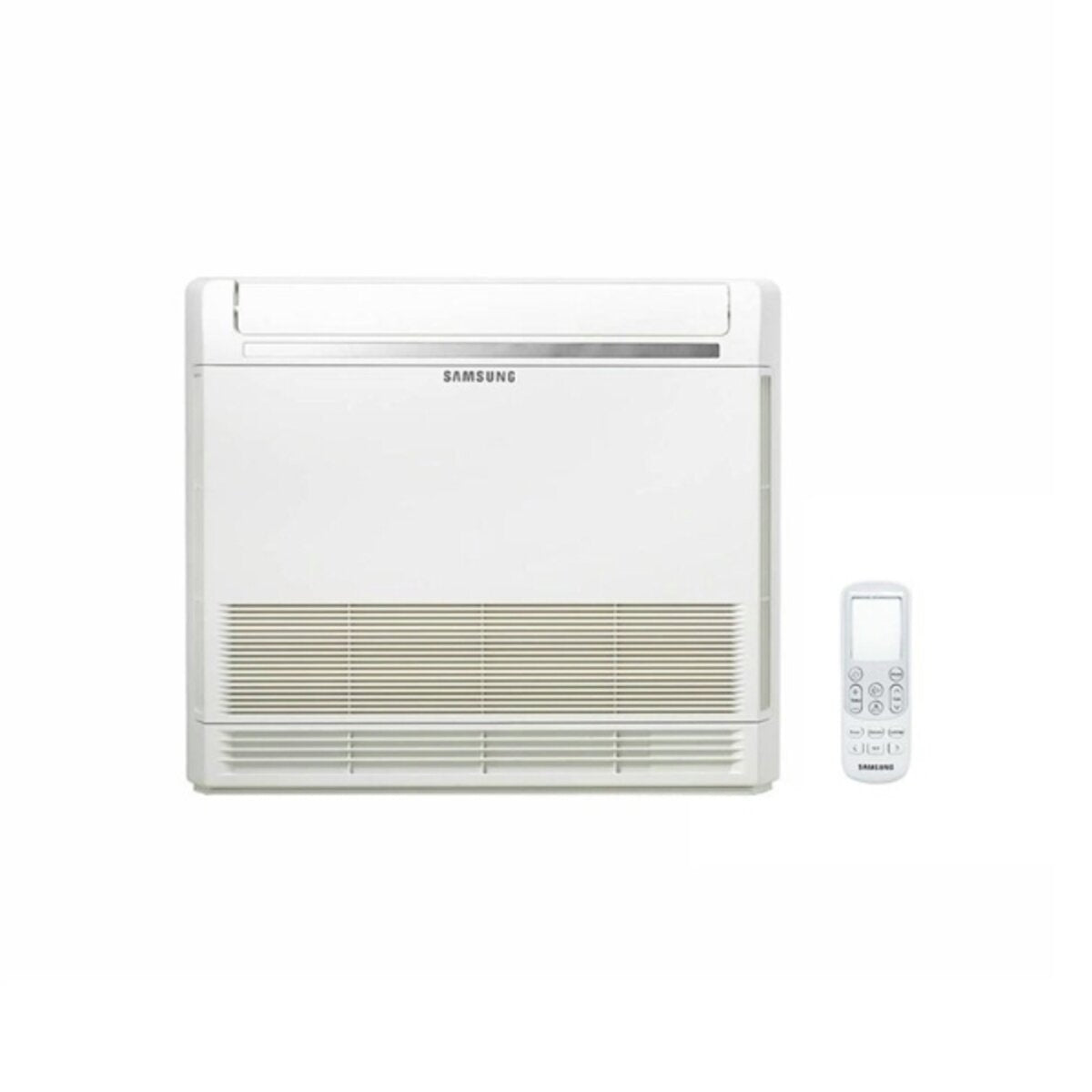

THE INDOOR UNIT
9,000 BTU - Ideal for rooms from 15 to 25 sq m with an average height of 2.7 m
In 2020 Samsung launched its first range of air conditioners with “NASA” communication protocol on the market; these also include the T series consoles .
The Samsung Air Conditioner Console indoor unit mounts low on the wall. The split console air conditioners are a valid alternative to the installation of standard radiators or fan coils and offer the advantage of sending the air flow "at eye level". The console units can also be easily installed under a window and are particularly suitable for attic apartments where it is always difficult to find suitable spaces to install the splits high on the walls. The 9000 BTU indoor unit presented here is used together with the inverter outdoor units to create the multisplit combinations of the range.
DESIGN
The Samsung T Console has an elegant and linear design, rounded corners and a slightly retro taste; it fits easily into any architecture and environment, be it a home, a business or a hotel, integrating with all types of furnishings. This type of indoor unit has small and very compact dimensions (only 199 mm thick) and takes up less space than a standard radiator or fan coil.
BREATHE CLEAN AIR
The antibacterial filter supplied removes the most common harmful agents , allows the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffuser fins have a particular shape that prevents the accumulation of dust.
PERFECT CLIMATE AND RELAX
The Samsung Console T indoor unit has two separate air outlets for cooling and heating, the first at the top and the second at the bottom; in this way it offers a perfect climate since it allows a better diffusion of the air in a very homogeneous way and always provides unparalleled comfort . In heating, it also offers the possibility of setting the air delivery from both the upper and lower grilles.
The Console units are equipped with a wireless remote control for quick and easy adjustment of the main functions. A series of settable functions further improves the well-being of the user. For example, the “Silent” function sets the silent mode further reducing the already minimal noise levels produced during operation. These indoor units are in fact very quiet : only 23 dB (A) of sound power, little more than the rustle of leaves!
The remote is compact in size and comes with clear, easy-to-use controls.
DIMENSIONS
Width: 720 mm - Height: 620 mm - Depth: 199 mm
Weight: 15.7 kg.
ACCESSORIES SUPPLIED AS STANDARD
- Wireless remote control
WARRANTY
The warranty is the official Samsung one and lasts for 24 months.
THE INDOOR UNIT
12,000 BTU - Ideal for rooms from 25 to 40 square meters with an average height of 2.7 m
In 2020 Samsung launched its first range of air conditioners with “NASA” communication protocol on the market; these also include the T series consoles .
The Samsung Air Conditioner Console indoor unit mounts low on the wall. The split console air conditioners are a valid alternative to the installation of standard radiators or fan coils and offer the advantage of sending the air flow "at eye level". The console units can also be easily installed under a window and are particularly suitable for attic apartments where it is always difficult to find suitable spaces to install the splits high on the walls. The 12000 BTU indoor unit presented here is used together with the inverter outdoor units to create the multisplit combinations of the range.
DESIGN
The Samsung T Console has an elegant and linear design, rounded corners and a slightly retro taste; it fits easily into any architecture and environment, be it a home, a business or a hotel, integrating with all types of furnishings. This type of indoor unit has small and very compact dimensions (only 199 mm thick) and takes up less space than a standard radiator or fan coil.
BREATHE CLEAN AIR
The antibacterial filter supplied removes the most common harmful agents , allows the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffuser fins have a particular shape that prevents the accumulation of dust.
PERFECT CLIMATE AND RELAX
The Samsung Console T indoor unit has two separate air outlets for cooling and heating, the first at the top and the second at the bottom; in this way it offers a perfect climate since it allows a better diffusion of the air in a very homogeneous way and always provides unparalleled comfort . In heating, it also offers the possibility of setting the air delivery from both the upper and lower grilles.
The Console units are equipped with a wireless remote control for quick and easy adjustment of the main functions. A series of settable functions further improves the well-being of the user. For example, the “Silent” function sets the silent mode further reducing the already minimal noise levels produced during operation. These indoor units are in fact very quiet : only 23 dB (A) of sound power, little more than the rustle of leaves!
The remote is compact in size and comes with clear, easy-to-use controls.
DIMENSIONS
Width: 720 mm - Height: 620 mm - Depth: 199 mm
Weight: 15.7 kg.
ACCESSORIES SUPPLIED AS STANDARD
- Wireless remote control
WARRANTY
The warranty is the official Samsung one and lasts for 24 months.

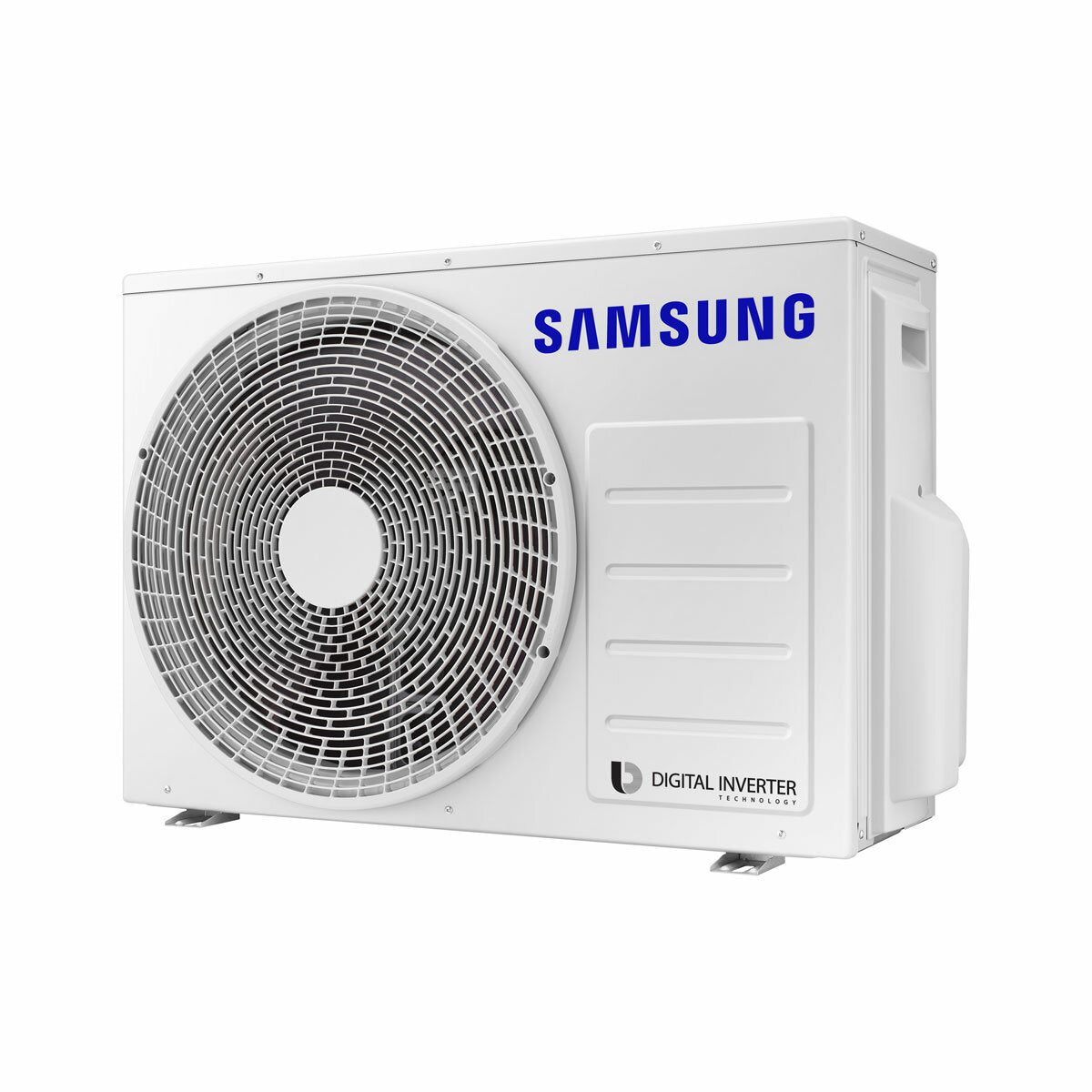

THE OUTDOOR UNIT
In 2020 Samsung updated the range of FJM ( Free Joint Multi ) outdoor units with the T Series : these outdoor units for multi-split air conditioners use R32 gas with low environmental impact, a compressor with Digital Inverter technology and the heat pump , the real beating heart of the air conditioner.
Multisplit air conditioners offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. The 5.2 kW outdoor unit presented here allows you to connect and power two or three Samsung indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The Samsung FJM outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort both when using the air conditioner in cooling and heating mode. Thanks to the Digital Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The Digital Inverter compressor allows further savings as well as guaranteed well-being thanks to the maintenance of a constant temperature without sudden changes . The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating.
The compressor is particularly silent in full respect of one's sleep and that of others and has great efficiency ; the innovative construction technology makes it particularly robust to the full advantage of durability over the years.

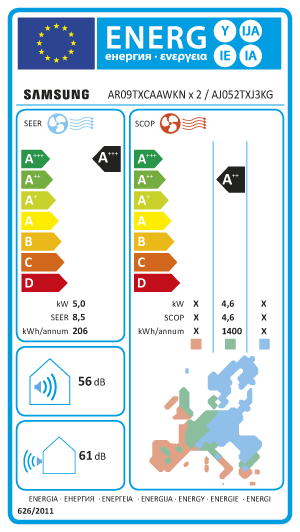

The R32 gas with which these outdoor units are loaded has a very low environmental impact and therefore contributes considerably to respect for nature; it also reduces energy consumption to the full advantage of spending on bills. The 5.2 kW outdoor unit has energy efficiency class A+++ in cooling and A++ in heating.
Particularly resistant to bad weather and atmospheric agents, it can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.
