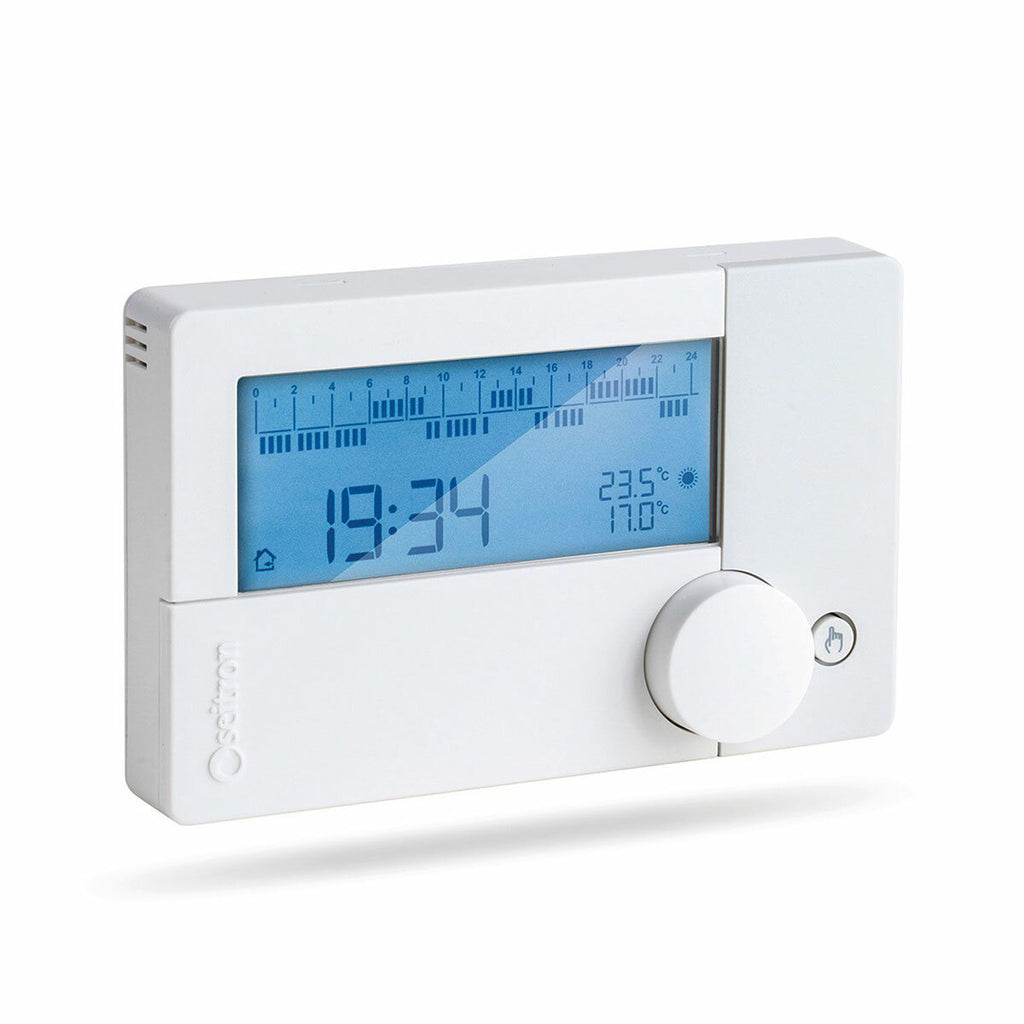

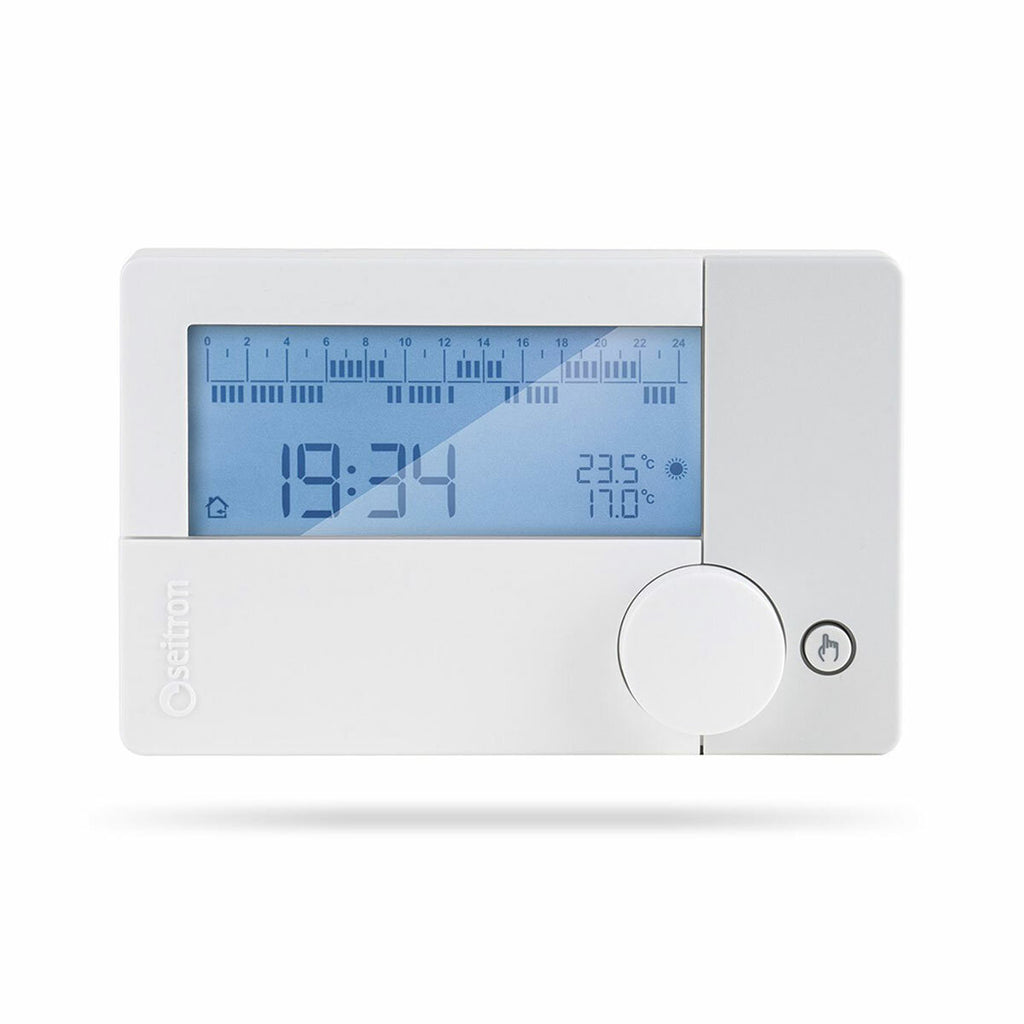

Seitron Freetime Evo daily-weekly digital chronothermostat
The Seitron Freetime Evo daily-weekly digital chronothermostat allows you to comfortably remotely control a boiler, a pellet stove, a heat pump or any other device that can usually be managed with an on-off thermostat or chronothermostat or with a switch, whether they are installed in the outside or inside the house.
Freetime Evo is one of the most versatile and easy to use chronothermostats. It allows you to program both daily and weekly: through the management of the system, you have the possibility of significantly reducing consumption, having lower emissions and clear savings on bills. It is equipped with a backlit LCD display through which it provides all the operating information. Suitable for all heating or cooling systems, it has a beautiful design that allows it to be placed in any environment, whether classic or modern.
GUARANTEED SAVINGS AND HIGH COMFORT
The Seitron Freetime Evo daily-weekly digital chronothermostat has many functions and is very easy to program! Its display allows you to check all the functions and programming settings. Simple to use because it offers both daily and weekly programming with hourly intervals specifically designed for the widest fields of use. In heating mode, when the ambient temperature detected by the internal sensor is lower than the set one, the Freetime Evo activates the relay to start the boiler. In cooling mode, when the ambient temperature detected by the internal sensor is higher than the set one, the Freetime Evo activates the relay to start the cooling system.

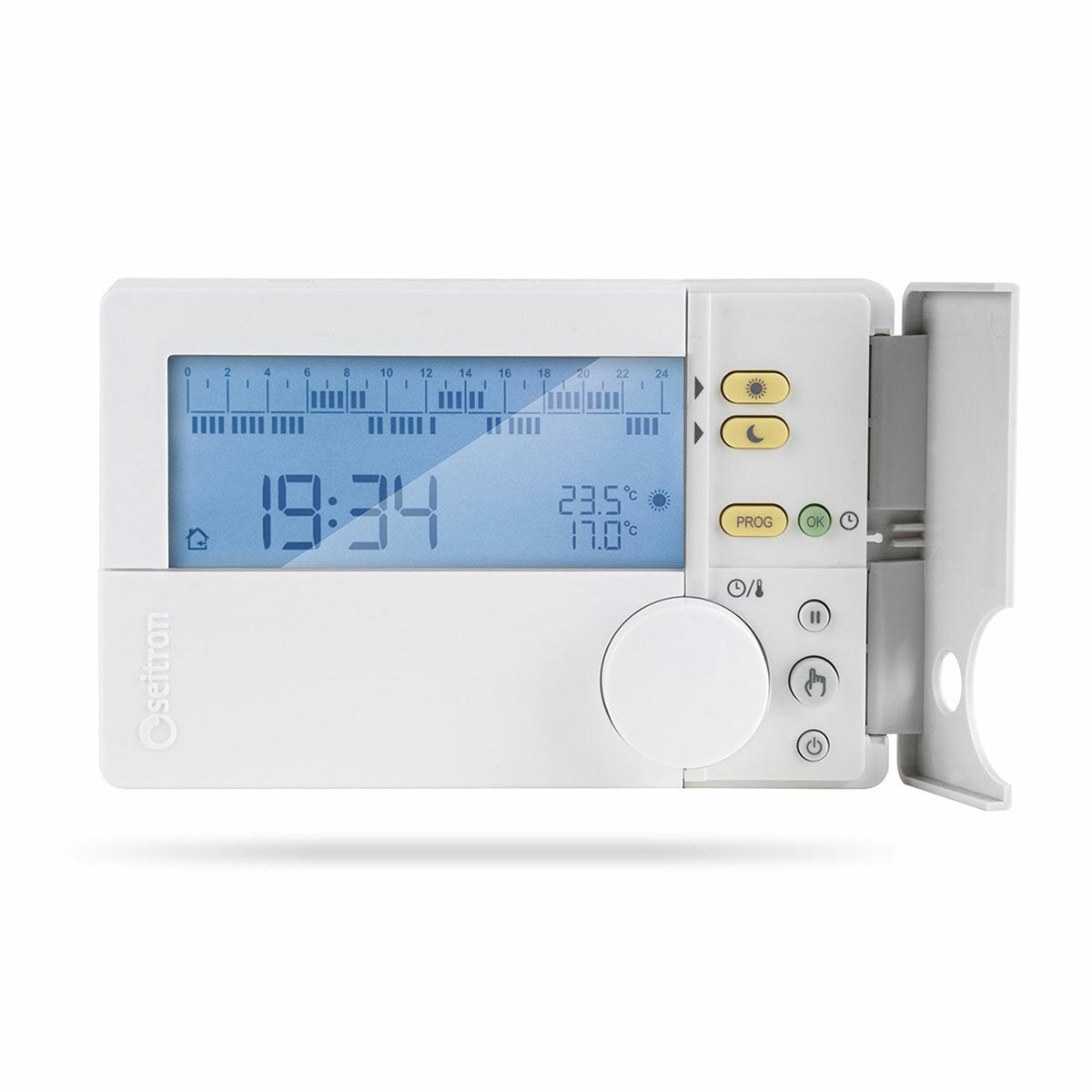

The change from heating mode to cooling mode and vice versa is not automatic but must be set manually. Each single operating period can manage a "Comfort" or "Reduced" operating range with temperatures that can be set for each of them using a comfortable and clear knob: the other programming keys are hidden under a cover. Freetime Evo also allows manual switching on and off of the boiler using a special button together with the general switch-off button of the chronothermostat.
The Seitron Freetime Evo daily-weekly digital chronothermostat also has the Antifreeze Function with the possibility of setting the temperature to protect the system from any damage caused by too cold temperatures and the Hysteresis Adjustment Function to set the internal temperature difference between the and restarting the connected heating device (boiler, pellet stove, heat pump, etc.) when the set room temperature is reached.
Furthermore, the Seitron Freetime Evo daily-weekly digital chronothermostat is set up for the connection of a remote probe (optional).
TECHNICAL FEATURES
- Powered by 2 x 1.5V AA batteries
- Battery life >3 years
- Daily/Weekly programming
- Hot/Cold On/Off operation
- 2 settable temperatures (Comfort - Reduced)
- Setting range 5 .. 40°C
- Adjustable antifreeze 0.5°C .. 25.0°C
- Internal NTC sensor (10K Ohm @ 25°C)
- Backlit LCD display
- Output (relay) 5(1)A @ 250V~ SPDT
- IP30 degree of protection
- Class Reg.2013/811/CE IV = 2.0%
DIMENSIONS
Width: 134 mm - Height: 86 mm - Depth: 36 mm
WARRANTY
The warranty is the official Seitron one and has a duration of 24 months.
