SFA Sanipack Pro UP WC macerator - Built-in for WALL-HUNG WC, WALL-BACK WC, WASHBASIN, BIDET, SHOWER

SFA Sanipack Pro UP WC Macerator - For WALL-HUNG WCs, WALL-BACK WCs, WASHBASIN, BIDET, SHOWER

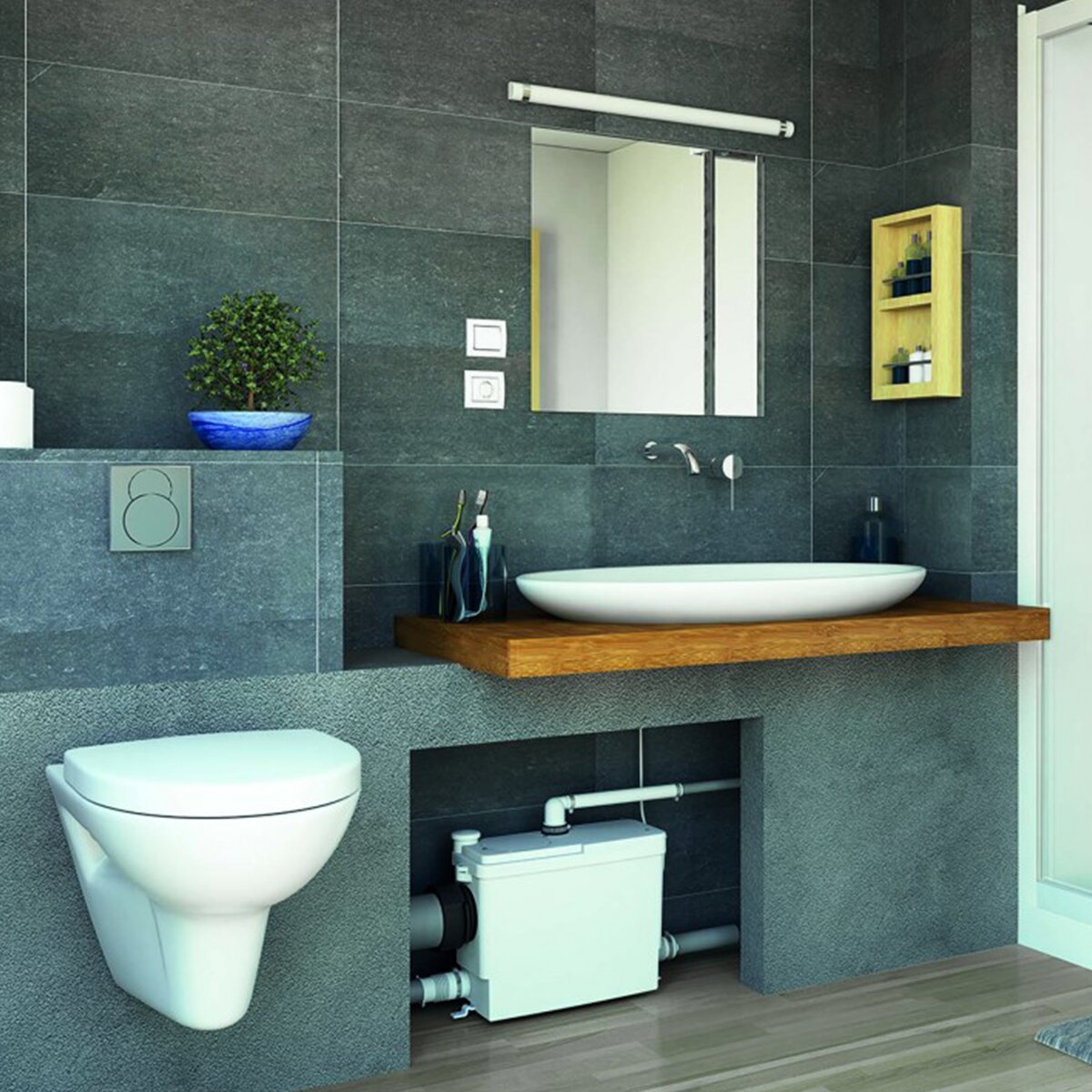

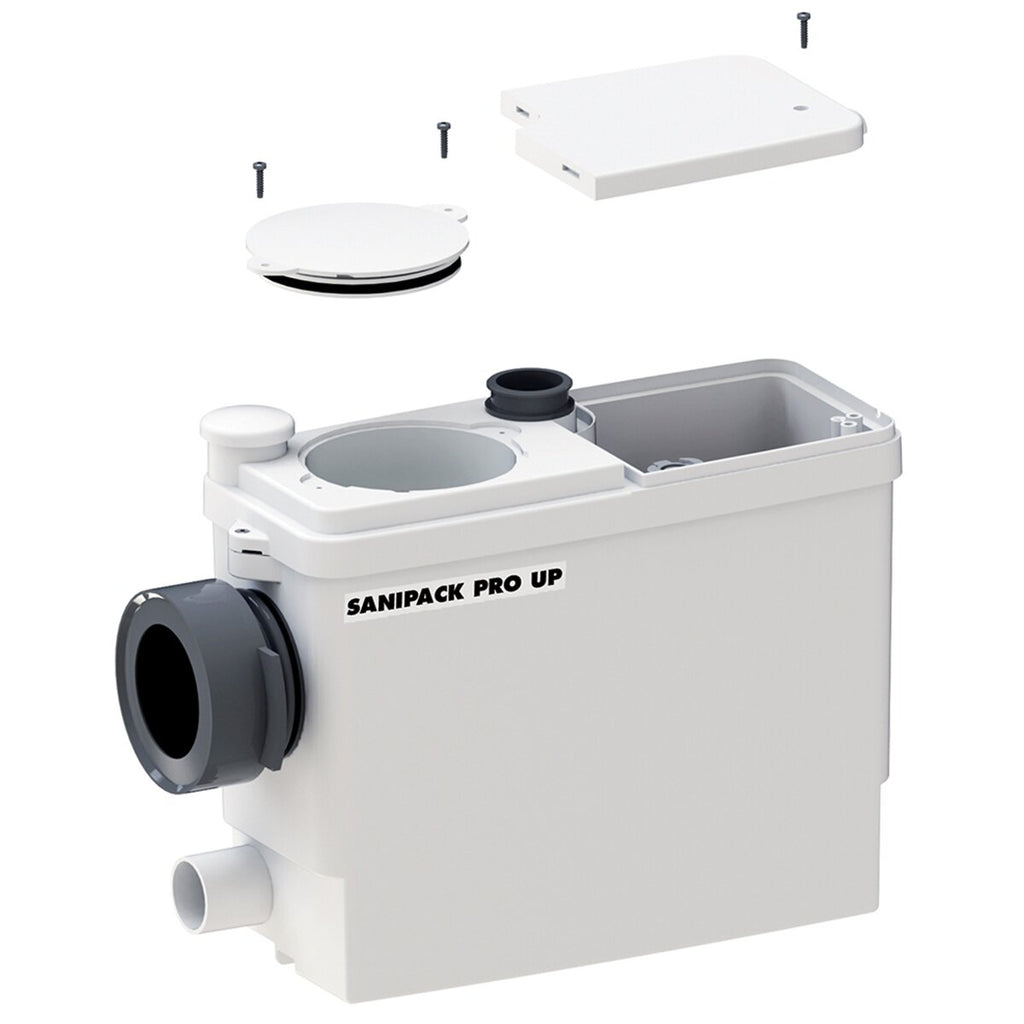

The Sanipack Pro UP SFA is designed to receive and dispose of wastewater from wall-hung and back-to-wall toilets, sinks, bidets and showers, making it ideal for installing a complete bathroom in environments where gravity drainage is not available. Thanks to its extra slim design (only 16.9 cm deep), it can be easily built into thin walls, allowing for discreet installation and a modern aesthetic finish. The 400 W motor ensures efficient grinding and pumping of wastewater, allowing for discharge up to 5 metres vertically and 100 metres horizontally. The system is equipped with easy access for maintenance: one to the basket in the event of blockages and one to the electrical part for replacing consumable parts, without having to dismantle the toilet or empty the tank. It is positioned next to the toilet and can be placed up to 50 cm from the bowl, allowing the inspection compartment to be positioned in adjacent rooms, and is reversible.

TECHNICAL FEATURES

• Type : Built-in shredder for complete bathroom

• Number of inlets : 3 (1 x Ø100 mm for WC, 2 x Ø40 mm for washbasin, bidet or shower)

• Exhaust diameter : 22/28/32 mm

• Motor power : 400 W

• Power supply voltage : 220–240 V / 50 Hz

• Electrical class : I

• Degree of protection : IP44

• Noise level : 47 dB(A)

• Flow rate : 90 L/min

• Maximum inlet water temperature : 35°C (60°C for short periods)

ACCESSORIES INCLUDED

• Clapet valve (anti-resurgence)

• Activated carbon filter to neutralize odors

• System connection kit

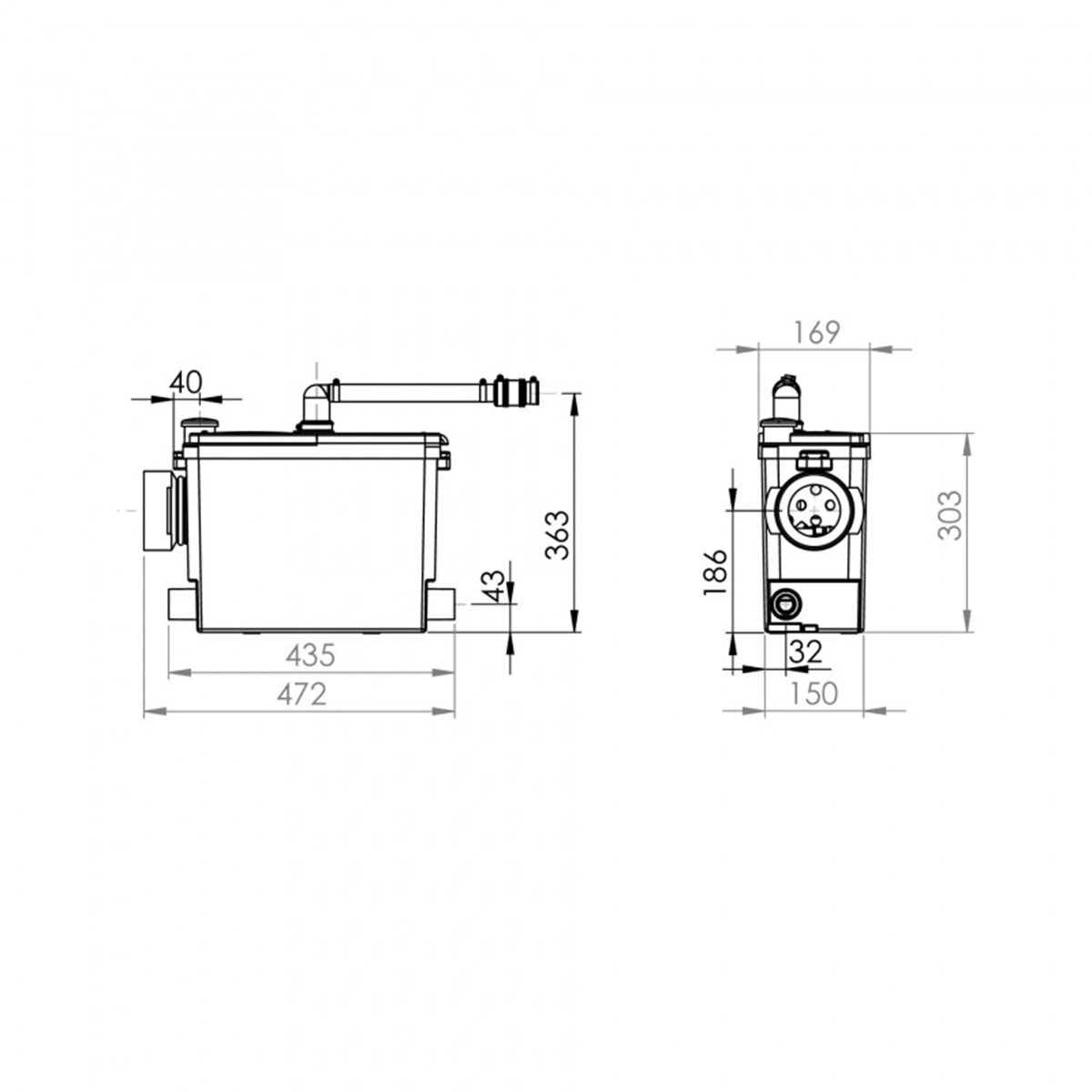

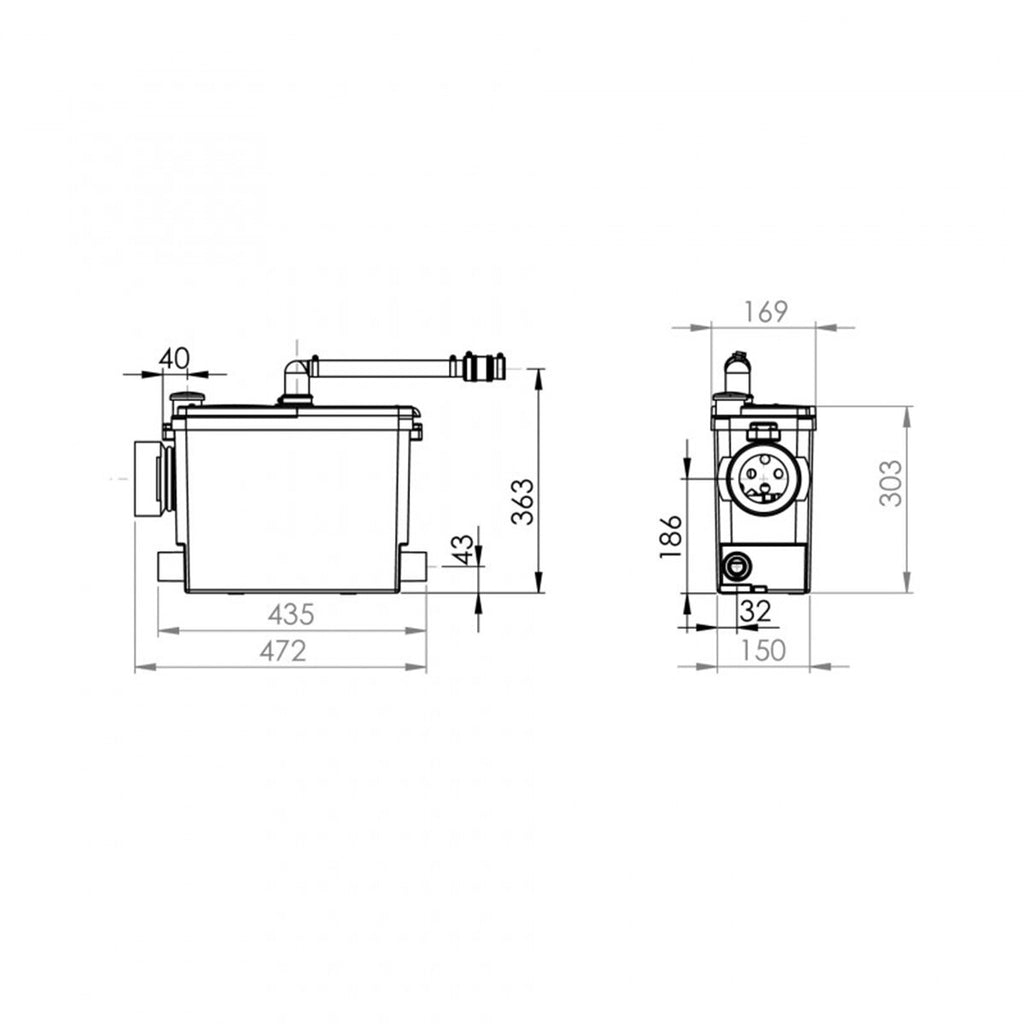

DIMENSIONS

• Width 472 mm_Height 303 mm_Depth 169 mm

• Weight: 6.8 kg

• Maximum vertical discharge: 5 m

• Maximum horizontal discharge: 100 m

• Minimum height of the shower tray: 13 cm

WARRANTY

The warranty is the official SFA one and lasts 2 years.
