SFA Saniplus UP WC macerator - for complete bathroom

SFA Saniplus UP WC macerator - for complete bathroom

The SFA Saniplus UP bathroom macerator is designed to receive and dispose of waste water from the toilet, sink, bidet and shower , making it ideal for installing a complete bathroom in environments where gravity drainage is not available. Thanks to its large capacity tank , it can handle large volumes of water efficiently. The high-performance and resistant motor allows for prolonged operation, with the ability to discharge up to 5 meters vertically and 100 meters horizontally . The low noise level of 46 dB(A) guarantees silent operation . Direct access to the basket via the removable lid facilitates maintenance operations without the need to dismantle the appliance or empty the tank.

TECHNICAL FEATURES

• Type : Complete bathroom shredder

• Number of inputs : 4 (1 x Ø100 mm, 3 x Ø40 mm)

• Exhaust diameter : 22/28/32 mm

• Motor power : 400 W

• Power supply voltage : 220–240 V / 50–60 Hz

• Electrical class : I

• Degree of protection : IP44

• Noise level : 46 dB(A)

• Flow rate : 90 L/min

• Maximum incoming water temperature : 35°C

• Blade type : Single blade knife

ACCESSORIES INCLUDED

• Clapet valve (anti-resurgence)

• System connection kit

• Connectors

• Activated carbon filter to neutralize odors

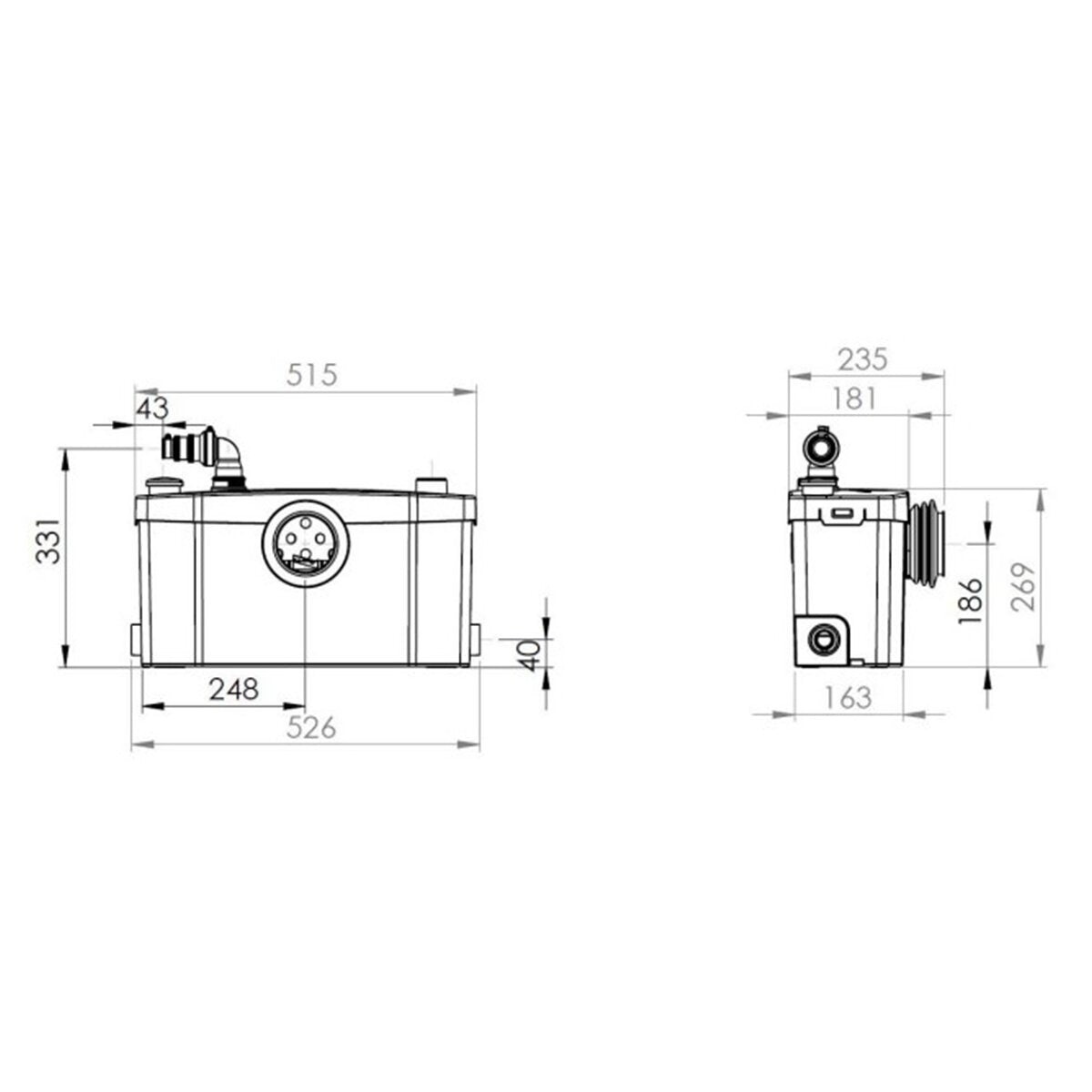

DIMENSIONS

• Width 515 mm_Height 331 mm_Depth 235 mm

• Weight: 7.3 kg

• Maximum vertical discharge: 5 m

• Maximum horizontal discharge: 100 m

• Minimum height of the shower tray: 13 cm

WARRANTY

The warranty is the official SFA one and lasts 2 years.
