SteelPumps NeoTech Dosy-Phos-1 Polyphosphate Doser for Boilers 1/2" F

SteelPumps NeoTech Dosy-Phos-1 Polyphosphate Doser for Boilers 1/2" F

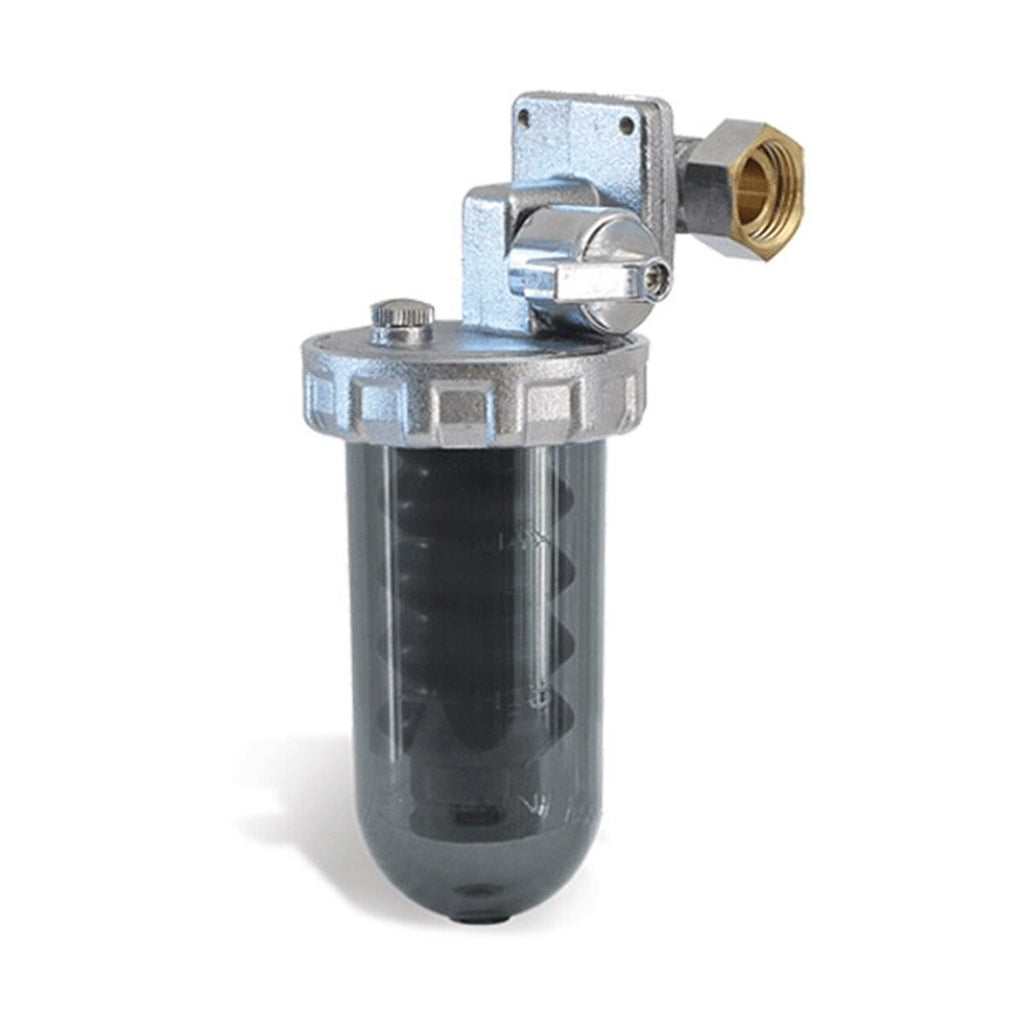

The Dosy-Phos-1 polyphosphate doser is used to treat the water in the heating circuit by adding polyphosphate via a venturi system, preventing the formation of limescale deposits and ensuring the longevity of your system, preserving the pipes and mechanical parts and maintaining the original conditions of hot water production and heat exchange unaltered.

This small-sized dispenser is complete with a 50 g replacement cartridge , in boiler powder, and is square in brass with bypass ; suitable for both horizontal and vertical pipe systems and is suitable for use on boilers of max 50 kW .

Further specifications: connection 1/2 F; max pressure 8 bar; max temperature 45°C; max flow rate 1.5 m3 /h; operating temperature 4°÷ 90°.

Practical and functional, installation is quick but requires qualified technical personnel and must be installed according to the instructions in the user manual supplied with the product. Even for maintenance (replacing the cartridge) it will be necessary to follow the simple instructions indicated in the user manual.

TECHNICAL FEATURES

• 1/2 F connection

• Max pressure 8 bar

• Max temperature 45°C

• Max flow rate 1.5 m3

• Operating temperature 4°÷ 90°C

• Refill weight 50 gr

DIMENSIONS

Height 160 mm_Depth 68 mm

WARRANTY

The warranty is the official SteelPumps NeoTech one and lasts 2 years.
