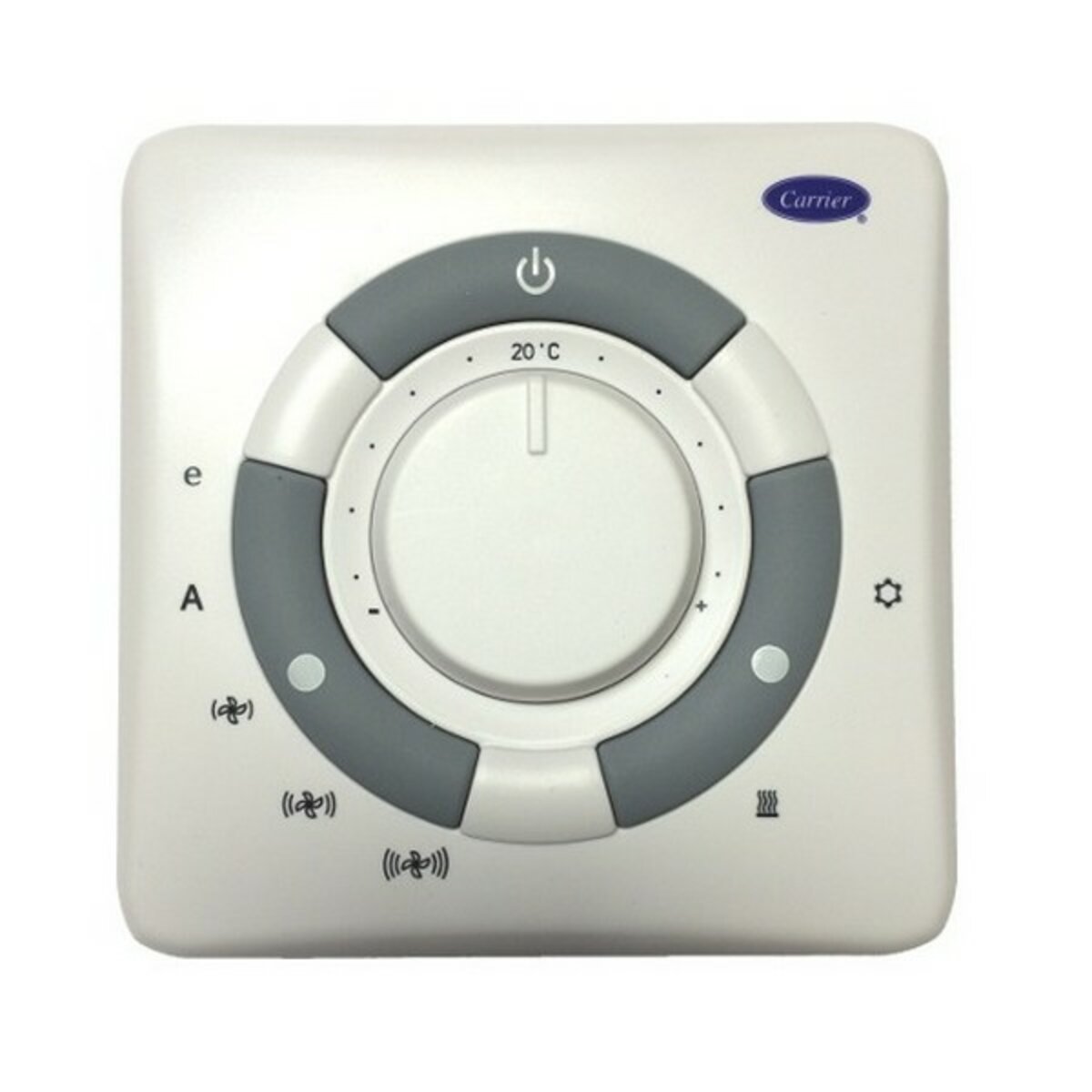

Electronic Thermostat Control TYPE A for IDROFAN 2-pipe fan coil units, 42N series wall/built-in and for 42GW cassette fan coil units, CARRIER .
The TYPE A CARRIER control is suitable for controlling IDROFAN convectors in both heating and cooling mode.
Equipped with:
- Power button to turn the fan coil on/off;
- Mode button for manual regulation of the heating/cooling functions indicated by specific red/blue LEDs;
- Ventilation adjustment button with 3 speeds (I-II-III) that can be set manually, the Economy mode for energy saving and the Auto mode, all indicated from time to time by specific LEDs;
- Temperature Selector Knob with a range from +10°C to +30°C.
Also equipped with an Antifreeze Function which is activated at temperatures below 7°C, Night and Blackout Mode which acts on the operating LED lights, AutoTest , possibility of configuring the settings during installation using special microswitches, possibility of using the internal temperature sensor in case of wall installation or a remote sensor - Minimum Temperature Probe in case of installation on the machine (to be purchased separately).
The Type A CARRIER Control can be installed on the wall or on the fan coil using the specific Kit for installing the Type “A” Control on the 42NM/Z unit (bracket + cables + air probe) with the Code 42N9100 (to be purchased separately). It perfectly replaces the functions of the old version of the Control A with which it is compatible and can be used on all 2-pipe fan coils produced from JULY 2013 onwards. It controls the fan coil in both the heating and cooling functions where the system is set up for this type of function.
ACCESSORIES*
- Kit for installing type “A” control on board the 42NM/Z unit (bracket + cables + air probe) 42N9100
(*) Item to be purchased separately.
WARRANTY
The warranty is the Official Carrier one and lasts 24 months.
