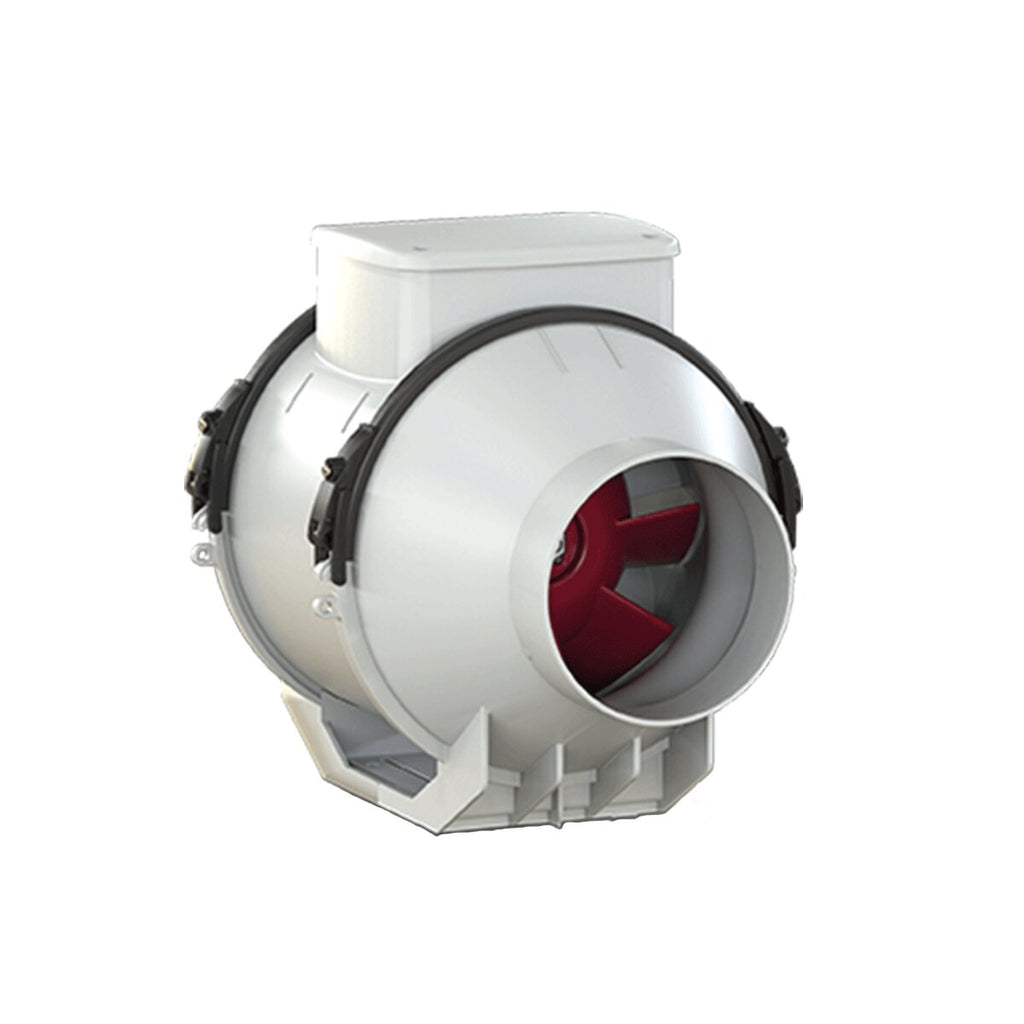

Vortice LINEO 100 centrifugal fan for duct Ø 100 mm

Save 51%
VorticeSKU: 0000017144 ID: C36152

Price:
Sale price€122,09 Regular price€248,88
code
0000017144
id
C36152
precodice
VOR
short description

Vortice LINEO 100 axial centrifugal aspirator for duct Ø 100 mm. Designed for the tertiary sector, it is ideal for air exchange in offices, restaurants and commercial environments. Equipped with a thermally protected induction motor, it features components designed in detail to optimize air flow, avoid turbulence, reduce noise emissions and simplify installation.

brand
Vortice
category
Aspirators
type
series
LINEO
width height depth
188.5X211X303
use
Commercial
Download technical specifications

Description

Vortice LINEO 100 centrifugal fan for duct Ø 100 mm



The Lineo 100 duct centrifugal fan is the product designed by Vortice to deal with the ventilation problems of the tertiary sector , in fact it is ideal for the exchange of heat air in offices, restaurants and commercial environments.

Made of fire-resistant plastic resin , class 2 insulation, it has an electrical box in the upper part which guarantees electrical and fire resistance. The components were designed with the aim of maximizing the simplicity and flexibility of installation but above all the performance: flow straighteners on the delivery side which, working in synergy with the upstream impeller, optimize the flow of treated air for excellent results, also reducing noise emissions ; internal divergent element that improves the performance of the impeller designed to reach ERP efficiency levels; protective shell that avoids energy losses due to vortices; rectifier and impeller designed to correct the air flow and avoid turbulence problems.

The Vortice Lineo 100 aspirator is equipped with an induction motor , thermally protected, with a shaft mounted on ball bearing supports, combined with a helical-centrifugal impeller ideal for satisfying the specific system needs related to performance, consumption and operating costs. With a nominal diameter of 100 mm, it has a high degree of IPX5 water resistance (if installed in a duct) and is adjustable in speed using an optional control (code 12966).

The outlet vent has been optimized for wall or ceiling installation by qualified and authorized technical personnel.



TECHNICAL FEATURES

- Max current absorbed at max speed. (A) 0.11

- Max current absorbed at min speed. (A) 0.09

- Frequency (Hz) 50

- Protection grade IP 44

- Max power absorbed at max speed. (W) 23

- Max power absorbed at min speed. (W)20

- Voltage (V) 220-240

- Sound pressure Lp [dB (A)] 3m - max speed 39.4

- Sound pressure Lp [dB (A)] 3m - min speed 30.7

- Range:

- Max flow rate at max speed. (l/s) 70.8

- Max flow rate at max speed. (m³/h) 255

- Max flow rate at min speed. (l/s) 50

- Max flow rate at min speed. (m³/h) 180



DIMENSIONS

- Width 188.5 mm_Height 211 mm_Depth 303 mm

- Weight: 2kg



WARRANTY

The guarantee is the official Vortice one and lasts 2 years.
