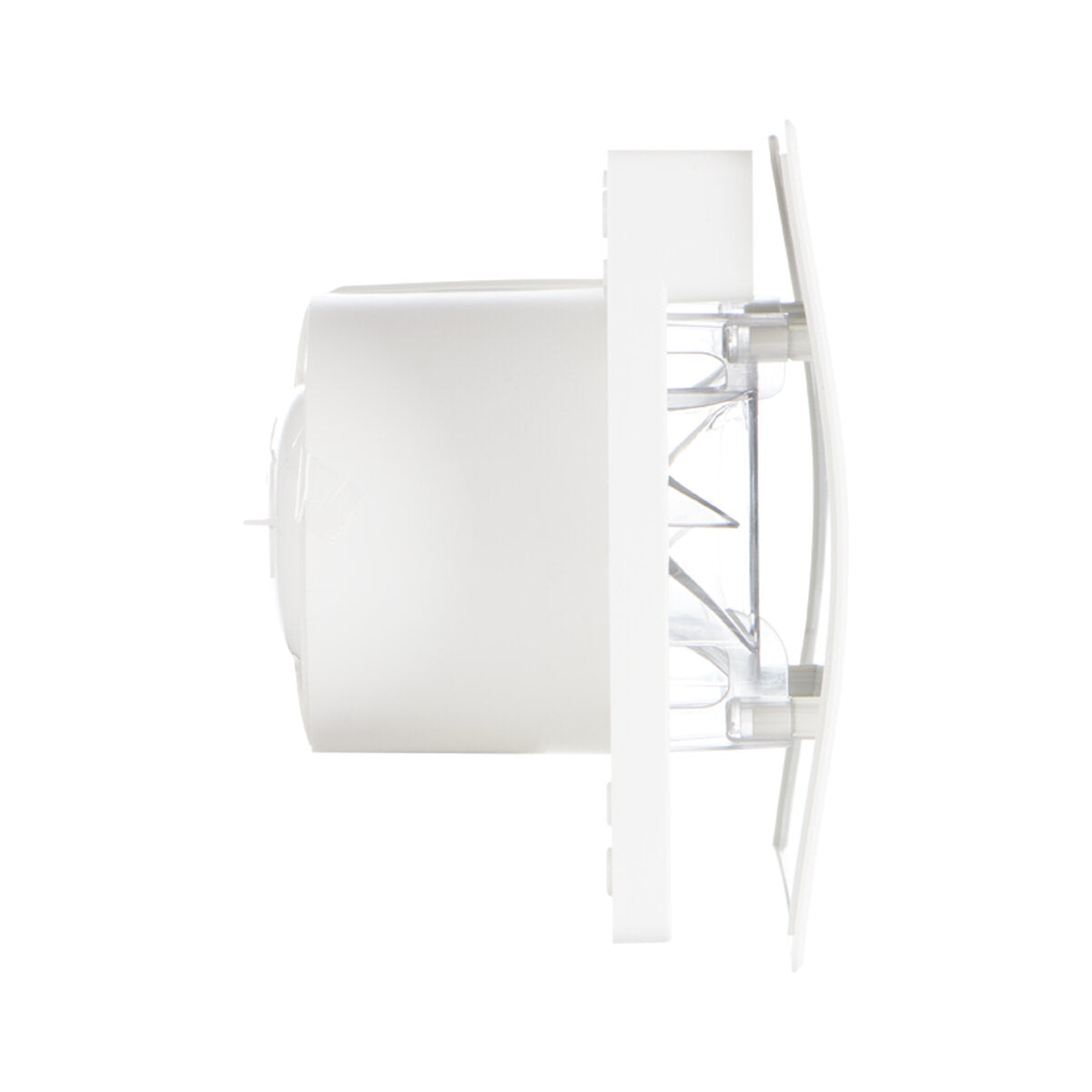

Vortice MEX 120/5" LL 1S wall-mounted extractor

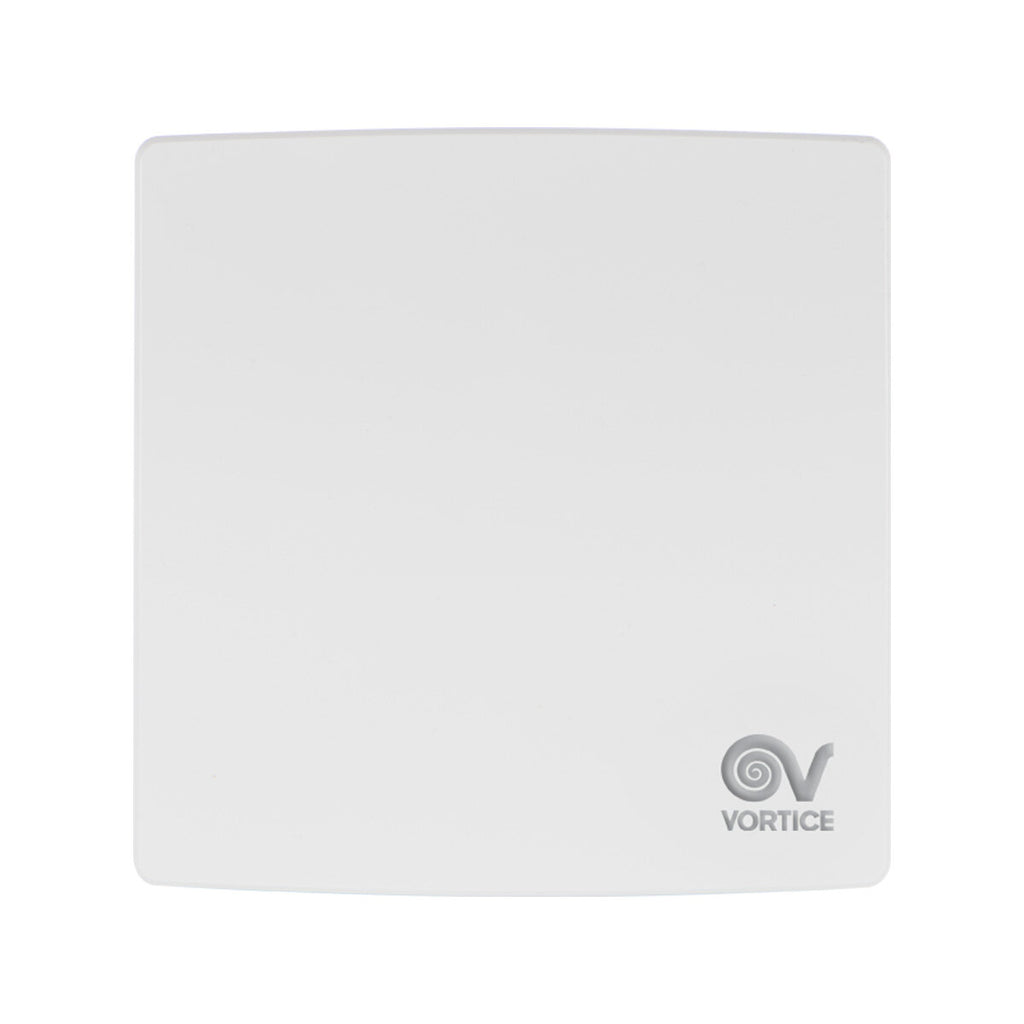

The Vortice 120/5" LL 1S heliocentrifugal extractor fan is the ideal solution for the ventilation of small and medium-sized residential and commercial premises, even in the presence of medium-length exhaust pipes. With a refined design, designed to be inserted into environments and have a very low visual impact, this vacuum cleaner is made up of a linear and elegant front panel which hides the hole behind it, becoming a refined and peculiar design accessory.
Equipping your home with an extractor fan is the right choice to make if you want to allow safe air exchange, extract saturated air from the rooms, bad odors and guarantee greater healthiness of the environments. Vortice MEX 120/5" LL 1S is made of shock-proof and UV-resistant plastic resin, with a nominal diameter of 120 mm; AC motor with shaft mounted on ball bearing support, directly combined with a giant plastic propeller-centrifuge which ensures high performance and low energy consumption; furthermore, it features a butterfly non-return valve as standard which prevents air from returning when the appliance is off; max flow rate 175 m3/h and IP45 protection rating, which guarantees the possibility of installation in Zone 1 of the bathroom according to the international standard IEC 60364-7. Further specifications can be found in the instruction booklet supplied with the product.
These technical details provide a final product capable of carrying out the assigned task very well, safely and meticulously. Thanks to this technology, the energy efficiency of the properties in which we live is improved, reducing heating and air conditioning costs, but above all it really promotes well-being and living comfort, also significantly affecting the reduction of airborne transmission of infectious forms.

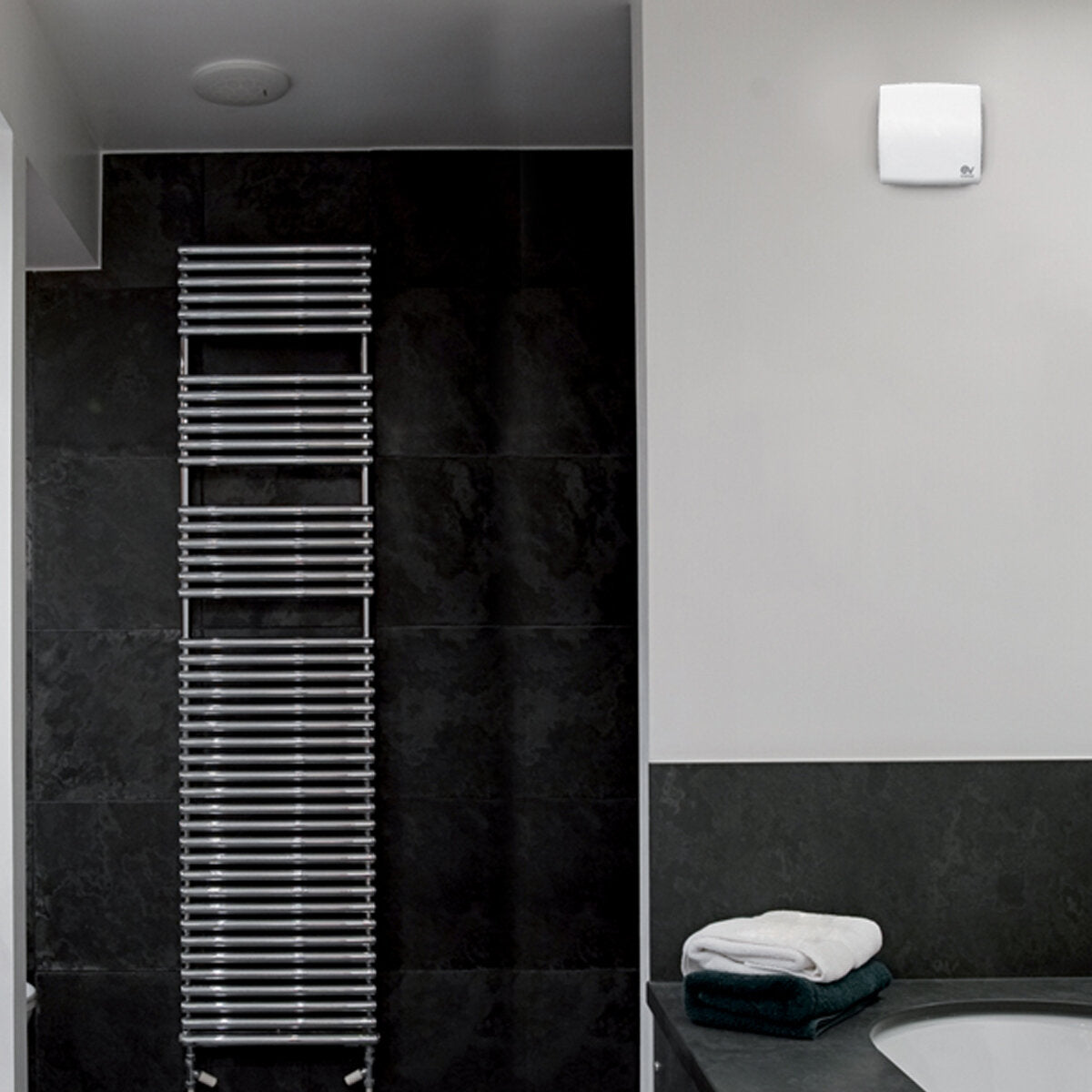

Vortice 120/5" LL 1S is a wall, ceiling and false ceiling axial extractor whose installation must be carried out by expert and authorized technical personnel. IMQ certified safety.
TECHNICAL FEATURES
- Max current absorbed at max speed. (A) 0,095
- Nominal Duct Diameter (mm) 120
- Frequency (Hz) 50
- Protection grade IP 45
- Class II insulation
- Max power absorbed at max speed. (W) 15
- Voltage (V) 220-240
- Sound pressure Lp in free field [dB(A)] 3 m max speed. 32,3
- Max flow rate at max speed. (l/s) 48,6
- Max flow rate at max speed. (m³/h) 175
DIMENSIONS
- Width 193 mm_Height 193 mm_ Depth 138 mm
- Weight: 0.77 kg
WARRANTY
The guarantee is the official Vortice one and lasts 2 years.
