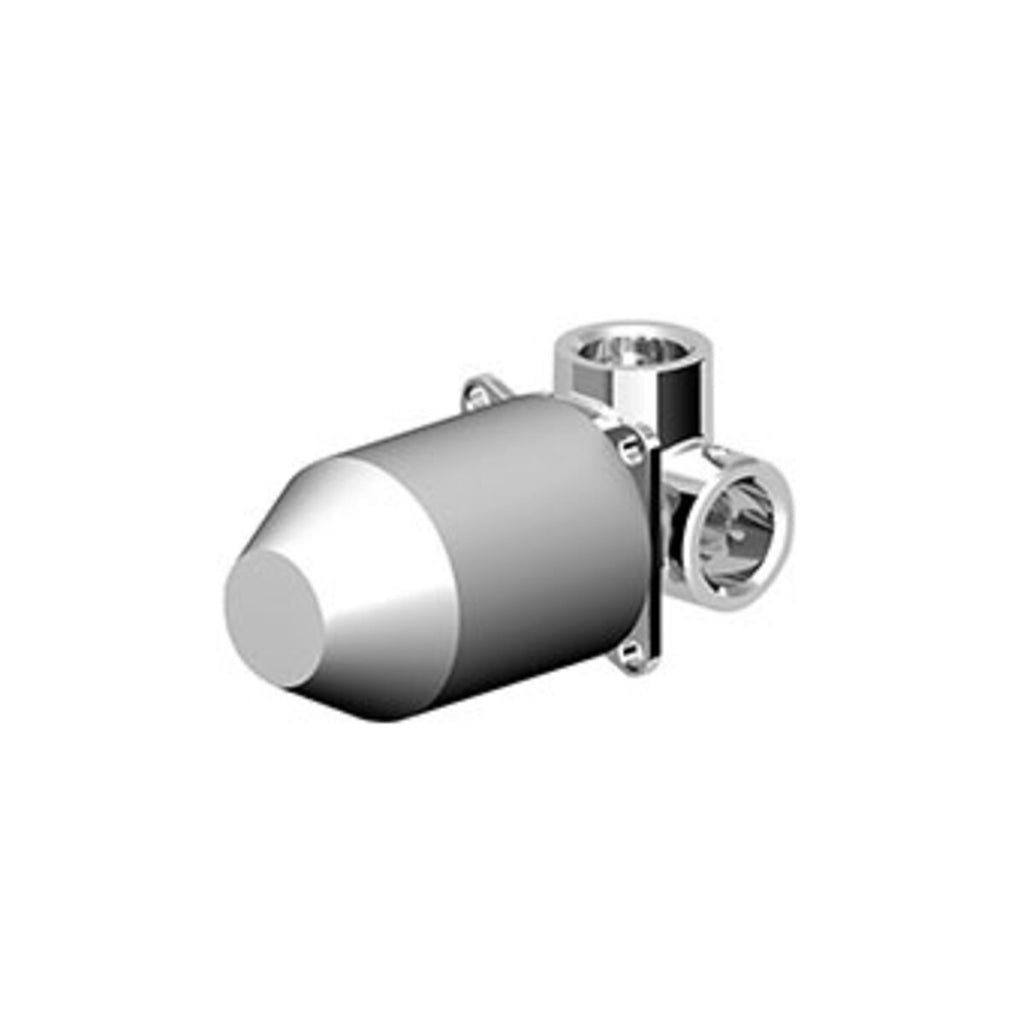

Zucchetti R99499 built-in shower body

Zucchetti R99499 built-in part for shower mixers

The Zucchetti R99499 built-in part is the technical body designed for wall-mounted single-lever shower mixers. Part of the Zucchetti Built-in Parts range, it represents the ideal solution for creating modern built-in shower systems, guaranteeing reliability, ease of installation, and maximum aesthetic purity.

Compact structure for built-in installation

Designed to be fully integrated into the wall, the R99499 conceals all the technical components, leaving only the external part of the faucet exposed. This creates a clean, contemporary aesthetic, perfect for modern bathrooms.

The body is equipped with plastic protection to facilitate assembly phases and preserve the components during installation (as visible in the technical drawing on page 2).

Dedicated shower use

This built-in part is designed for single-outlet shower mixers , without diverter.
It is therefore ideal for:

• shower systems with shower head or hand shower
• simple and straightforward configurations
• immediate use without managing multiple outputs

High performance

As highlighted in the chart on page 3:

• flow rate up to approximately 32 l/min at 5 bar

It therefore guarantees an abundant and constant flow, ensuring maximum comfort during use.

Technical features

• Type: built-in part for shower mixer
• Installation: wall-mounted
• Use: single outlet (without diverter)
• Attacks:
  • G1/2” input
  • G1/2” outlet (as per technical drawing page 2)
• Recessed depth: approx. 35 – 65 mm
• Weight: about 0.66 kg

Compatibility

The R99499 built-in part is designed to be used with Zucchetti external shower mixers without a diverter.

Direct compatibility:

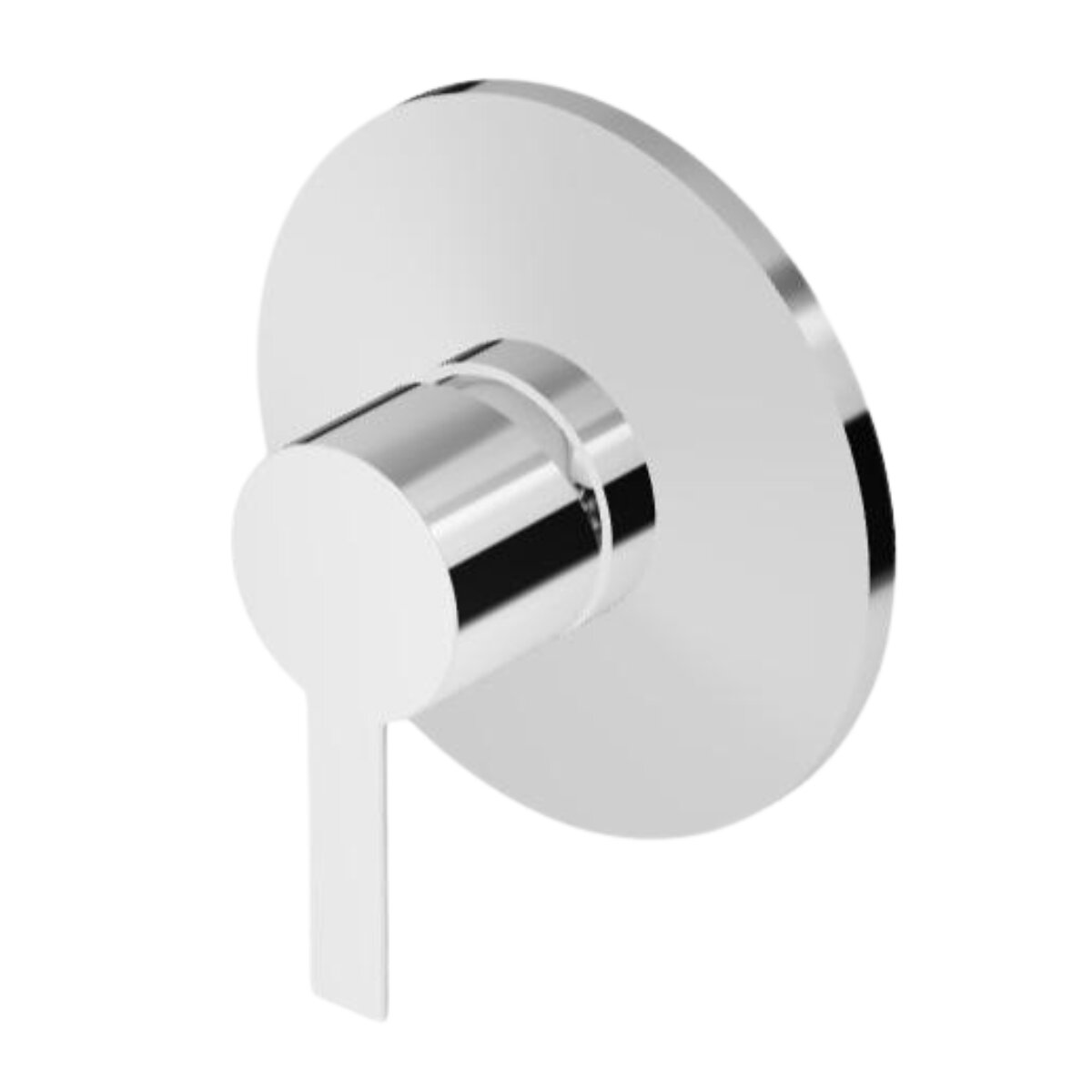

• Zucchetti GILL ZGL122 (built-in shower mixer)
• Zucchetti NIKKO ZKK122 (built-in shower mixer)
• Zucchetti RIVO ZRV122 (built-in shower mixer)

In general:

• Zucchetti built-in shower mixers with 1 outlet (without diverter)
• shower systems with single-lever control

Not compatible with:

• mixers with diverter (for those you need R99684)

Professional installation

It requires wall mounting and is ideal for:

• new bathroom creations
• modern renovations
• built-in shower systems

NB: FOR FURTHER DETAILS WE RECOMMEND VIEWING THE TECHNICAL DATA SHEET ATTACHED.

WARRANTY

The warranty is the official Zucchetti one and lasts 2 years.
