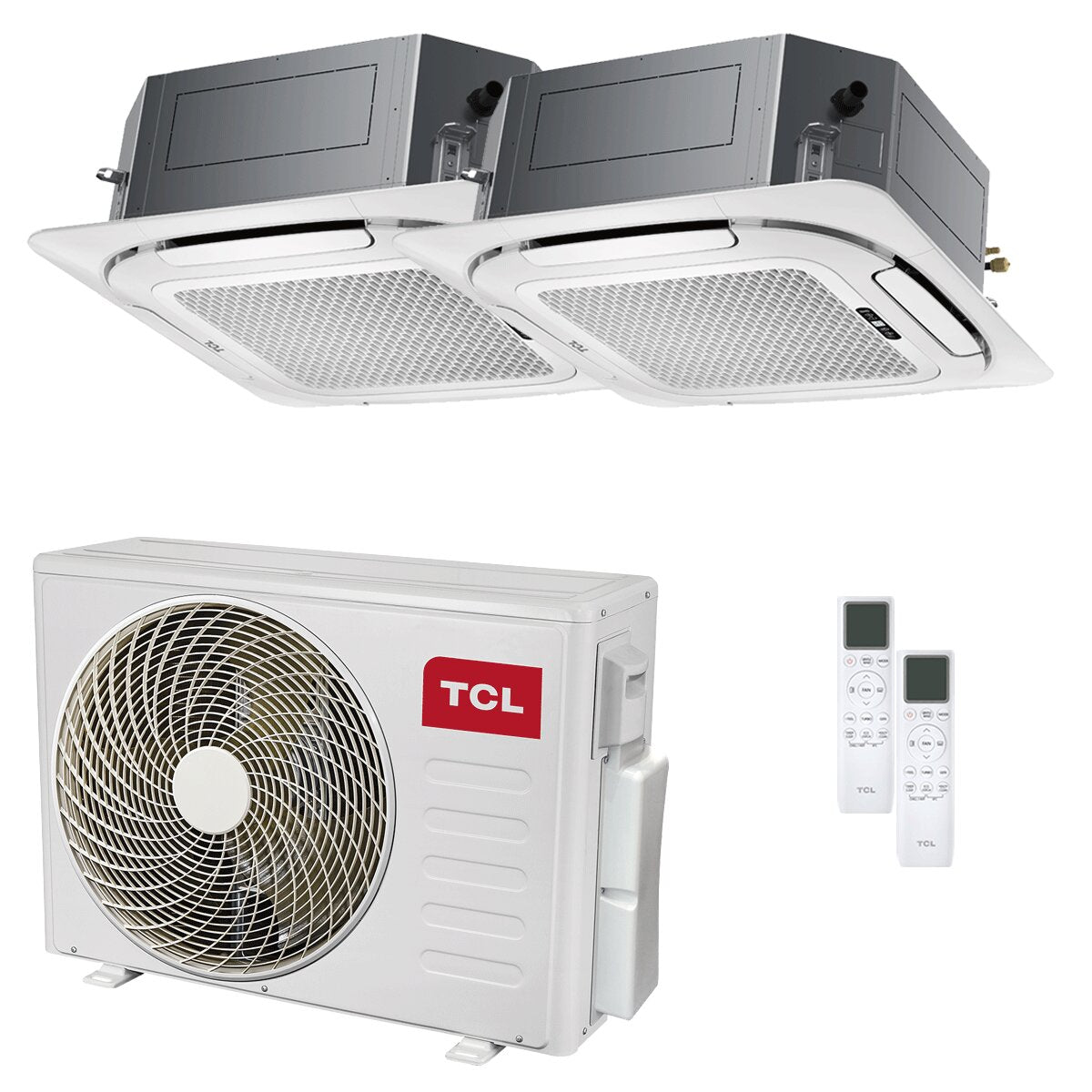

TCL Cassette 4-way air conditioner S Series dual split 18000+18000 BTU inverter A++ wifi external unit 7.9 kW The air conditioner kit is equipped with the following indoor units:
- 2 x 18000 BTU - Ideals for rooms from 50 to 60 sqm with an average height of 2.7 m
The TCL 4-way Cassette S Series air conditioner is designed to offer high performance, operational versatility and tailor-made comfort in medium and large environments. Thanks to its robust structure, 360° air distribution system and multiple settable modes, it represents an ideal solution for offices, showrooms, commercial activities and professional environments. Designed for ceiling installation in modular false ceilings, this unit combines high performance and constant reliability up to energy class A++/A+ for both the Compact and Standard versions .
TCL, an international brand recognized for the technological innovation and reliability of its products, offers with this line a smart solution that combines high performance and intelligent control. The range is designed to meet the comfort needs in residential and commercial spaces and consists of the 4-way Compact series (sizes 9-18000 BTU) and Standard (sizes 24-60000 BTU).
Silent, it offers incredible performance up to energy class A++/A+ cold/hot and reduces environmental impact thanks to the use of R32 gas.
DESIGN AND AIR QUALITY

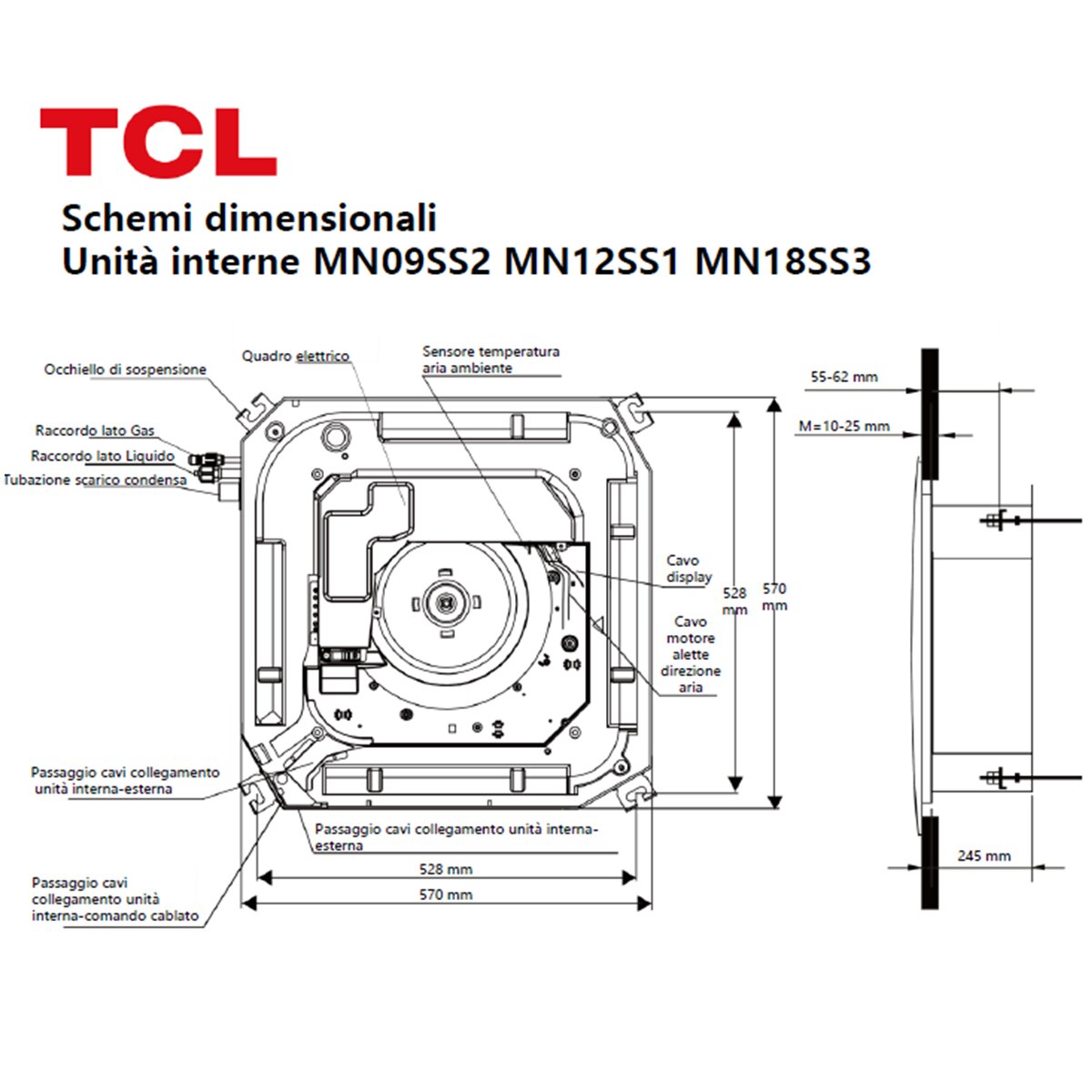

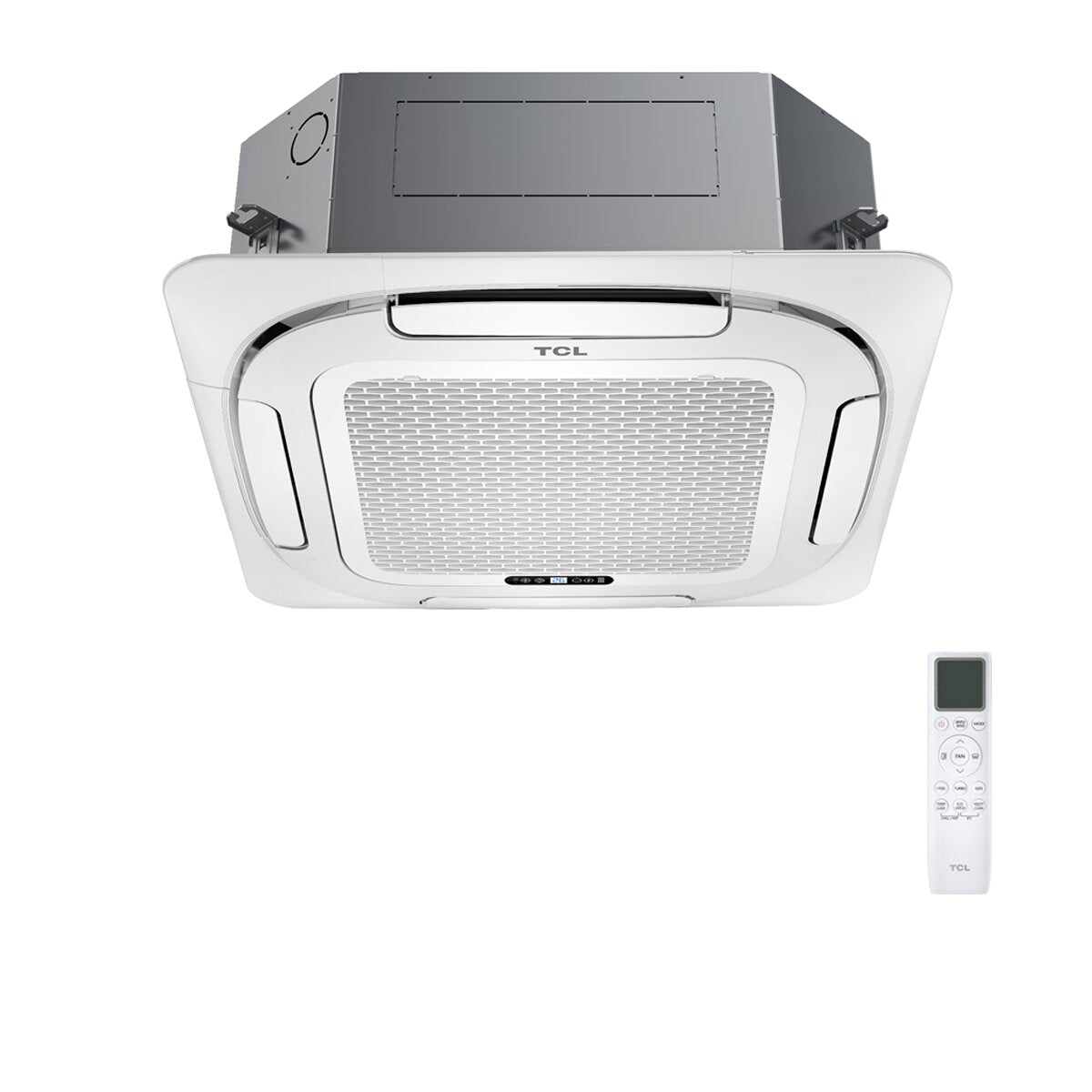

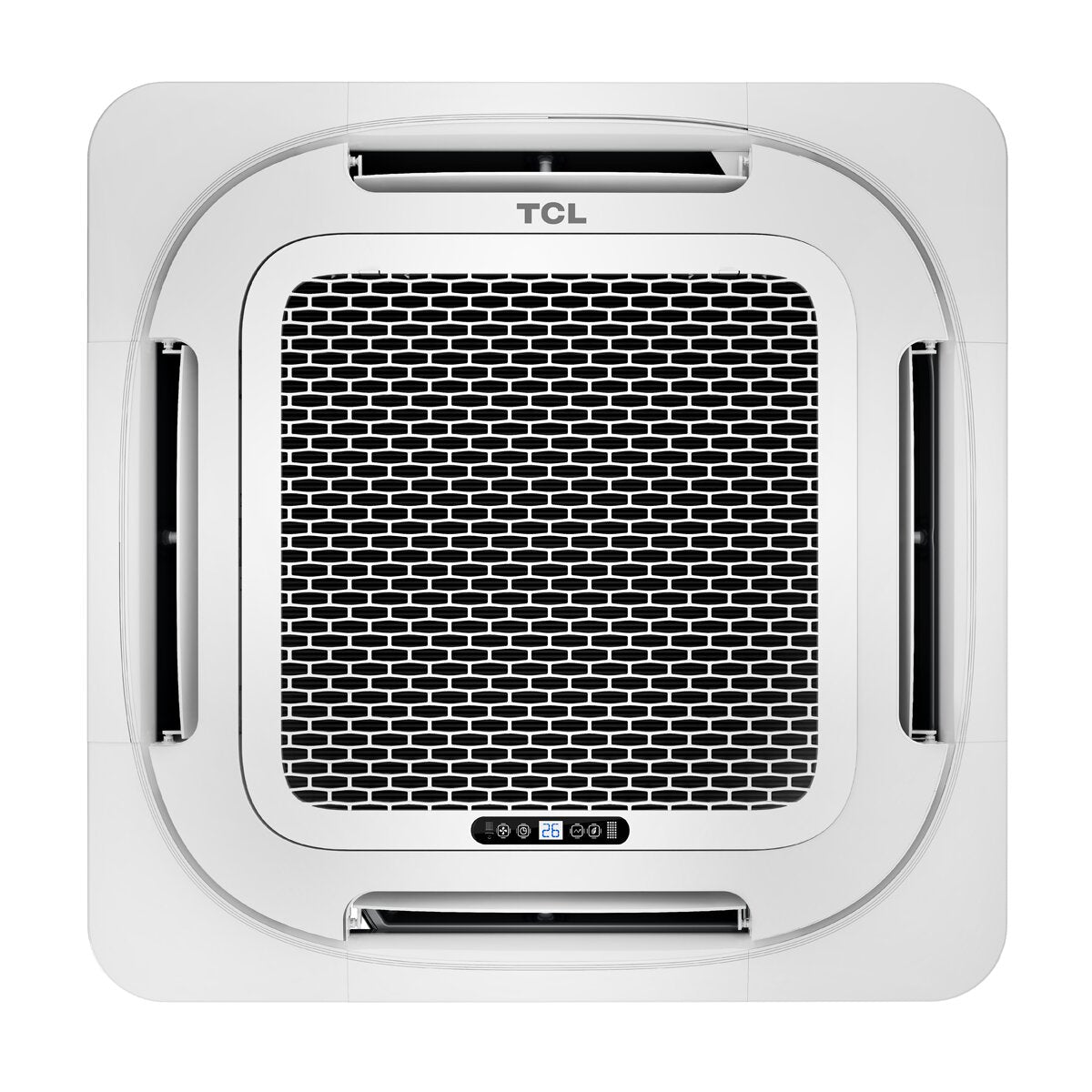

The TCL Cassette 4-way S Series indoor unit combines aesthetic minimalism and maximum functionality , making it an ideal choice for modern, professional and prestigious residential environments. Its discreet profile fits perfectly into standard false ceiling modules, maintaining a clean, linear aesthetic and without visible protrusions . The Compact series includes a 650x650 mm front panel, while for the Standard series the panel is 950x950 mm .
The elegant LED display allows you to quickly and easily view the temperature, all operating information and error codes. Both an aesthetic and functional detail that is highly appreciated.
Thanks to the 360° air flow , the air conditioned air is distributed in a balanced way in every direction: it is expelled from the 4 adjustable deflectors placed near the sides of the product and from 4 directrices that are positioned at the corners. Furthermore, on the internal units there is a dedicated duct that allows the introduction of fresh air into the intake duct to guarantee the improvement of the air quality and its healthiness.
The unit includes an easily removable and washable dust filter , which ensures simple maintenance for always optimal air quality.
TECHNOLOGY, EFFICIENCY AND COMFORT GUARANTEED
The TCL 4-way Cassette S Series air conditioner represents the perfect synthesis between compact design, intelligent technology and energy efficiency. This unit offers 360° air diffusion , thanks to a four-sided delivery system combined with automatic corner deflectors. The result is homogeneous thermal comfort, without shadow zones, with circular ventilation that embraces the entire space.
The technological heart of the system is represented by TCL's proprietary AI Inverter technology , capable of modulating the compressor power in real time. This allows the set temperature to be reached quickly , maintained stable within a precise threshold of ±0.5°C , avoiding temperature changes and a significant energy saving of up to 60% compared to traditional on/off systems. The result is optimal comfort in every season, with a significant reduction in electricity consumption and compressor wear.
It has a series of settable modes: cooling, heating, dehumidification, ventilation mode; Programmable ON/OFF timer; 4-way automatic swing function ; Automatic restart in the event of a blackout. Additional functions can be viewed in the user manual supplied with the product. Regarding the adjustment of the orientation of the air deflectors , it is specified that they can oscillate continuously or be fixed in a set position with setting memory; the oscillation range varies from 10° to 85° with respect to the horizontal plane and is differentiated between cooling and heating.
The internal unit is equipped with a condensate drain pump that allows the liquid to be lifted up to 1200 mm from the level of the tray, for greater installation flexibility.
The heat exchangers of the units are treated to offer greater corrosion resistance and longer life.
For more complex systems, the system is equipped with a ModBus RTU interface , which allows its integration into Building Management Systems (BMS) . Furthermore, it has external ON/OFF contacts , useful for interaction with window sensors, access badges or home automation control units, making it perfectly compatible with advanced control logics.
The unit can be managed via infrared remote control and/or wired wall control panel (included as standard only for the Standard version). This dual feature allows flexible management in domestic environments, offices or technical rooms.
Furthermore, the S Series 4-way Cassette is compatible with the TCL Home app, which allows remote control via smartphone thanks to the WiFi included as standard . Via the app it will be possible to turn the unit on or off, change the temperature, mode and ventilation settings, program timers and customized scenarios. Furthermore, it is compatible with voice assistants such as Google Assistant and Amazon Alexa , allowing even more immediate and integrated management in the home automation of the environments.
ACCESSORIES INCLUDED
- Remote control and wired wall control (included as standard only for the Standard version)
- Built-in WiFi.
WARRANTY
The warranty is the official TCL one and lasts 2 years.
THE EXTERNAL UNIT

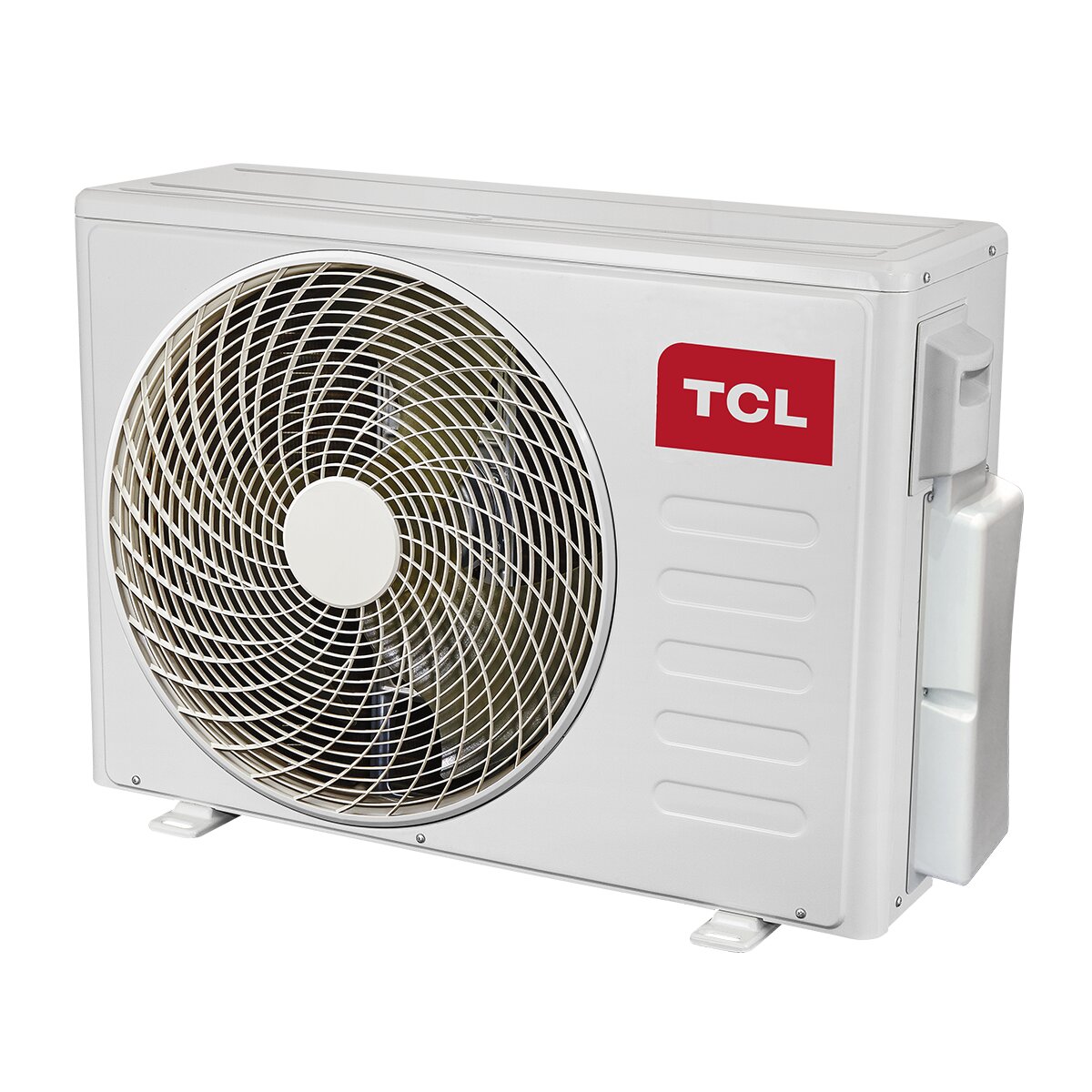

The new TCL Multi Free Match Series dual split outdoor unit represents excellence in residential and commercial air conditioning, combining technological innovation , high performance and attention to the environment.
The Trial Split external unit is the ideal solution for those who want to air condition three rooms independently and efficiently , using a single external motor. Designed with advanced technologies, this unit allows you to connect two internal units (even of different types), ensuring a customized climate in each room and at the same time optimizing the external space and energy consumption.
TECHNOLOGY, EFFICIENCY AND SAVINGS GUARANTEED
Compact, silent and versatile, the Multi Free Match series represents the perfect choice for apartments, offices or small commercial establishments that require targeted and sustainable climate comfort.
Thanks to the latest generation inverter compressor , the Trial Split modulates the power based on real needs, ensuring energy savings of up to 30% compared to traditional systems. The system works as a heat pump , making it ideal not only for summer cooling, but also for heating during the colder months.
The use of environmentally friendly R32 refrigerant helps reduce environmental impact, while improving system efficiency and ensuring excellent performance even at low temperatures.
It operates in cooling mode with external temperatures between -15°C and + 15°C, while in heating mode, performance is certified with temperatures ranging from -15°C to +24°C.
The electrical consumption of the units during Stand By condition is extremely low, to the advantage of energy efficiency and savings on the bill: better performance and lower consumption.
The heat exchangers are treated with a coating that increases their resistance to corrosion.
The refrigerant pipes for connecting the internal units to the external ones can be very long, in order to guarantee a flexible installation in any context.
WARRANTY
The warranty is the official TCL one and lasts 2 years.
