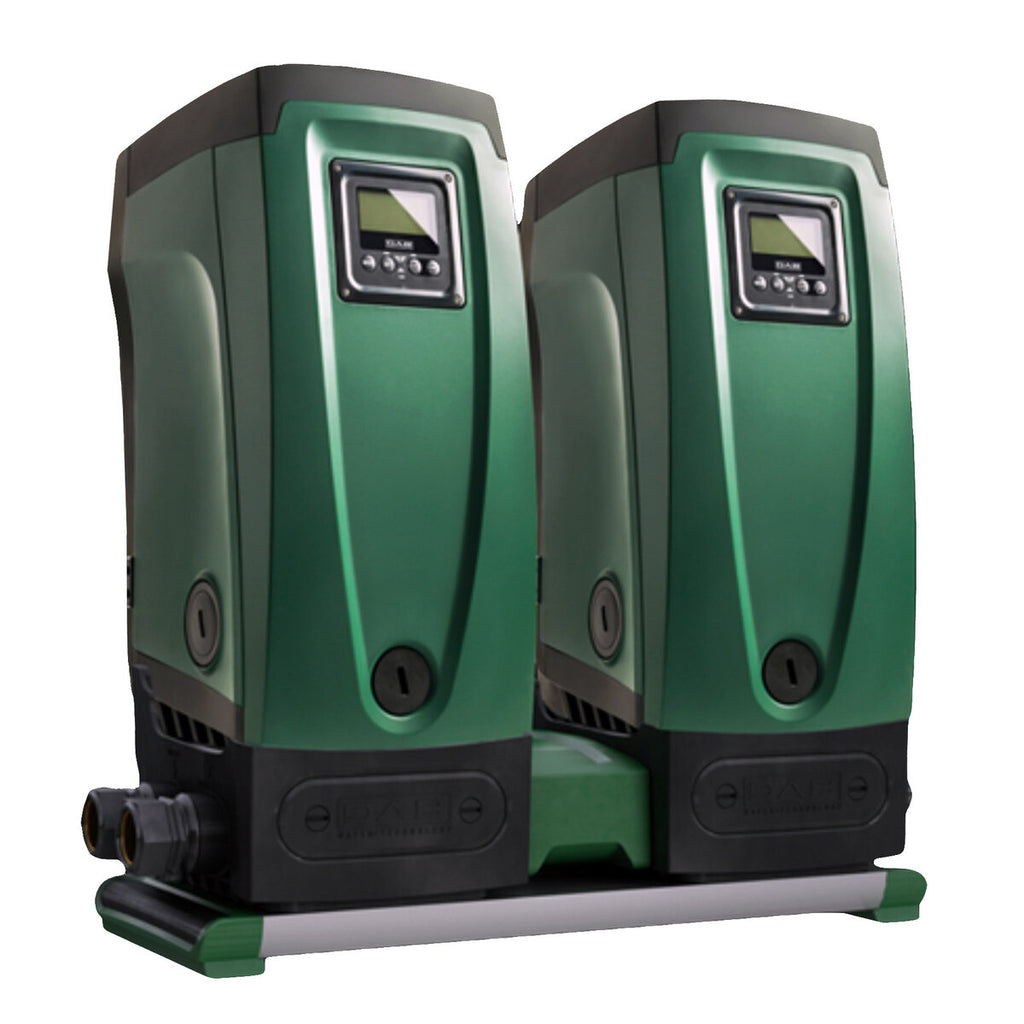

Group 2 DAB EsyBox inverter pressure pumps with EsyTwin 4 HP Wi-Fi - Electronic pressurization unit for residential use
Nominal power 2x1.4 kW/2x1.9 HP - Flow rate range 20 – 240 l/min. - Head range 63.5 - 2 m - Delivery 1”1/4 - Self-priming up to 8 m
The group composed of two EsyBox pumps with EsyTwin base is part of the EsyBox Line by DAB , the line that has revolutionized the way of understanding the autoclave by bringing to the market a range of products and accessories that solve every problem and need for water pressurization.
The kit offered here is a pressurization unit ideal for water supply in condominiums and large residences . Thanks to the inverter electronics, this unit adjusts the speed of its motors based on actual water needs, allowing for constant water pressure over time and, at the same time, significant savings on your bill. Each EsyBox in the kit is equipped with a self-priming multistage pump up to 8 m , a 2-liter expansion vessel , and a practical, adjustable LCD display for easily setting and monitoring pump operation. This new version of the EsyBox unit 2 with EsyTwin DAB includes integrated connectivity (Wireless, Wi-Fi, Bluetooth, Modbus) for remote management via the DAB H 2 D App , useful for monitoring water and energy consumption, receiving notifications of anomalies, and activating smart functions such as Power Shower and Good Night, even via voice command.
Applications of the DAB 2 EsyBox autoclave group with EsyTwin
The kit of 2 EsyBoxes with EsyTwin from DAB is ideal for pressurization in domestic and commercial water systems : its power allows it to easily serve condominiums with up to 9 floors and a maximum of 17 apartments.
Also perfect for:
-
Irrigation of vegetable gardens and gardens
-
Use with rainwater tanks
-
Water supply from wells up to 8 m
-
Distribution of drinking water (certified 2 l overflow tank).
The pumped liquid must be clean water.
High performance, energy savings and maximum comfort
The pressure group consisting of 2 EsyBoxes with EsyTwin boasts high performance in terms of both flow rate and head ; each E.sybox has a power of 1.4 kW (or 1.9 HP) and, thanks to the five impellers supplied, reaches a flow rate of up to 120 l/min (therefore 240 l/min for the group) and a head of up to 65 m.
With just 43 dB(A) of noise emissions (equivalent to a conversation between a few people), the encapsulated and water-cooled motors, the sound-absorbing ABS fairings and the anti-vibration feet even on the base, it is a truly silent device, suitable for installation anywhere. The operating pressure, which can be set to 5 different levels (between 1 and 6 bar), will always be constant thanks to the inverter system: no more water pressure problems while showering or watering the garden!
Savings are guaranteed: the use of inverter technology allows the motor speed of each EsyBox in the group to be adjusted according to the actual water demand at each tap, resulting in a cost reduction of up to €1000 per year compared to using a traditional pump group.
The Good Night function further reduces noise, making it suitable for any environment.
The Power Shower function temporarily activates maximum power for a more comfortable, waste-free shower.
Inverter technology allows savings of up to €1000 per year compared to a traditional autoclave.
GREAT MODULARITY OF INSTALLATION AND USE

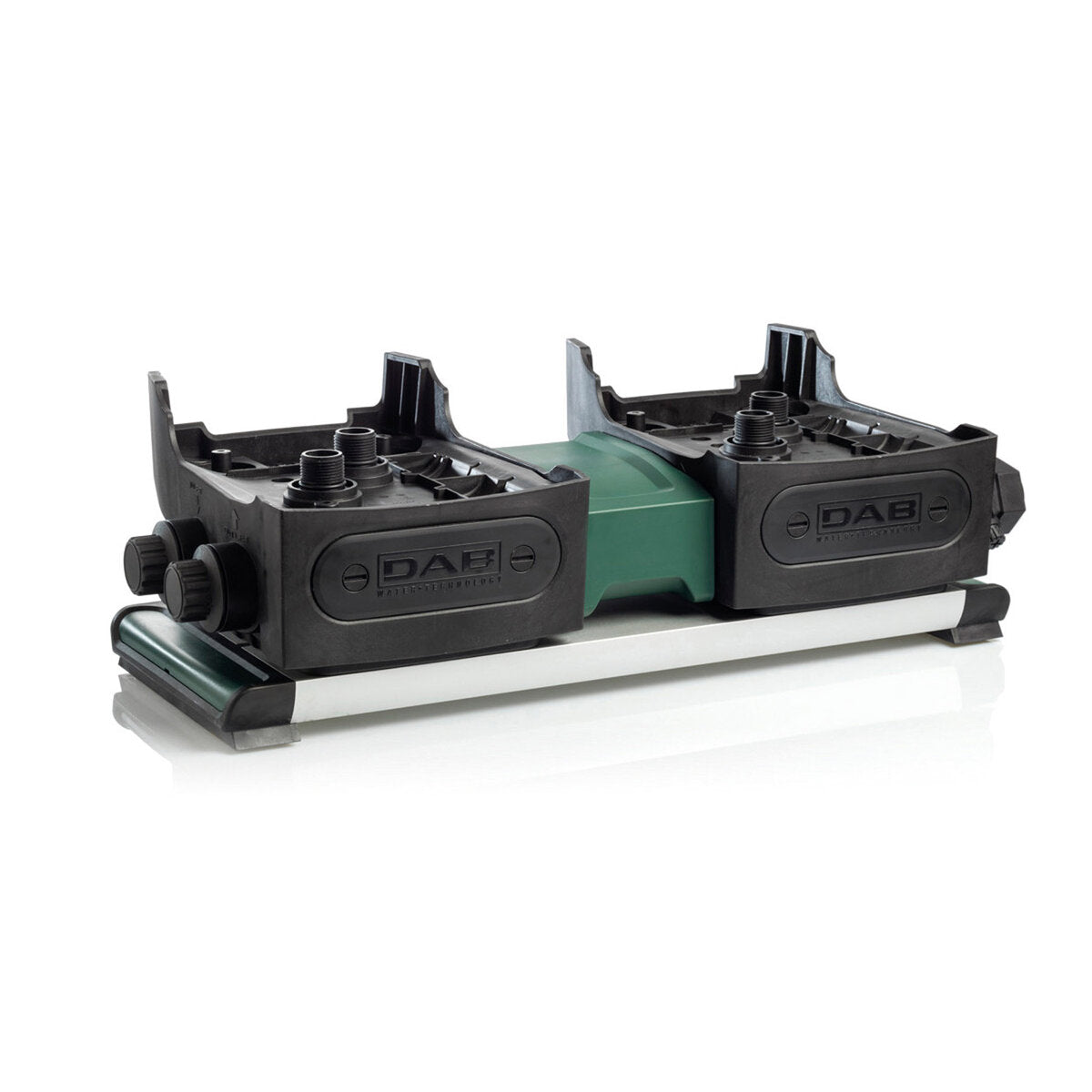

To install the kit, simply add the suction and delivery pipes to the EsyTwin quick-connect base. The two EsyBoxes can then be mounted on the base in just a few simple steps. Thanks to EsyTwin , the individual EsyBoxes can be easily disassembled in the event of maintenance or replacement. The kit's compact size makes it easy to install even in small utility spaces.
The orientable LCD display of each EsyBox is practical and intuitive; it allows the setting of all operating parameters and the monitoring of the appliance. Furthermore, thanks to the integrated connectivity on board, the system It can be managed remotely by downloading the DAB H 2 D App. All you need is an internet connection and a smartphone, tablet, or PC to interact with the device from anywhere. It is possible to create and manage groups of up to 4 EsyBoxes simultaneously to serve a greater number of users.
DIMENSIONS
Height: 730 mm – Width: 750 mm – Depth: 350 mm – Delivery: 1” 1/4
Weight: 66 kg.
NB: The dimensions and weight above refer to the assembled kit. See the technical data sheet for details on the individual components. The kit is supplied unassembled.
WARRANTY
The warranty is the Official DAB Water Technology one and lasts 24 months.
