Beretta BREVA E quadri split air conditioner 9000+9000+9000+12000 BTU inverter A++ external unit 7.5 kW The air conditioner kit is equipped with the following indoor units:
- 3 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m
The BREVA E air conditioner from the Beretta brand is truly amazing! Capable of excellent performance up to energy class A++/A+ and environmentally friendly by virtue of the use of R32 refrigerant gas with low environmental impact. Thanks to the Inverter technology with which the range is equipped, this air conditioner is able to modulate the power absorbed, adapting it to the real needs of the environment and providing a constant and balanced temperature.

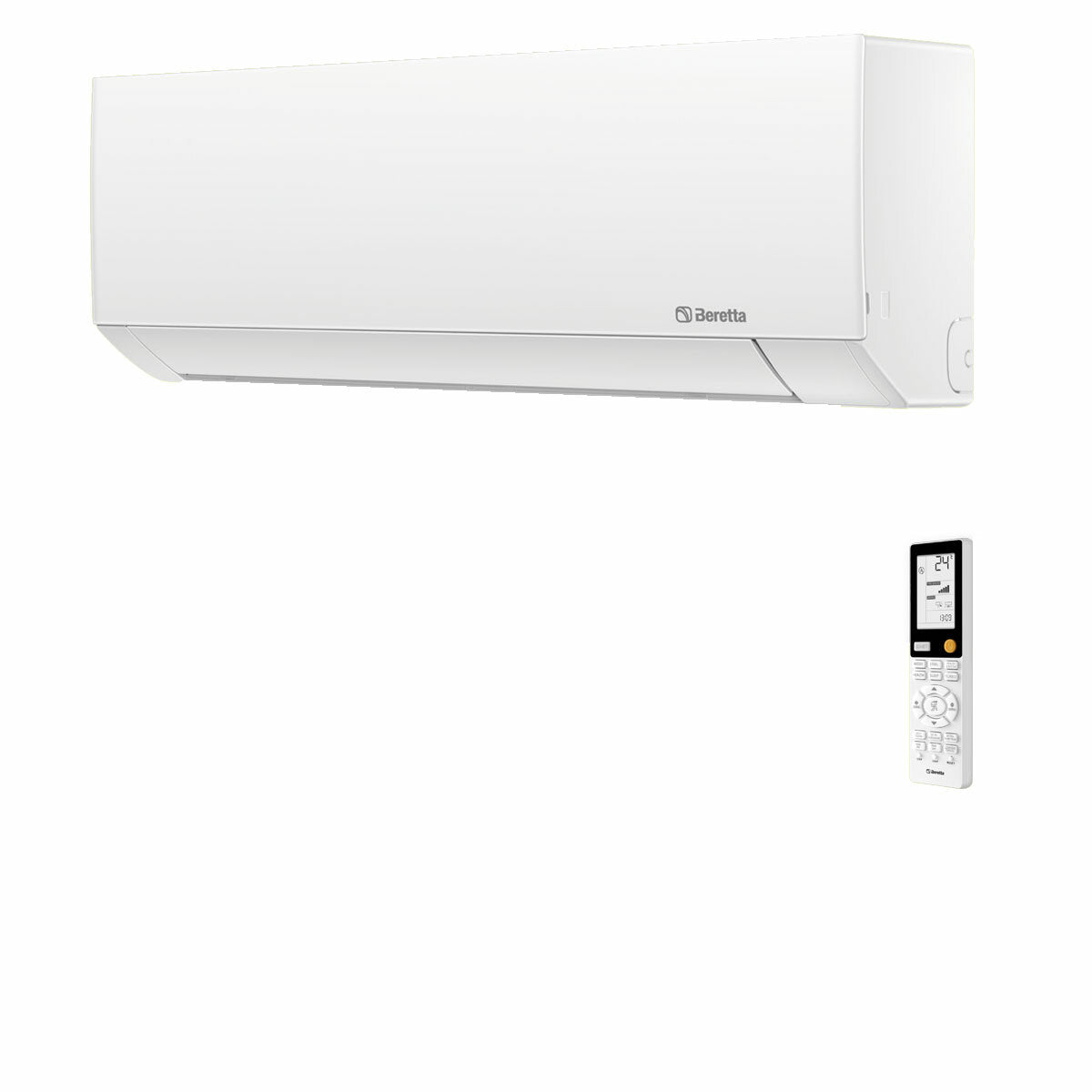

DESIGN
Modern and elegant design, easy to fit into any environment. The front panel is made of ABS , a highly resistant and durable material, glossy white in color with a backlit display for viewing the temperature.
The Breva internal units are used in combination with the external units of the series, to create the highly efficient and high-performance monosplit and multisplit combinations of the range.
TECHNOLOGY AND CLEAN AIR
In addition to the high efficiency and stability of the room temperature, BREVA E offers a continuous air cleaning action, operated through antibacterial and photocatalytic filters, for a healthier and more natural environment. The filters are simple to remove to facilitate cleaning and maintenance of the internal unit. Beretta BREVA E air conditioners offer a healthier environment thanks to the air sterilization function for deep cleaning and rapid disinfection. High temperature sterilization at 56° C dries the internal components and kills bacteria and viruses, offering healthy air coming out of the air conditioner. The functionality can only be activated from the BeSmart A/C Evo2 app.
Phase 1 - Self-cleaning The function freezes the evaporator and, subsequently, during the defrosting process, any residual dirt is removed.
Step 2 - High Temperature Sterilization at 56°C Thanks to intelligent temperature monitoring technology and frequency control, the operation of the compressor is adjusted to maintain the evaporator temperature high for over 30 minutes, eliminating bacteria and viruses present in the inside the air conditioner.
Step 3 - Rapid evaporator cooling To improve sterilization performance, the foil surface is coated with silver nanoparticles, which have an antibacterial effectiveness of up to 99%.
The Beretta BREVA E are also equipped with the automatic cleaning function which eliminates humidity from the internal unit, preventing the formation of mold and bacteria.
EFFICIENCY, COMFORT AND SAVINGS GUARANTEED
BREVA Beretta air conditioners offer energy performance up to class A++ in cooling and A+ in heating . By using Inverter technology in the heat pump they are capable of providing excellent performance with low management costs to the benefit of the bill. Thanks to the COANDA EFFECT they offer a homogeneous distribution of air throughout the room optimizing both air flows and temperature.
There are also a series of functions designed to increase the comfort and well-being of users: Cooling/Heating/Dehumidification/Ventilation for every seasonal need; “SMART” mode with automatic heating/cooling changeover; Swing : the function I FEEL through which the room temperature is perceived and detected by the remote control, which transmits the signal to the internal unit. In this way it will be possible to obtain optimal comfort close to the user, together with good energy savings; activates and deactivates the automatic movement of the horizontal deflector or stops it in a precise position; Healt Airflow : activates the Indirect Airflow function; Timer to set the air conditioner activity at the desired times; Quiet to set the silent mode and Sleep to silence and reduce consumption at night; AUTORESTART function in the event of a power failure with automatic restoration of settings. The safety and regulation of the air conditioner are guaranteed by two sensors: a heat exchanger temperature sensor which intervenes if the temperature detected is anomalous with respect to the operating mode and an ambient air temperature sensor which acts on the operation of the outdoor unit and regulates the room temperature. These are just some of the technical features of this air conditioner, further functions and specifications are contained in the user manual supplied with the product. Furthermore, in cooling, it is possible to orient the horizontal fin so as to avoid the direct air flow on people.
BREVA Beretta is managed via the supplied remote control , convenient, practical and intuitive, also equipped with quick keys for advanced functions; but there is also the possibility of remote control with APP , from Smartphone and Tablet, with optional Wi-Fi kit available on Climamarket cod. 20194065.
ACCESSORIES SUPPLIED
- Remote control
WARRANTY
The warranty is the official Beretta one and lasts 2 years.

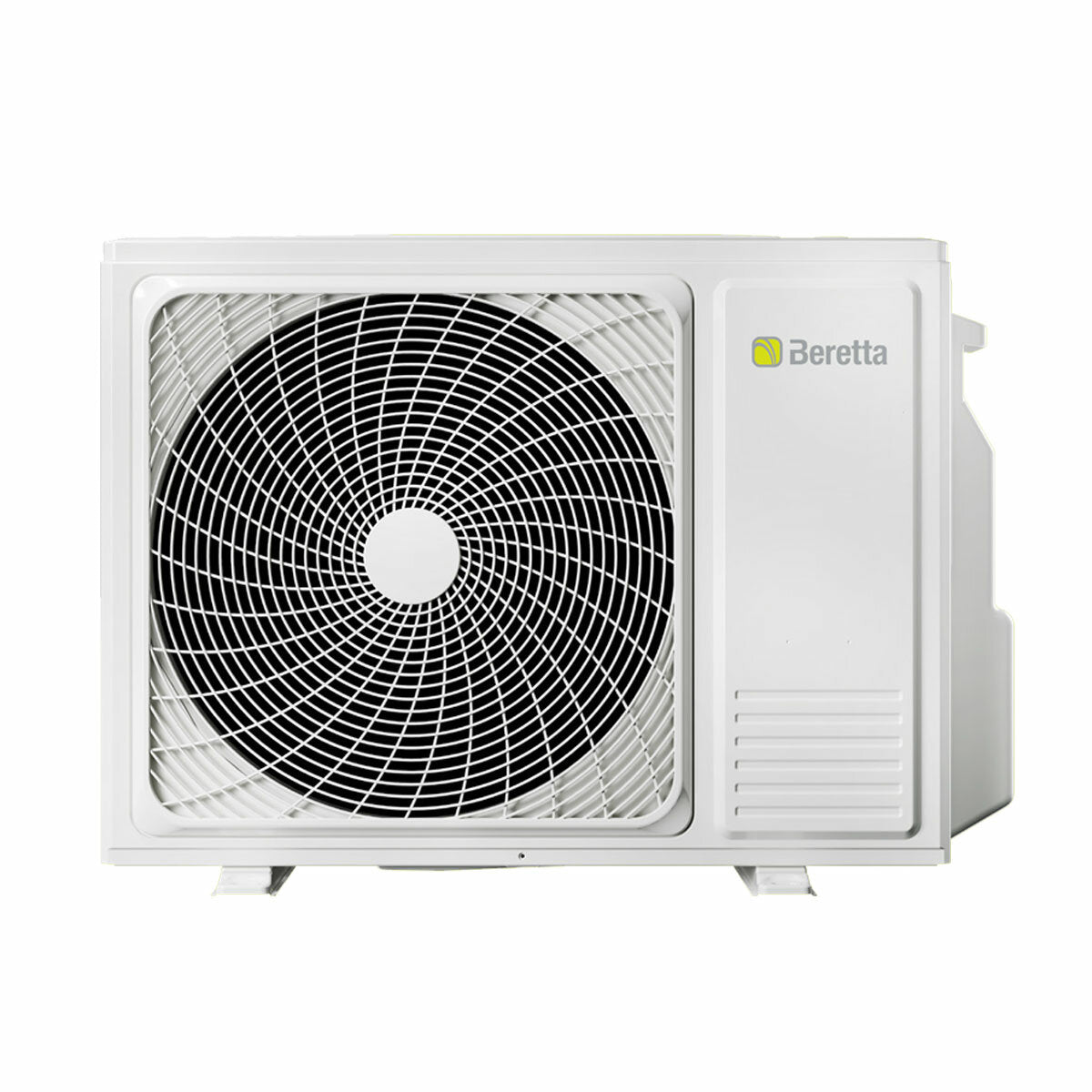

THE EXTERNAL UNIT
The external unit is the real beating heart of the air conditioner; it is environmentally friendly, thanks to the use of low GWP R32 gas and offers, thanks to the Inverter technology and the heat pump , always an operating power adequate to the real needs of the moment, both in summer for cooling and in winter for heating.
The performance it is capable of is incredible, up to energy class A++/A+ while maintaining low consumption, promoting efficiency, savings and comfort in a single solution.
GUARANTEED SAVINGS
The external unit of the Beretta BREVA air conditioner always provides a power proportionate to the real air conditioning needs of the environment in which its internal unit is located. Thanks to the Inverter system, the unit allows high energy savings and particular attention to the environment. It guarantees that you always obtain the highest energy classes and reduces waste to a minimum .
The rotary compressor is regulated by DC-Inverter control with continuous modulation from 20% to 110%, ensuring high energy standards. The DC fan motor improves performance and sound comfort .
Some systems have been designed to ensure safety and precise regulation of the system: compressor motor thermal protection , which intervenes if the current absorbed by the compressor is too high; gas delivery temperature sensor , which transmits the detected value to the electronic board which intervenes in the event of overtemperature (116 °C); defrost sensor , which transmits the temperature value detected on the heat exchanger to the electronic board which intervenes when it is obstructed by frost; external air temperature sensor , which transmits the detected value to the electronic board which intervenes to regulate the operation of the internal components of the unit when the climatic conditions change; suction temperature sensor , which transmits the detected value to the electronic board which intervenes to regulate the flow of refrigerant gas or to stop the unit in the event of overtemperature (40 °C); high pressure switch , which transmits the detected value to the electronic board which intervenes in the event of excessively high pressure or malfunction of the pressure switch, stopping the unit; low pressure switch , transmits the detected value to the electronic board which intervenes in case of too low pressure or malfunction of the pressure switch, stopping the unit.
Particularly resistant to bad weather and atmospheric agents, this external unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Beretta Italia one and lasts 2 years.
