Heating function: ideal for rooms of about 42 square meters with a calculated average height of 2.7 m
Cooling function: ideal for rooms of about 34 square meters with a calculated average height of 2.7 m
Heating output kW 4.50 - Cooling output kW 3.64.

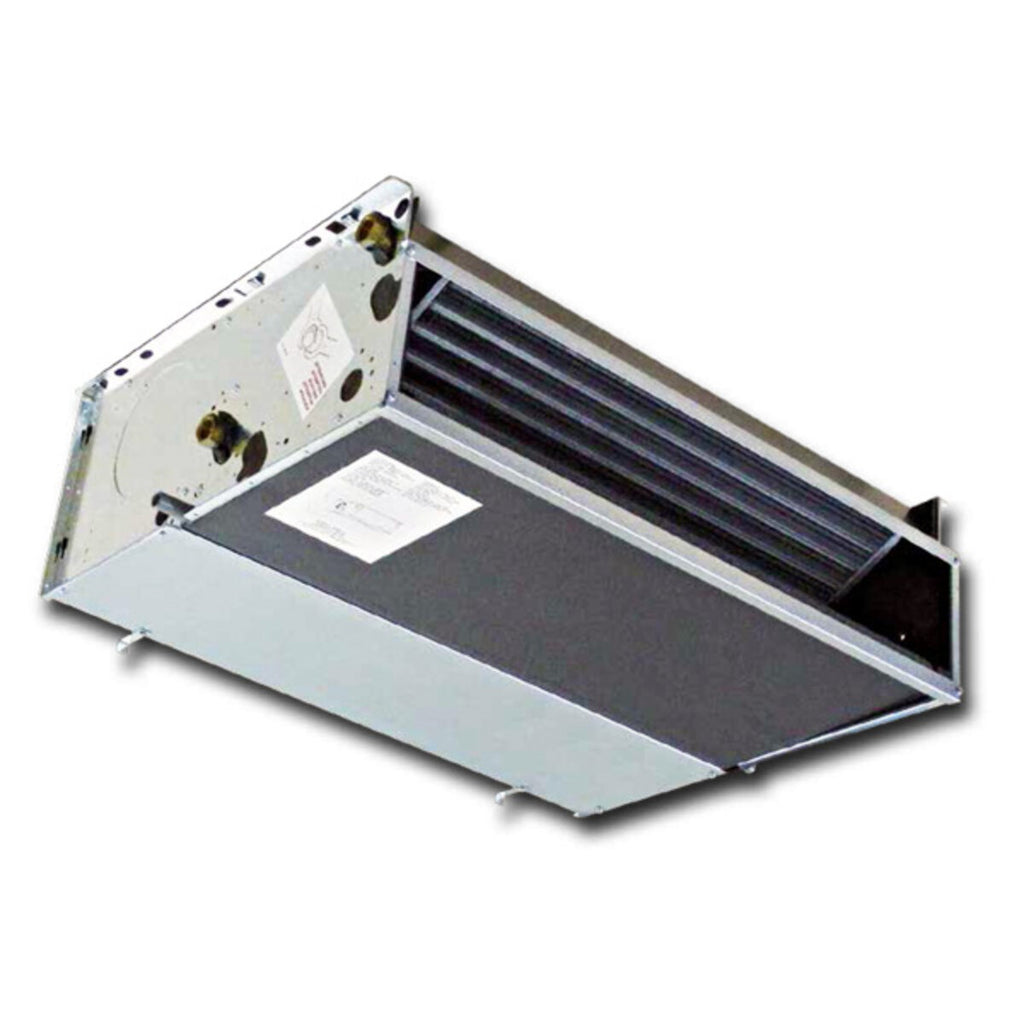

The recessed Carisma CRC , vertical ( IV ) or horizontal ( IO ), is the classic Sabiana fan coil capable of satisfying multiple technical and design needs.
Here proposed in the version with 3-row heat exchange coil , it is available in 9 different sizes (from 105 to 1500 mc / h). This machine is installed in a hidden position , generally a false ceiling or a wall niche, and the air diffuses into the room through a special ventilation opening. It follows the possibility of air conditioning the rooms without the unit being visible , to the advantage of aesthetics and the possibility of using the walls for our furnishings. Therefore, with the installation of a built-in fan coil, there is well-being but there is no… the fan coil.
GREAT MODULARITY OF INSTALLATION AND USE
The Carisma CRC in the IV-IO version is ideal for installation in any environment, both residential and commercial or hotel : the possibility of embedding the machine both in a vertical position , for example in a wall niche, and horizontally , perhaps hidden by a false ceiling, gives it considerable versatility , allowing designers to design environments that are freer from technical encumbrances. Furthermore, in this size, the IV version can be recessed into the wall inside the elegant and functional Carisma Breeze recessed kit (available separately).
The load- bearing structure of the Carisma CRC is made of 1 mm thick galvanized sheet metal ; the filter is in washable and easily removable polypropylene ; the engine is mounted on elastic anti- vibration supports; the particularly silent fan unit is directly keyed onto the motor shaft; the heat exchange coil is made of copper and aluminum and is reversible (the side of the connections can be reversed) so it offers a greater degree of freedom in the installation. The power supply is 230V. The L-shaped condensate drain pan is fixed to the structure and isolated by a 3 mm thick mattress.
Built in Italy in the Sabiana factories, it enjoys the highest manufacturing standards in terms of quality and reliability .
GUARANTEED SAVINGS AND HIGH COMFORT
It has particularly low electrical absorption so it guarantees excellent energy efficiency ; offers high standards of comfort as it is extremely quiet in operation.
Length: 945 mm - Height: 511 mm - Depth: 218 mm
Weight: 19.6 kg
- "WM-T" 3 speed command. wall-mounted - electronic thermostat and outdoor / inv. manual, cod. 9066630
- "CB" 3 speed command, cod. 9066300 (can be installed on the machine in case of vertical wall installation and without Kit Breeze)
- "CB-T" 3 speed command. - electronic thermostat and ext./inv. switch manual, cod. 9066301 (can be installed on the machine in case of vertical wall installation and without Kit Breeze)
- Automatic “CB-AUT” command. speed - electronic thermostat and ext./inv. on board / centralized, cod. 9066318 (can be installed on the machine in case of vertical wall installation and without Kit Breeze)
- Minimum temperature probe, cod. 9053048, to be combined with the WM-T, CB and CB-T controls
- Minimum temperature probe, cod. 3021090, to be combined with the CB-AUT command
- BSV-C additional condensate drain pan, cod. 6060400 for version IV
- Additional condensate drain pan BSI-C, cod. 6066039 for version I
(*) Items to be purchased separately.
