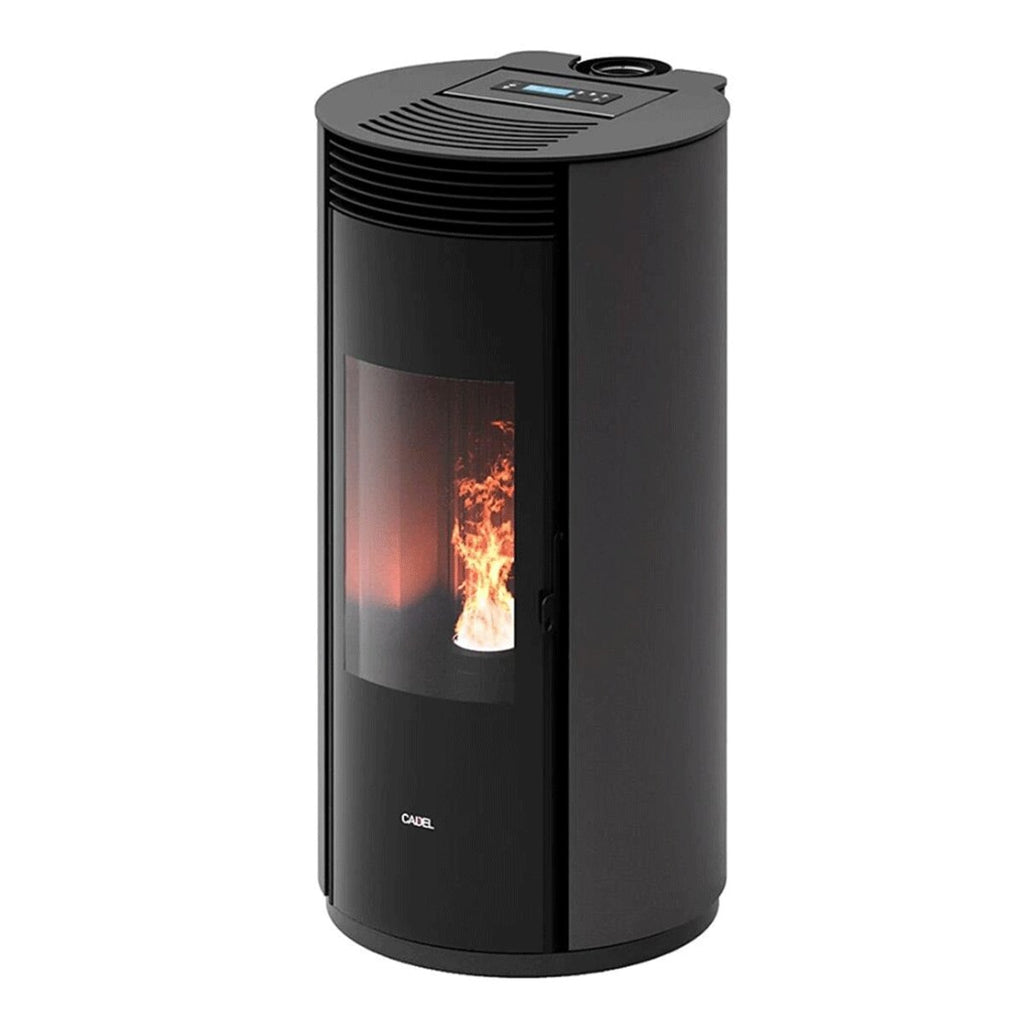

Cadel Spin Plus 9 8.5 kW pellet stove with ducted air WiFi Titanium
Nominal thermal power 8.5 kW
Ideal for rooms up to 88 m² with an average height of 2.7 m
The Spin Plus 9 pellet stove has advanced features and is the ideal solution for those who prefer technology, efficiency and comfort. With 8.5 kW of nominal power , it is powerful and high-performance and ideal for heating rooms up to 88 m2, as well as equipped with all the new technologies by Cadel.
Ducted air pellet stoves are certainly the best solution for those who need to integrate or replace the traditional heating system of medium-sized homes, as they can heat the rooms in which they are installed and even additional rooms, even on different floors, through special ducts. Furthermore, thanks to the sealed chamber , total airtightness with respect to the installation environment is guaranteed, therefore the stove takes combustion air from the outside and not from the home environment, providing benefits in terms of heat output, reduction of emissions and safety.
DESIGN
The design of this pellet stove does not go unnoticed ! Titanium metal cladding , truly elegant and effective. Round section , it gives movement and elegantly fills the spaces; the curved door creates a sensation of depth, embellished by the sight of a live flame , which appears when the insert is lit , creating a warm and enveloping sensation. The upper part is made up of a control panel with display and grill for air outlet. The brazier is made of cast iron as are the interiors with 2nd combustion air .

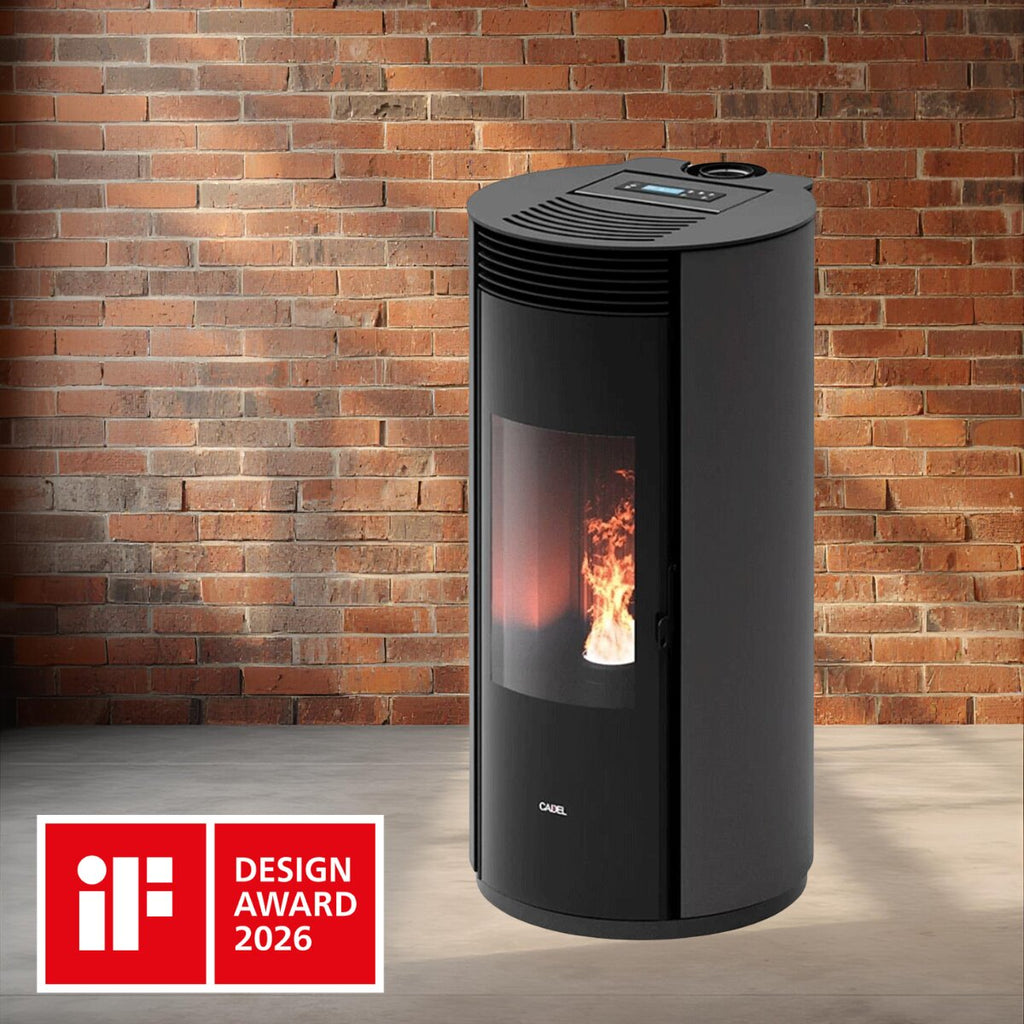

The Spin Plus 9 has been awarded the prestigious iF Design Award, one of the most important international recognitions in the field of design. Selected from over 10,000 entries from 68 countries, it impressed a jury of 129 experts, standing out for its quality, innovation, and attention to detail.
TECHNOLOGY AND INNOVATION OF THE DUCTED PELLET STOVE
The Cadel Spin Plus 9 pellet stove has obtained numerous certifications, such as the 5-star environmental class and the A+ energy class .
Spin Plus 9 is an absolute novelty in the panorama of pellet stoves because it is equipped with the new technologies by Cadel, designed to facilitate use and enjoy maximum comfort. The innovative self-cleaning brazier carries out brazier cleaning operations automatically, facilitating and reducing manual cleaning operations and optimising the operation and performance of the stove; UPS Ready consists of an accessory to prepare the stove for connection to an external backup battery (not included), this will guarantee continuous power supply and maximum protection when switching off the stove in the event of a blackout; the Go Fast system consists of a ceramic spark plug/resistance that guarantees faster ignition of the pellet.
The Spin Plus 9 pellet stove is a ducted air stove that features an integrated upper concentric outlet consisting of an upper Ø 80 mm smoke outlet and a Ø 130 mm combustion air inlet and a rear outlet for ducting Ø 80 mm , all ducting fans can be managed independently . It also includes a series of very interesting functions such as the Comfort Mode which automatically deactivates the stove fans at power 1 to ensure maximum silence . Spin Plus 9 is also equipped with an electronic control panel with a backlit display and programming keys: it allows daily and weekly programming of the operating cycles with automatic switching on and off, which can be varied for the various days of the week. Other settings can be viewed in the user manual supplied with the product.
But the great novelty of the Spin plus 9 pellet stoves by CADEL is undoubtedly the standard equipment of the Easy Connect wifi panel that allows them to be managed remotely via smartphone, tablet or PC. All you need is a wifi connection and download the specific Easy Connect Plus App by CADEL to be able to access the stove's control and management panel from wherever you are, even from multiple devices. Thanks to the standard Bluetooth , it will also be possible to connect your smartphone to the stove, when nearby, without the need for a wifi signal. With Easy Connect Plus it will be possible to turn the stove on and off, check and manage the room temperature, set the timer, the chronothermostat, monitor the generator's status and consumption.
For the more traditionalists, CADEL still offers the possibility of purchasing a practical remote control separately for all adjustments and the possibility of connecting to an external thermostat.
NB : further technical details can be viewed in the attached technical sheet.
TECHNICAL FEATURES
- upper smoke outlet Ø 80 mm
- combustion air inlet Ø 130 mm
- duct outlet Ø 80 mm
- nominal thermal power 8.5 kW
- nominal efficiency 90%
- tank capacity 20 kg
- 5 star environmental class
- energy class A+
DIMENSIONS
Width 52.2 mm_Height 110.4 mm_Depth 59 mm
Weight 103 kg
WARRANTY
The warranty is the official Cadel one and lasts 2 years.
