CADEL Zefiro 9 kW pellet fireplace insert with ducted air and Wi-Fi
Nominal thermal power of 9 kW
Ideal for heating up to 90 m2 with an average height of 2.7 m

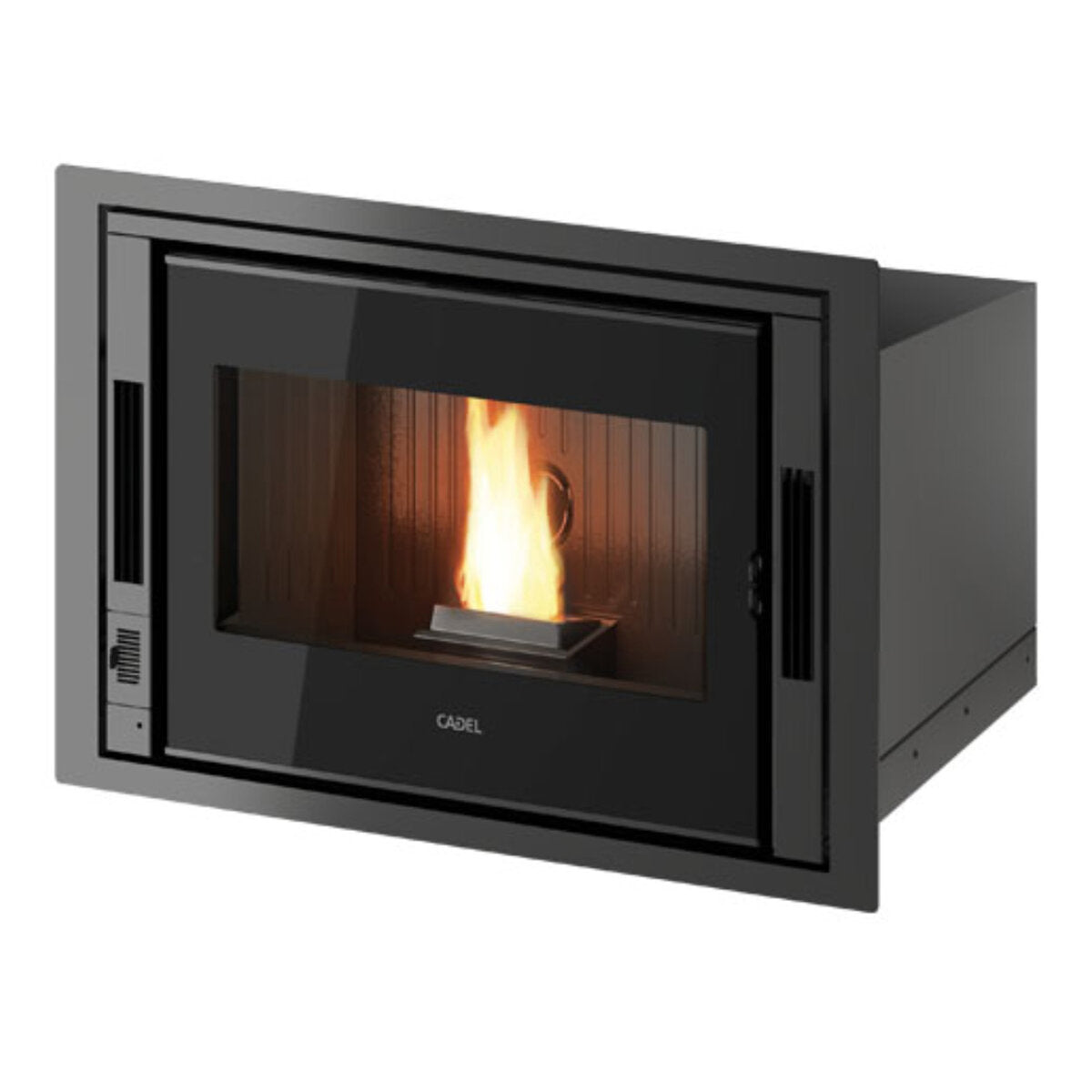

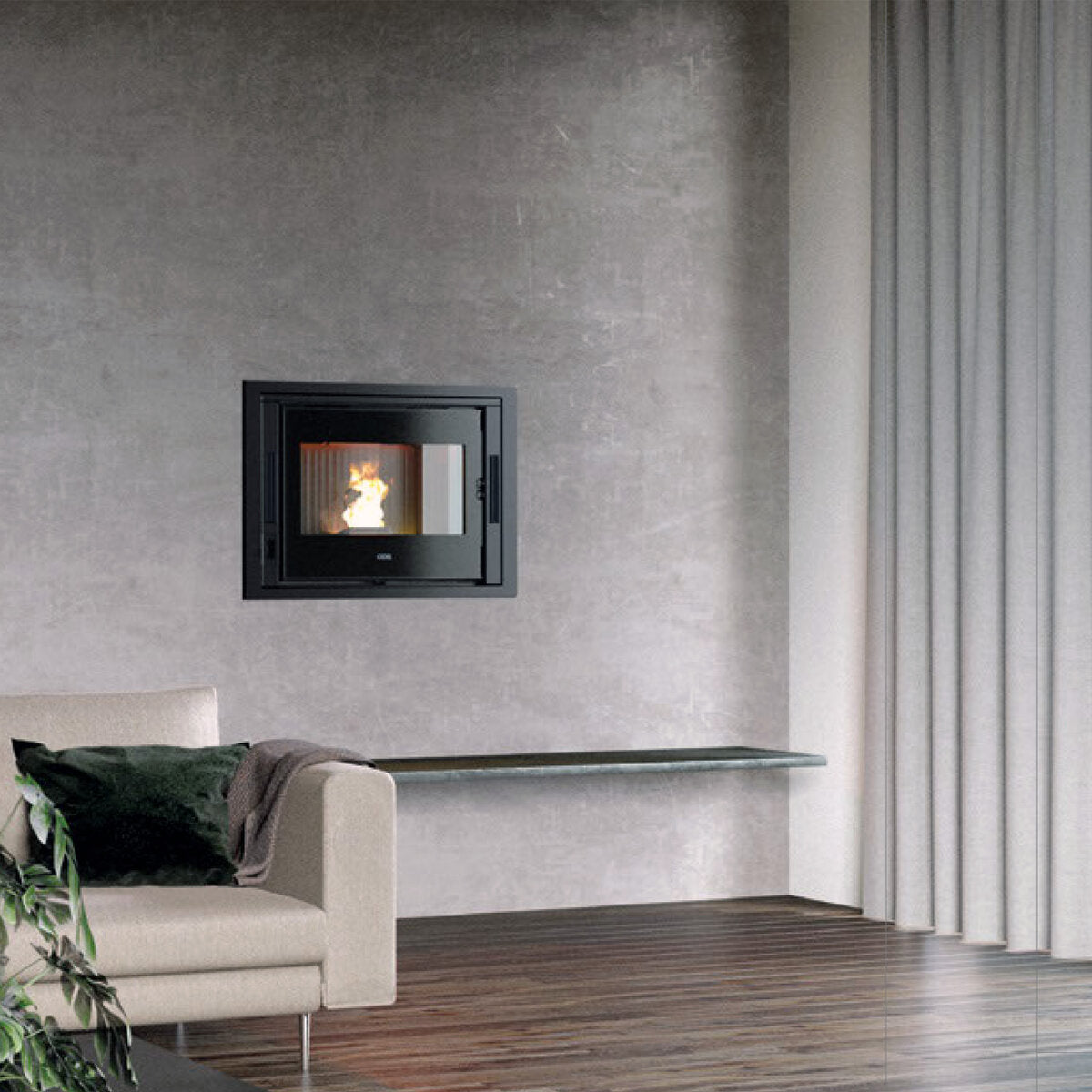

Zefiro 9 is CADEL 's pellet insert, ideal for bringing an old, unused fireplace back into use or for those who wish to install a concealed pellet stove in the masonry.
An elegant black glass window reveals the flames that can heat rooms up to 90 square meters. The insert features a cast iron brazier and interior, an aluminum auger, and built-in Wi-Fi and Bluetooth as standard: an excellent product in terms of quality and technology. It also offers the option of ducting to a second room using an optional kit. Energy Class A+ and 5-Star Environmental Class .
DESIGN

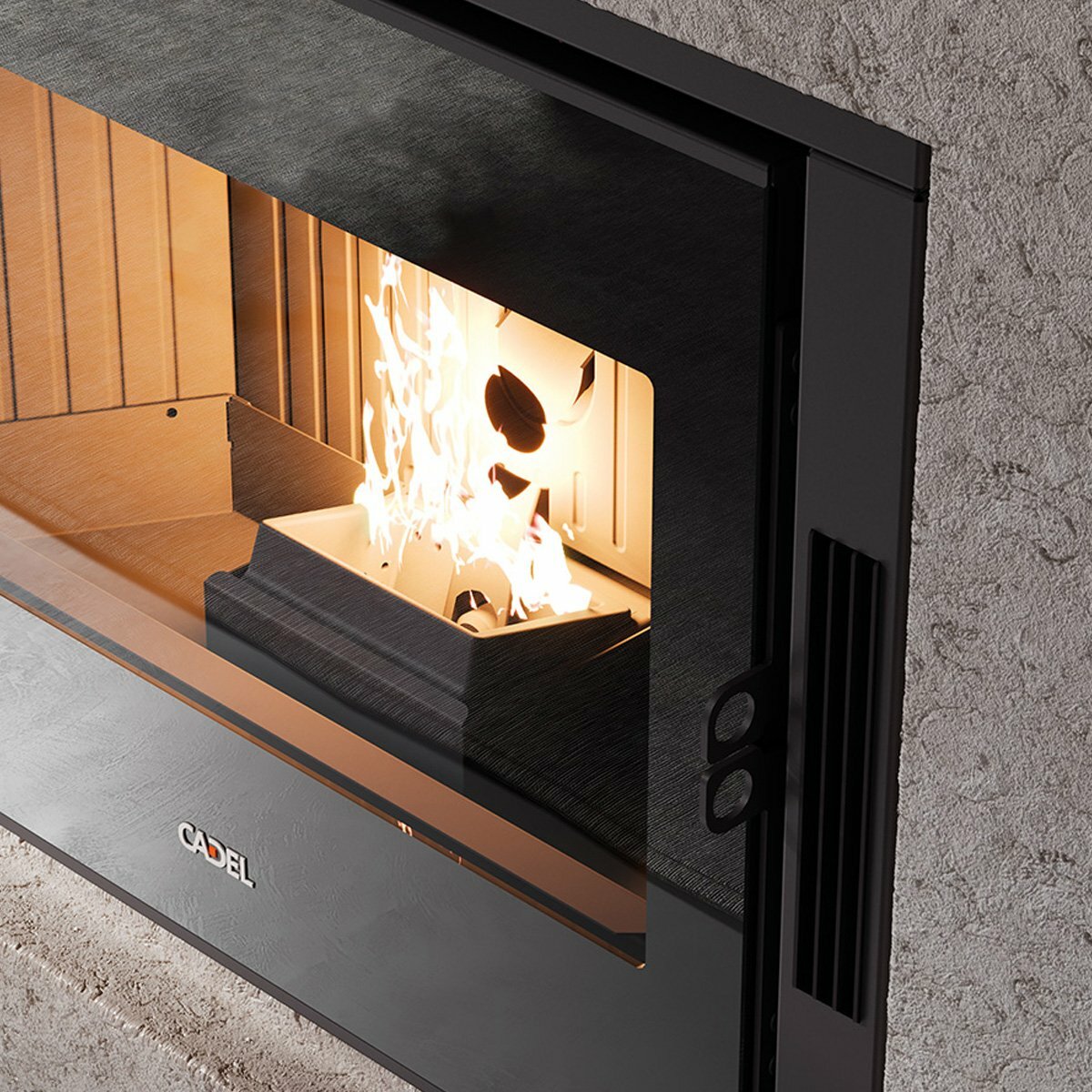

Zefiro 9 resembles an elegant painting, with a vibrant flame at its center, highlighted by the sleek black frame. On the sides of the glass are vents for hot air outlet and a retractable display for setting the various functions. The brazier and cast iron interior of the insert underscore the special care and attention to materials used by CADEL to craft its stoves. A range of optional extras, such as trim frames, a pellet drawer, or a leg kit (available for purchase separately), allow you to enhance the design, functionality, and final appearance of this stove. Once installed, it will enhance walls and rooms, becoming the centerpiece when the flame ignites!
GUARANTEED SAVINGS AND HIGH COMFORT
Zefiro 9 is a ductable pellet stove , meaning it heats the air in the room it's placed in through ventilation and also offers the option of ducting the hot air to a second room up to 6 meters away using a special optional kit. With its 9 kW nominal power, it can heat large spaces, up to 90 m2; at minimum power, it can operate continuously for up to 25 hours, thanks to its 15 kg tank.
Zefiro 9 stands out for its high performance and efficiency , low pollution levels, and above all, exceptional safety. This starts with its " sealed chamber " technology, which means the stove draws combustion air from outside, through a dedicated pipe, rather than from the surrounding environment. It is therefore extremely safe because it does not draw oxygen from the home. Safety is further enhanced by the exclusive overheating protection, which automatically shuts down operation if necessary.
The aluminum auger combines the strength of the material used with the lightness of the component so it can be driven by a low-power motor to also reduce electricity consumption. Like a worm screw, the auger continuously loads the pellets, moving them from the hopper to the combustion chamber, ensuring a constant and high-performance supply. The insert features an air preheating system that keeps the glass clean and an air preheating system around the brazier for even better performance.
Thanks to the Comfort Mode function, it is possible to reduce forced ventilation and therefore the noise of the stove to a minimum.
Characterised by good silence and operating autonomy, low pellet and electricity consumption , Zefiro 9 is classified in Energy Class A+ .
GREAT MODULARITY OF INSTALLATION AND USE
The Zefiro 9 pellet fireplace insert by CADEL is ideal for installing in older fireplaces, perhaps unused because they're producing smoke, or for installing inside the masonry, thus concealing the structure, maximizing living space and design. The stove has an 80 mm diameter top vent for the flue and a 60 mm diameter rear air intake.

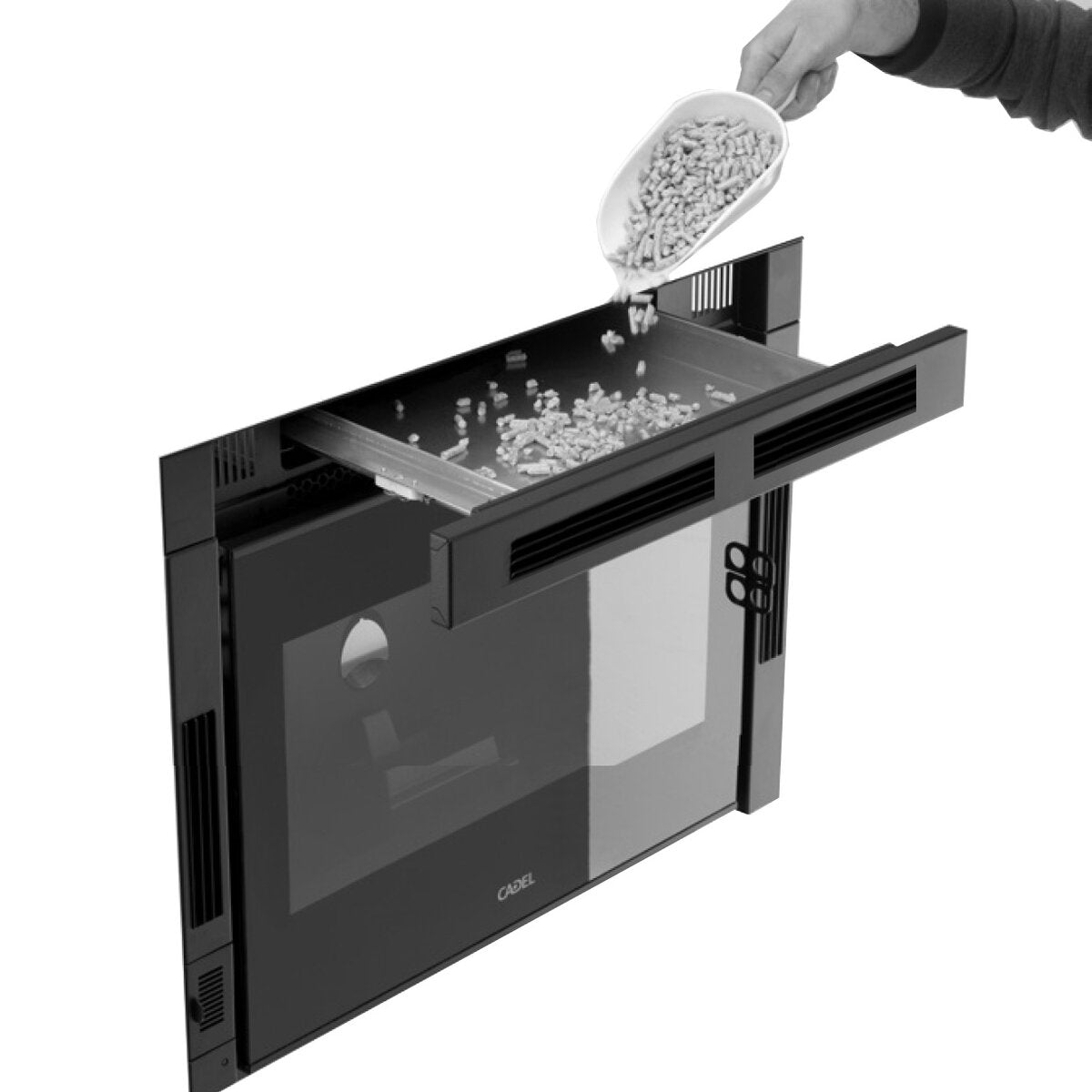

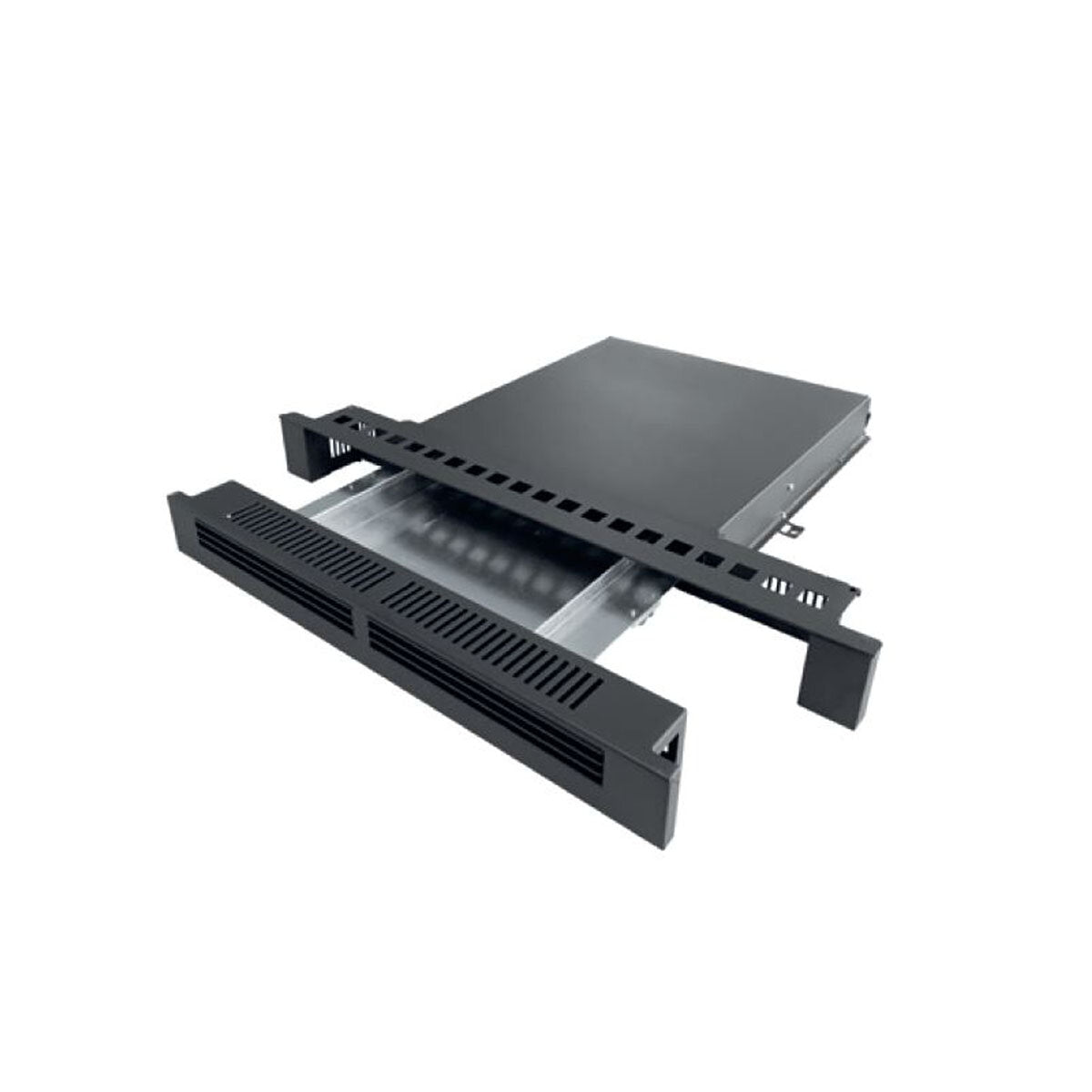

The pellets can be loaded directly into the tank by removing the machine body from the structure in just a few steps, or through a practical drawer (Code 5018001) or a trapdoor (Code 5018002) which can also be purchased separately on the Climamarket website.
The pellet insert is equipped with a convenient and practical retractable electronic control panel located to the left of the glass door; thanks to its backlit display and programming buttons , it allows for daily and weekly programming of operating cycles, as well as automatic on and off during two daily time slots, for customizable programming and maximum comfort. Manual on and off and settings of the various functions are always possible. Management can also be carried out via a practical remote control (optional) . But Zefiro 9 can even be managed remotely thanks to the standard integrated Wi-Fi or Bluetooth system and the dedicated CADEL Easy Connect Plus application: all you need is a smartphone or tablet and a Wi-Fi connection to find your home heated when you return home. Zefiro 9 also has a socket for connecting an external chronothermostat (to be purchased separately) and offers the possibility of channelling hot air into a second room, thanks to a special ducting kit (Code 5018005, optional).
DIMENSIONS
Width: 695 mm - Height: 500 mm - Depth: 560 mm
Weight: 94 kg
WARRANTY
There The warranty is the official CADEL one and lasts 24 months .
