Clivet AQUA F R290 300 Liter Heat Pump Water Heater - WITH COIL
Clivet AQUA F is the heat pump water heater designed specifically for the production of domestic hot water , ideal for significantly reducing energy consumption and bill costs.
Thanks to heat pump technology, AQUA F uses the renewable energy contained in the air to heat the stored water, using a minimal amount of electricity . Compared to a traditional electric boiler, the system is up to 4 times more efficient , allowing for a reduction in electricity consumption of up to 75% for the same amount of thermal energy produced.
Efficiency at the highest levels
Clivet AQUA F is designed to offer excellent performance . The careful design of the refrigeration circuit allows it to achieve the A+ energy efficiency class , among the highest currently available on the market according to the ErP directive.
The Clivet AQUA F heat pump water heater is designed to operate even in extreme environmental conditions. It can operate at air temperatures between -7°C and +43°C when using the heat pump alone, and down to -20°C when combined with the electric resistance. It can also reach water temperatures above 65°C when using the heat pump alone, ensuring high performance and maximum hygiene.
The high COP values guarantee: lower operating costs, greater use of renewable energy, reduced environmental impact.
The system uses natural refrigerant R-290 , efficient and with low environmental impact, with a GWP (Global Warming Potential) close to zero.
Advanced technology and connectivity

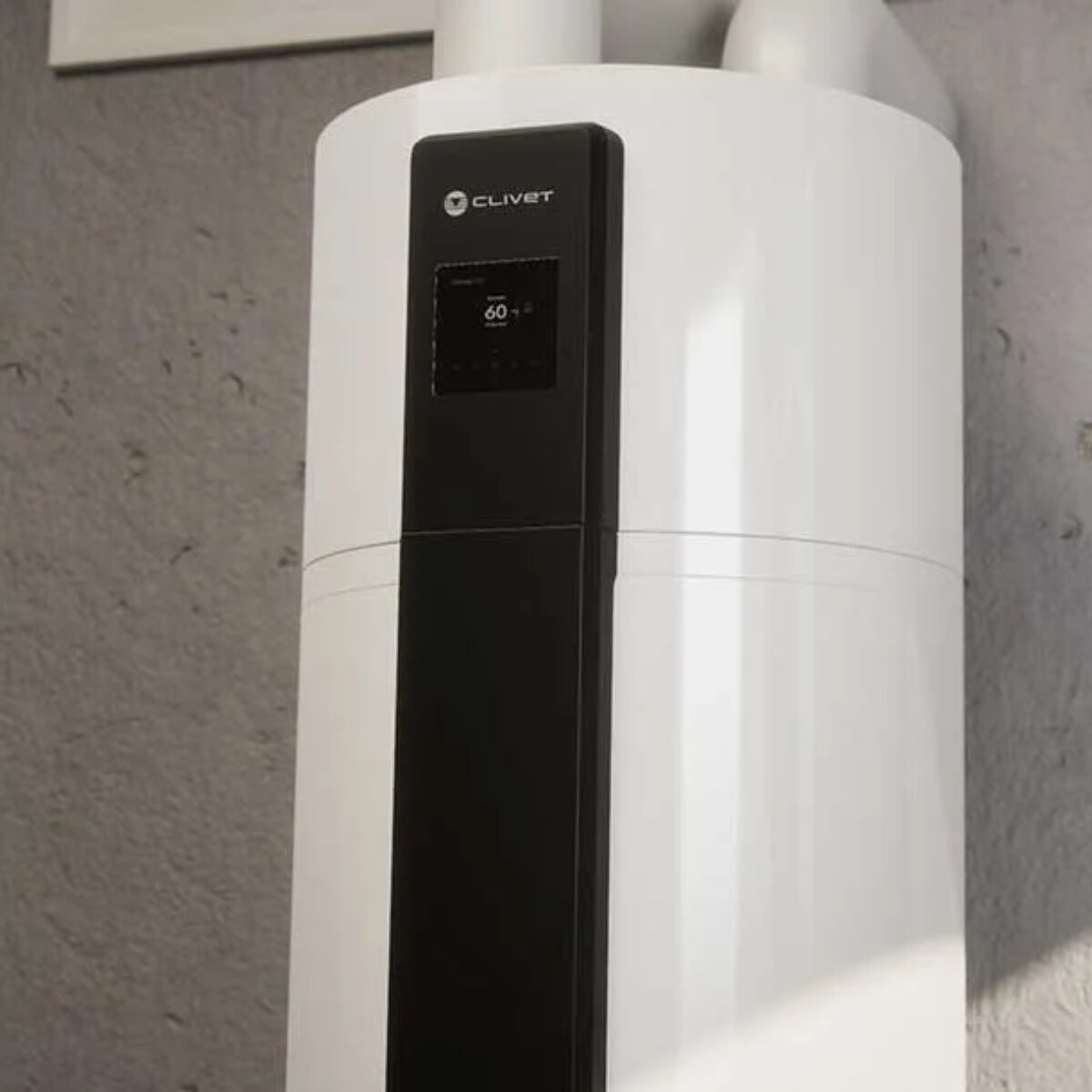

The water heater features an integrated control panel , allowing for simple and immediate management of the main functions, such as temperature regulation, operating mode selection, and many others. The control panel has been designed to be quick and intuitive for the user, with all parameters easily accessible.
The system is equipped with a complete technological package, designed for comfort and integration with other systems:
-
Advanced connectivity thanks to integrated Wi-Fi with management via the SmartHome app, available for free download for iOS and Android. The user can perform the following remote operations: turning the unit on/off, viewing and setting the tank temperature, activating E-Heater mode for rapid DHW heating, scheduling (daily, weekly, holiday mode), activating the anti-legionella mode (Disinfect).
-
Modbus connection port for integration with other systems and home automation. Cascade management of up to 8 units , to meet even large domestic hot water requests;
-
ON/OFF input that allows you to turn the heat pump water heater on or off from an external device , without using the control panel.
-
Compatibility with CONTROL4 NRG: the intelligent energy management system integrated into the product. It's an intelligent assistant that helps the system use energy as efficiently as possible, automatically managing both electricity and stored heat, optimizing system operation and reducing waste. The software updates automatically remotely , without manual intervention, so the system always remains up-to-date, efficient, and compatible with new features over time.
-
Dedicated contacts for photovoltaic systems and Smart Grids;
-
Electronic anode as standard for greater protection of the tank from corrosion;
-
Electric/auxiliary resistance: it comes into operation when the heat pump alone is unable to reach the required temperature or in critical environmental conditions;
-
This version is equipped with an INTEGRATED COIL : the coil is an internal heat exchanger that allows you to connect an external heat source (boiler / external heat pump / solar thermal) , integrate or replace the work of the heat pump, heat domestic water indirectly and does not consume electricity directly (unlike the electric resistance). Practical example: in the presence of an air-to-water heat pump for heating, during the winter season the hot water produced by the generator can be sent to the integrated coil of the Clivet A water F water heater, allowing the production of DHW with reduced or no intervention of the integrated heat pump and with consequent optimization of energy consumption and heating times.
The enamelled steel storage tank is designed to ensure maximum durability over time and is protected by both an active electronic anode and a magnesium anode , ensuring anti-corrosion protection even in the absence of an electrical power supply.
Centrifugal fan, housed in aerodynamic nozzles for maximum efficiency and low noise, makes it among the quietest in its category.
The refrigeration circuit, equipped with an aluminium microchannel condenser wrapped around the tank , eliminates any risk of contamination of the sanitary water.
External insulation in high thickness polyurethane (46 mm) to reduce heat loss.
Simple installation, flexible use, low maintenance
The Clivet AQUA F water heater is designed for internal installation and requires only:
Clivet AQUA F is designed to last over time and reduce maintenance to a minimum because the electronic anode eliminates the need to periodically empty the tank, the self-diagnosis system for malfunctions increases reliability, ordinary maintenance is limited to a simple check of the filters , making interventions quick, economical and non-invasive.
NB: FOR FURTHER DETAILS WE RECOMMEND VIEWING THE TECHNICAL DATA SHEET ATTACHED.
DIMENSIONS
Height 1735 mm_diameter 560 mm
Operating weight: 407 kg
Storage capacity: 300 litres
WARRANTY
The warranty is the official Clivet one and lasts 24 months.
