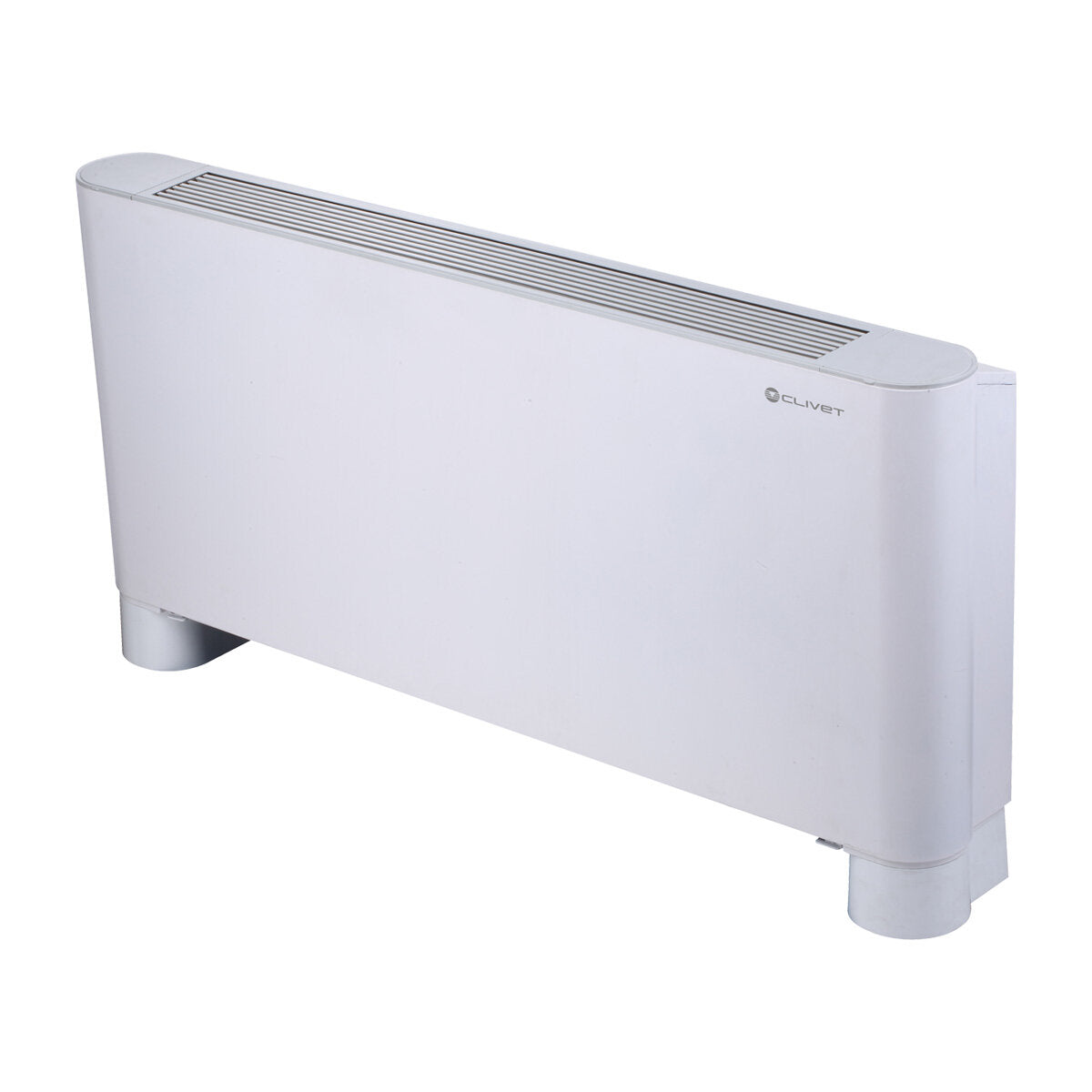

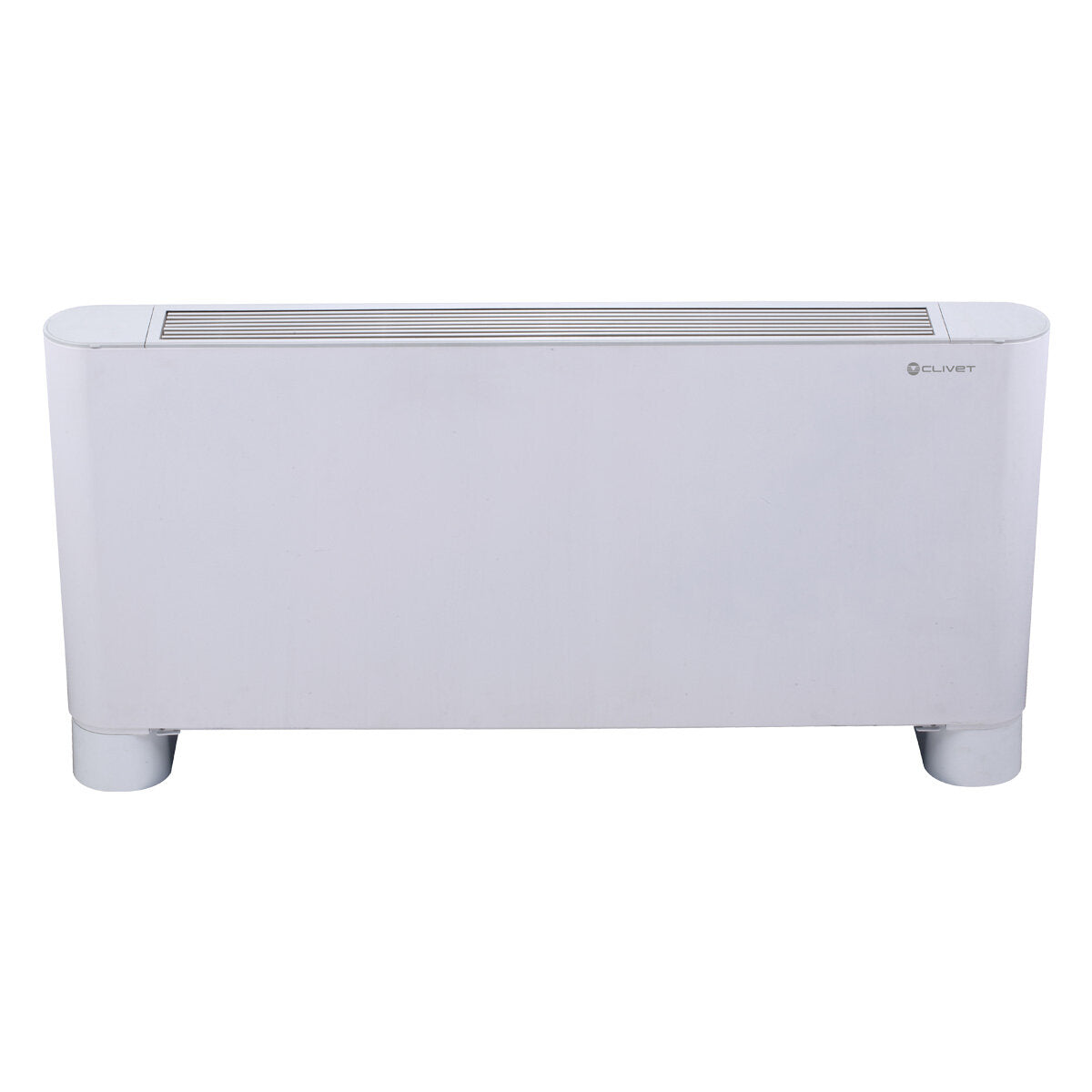

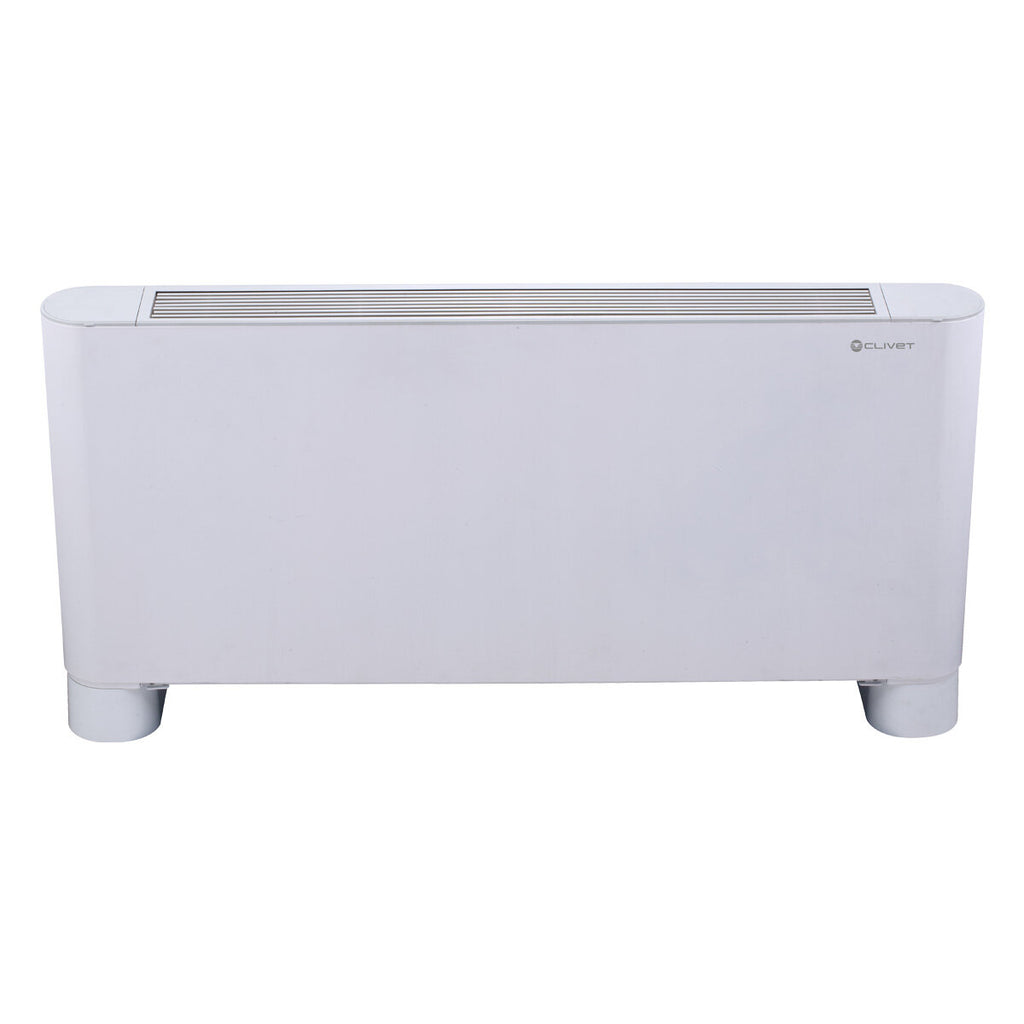

Clivet Aura CFFAC 3 CC2 R3 fan coil unit 3.05 - 2.65 kW

Roll over image to zoom in Click on image to zoom

Clivet Aura CFFAC 3 CC2 R3 fan coil unit 3.05 - 2.65 kW

Name: Clivet Aura CFFAC 3 CC2 R3 fan coil unit 3.05 - 2.65 kW
Brand: Clivet
SKU: 37022278
Price: 236.28 EUR
Availability: InStock

Save 45%

ClivetSKU: 37022278

Price:

€236,28 €428,22

Quantity:

Share this product

Code: 37022278
ID code: 6D255C
Pre-code: CLV
Short description: The Clivet Aura fan coil is designed for floor or ceiling installation and ensure high comfort while maintaining an elegant design. The Aura CFFAC 3 CC2 R3 fancoil with cabinet has a heating power of 3.05 kW and a cooling power of 2.65 kW. It is therefore suitable for environments up to 30 square meters.
Category: Fan coils
Series: Aura
Benefits
Width x Height x Depth (mm): 1010X495X200
Weight (kg): 20
Inverter: No
Installation type: Floor-mountedCeiling-mountedVertical Horizontal
WiFi: No
Cooling capacity (kW): 2.65
Heating capacity (kW): 3.05
Power supply: Water-fed
Minimum sound power – dB(A): 31
Maximum sound power – dB(A): 46
Minimum sound pressure – dB(A): 18
Maximum sound pressure – dB(A): 34
Dimensions: 94 cm - 103 cm

Download technical specifications

Clivet Aura CFFAC 3 CC2 R3 fan coil

The Aura fan coil unit has a heating power of 3.05 kW and a cooling power of 2.65 kW.

Heating function: ideal for units of approximately 30 m2 with an average height of 2.7 m

Cooling function: ideal for units of approximately 20 m2 with an average height of 2.7 m

The new Clivet Aura fan coil fits perfectly into a wide range of configurability to make it suitable for domestic and commercial environments and, thanks to the available control systems, it is compatible with single, group or centralised management.

The Aura fan coil unit's aesthetics were designed by Italian designers and blend seamlessly into modern, elegant spaces, whether residential or commercial. In fact, thanks to its reduced thickness of just 200 mm, it can be installed even in the tightest spaces without compromising on space, thus reducing overall dimensions.

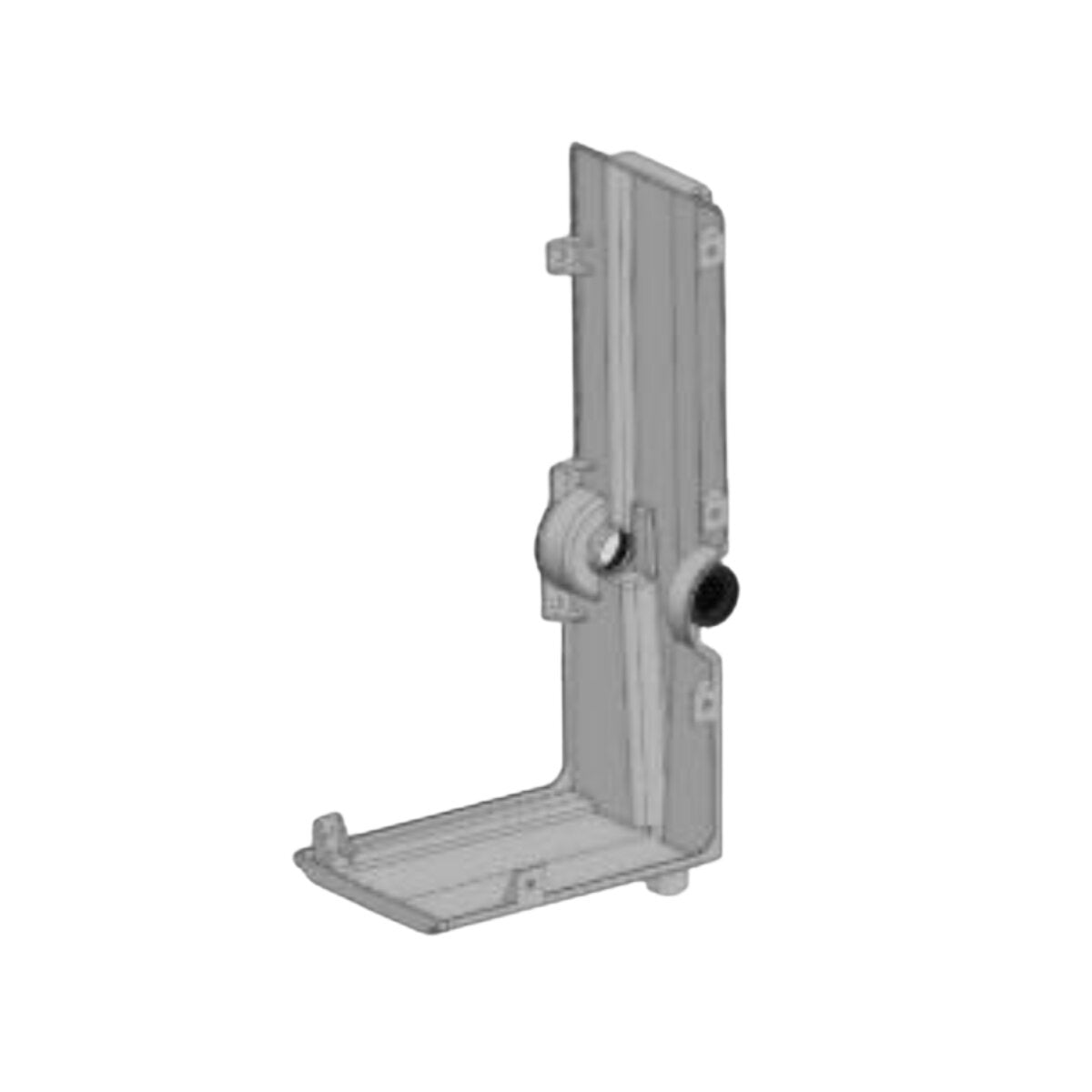

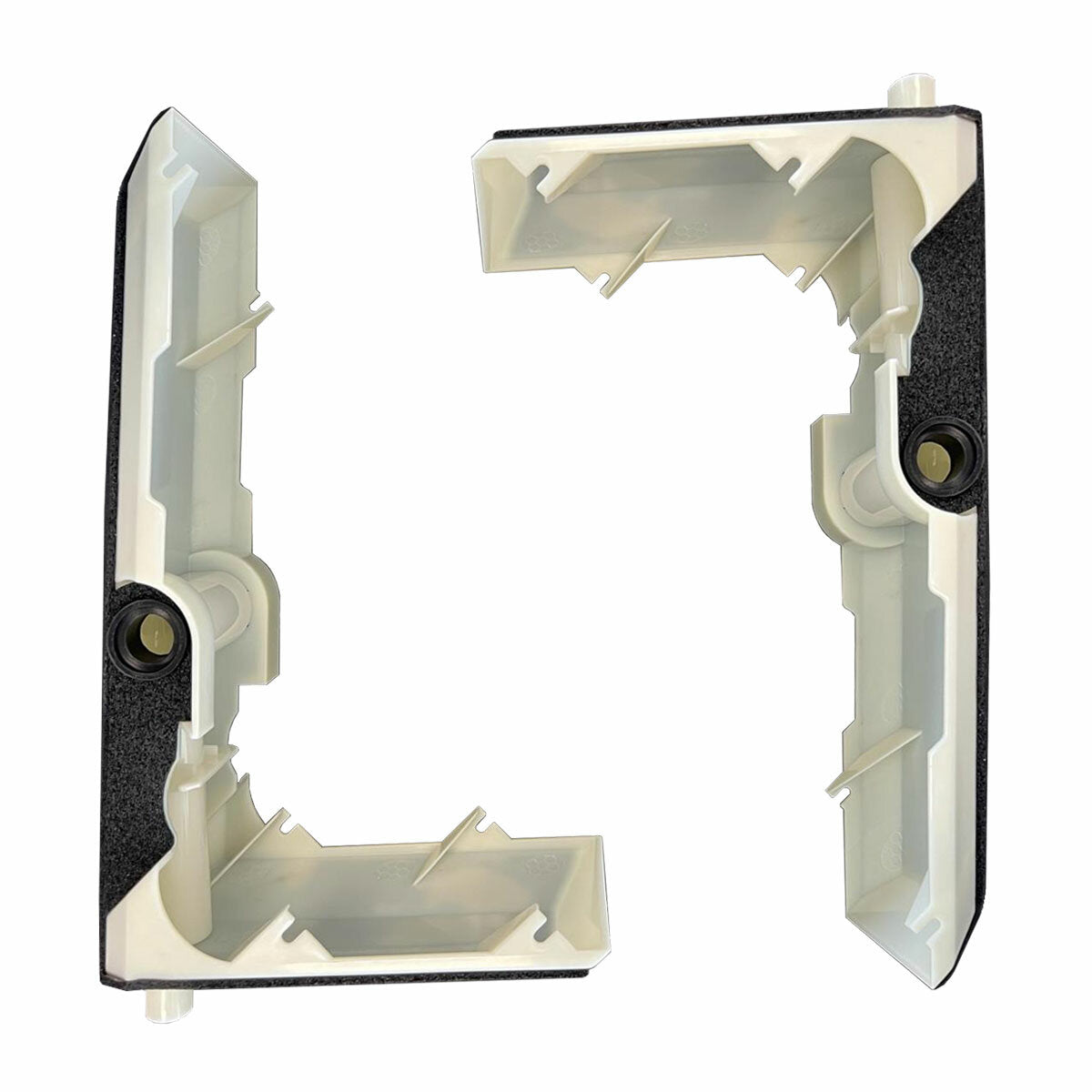

Aura fan coil units are available in a wide variety of configurations. The CFFAC 3 CC2 R3 model with a 2-pipe AC motor features an exposed casing that can be installed vertically or horizontally, either wall-mounted or ceiling-mounted. It comprises a copper/aluminum heat exchanger with hydrophilic coating, an electrical panel, an L-shaped drip tray, 3/4" water connections, a condensate drain (diameter 18.5 mm), a centrifugal fan, a washable filter (class G2), and a galvanized sheet metal casing. The water connections can be moved to the opposite side of the unit by simply rotating the heat exchanger. The Aura CFFAC fan coil unit is equipped with a terminal block that allows compatibility with the optional KJRP-86 user interface, which can be installed either on the unit or wall-mounted; 3-speed fan control; ELFOcontrol3 and BMS Modbus compatibility; quiet operation and easy cleaning.

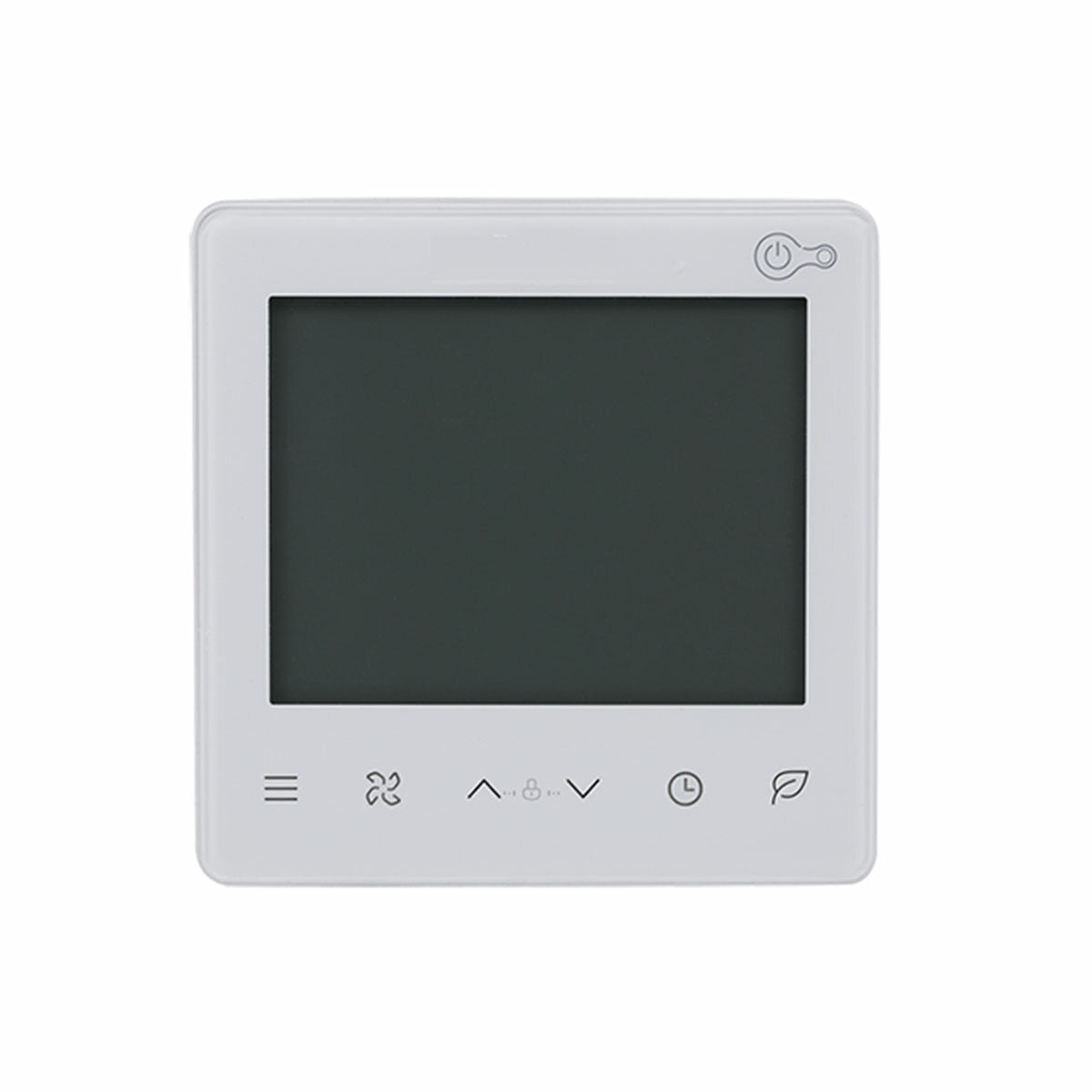

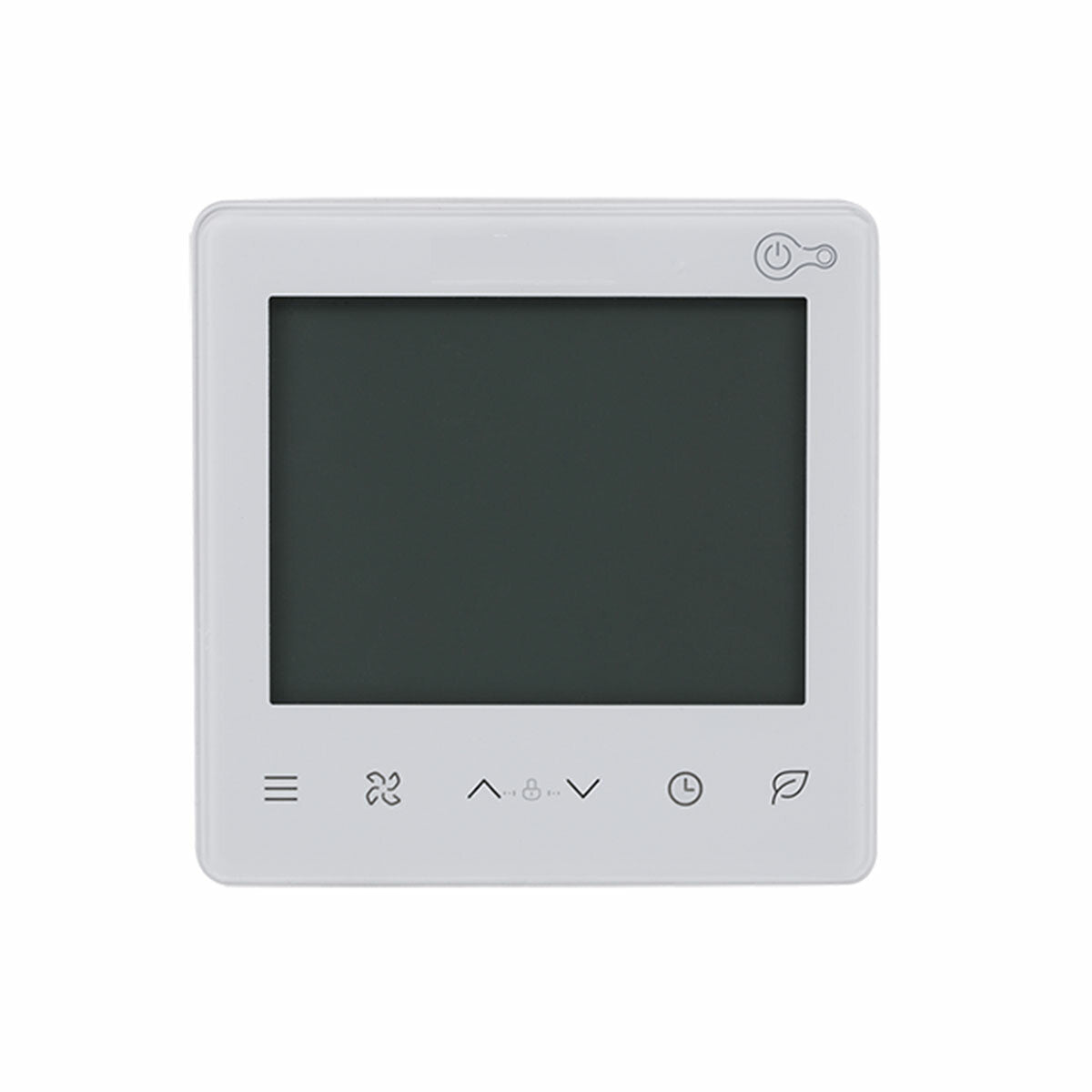

The unit is completed by a wired interface (KJRP-86R), which can be purchased separately. The backlit touch screen allows for optimal user experience, whether installed on the machine or remotely. The wired user interface can be installed on either side of the machine or remotely mounted on the wall using the optional KJRP-86 wall mounting box.
