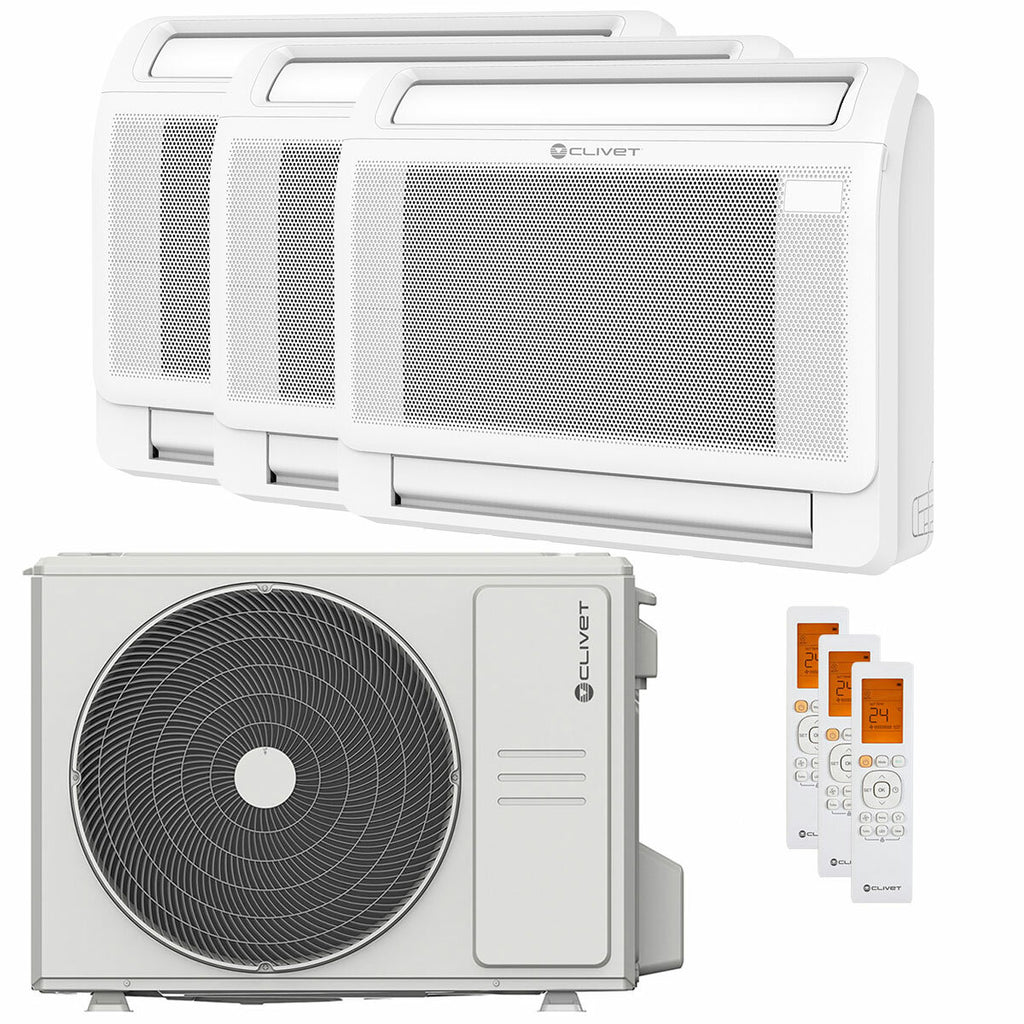

Clivet CONSOLE 3 trial split air conditioner 9000+9000+12000 BTU inverter A++ outdoor unit 7.9 kWThe air conditioner kit is equipped with the following indoor units:
- 2 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m

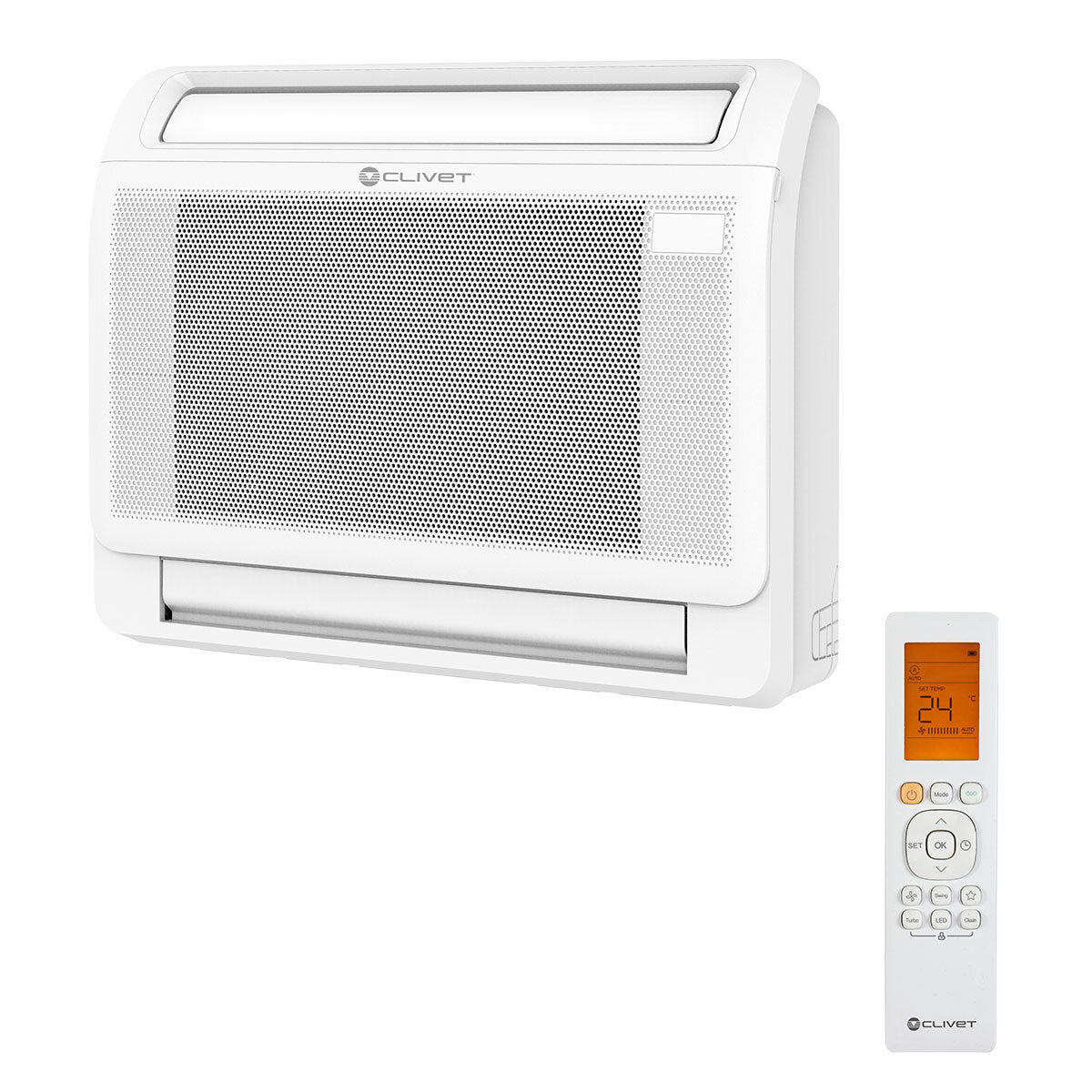

The CONSOLE 3 indoor unit for Clivet air conditioners is mounted low on the wall. The CONSOLE 3 Clivet has a linear and compact design, always pleasing to the eye. Console split air conditioners are a valid alternative to the installation of standard radiators or fan coils and offer the advantage of sending the air flow "at eye level". Console units can also be easily installed under a window and are particularly suitable for attic apartments where it is always difficult to find adequate spaces to install the splits high up on the walls. This indoor unit is used together with inverter outdoor units to create combinations of multi-split and light commercial air conditioners.
DESIGN
The Clivet CONSOLE 3 has a beautiful design; the lines are all straight and give it a particularly elegant look. It integrates into any architecture and blends with all types of furniture, adapting to any environment in which it is installed, be it a home, a commercial activity or a hotel environment. The CONSOLE 3 indoor units have small and very compact dimensions and take up less space than a standard radiator or fan coil unit.
BREATHE CLEAN AIR
With its particularly efficient filters that have small holes, the CONSOLE 3 indoor unit effectively purifies the air introduced into the room.
PERFECT CLIMATE AND RELAX
The Clivet CONSOLE 3 air conditioner offers a perfect climate. Thanks to the dual flow air delivery, the user has full control in managing the air flows by choosing only the upper outlet grille or the lower and upper ones at the same time; to always guarantee a particular efficiency, the return of the incoming air takes place from four directions: top, bottom, right and left. The indoor unit is full of many useful additional functions that facilitate its use and help to increase the well-being produced. The movement of the upper flap can be automated using the Auto Swing function. With the incredible number of 12 ventilation speeds, the regulation of the air flow in the room can be personalized in order to always offer the greatest comfort; in heating, the Anti Cold Air function delays the start of the fan until the internal coil is not hot enough and the Temperature Compensation helps to always detect the real room temperature even if the sensor that detects it is at a different height than that of the guests of the environment. The CONSOLE 3 is equipped with the Turbo function for very fast climate control of the environment; the Sleep function for night-time operation reduces noise and sets the balance of the automatic night-time temperature curves. To increase ease of use, if the remote control doesn't work, the air conditioner can also be turned on and off using a button on the Indoor Unit; in the event of a blackout, the Auto Restart system resets all the settings in use at the time of the power cut; the Timer allows the programming of automatic switching on and off. The rich equipment is completed by a series of particularly technical functions such as the Refrigerant Loss Alarm and the Self-diagnosis which communicates any malfunctions. Last but not least, the SPLIT VRF function, which allows the cycle inversion, in which all indoor units work in heating or cooling mode depending on the season, guaranteeing the possibility of acting on the internal temperature control for each individual room and on the fan speed. There is also a contact for switching on/off from an external device.
ACCESSORIES INCLUDED
- Infrared remote control
WARRANTY
The warranty is the official Clivet one and has a duration of 24 months.

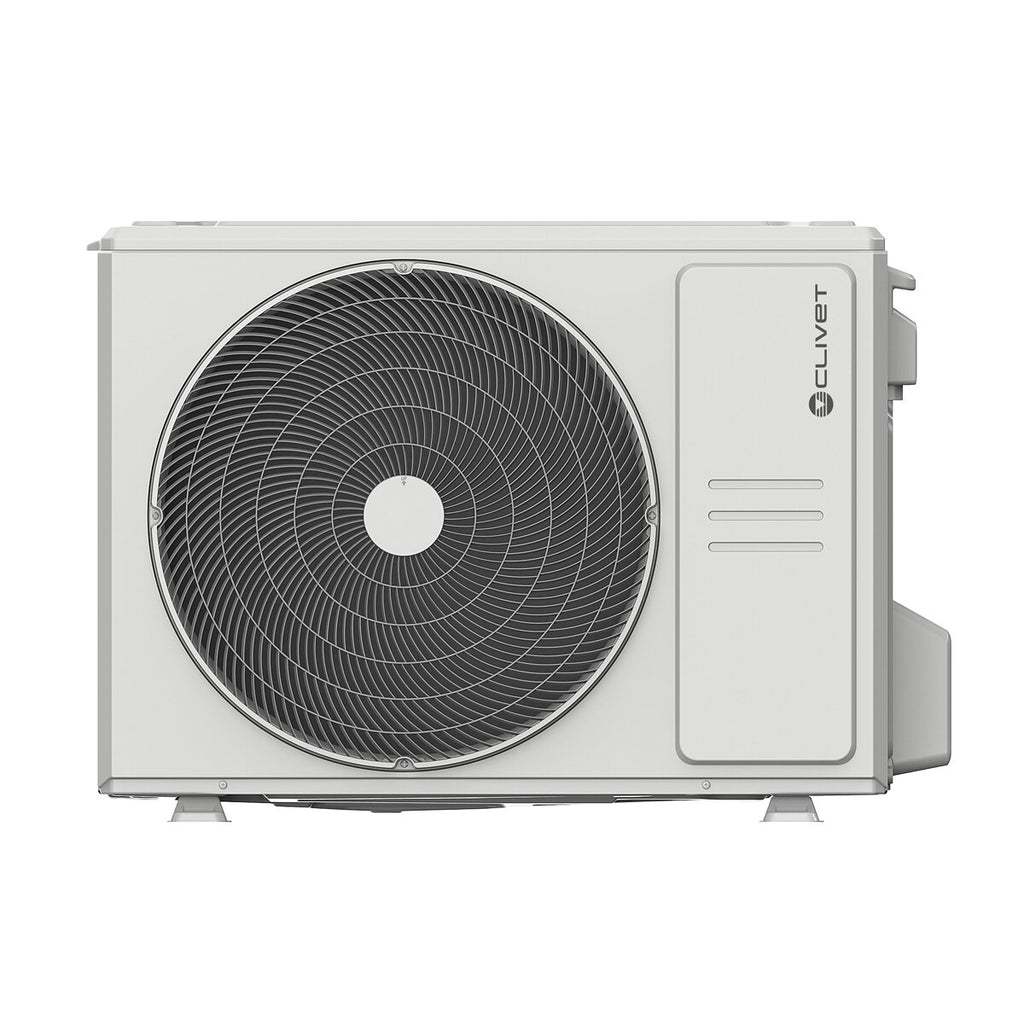

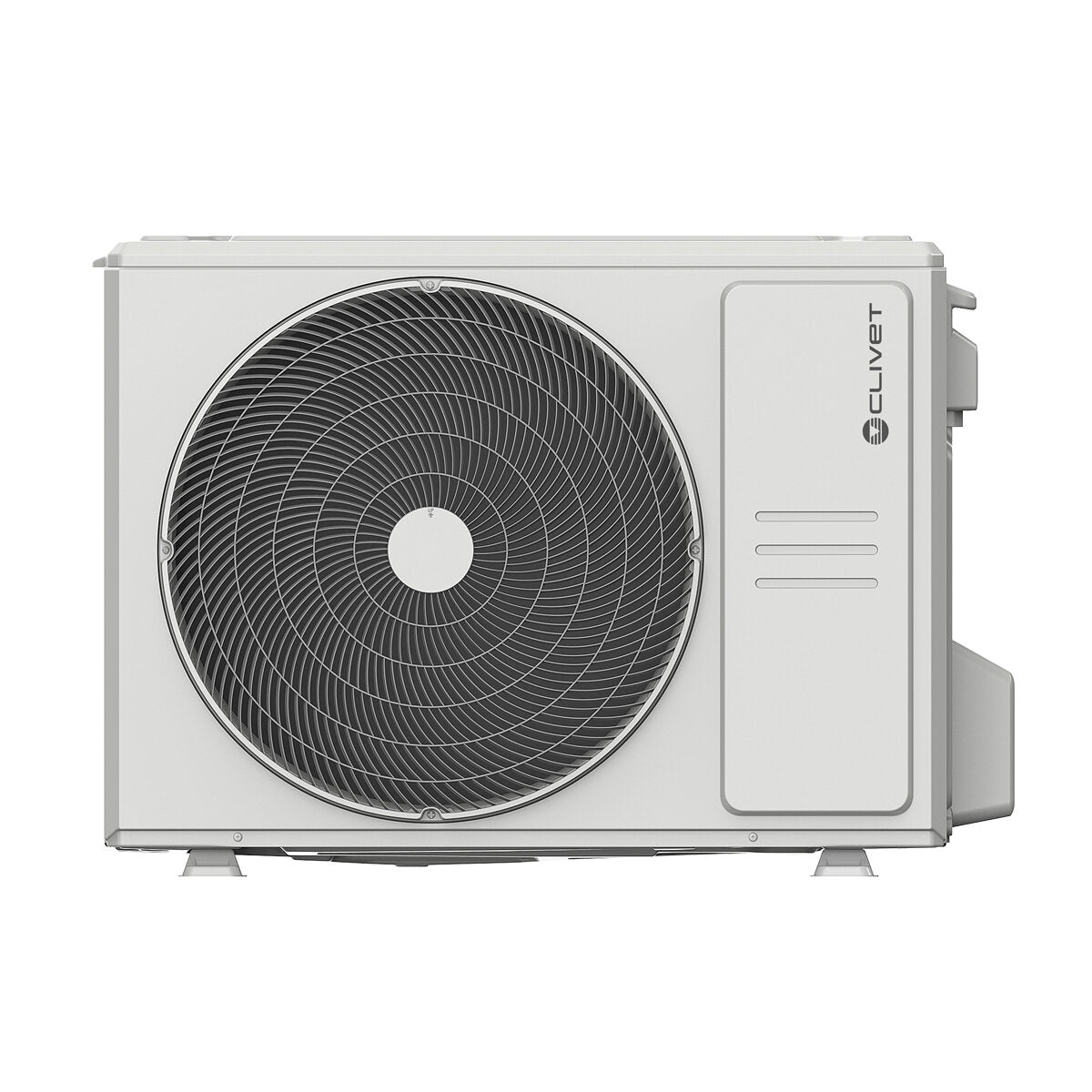

THE OUTDOOR UNIT
The MU2-Y outdoor units for multi-split Clivet air conditioners in the residential range have Inverter and Heat Pump technology and represent the beating heart of the air conditioner. The entire range has been renewed compared to the previous MU1-Y and now boasts better performance, greater simplicity and flexibility in installation, a wide operating range in both cooling and heating. The MU2-Y outdoor units work with the innovative R32 gas, a friend of nature and the consumer because it has a low environmental impact and is more performing and economical than its predecessors.
The multisplit outdoor units offer the great advantage of air conditioning several rooms using only one outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building to be air-conditioned.
The outdoor unit presented here has a nominal power of 7.9 kW (in cooling) and allows you to connect and power up to three Clivet indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The multi-split outdoor unit for Clivet air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always gives the possibility of installing the air conditioner suitable for the environment to be air-conditioned. It offers high performance and great comfort both when using the air conditioner in cooling and heating; this is possible thanks to the Heat Pump technology they are equipped with. The latest generation inverter system allows for low energy consumption and always high energy savings. The high efficiency compressor has a particularly robust and reliable structure which contributes to maintaining a constant temperature without sudden changes; it is also very quiet, to respect one's sleep and that of others. The fan of this outdoor unit regulates its operation between seven speed levels to help save energy; the unit is equipped with the Emergency function which also allows operation in emergency mode due to malfunction; the Auto Defrost device prevents the formation of ice on the evaporator. Thanks to the particular devices adopted, the external unit of the Clivet multi split air conditioner guarantees the correct functioning of the air conditioner even with very cold external temperatures.
R32 gas, with a global warming potential, GWP, equal to one third of that of R410A gas , not only contributes significantly to respect for nature, but also allows combinations of multi-split air conditioners to always obtain excellent energy classes .
For added safety and quick installation, these outdoor units are equipped with an automatic correction function for piping and wiring errors.
The body of the MU2-Y outdoor units is equipped with a particular anti-corrosion coating which protects them from bad weather, atmospheric agents and salt air. The outdoor unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Clivet one and has a duration of 24 months.
