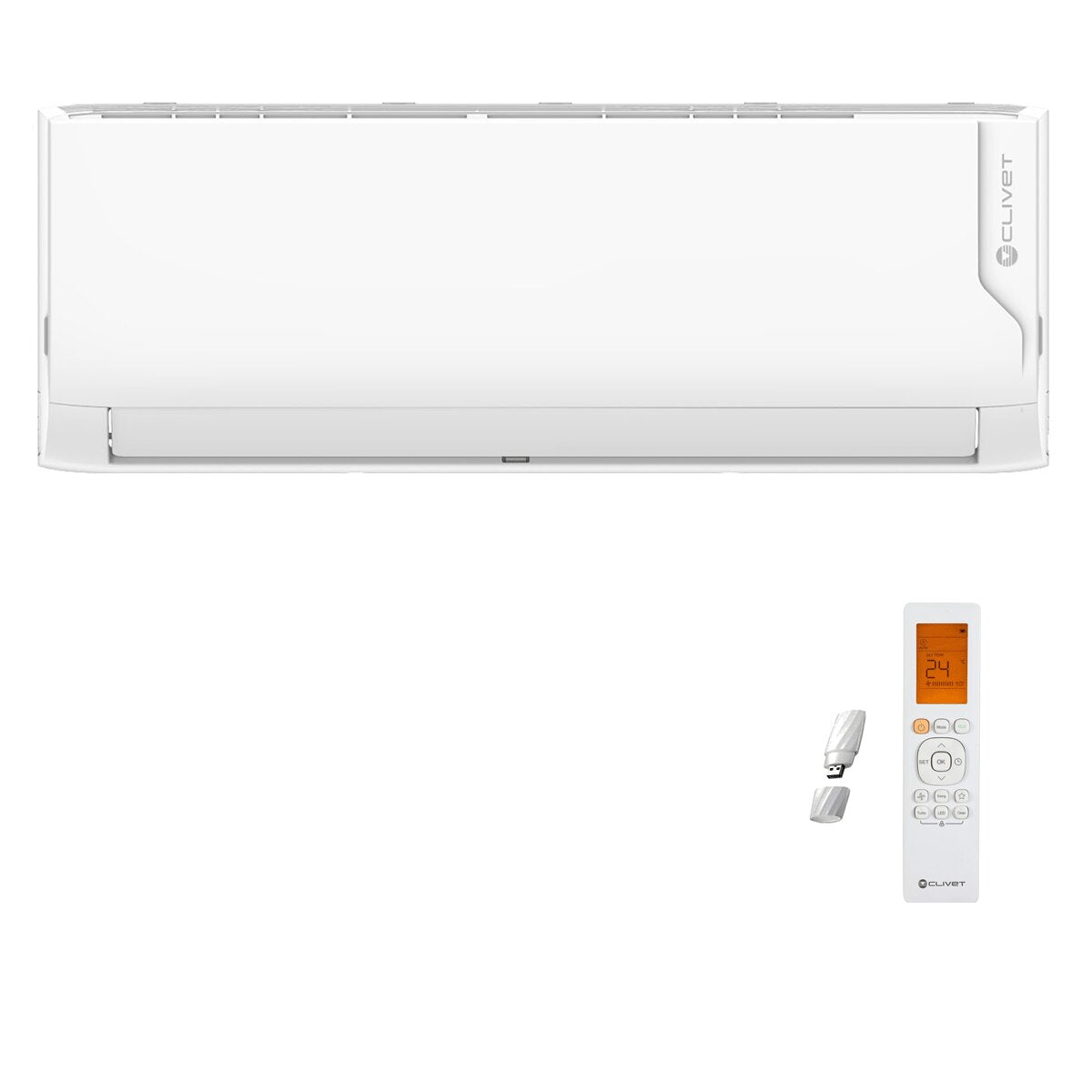

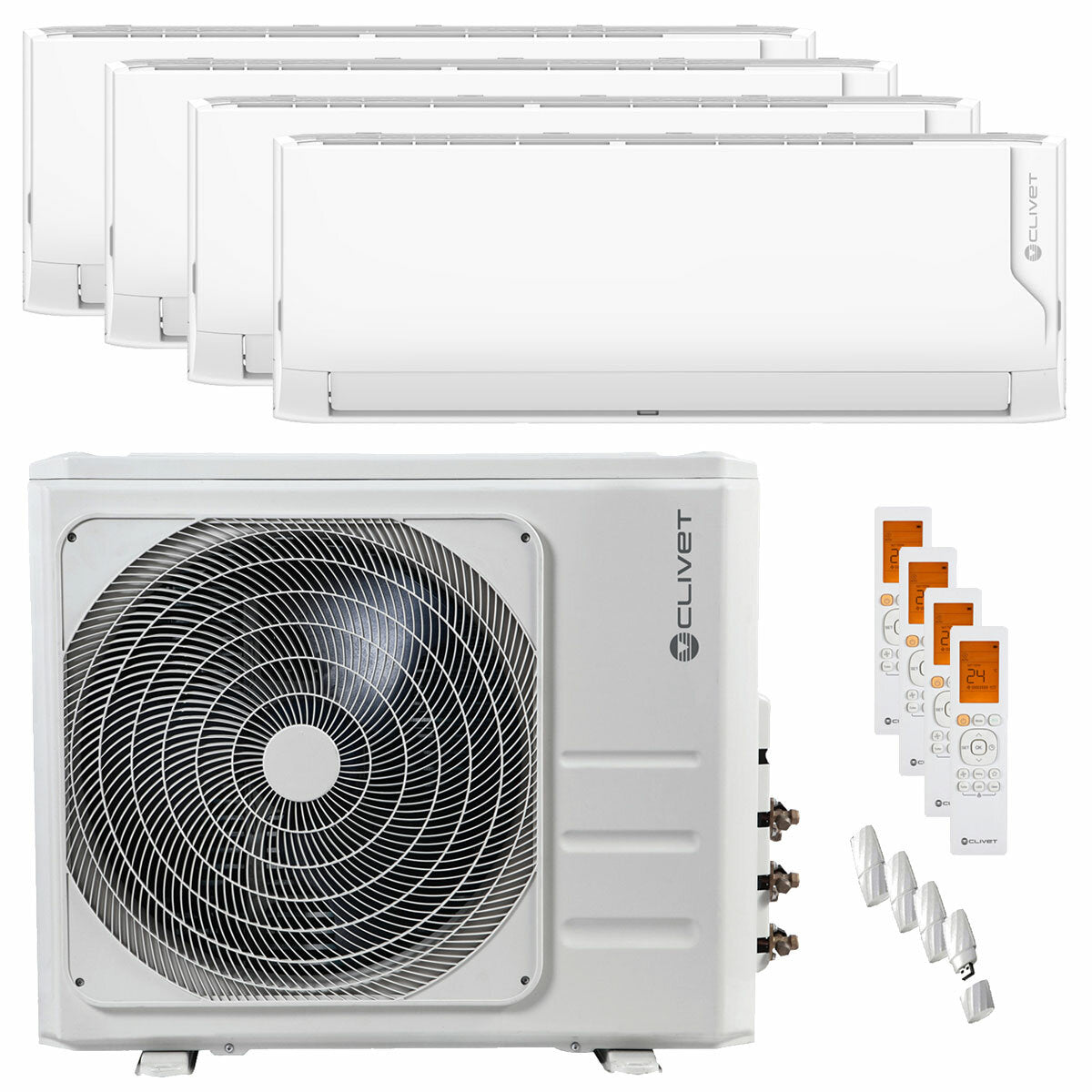

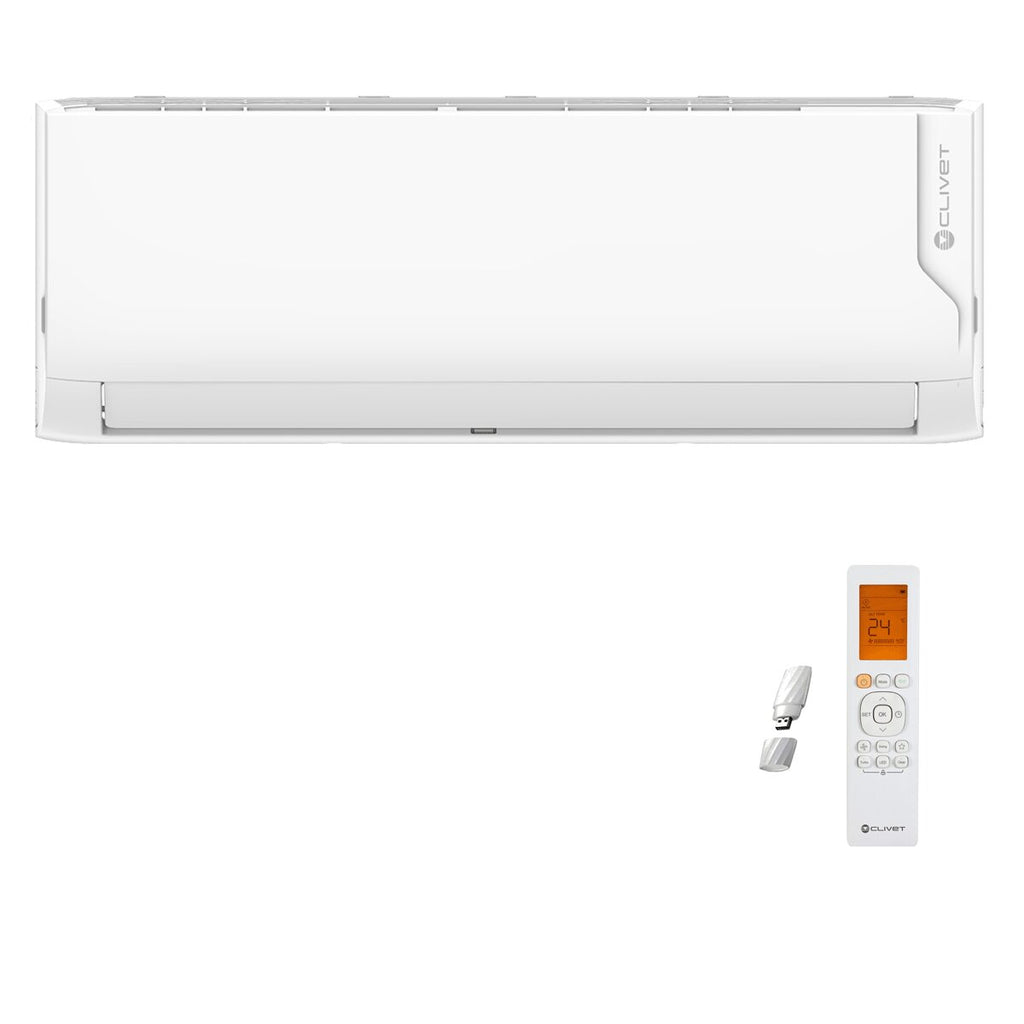

Clivet Cristallo air conditioner 2 split panels 9000+9000+12000+18000 BTU inverter A++ wifi external unit 10.5 kW The air conditioner kit is equipped with the following indoor units:
- 2 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m
- 1 x 18000 BTU - Ideal for rooms from 50 to 60 sqm with an average height of 2.7 m
Refined, advanced and highly efficient, it is the Cristallo 2 air conditioner from the Clivet brand designed to satisfy any domestic and non-domestic air conditioning need! Modern and elegant design, matt finish embellished with incisive features ideal for furnishing any environment with style without sacrificing technology and quality of performance which reaches up to energy class A+++/A++.
The indoor units of the Cristallo 2 series are used in combination with the specially designed outdoor units to create high-efficiency monosplit and multisplit combinations.
TECHNOLOGY AND CLEAN AIR
The Clivet Cristallo 2 air conditioner it is a true revolution in the field of air purification as it is equipped with a multiple air filtering system designed to guarantee the well-being of users at 360°. It consists of: washable and reusable high density filter , which has the purpose of removing larger particles of dirt, dust and microbes and also providing protection to the other filters; cold catalyst filter which has the function of retaining unpleasant odors and decomposing dangerous gases present in the air (e.g. VOC) converting them into harmless particles such as water and carbon dioxide; activated carbon filter which, in addition to eliminating unpleasant odors, purifies the air by absorbing microparticles and harmful bacteria; silver ion filter , through which the latter are constantly released in order to obtain a 99% removal of bacteria and viruses.
Furthermore, there are two functions dictated by the continuous search for domestic comfort in pure Clivet style: the multidirectional flow has the function of electronically directing the fins both horizontally and vertically, an activity that can also be controlled manually by remote control, in order to guarantee a optimal air distribution within your spaces; and then the Breeze Away function which allows you to prevent the air flow from reaching the body directly, creating unnecessary discomfort.
EFFICIENCY, COMFORT AND SAVINGS GUARANTEED
The Clivet Cristallo 2 air conditioner is a product waiting to be discovered as it presents a series of functions designed to increase domestic comfort without sacrificing performance, which can reach one of the highest energy performances on the market.
There are truly numerous functions that can be set: Cooling , Heating , Dehumidification and Ventilation, internal fan. continuously adjustable with 12 speed levels and the Turbo function to increase cooling or heating times; in heating, the Anti-Cold Air function delays the start of the fan until the internal coil is hot enough not to spread cold air when turned on, also with the Anti-Mold function when the unit is turned off from the COOLING, AUTO (COOLING) modes ) or DRY, the air conditioner will continue to operate at very low power to dry condensation water and prevent mold growth. GEAR , ECO and 1W STANDBY are use profiles to further increase energy saving and comfort in use. The Active Clean function allows a deep cleaning of the machine which aims at its longevity, as it acts on the dust attached to the exchanger which in the long term could compromise its correct functioning; the Sleep function was designed with energy savings in mind, to allow a reduction in consumption during the night time period; in the event of a blackout, the AUTOMATIC RESTART system restores all the settings in use at the time of the power cut; there are also a series of particularly technical functions such as the Refrigerant Loss Alarm, Emergency and Self-diagnosis for the communication of any malfunctions and the protection of the system. Further functions and technical specifications can be found and explored in greater detail via the instruction booklet supplied with the product.
Extremely silent thanks also to the Silent function which reduces noise levels by promoting rest and deactivating sound alerts, this air conditioner can be managed via remote control and via standard WiFi conveniently from your smartphone using the NetHome Plus app with voice control predisposition with Amazon Alexa and Google Assistant .
ACCESSORIES SUPPLIED AS STANDARD
- Remote control
- Wi-Fi stick.
WARRANTY
The warranty is the official Clivet one and lasts 24 months.
NB The indoor unit with code 89682315 corresponds to the Clivet IMA1-Y 53M model

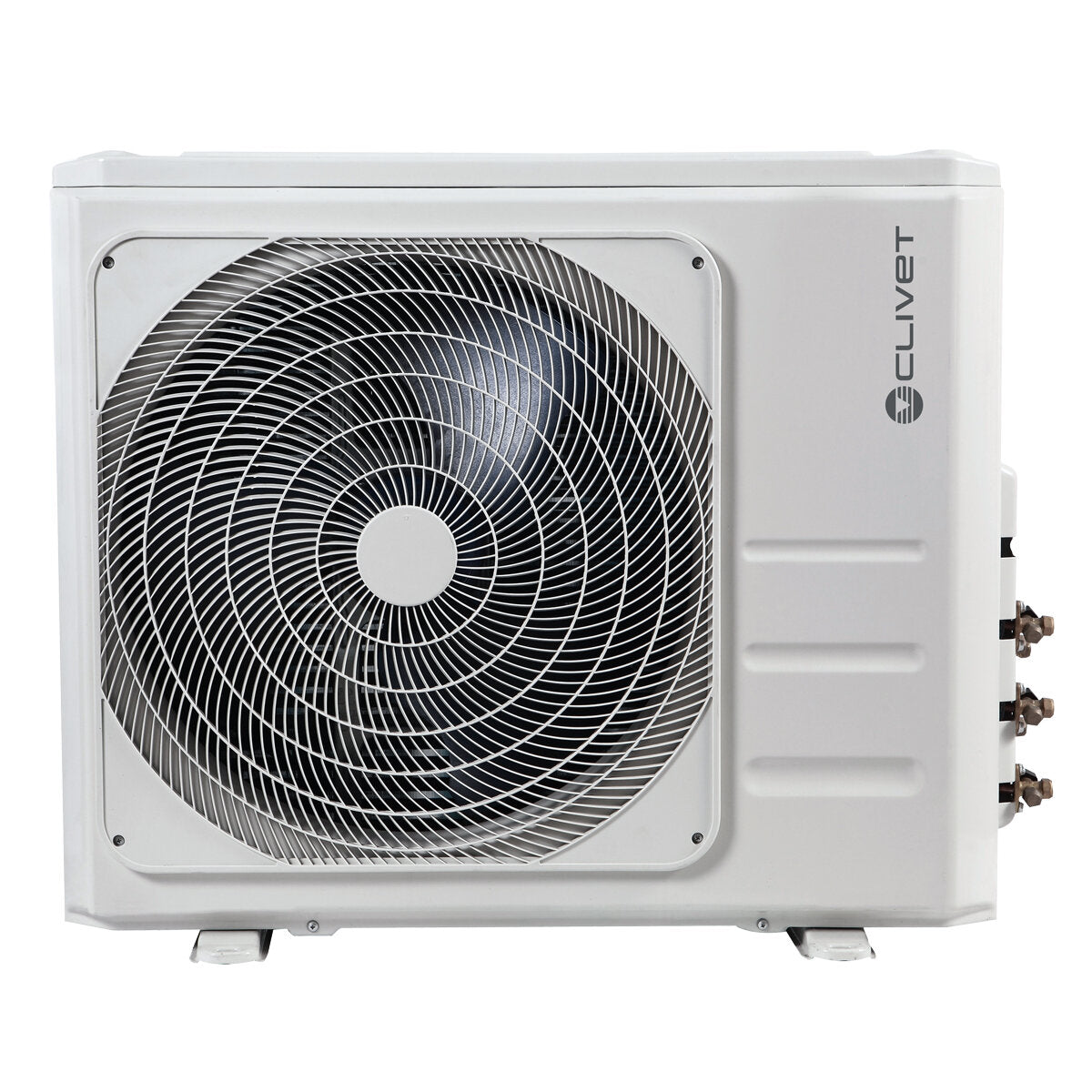

THE OUTDOOR UNIT
The MU2-Y outdoor units for multi-split Clivet air conditioners in the residential range have Inverter and Heat Pump technology and represent the beating heart of the air conditioner. The entire range has been renewed compared to the previous MU1-Y and now boasts better performance, greater simplicity and flexibility in installation, a wide operating range in both cooling and heating. The MU2-Y outdoor units work with the innovative R32 gas, a friend of nature and the consumer because it has a low environmental impact and is more performing and economical than its predecessors.
The multisplit outdoor units offer the great advantage of air conditioning several rooms using only one outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building to be air-conditioned.
The outdoor unit presented here has a nominal power of 10.5 kW (in cooling) and allows you to connect and power up to four Clivet indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The multi-split outdoor unit for Clivet air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always gives the possibility of installing the air conditioner suitable for the environment to be air-conditioned. It offers high performance and great comfort both when using the air conditioner in cooling and heating; this is possible thanks to the Heat Pump technology they are equipped with. The latest generation inverter system allows for low energy consumption and always high energy savings. The high efficiency compressor has a particularly robust and reliable structure which contributes to maintaining a constant temperature without sudden changes; it is also very quiet, to respect one's sleep and that of others. The fan of this outdoor unit regulates its operation between seven speed levels to help save energy; the unit is equipped with the Emergency function which also allows operation in emergency mode due to malfunction; the Auto Defrost device prevents the formation of ice on the evaporator. Thanks to the particular devices adopted, the external unit of the Clivet multi split air conditioner guarantees the correct functioning of the air conditioner even with very cold external temperatures.
R32 gas, with a global warming potential, GWP, equal to one third of that of R410A gas, not only contributes significantly to respect for nature, but also allows combinations of multi-split air conditioners to always obtain excellent energy classes.
For added safety and quick installation, these outdoor units are equipped with an automatic correction function for piping and wiring errors.
The body of the MU2-Y outdoor units is equipped with a particular anti-corrosion coating which protects them from bad weather, atmospheric agents and salt air. The outdoor unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Clivet one and has a duration of 24 months.
