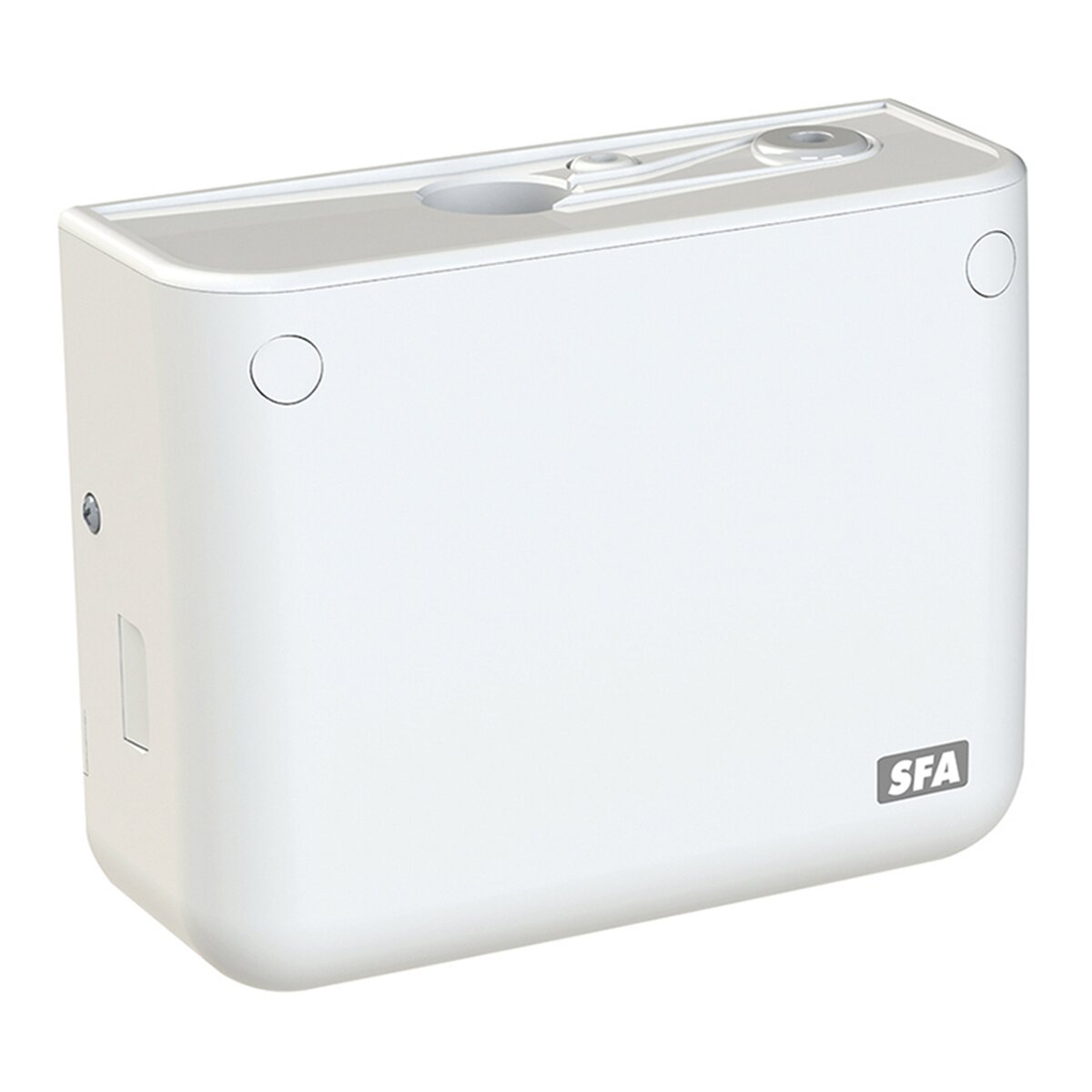

Condensation drain pump SFA Sanicondens Deco+ for kitchen condensing boilers

Condensation drain pump SFA Sanicondens Deco+ for kitchen condensing boilers

Sanicondens Deco+ is an automatic pump for lifting condensate produced by condensing boilers up to 25 kW. The product stands out for its compact and discreet design, which allows visible installation in domestic environments such as kitchens or technical rooms, while ensuring maximum silence and efficiency.

It is used to evacuate acid condensation generated by wall-mounted condensing boilers and is the ideal solution when there is no gravity drain , for example in installations in kitchens, understairs or basements.

INSTALLATION

• It can be installed on the wall under the boiler or next to it , using the included fixing kit .

• Direct connection to the boiler condensate drain pipe.

• The discharge can be directed to the sewer system up to 6 metres vertically or 60 metres horizontally .

• Compatible with acid condensate with pH ≥ 2.5.

TECHNICAL FEATURES

• Power supply: 220-240 V – 50/60 Hz

• Power consumption: 22 W

• Electrical class: II

• Protection index: IP24

• Operation: automatic with float

• Maximum flow rate: 15 l/h

• Maximum head: 6 m

• Maximum horizontal discharge length: 60 m

• Tank volume: 175 ml

• Maximum liquid temperature: 55°C

• Inlet diameter: 22mm

• Outlet diameter: 8–10 mm

• Noise level: < 25 dB(A) at 1 meter (extremely quiet)

ACCESSORIES INCLUDED

• wall fixing set

• screw covers

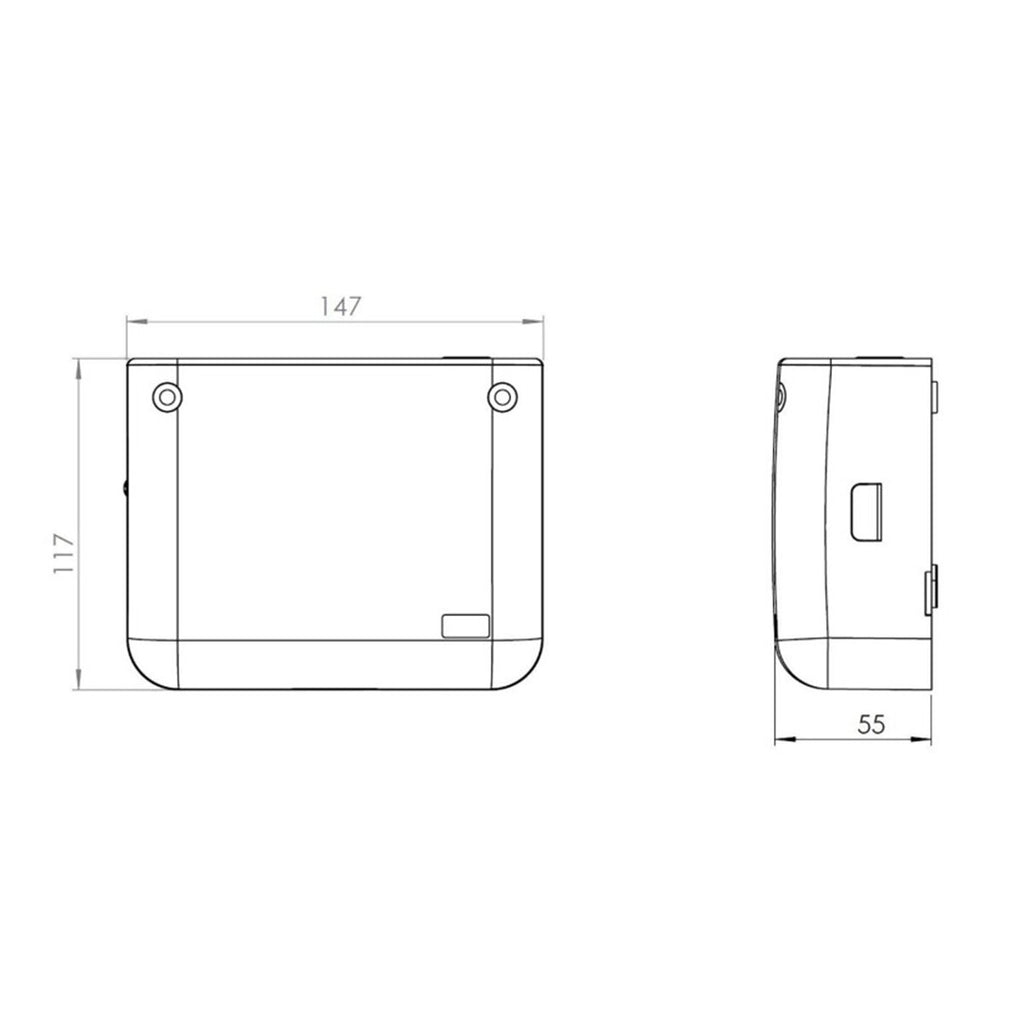

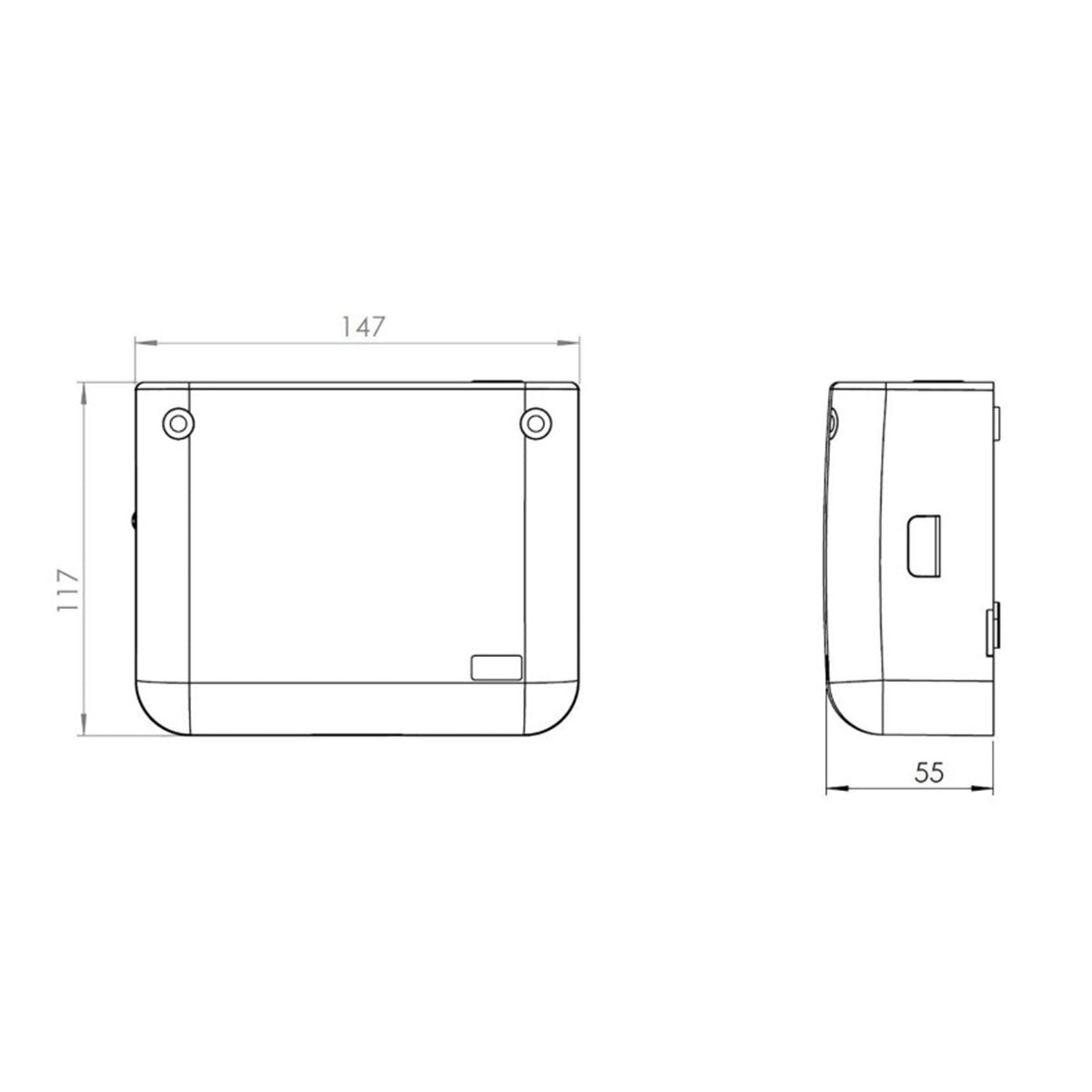

DIMENSIONS

• Width 147 mm_Height 117 mm_Depth 55 mm

• Weight 0.4 kg

WARRANTY

The warranty is the official SFA one and lasts 2 years.
