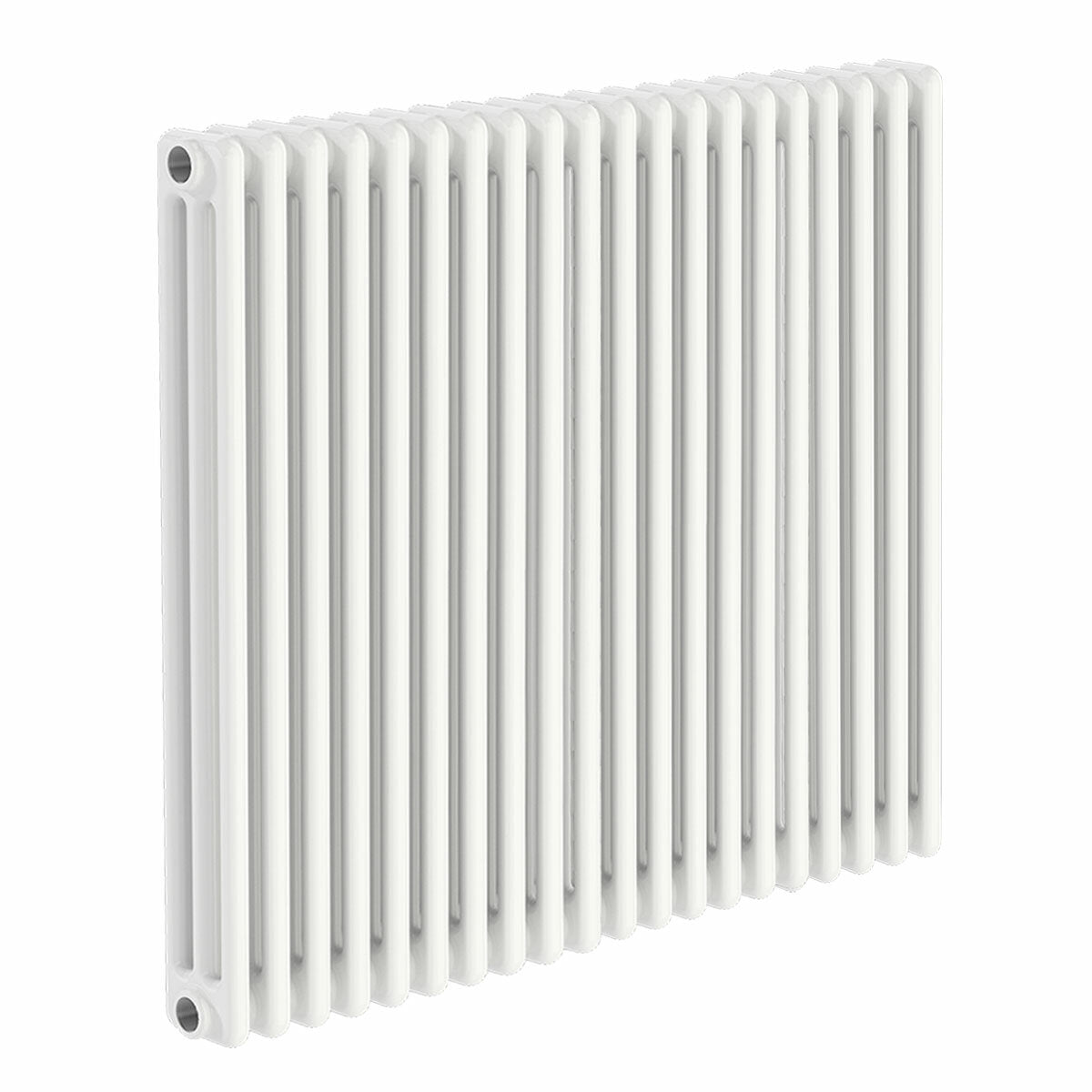

Cordivari Ardesia column radiator 3 columns/20 elements - Height 856 Interaxis 800 (mm) - FOR REPLACEMENT or NEW INSTALLATION

Cordivari Ardesia column radiator 3 columns/20 elements - Height 856 Interaxis 800 (mm) - FOR REPLACEMENT or NEW INSTALLATION

Ideal for rooms up to approximately 18 m2 with an average height of 2.7 m

Column radiators offer a unique combination of efficiency, aesthetics and versatility, making them an excellent alternative to traditional aluminum radiators . The reasons why multi-column systems are preferred to traditional aluminum radiators are many and are based on their vertical structure with multiple columns that allows for a greater heat exchange surface , on the high heat conduction capacity with much faster times and on an attractive, versatile and timeless aesthetic that can be integrated into any environment and is characterized by durability.

The Cordivari Ardesia column radiator proposed here consists of a block of 20 elements in a single battery with 3 columns , ideal for both new installations and for the replacement of aluminum radiators . Cordivari offers solutions with height and center distance perfectly replaceable to meet any need of the end user: this model has Height 856 - Center distance 800 - Width 920 (mm).

A special feature of this model is the configuration of the lateral and opposite connections which also allow the block to be inverted and installed on the opposite side, meeting any needs and/or architectural limitations of the installation site; the vent valve is supplied with a 1/2 connection , as are the inlet and outlet connections with 1/2 .

The design of the Ardesia Cordivari column radiators is peculiar and tubular . The column structure gives a timeless elegance and the industrial-chic style marries with fine materials and refined finishes, transforming an everyday object into a real design complement, capable of combining aesthetics and practicality in an impeccable way. The color of the version proposed here is white RAL 9010 - R01.

The painting is carried out exclusively using ecological epoxy powder paints through a process of 12 distinct phases (DIN 55900-1,-2) to ensure excellent results that last over the years and an unparalleled brilliance . The heads are stamped in carbon steel sheet and the tubes are in electro-welded carbon steel ø 25 mm . The robotic welding between the elements is performed using a pulsed spray welding process, to guarantee extreme executive precision, absolute cleanliness, stability and reliability of the production lines in pure Cordivari style.

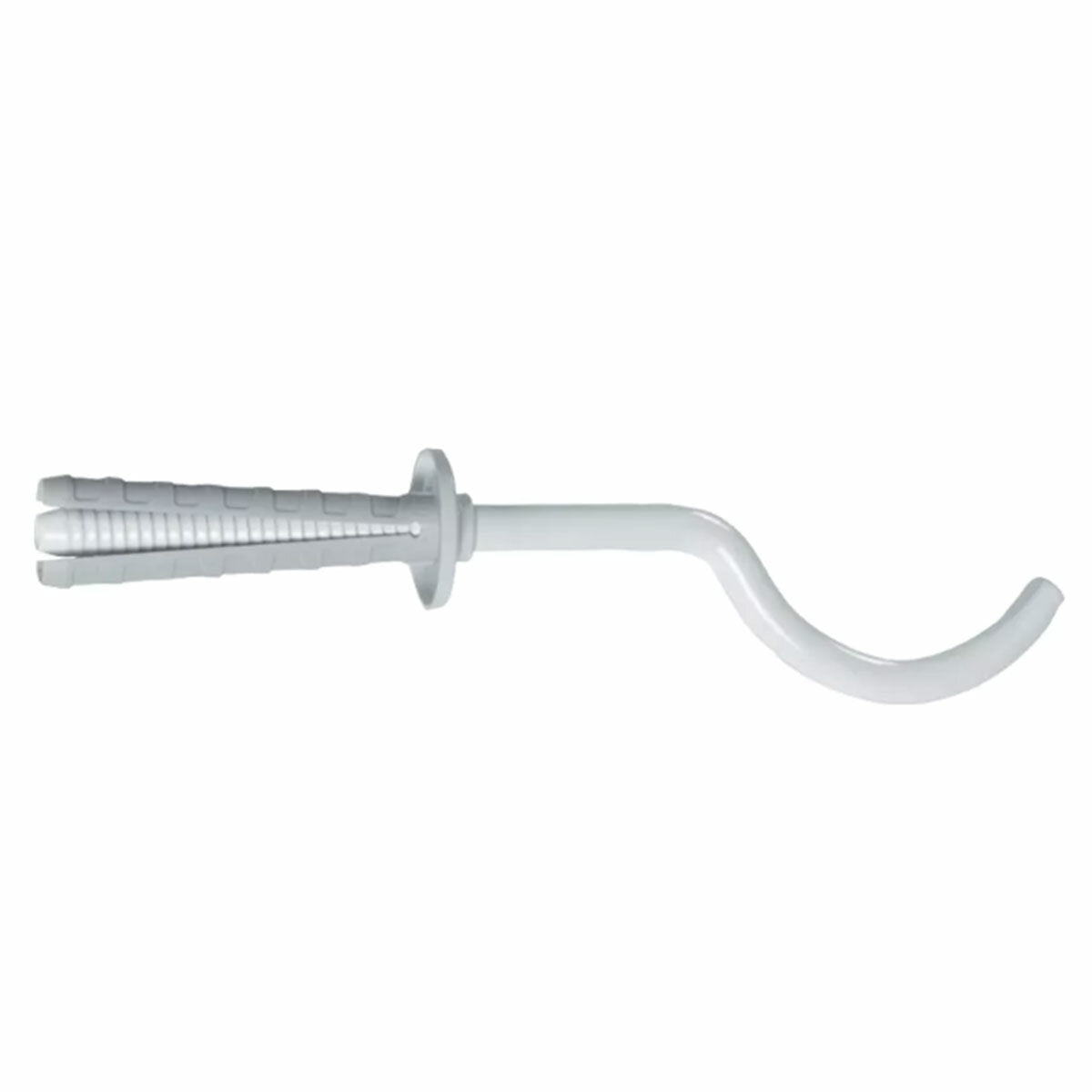

Wall installation must be carried out by qualified and authorised technical personnel, with the aid of special supports which can be purchased separately.

NB: further technical specifications can be viewed in the attached technical sheet.

TECHNICAL FEATURES

- Operation: hot water

- Maximum operating pressure: 10 bar

- Test pressure: 13 bar

- Max temperature: 110°C

- Minimum flow rate in % of nominal flow rate: 18

- (75/65/20°C) ΔT 50 = W 1808

- Number of elements: 20

- Number of columns: 3

- Attacks 1/2

DIMENSIONS

- Width 920 mm_Height 856 mm_Depth 107 mm

- Wheelbase 800 mm

- Single element thickness 46 mm

- Empty weight (single element): 1.91 kg

WARRANTY

The guarantee is the official Cordivari one and lasts 2 years.
