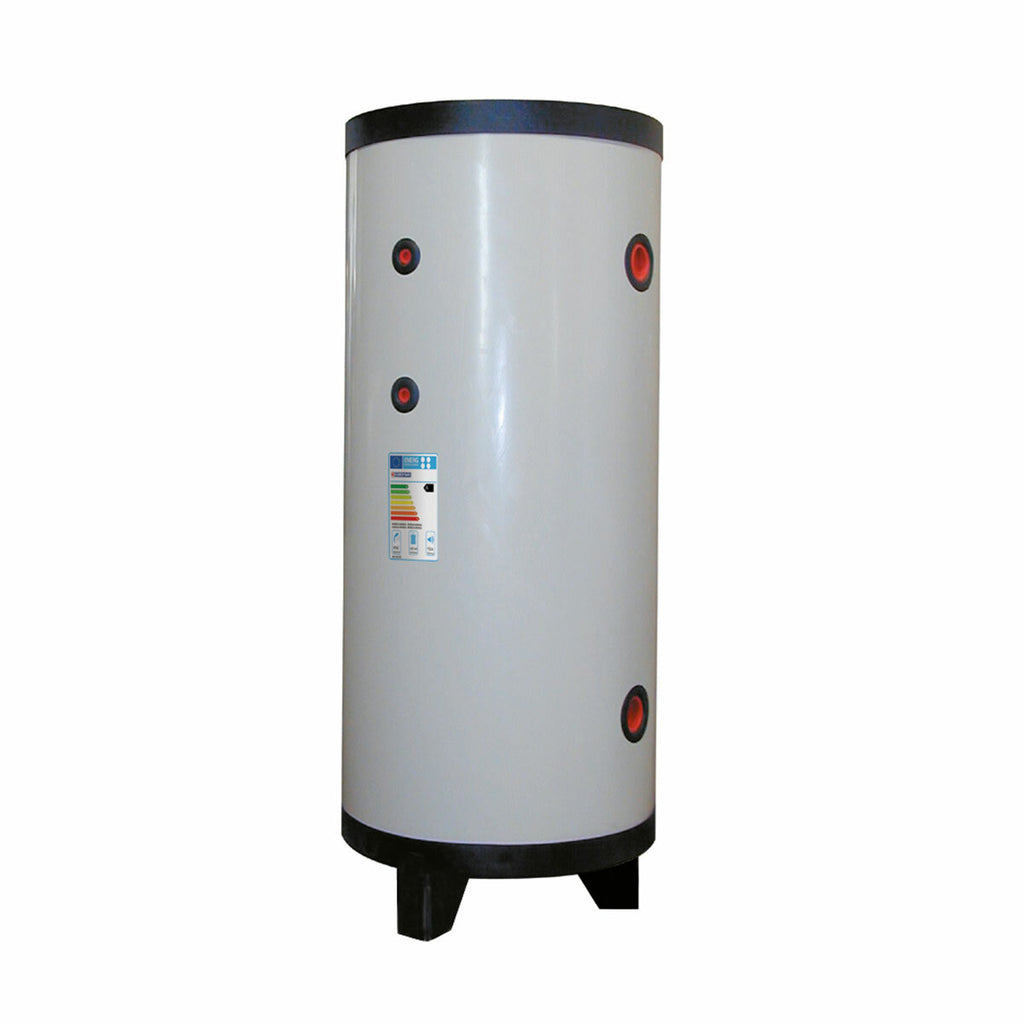

Cordivari hot-cold thermal flywheel - 200 liters
The R/C GB VT Cordivari thermal flywheel for chilled water and for hot-cold systems is a device that is intended for year-round systems that need to accumulate chilled water in summer and hot heating water in winter.
As an accumulator, this thermal flywheel makes it possible to improve the functioning of the system by limiting the hourly switching on of the generator and to obtain more stable operating temperatures by increasing the thermal inertia of the circuit.
Suitable for outdoor installation, the Cordivari hot-cold thermal flywheel is made of carbon steel with an external coating in gray galvanized sheet metal. The insulation is instead in rigid polyurethane foam with high thermal insulation.
The thermal flywheel proposed here has a capacity of 200 liters.
TECHNICAL FEATURES
- Material: Carbon Steel
- External coating: galvanized sheet metal
- Insulation: rigid expanded polyurethane
- Capacity/Volume: 190 L
- Maximum working pressure: 6 bar
- Operating limit temperatures: -10/+90 °C
- Safety valve connection: 1
- Unloading: 1
- Connection for instrumentation: 1/2 Gas F
- Installation: outdoors
- Complies with PED Art. 4.3 European Directive 2014/68/EU - ErP Ecodesign Directive 2009/125/CE.
DIMENSIONS
Diameter: 510 mm - Height: 1407 mm
Weight (empty): 53 kg.
WARRANTY
The warranty is the official Cordivari one and has a duration of 2 years.
