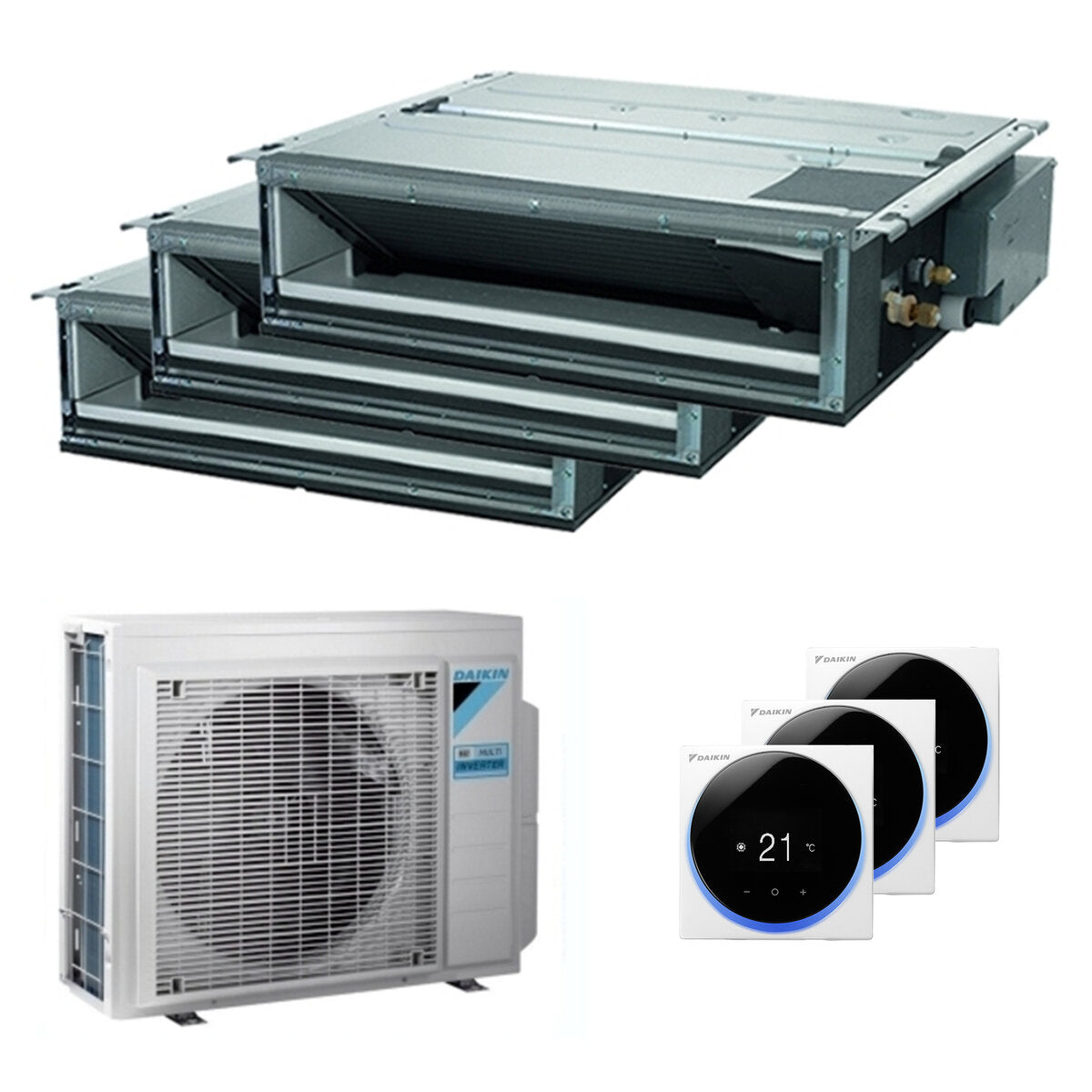

Daikin Mini Sky FDXM-F9 ducted air conditioner trial split 9000+9000+9000 BTU inverter A+++ external 5.2 kW

The air conditioner kit is equipped with the following indoor units:

• 3 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m

THE INDOOR UNIT

9,000 BTU - Ideal for rooms from 15 to 25 square meters with an average height of about 2.7 meters

With the DAIKIN Ducted Slim Inverter air conditioner, the Indoor Unit is mounted in a hidden position, generally in a false ceiling and the air is diffused into the room through a special ventilation opening. The advantages of ductable air conditioners are constituted in particular by the possibility of air conditioning the rooms without the Indoor Unit being visible, to the advantage of aesthetics and the possibility of using the walls for our furnishings. It follows that, with the installation of a built-in air conditioner, there is well-being but it is not there. . . the air conditioner.

It is used together with the inverter outdoor units to create combinations of monosplit and multisplit.

NEW DESIGN

The DAIKIN Concealed Recessed Inverter allows you to use the utmost imagination in the architecture of the environments where it is installed. Its “invisible” presence makes it possible to air-condition rooms easily thanks also to the small size of the Indoor Units which have a thin and compact structure and which integrate perfectly in the most unexpected places in the environment. Suitable for installation anywhere, in homes, businesses, offices and hotels; the outdoor units also require very limited installation space.

BREATHE CLEAN AIR

The air purifying filter is equipped with anti-mold treatment to always ensure clean air.

PERFECT CLIMATE AND RELAX

The DAIKIN Recessed Inverter Ductable Air Conditioner quickly reaches and always keeps the set temperature constant, without jolts; it offers optimal comfort as it distributes the air with extreme silence and in a truly imperceptible way thanks also to the hidden position of the built-in split. It offers a series of special functions such as the Self-Diagnosis, the Ventilation Only Program, the Automatic Fan Adjustment, the Step Fan Speed, the Dehumidification Program, the 24 h Timer, the Automatic Restart in the event of a power failure.

The silence of the indoor unit is absolute and contributes to obtaining excellent and lasting relaxation.

The wired control supplied as standard is compact, with clear controls and touch screen; easy to use, it allows you to control all the unit functions and has a particularly attractive design.

DIMENSIONS

Length: mm. 750 - Height: mm. 200 - Depth: mm. 620.

ACCESSORIES SUPPLIED AS STANDARD

- Modoka LV wire control

WARRANTY

The warranty is the Official Daikin one and has a duration of 24 months.

THE OUTDOOR UNIT

The three-connection Daikin 3MXM52A outdoor unit for air conditioners with Inverter and Heat Pump technology is the heart of the air conditioner and is the latest Daikin model that is particularly innovative due to its modern technology. It uses the new R32 gas which allows a considerable reduction in electricity absorption with the consequent reduction in consumption.

Multisplit outdoor units offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space available for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. This outdoor unit allows you to connect and power three Daikin indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.

SAVINGS GUARANTEED

With the new BLUEVOLUTION residential range, Daikin redefines the market standards in terms of efficiency, silence, pure air and consumption control.

The main feature of the new models is represented by energy efficiency, with performance always at the top of the category up to class A+++.

Daikin outdoor units are equipped with a hermetic swing compressor, which differs in its low noise and high energy efficiency characteristics.

The range of Daikin BLUEVOLUTION air conditioners has achieved significant improvements and extraordinary performance in terms of energy efficiency and silence thanks to the use of the new R32 refrigerant; its low GWP value (impact on global warming), about a third of that of R410A gas, also makes a concrete contribution to reducing the greenhouse effect. With the use of the new R32 refrigerant, Daikin complies with the legislative obligations that will come into force in 2025.

A further advantage is represented by the compressors driven by INVERTER, capable of modulating the rotation speed by adapting the operation to the real needs. This allows you to limit stops and restarts by reducing energy consumption (up to 30%) while maintaining more stable temperatures.

WARRANTY

The warranty is the official Daikin one and has a duration of 24 months.

MADOKA BT WIRE CONTROL FOR DAIKIN INDOOR UNITS - WHITE

The Daikin BT MADOKA wired control model allows you to customize and program the air conditioners to which it is connected in order to better manage the comfort of the rooms.

It allows you to control all the functions offered by the Indoor Units and is compatible with the models of the FNA-A, FBA-A, FDXM-F9, FHA-A, FFA-A, FCAG-A lines.

It comes in a beautiful sleek and elegant design, available in three colors to match any interior decor. It features a symbol-driven user interface with a very intuitive touch button. Controllable via an intuitive app that allows the setting of programs and functions such as Energy Saving; Home Leave, which allows you to manage the internal temperature even in the absence of occupants; Weekly Timer, which can be set to start cooling or heating at any time, on a daily or weekly basis.

The functions are focused on the basic needs of the customer: ON/OFF, temperature, mode, fan speed, flaps, filter. It also allows automatic adjustment of the summer and/or winter time.

DIMENSIONS

Width: 85mm - Height: 85mm - Depth: 25mm.

WARRANTY

The warranty is the official Daikin one and has a duration of 24 months.
