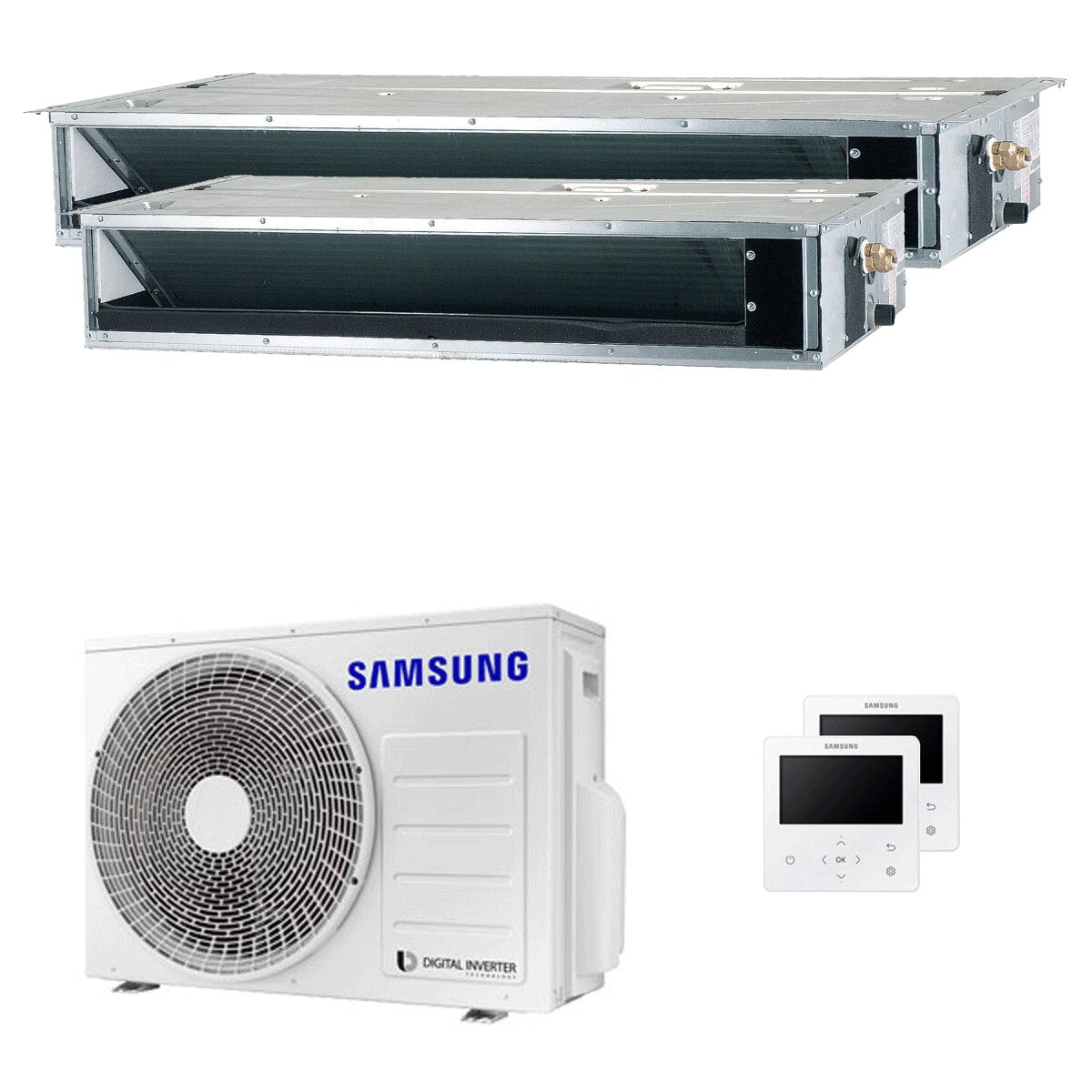

Dual split ductable Samsung air conditioner 9000 + 18000 BTU inverter A +++ outdoor unit 5.2 kWThe air conditioner kit is equipped with the following indoor units:
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 mq with an average height of 2.7 m
- 1 x 18000 BTU - Ideal for rooms from 50 to 60 mq with an average height of 2.7 m

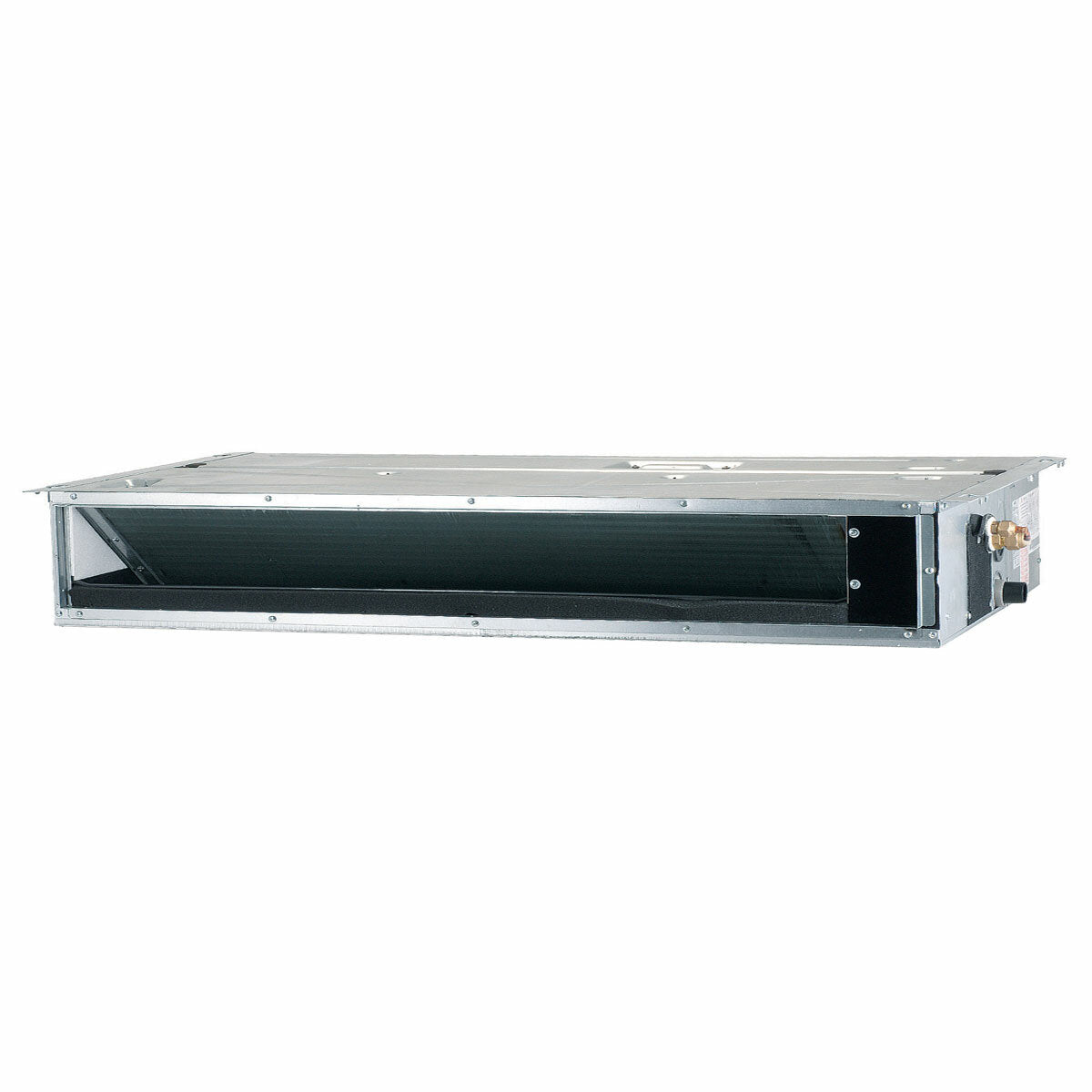

THE INDOOR UNIT
9,000 BTU - Ideal for rooms from 15 to 25 sq m with an average height of 2.7 m
The internal units for ductable Samsung air conditioners with low and medium prevalence of the T series are part of the Samsung range which was the first to adopt the innovative NASA communication protocol , faster and more efficient than the traditional RS485.
With the recessed inverter recessed Samsung Ductable Low Prevalence air conditioner, the indoor unit is mounted in a hidden position, generally in a false ceiling and the air is diffused into the room through a special ventilation opening. The advantages of ductable air conditioners are constituted in particular by the possibility of air conditioning the rooms without the internal unit being visible, to the advantage of aesthetics and the possibility of using the walls for our furnishings. It follows that, with the installation of a built-in air conditioner, there is well-being but it is not there. . . the air conditioner! Samsung Ducted Low Prevalence is used together with inverter outdoor units to create many multisplit combinations.
DESIGN
The Ducted Samsung allows you to use the utmost imagination in the architecture of the environments where it is installed. Its "invisible" presence allows you to easily air-condition rooms thanks also to the small size of the indoor units ( only 199 mm thick ) which allows them to integrate into the most unexpected places in the environment. Suitable for installation anywhere, in homes, businesses, offices and hotels; the outdoor units also require very small installation spaces.
SAVINGS GUARANTEED
Samsung Ducted, is presented here in the 9000 BTU Low Prevalence power (adjustable up to 40 Pa) and satisfies many air conditioning needs for which it offers great comfort and excellent performance in both the cooling and heating functions. It is equipped with the digitally controlled Samsung Inverter system that allows it to reach the best energy efficiency classes . It has very low basic energy consumption , which is further reduced thanks to the additional functions for energy saving; manages to create superior comfort since the temperature is always kept constant.
BREATHE CLEAN AIR
The air purifying filter these indoor units are equipped with ensures always clean air . It is easily removable for cleaning.
PERFECT CLIMATE AND RELAX
The Ducted Air Conditioner reaches quickly and always maintains the set temperature constant, without jolts; it offers optimal comfort as it distributes the air with extreme silence and in a truly imperceptible way thanks also to the hidden position of the built-in split and the new Scirocco Inverter fan which provides greater air flow and better distribution. It offers a series of special functions such as the Self -diagnosis, the Ventilation Only Program, the Automatic Fan Adjustment , the Step Fan Speed , the Dehumidification Program, the 24 h Timer , the Weekly Programming , the Automatic Restart in case of power failure. electric, the Away From Home Function. It also has a very robust construction, maintenance is very easy as the unit is accessible from below, from the side and also from above.
The silence is truly at the top of the category and contributes to obtaining excellent and lasting relaxation: only 42 dB (A) of sound pressure.
DIMENSIONS
Length: 700 mm - Width: 440 mm - Height: 199 mm.
WARRANTY
The warranty is the official Samsung one and lasts for 24 months.

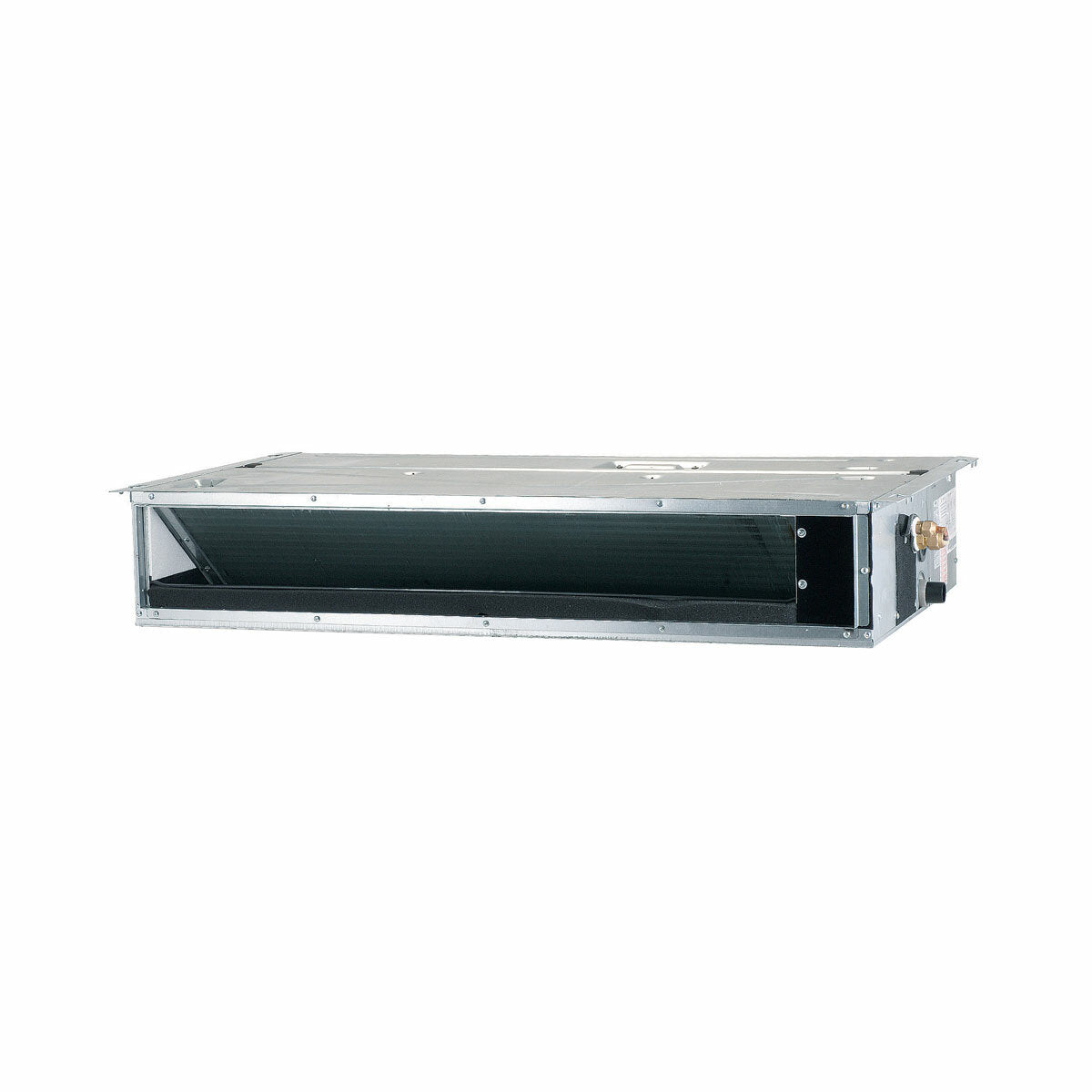

THE INDOOR UNIT
18,000 BTU – Ideal for rooms from 50 to 60 m2 with an average height of 2.7 m
The T series indoor units for Samsung ductable low and medium head air conditioners are part of the Samsung range which was the first to adopt the innovative NASA communication protocol , faster and more efficient than the traditional RS485.
With the built-in inverter Samsung Ductable Medium Prevalence air conditioner, the internal unit is mounted in a hidden position, generally in a false ceiling and the air is diffused into the room through a special ventilation opening. The advantages of ductable air conditioners consist in particular of the possibility of air conditioning the rooms without the internal unit being visible, to the full advantage of aesthetics and the possibility of using the walls for our furnishings. It follows that, with the installation of a built-in air conditioner, there is well-being but there isn't. . . the air conditioner! Samsung Ductable Low Head is used together with Inverter outdoor units to create many multi-split combinations.
DESIGN
The Samsung ductable allows you to use maximum imagination in the architecture of the environments where it is installed. Its "invisible" presence makes it possible to air-condition the rooms easily thanks also to the small size of the internal units (260 mm thick for this size) which allows them to integrate into the most unlikely places in the room. Suitable for installation anywhere, in homes, commercial activities, offices and hotel environments; the outdoor units also require very small installation spaces.
SAVINGS GUARANTEED
The Samsung ductable indoor unit is presented here in the 18,000 BTU Medium Prevalence power (adjustable up to 150 Pa) and satisfies many air conditioning needs for which it offers great comfort and excellent performance in both the cooling and heating functions. It is equipped with the digitally controlled Samsung Inverter system which allows it to achieve the best energy efficiency classes . It has very low basic energy consumption , which is further reduced thanks to the additional functions for energy saving; manages to create superior comfort since the temperature is always kept constant.
BREATHE CLEAN AIR
The air purifying filter these indoor units are equipped with always ensures clean air . It is easily removable for cleaning.
PERFECT CLIMATE AND RELAX
The Samsung ductable air conditioner quickly reaches and always keeps the set temperature constant, without sudden changes; it offers optimal comfort as it distributes the air extremely silently and in a truly imperceptible way thanks also to the hidden position of the built-in split and to the Scirocco Inverter fan which provides a greater air flow and better distribution. It offers a series of special functions such as Self-diagnosis , the Ventilation Only program, Automatic Fan Adjustment , Step Fan Speed , Dehumidification program, 24h Timer , Weekly Programming , Automatic Restart in the event of a power cut electricity, the Away from Home function.
It also has a very robust construction, maintenance is very easy as the unit is accessible from below, from the side and also from above.
In this size, the indoor unit can be equipped with an optional condensate drain pump (code MDP-M075SGU3).
The silence is truly at the top of the category and contributes to obtaining excellent and long-lasting relaxation.
DIMENSIONS
Length: 900mm - Width: 480mm - Height: 260mm.
WARRANTY
There warranty is the official Samsung one and has a duration of 24 months.

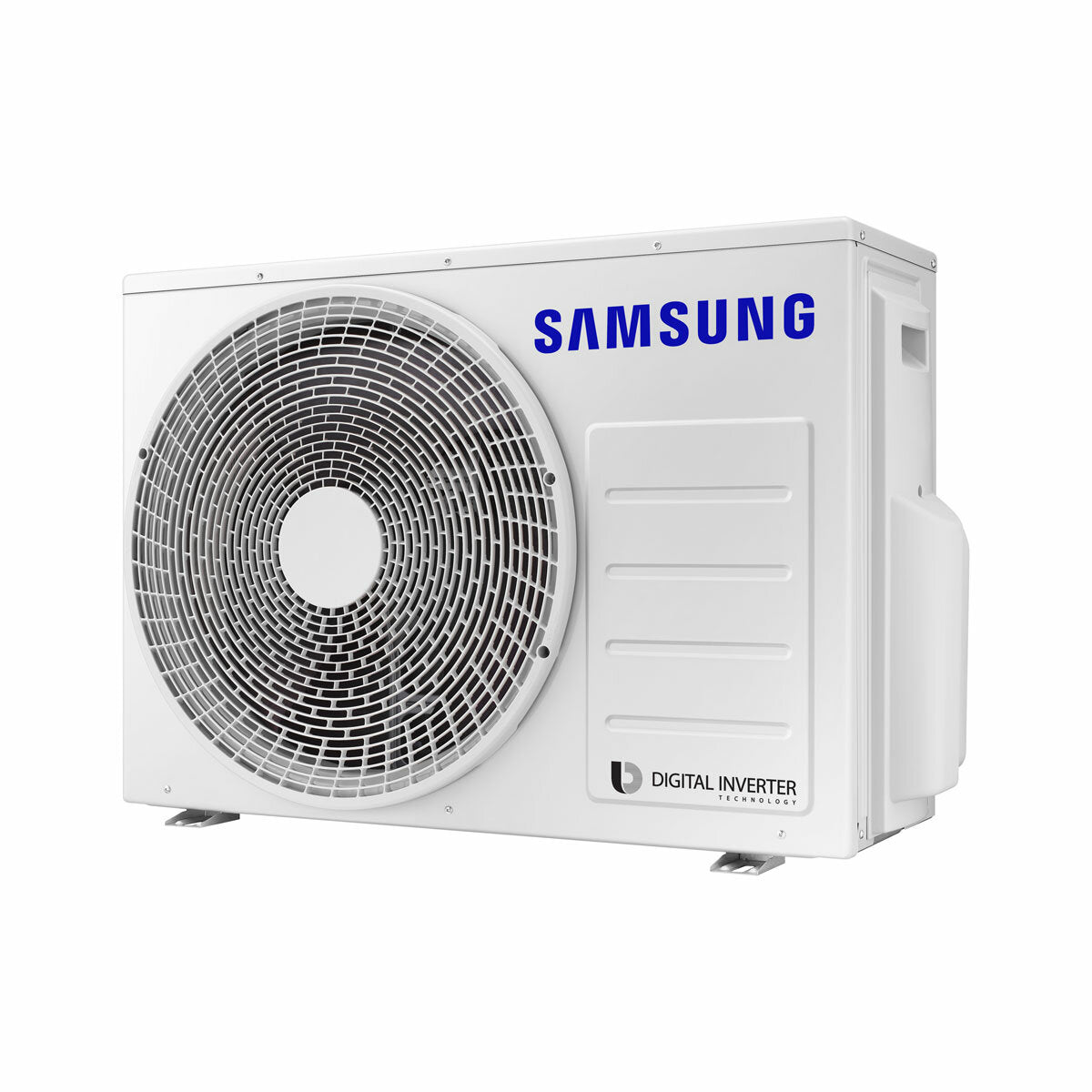

THE OUTDOOR UNIT
In 2020 Samsung updated the range of FJM ( Free Joint Multi ) outdoor units with the T Series : these outdoor units for multi-split air conditioners use R32 gas with low environmental impact, a compressor with Digital Inverter technology and the heat pump , the real beating heart of the air conditioner.
Multisplit air conditioners offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. The 5.2 kW outdoor unit presented here allows you to connect and power two or three Samsung indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The Samsung FJM outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort both when using the air conditioner in cooling and heating mode. Thanks to the Digital Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The Digital Inverter compressor allows further savings as well as guaranteed well-being thanks to the maintenance of a constant temperature without sudden changes . The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating.
The compressor is particularly silent in full respect of one's sleep and that of others and has great efficiency ; the innovative construction technology makes it particularly robust to the full advantage of durability over the years.

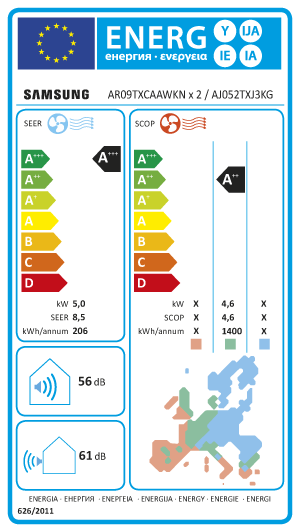

The R32 gas with which these outdoor units are loaded has a very low environmental impact and therefore contributes considerably to respect for nature; it also reduces energy consumption to the full advantage of spending on bills. The 5.2 kW outdoor unit has energy efficiency class A+++ in cooling and A++ in heating.
Particularly resistant to bad weather and atmospheric agents, it can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
DIMENSIONS
Width: 880 mm - Height: 638 mm - Depth: 310 mm
Weight: 44.5 kg.
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.

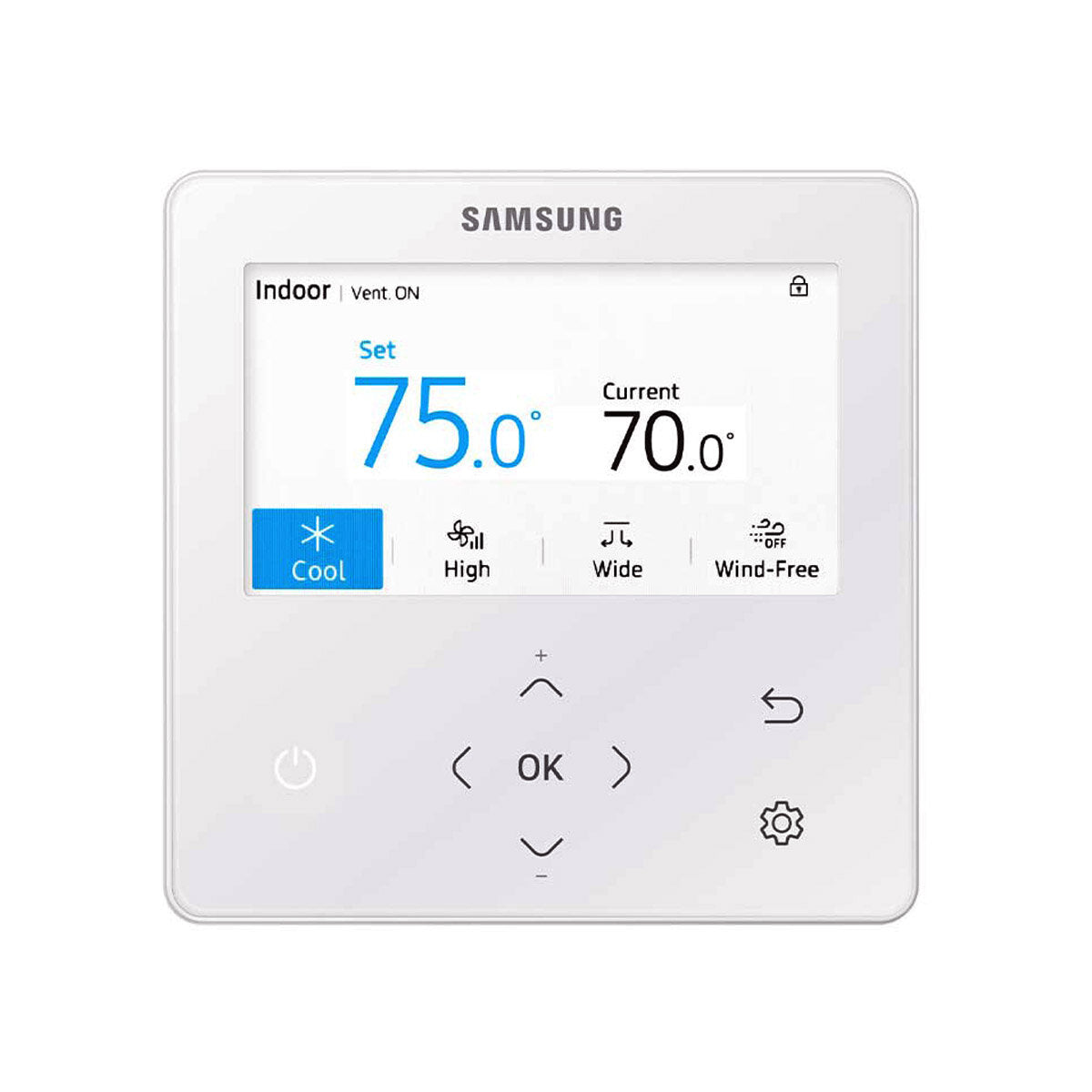

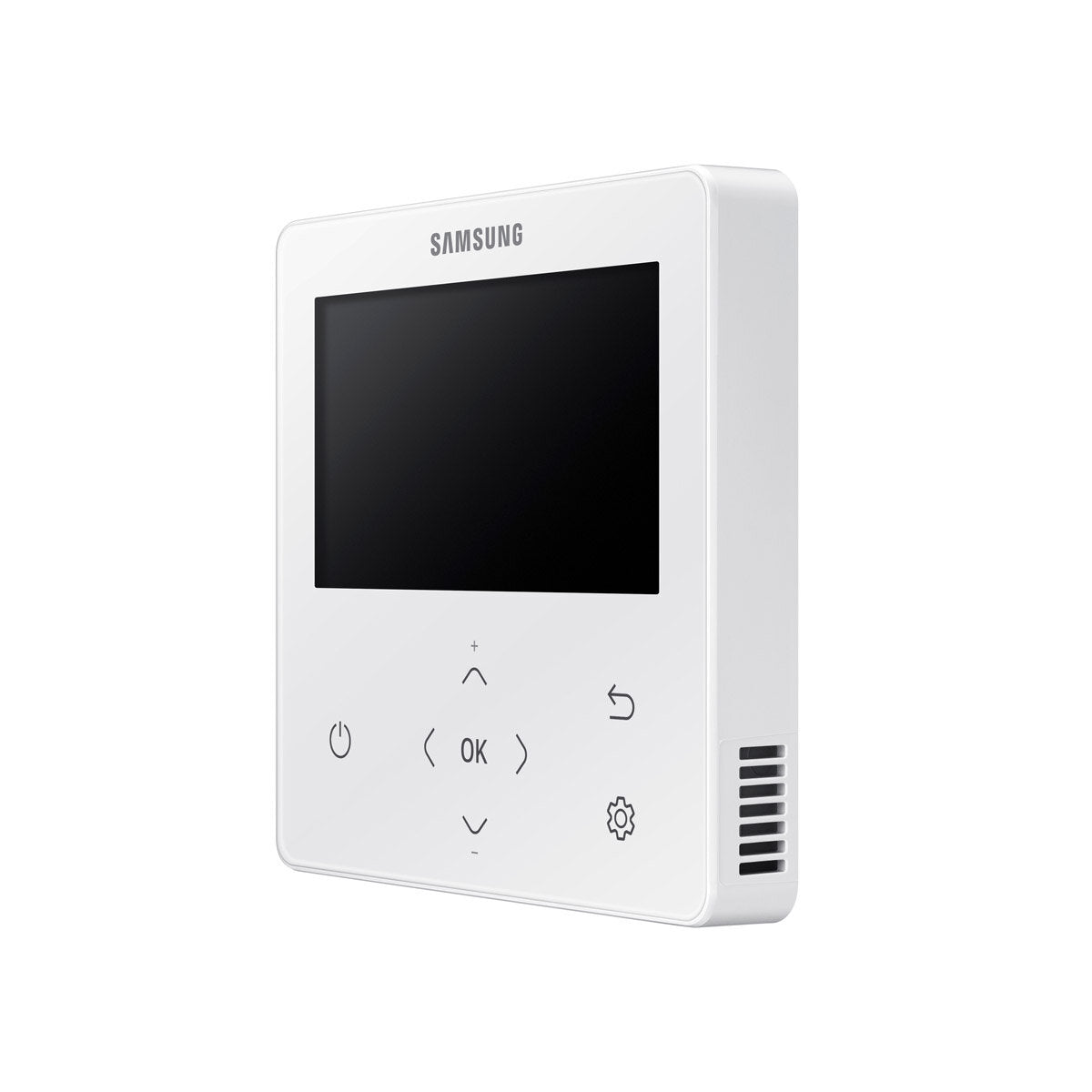

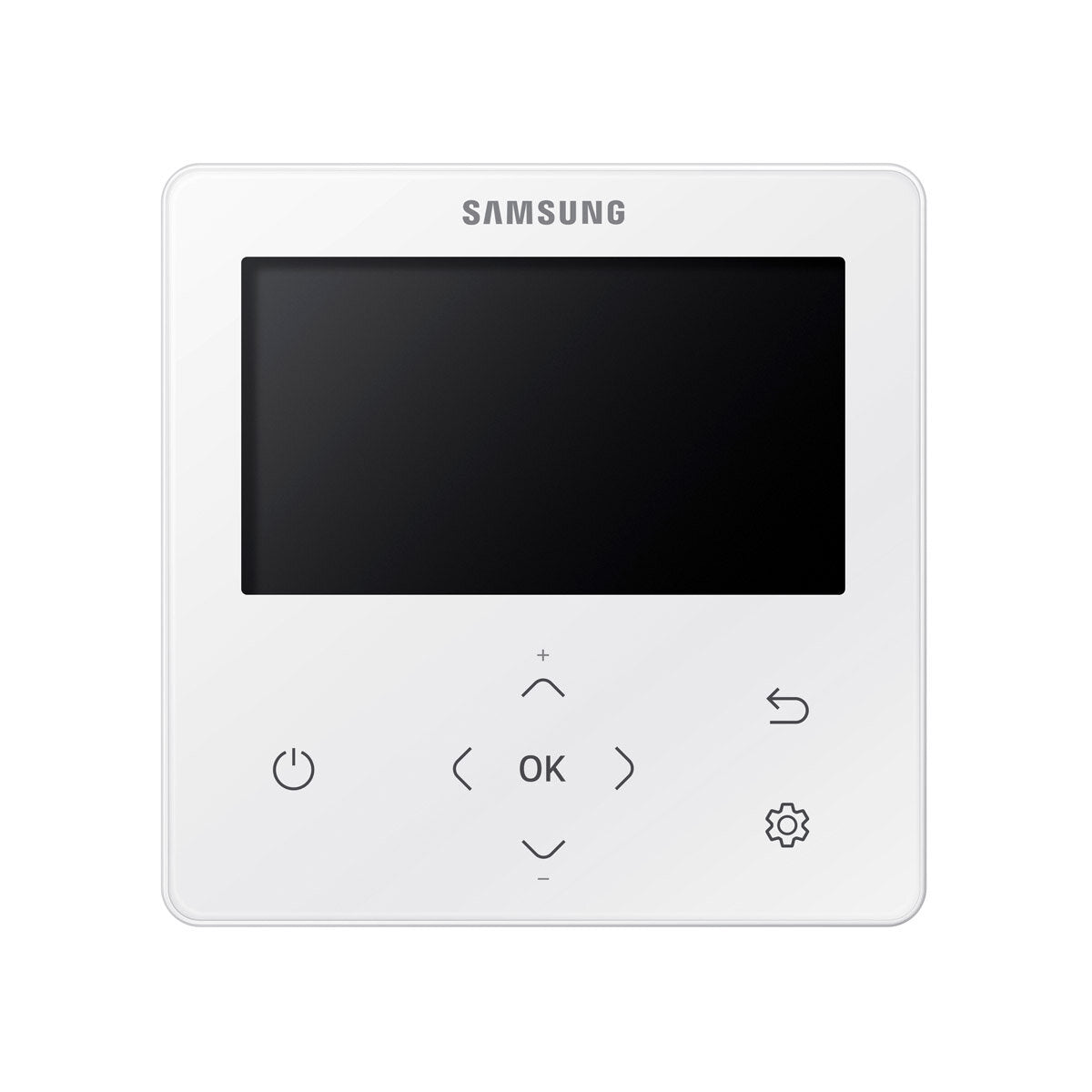

ADVANCE MWR-WG00KN WIRE CONTROL FOR SAMSUNG INDOOR UNITS
The Advance wired control model MWR-WG00KN by Samsung allows you to customize and program the air conditioner in order to better manage the environmental comfort of the rooms where it is installed. The control adopts the "NASA" communication protocol, faster and more efficient than the traditional RS485.
It allows you to control all the functions offered by the Samsung indoor units of the mono and multi split range and is compatible with the models of the CAC, DVM, and EHS lines.
Renewed in design compared to previous models, it has a square shape with rounded edges and is made of white glass with a color display; it will fit elegantly and discreetly into any environment.
It is a wired control and connects to the indoor unit using the appropriate cables.
The Advance wired controller boasts numerous control functions all easily accessible from the Settings menu: it allows you to control the on and off, temperatures, fan speeds, airflow, Sleep mode and Silent mode; to reset the indoor unit filter function alarm, the weekly schedule setting. It is also equipped with a Child Lock function to prevent involuntary tampering with the set settings and an Automatic Lock function. It offers the possibility to view all the information on the operation and to set the summer operation. When switched on, the display turns white showing the current settings in blue . The control is equipped with a built-in temperature sensor which constantly detects the temperature of the environment in which it is installed. It also offers the possibility to control the additional functions of the WindFree, CAC and DVM S models.
A single command allows you to connect and manage up to 16 indoor units .
DIMENSIONS
Width: 120 mm - Height: 120 mm - Depth: 19 mm.
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months .
