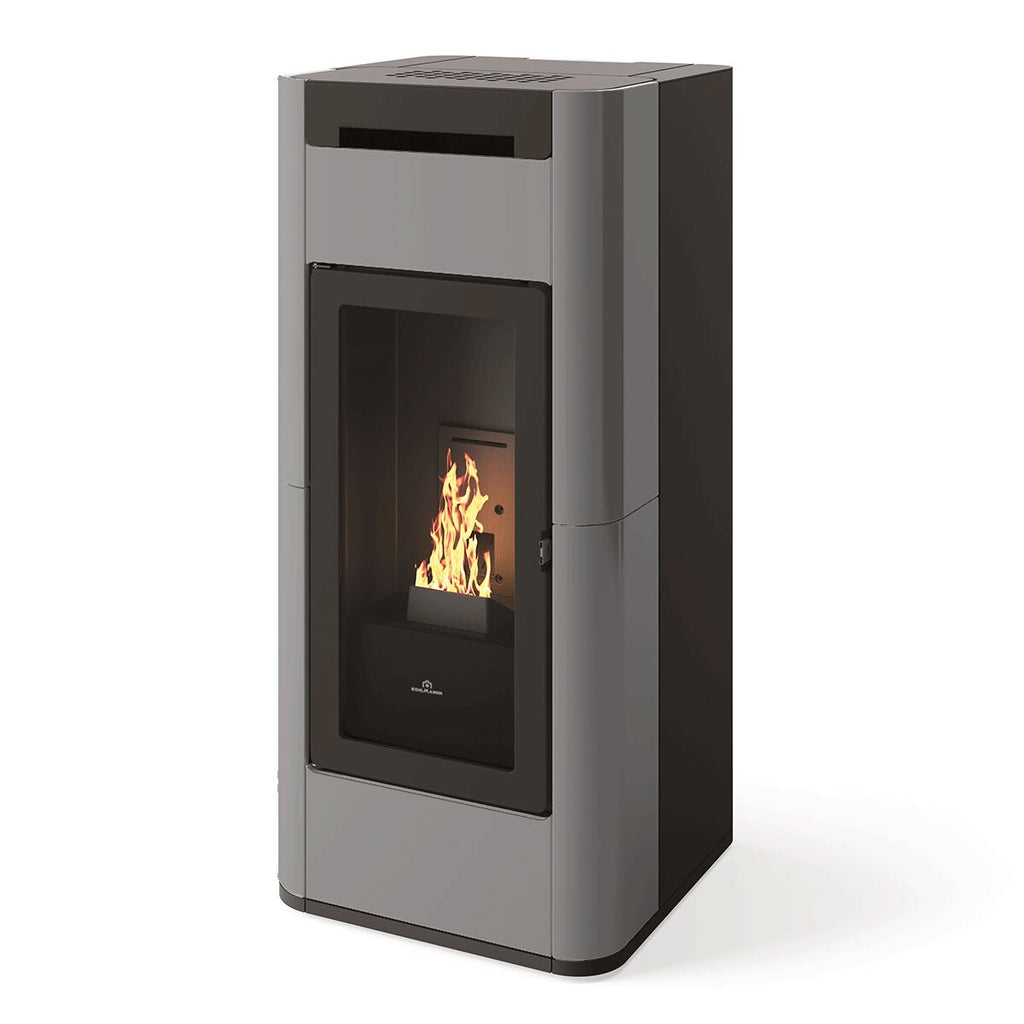

Edilkamin Tera H 30 Evo 29.5 kW Hydro pellet stove with WiFi, light grey matt
Nominal Thermal Power 29.5 kW (22.6 kW released to the heating system water; 6.9 kW released to the environment through forced ventilation and radiation)
Ideal for heating an area of approximately 285 m2 with a height of 2.7 m
The Tera H 30 Evo pellet stove by Edilkamin is the ideal solution for those looking to heat their home efficiently and efficiently with a single device. A single appliance with multiple functions, the Tera H 30 Evo thermo stove is a smart and environmentally friendly investment because it uses pellets, an economical and environmentally friendly fuel, which provides immediate savings on consumption and operating costs, while maintaining a comfortable environment without temperature fluctuations.
The Edilkamin Tera H 30 Evo thermo-stove is a technological gem. It burns pellets and produces hot water to power radiators and/or underfloor heating panels, as well as existing heating systems and can be used in conjunction with solar thermal systems. Energy performance up to class A++.
This pellet stove, with the help of special kits, can also produce domestic hot water for bathrooms and kitchens. Hot water can be stored in special boilers to always be available at the desired temperature.
DESIGN
The Idro Edilkamin Tera H 30 Evo pellet stove has a modern, linear design with a light grey matt coloured ceramic cladding. The slightly rounded sides lend a soft feel, making it versatile and aesthetically pleasing, easily integrating into any decor. The central combustion chamber frames the view of an enveloping, living flame that creates a captivating atmosphere in the home. A unique style for a versatile, multitasking stove.
TECHNOLOGY, COMFORT AND SAVINGS
The Edilkamin Tera H 30 Evo hydro pellet stove is a concentration of efficiency and practicality, in fact it guarantees energy performance up to class A++.
Numerous technical features make this pellet stove one of the most interesting and innovative, perfect for both heating and furnishing your spaces with style. It features a highly resistant and durable steel and cast iron firebox; a ceramic spark plug; brushless gearmotor loading; front hot air ventilation (adjustable and deactivatable) and a Ø 10 cm M rear flue outlet.

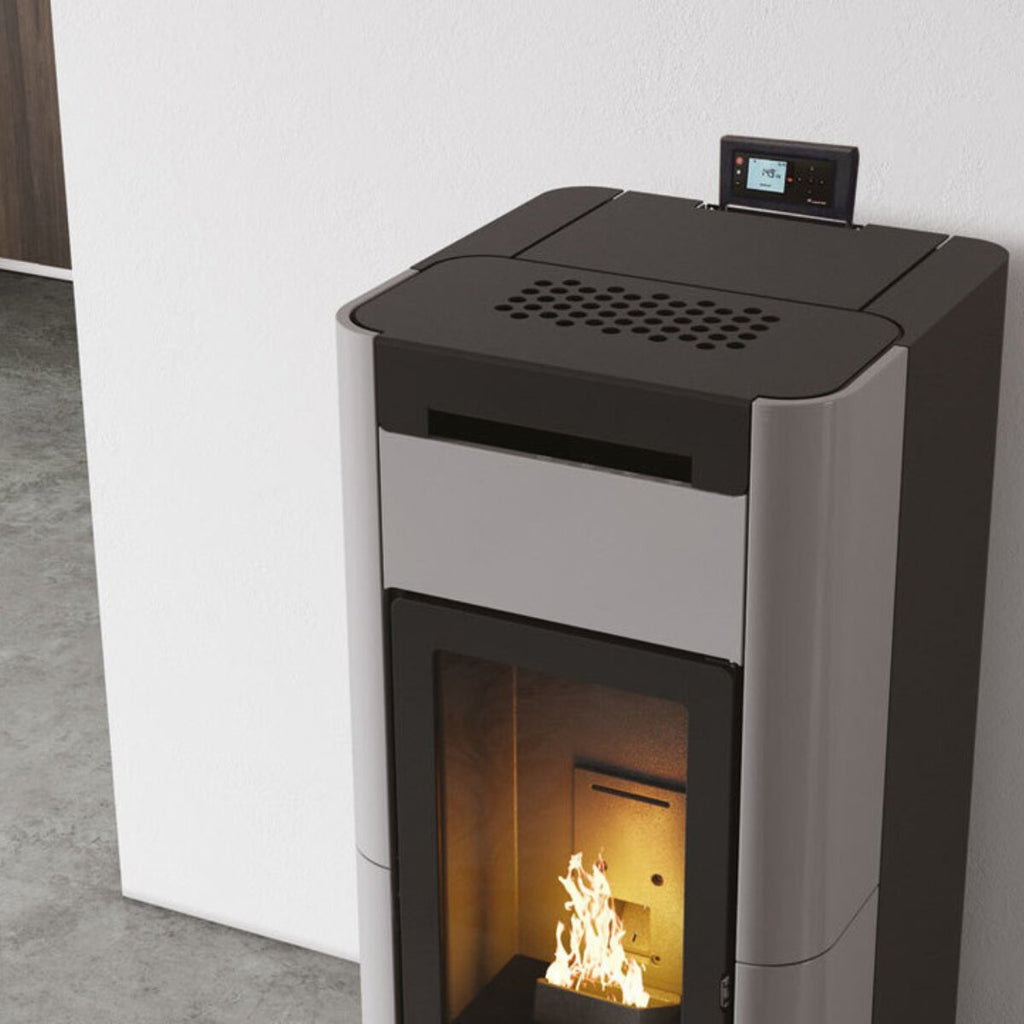

The Edilkamin Tera H 30 Evo features a convenient and modern retractable display for easy automatic or manual management and monitoring of the various functions and temperature. There are also many other features and configurable functions to discover, simplifying its general use and making it accessible to any user. For example, the option of daily and/or weekly programming; Comfort Clima, which ensures that the stove turns off when the desired temperature is reached; Autoclean for automatic combustion chamber cleaning; and Cold Autocheck , which allows for the identification of any problems; a built-in hydraulic kit with a closed expansion vessel, circulator, and overpressure valve; a pellet reserve indicator: indicates that the product will have approximately half an hour of autonomy remaining from the time it appears on the display; and systems that can be configured from the display. Additional functions and technical features can be learned and explored in depth in the user, installation, and maintenance manual provided with the product.
Particularly quiet and manageable from your smartphone or tablet via the The Mind app, thanks to its standard The Mind system with integrated Wi-Fi. Edilkamin's Tera H 30 Evo also features the advanced Leonardo and Fire Control systems as standard for correct and automatic combustion management: by constantly monitoring the main combustion parameters, it optimizes system operation and any waste. Furthermore, this stove is a concentration of innovative technologies designed to make life easier for users; in fact, it also includes the AshKontrol system for automatic combustion chamber cleaning and the AirKare system to ensure healthy air through a combined ionizing and ozonizing action, capable of eliminating dust and reducing viruses and bacteria so that the stove can always be used with the highest air quality in terms of purity.
Installation must be carried out by authorised and qualified technical personnel and for correct operation it is mandatory to install the R-FX kit for heating only, or alternatively, the RW-FX kit for heating + domestic hot water, both of which must be purchased separately.
The Edilkamin Tera H 30 Evo pellet stove has obtained CE, EN 14785, ECODSIGN 2022 certifications.
TECHNICAL CHARACTERISTICS
- Useful power: 8.5 - 29.5 kW
- Useful water power: 22.6 kW
- Yield: 93%
- Fuel consumption: 1.8 - 6.6 kg/h
- Tank capacity: 45 kg
- Autonomy: 7/25 h
- Water content: 30 l
- Ø smoke outlet: 10 cm
- Air intake Ø: 5 cm
- Heatable volume (depending on the type of system): 770 m³.
WARRANTY
The warranty is the official Edilkamin one and lasts 2 years.
