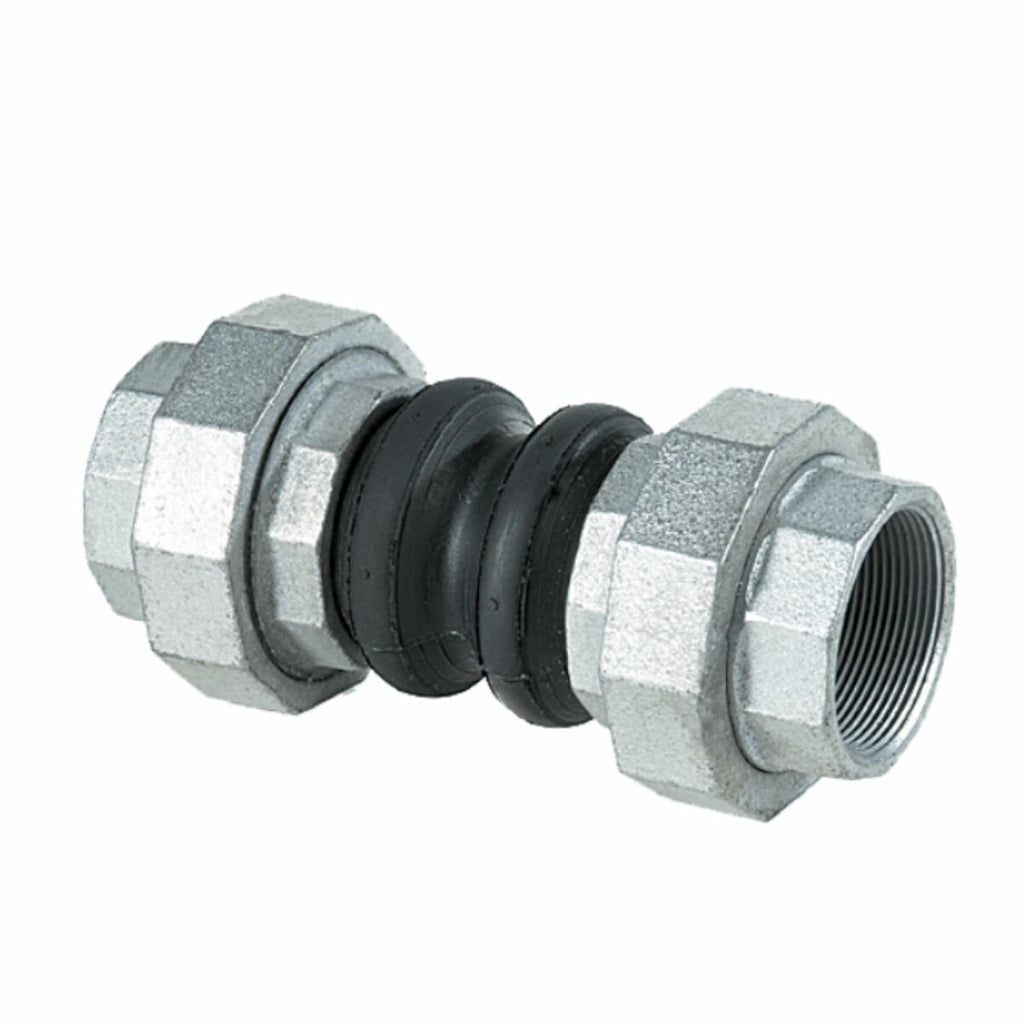

Elastic anti-vibration joint from 1 Brandoni
Code: T8.500025FF
Elastic antivibration joints are used with heat pumps to protect systems from sudden and uncontrolled movements, such as: compression, stretching and bending. They also perform a noise absorption function and ensure a decrease in water hammer; (In hydraulics it is defined as water hammer when a flow inside a pipeline is abruptly stopped).
The 1 elastic antivibration joints are made of EPDM rubber, the fittings are made of galvanized cast iron, and the minimum temperature supported by the joint is -10 C° while the maximum is +100 C°.
Anti-vibration joints are also suitable for:
- Water systems
- Pumping plants
- Conditioning and heating
- Industrial and agricultural applications
- Compressed air
Main features:
- Internal reinforcement in multilayer nylon
- Unions in galvanized cast iron
- Minimum temperature -10 C° - maximum +100 C°
- EPDM rubber
- Connections of 1 - DN 25
- Minimum pressure 0.5 BAR - maximum 16 BAR
