Sabiana Carisma Whisper CFF-ECM fan coil unit with cabinet.
Suitable for rooms from 21 to 32 square meters with an average height of 2.7 m.
Heating output kW 3.62 - Cooling output kW 3.36.
For over 90 years, Sabiana has been designing and manufacturing innovative products for heating and air conditioning suitable for residential or commercial environments, paying particular attention to energy saving and air quality but without neglecting shapes and designs that can adapt harmoniously with the architectural structure of the building. The Carisma Whisper CFF-ECM fan coil unit combines high-level performance and reduced overall depth with minimal energy consumption.
The design of the Carisma Whisper has made it the most appreciated in its category: it is the most used article by architects for its particularly pleasant design and it is ideal for installation in any environment, whether residential, commercial or hotel. Carisma Whisper has a very small size, with a depth that does not exceed 126 mm, a modern aesthetic that integrates perfectly with the furnishings of any type of home, maintaining excellent performance in terms of noise and consumption. The cover cabinet is in galvanized sheet metal with a white plastic type external coating. The delivery grille is adjustable and positioned on the upper part. As for the internal structure , also in galvanized sheet metal, it has a thickness of 1 mm and is composed of a rear wall and two insulated side panels with a 3 mm mattress.
FEATURES AND PERFORMANCE
The Carisma Whisper fan coil series is equipped with an innovative BLAC brushless synchronous motor, i.e. brushless and sensorless, with permanent magnets, controlled by an inverter board installed on the motor. The high efficiency even at low rpm allows a great reduction in electrical consumption with absorption values not exceeding 5 Watts. The heat exchange coil is made up of copper pipes and aluminum fins. It is equipped with a honeycomb polypropene filter inserted in guides fixed on the internal structure that allow easy extraction.
The standard position of the hydraulic connections is on the non-reversible left side.

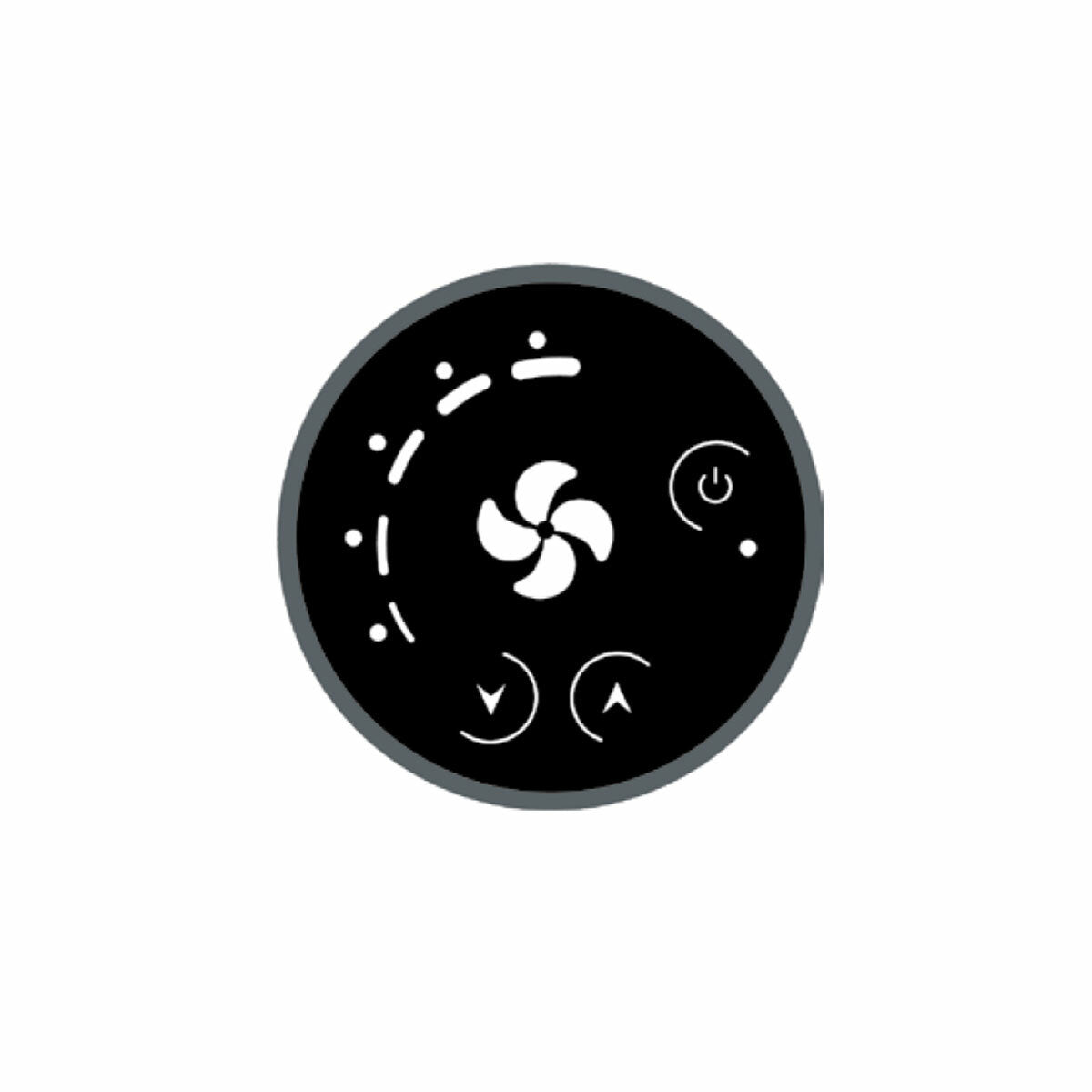

The Carisma Whisper fan coil is equipped with a CB-E on-board control that can only be used with a chronothermostat not supplied by Sabiana. It allows you to switch the appliance on or off (Stand-by) and therefore to easily set the ventilation by acting progressively on the fan speed, leaving the temperature control to a chronothermostat or thermostat. After a period of 3 minutes from the last action, the brightness of the panel is specially reduced (SLEEPING mode) to increase energy saving and comfort at night.
-Air flow rate: m3 / h 575 max
- Cooling output: kW 3.36 max
- Heating output; kW 3.62 max
-Dp cooling water side: kPa 39.1 max
-Dp heating water side: kPa 36.2 max
- Motor power consumption: W 25.4 max
-Sound power: dB (A) 55 max
-Sound pressure: dB (A) 46 max

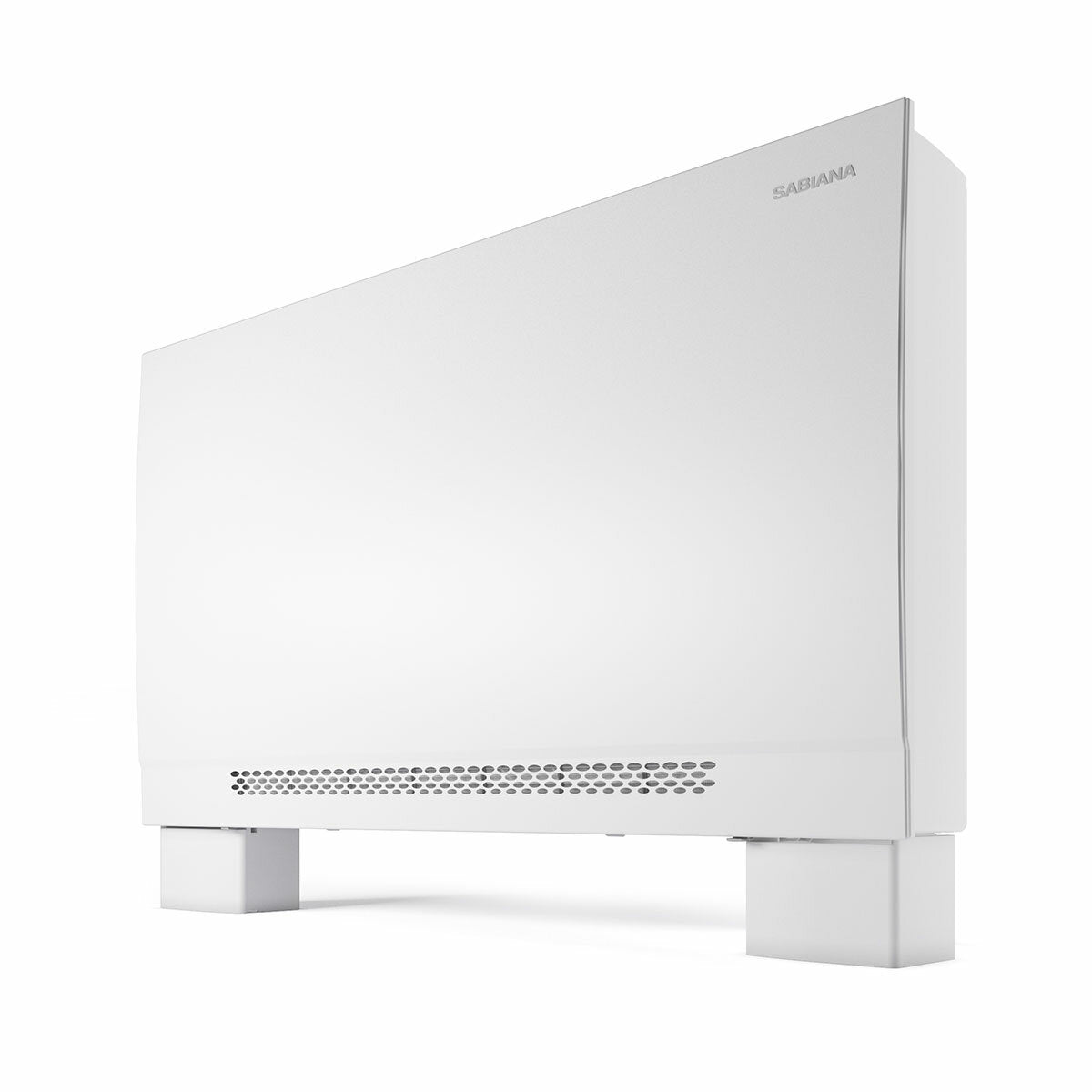

-Feet (Items to be purchased separately)
Length: mm. 1240 - Height: mm. 580 - Depth: mm. 126.
The guarantee is the Official Sabiana Italia guarantee and has a duration of 24 months.
