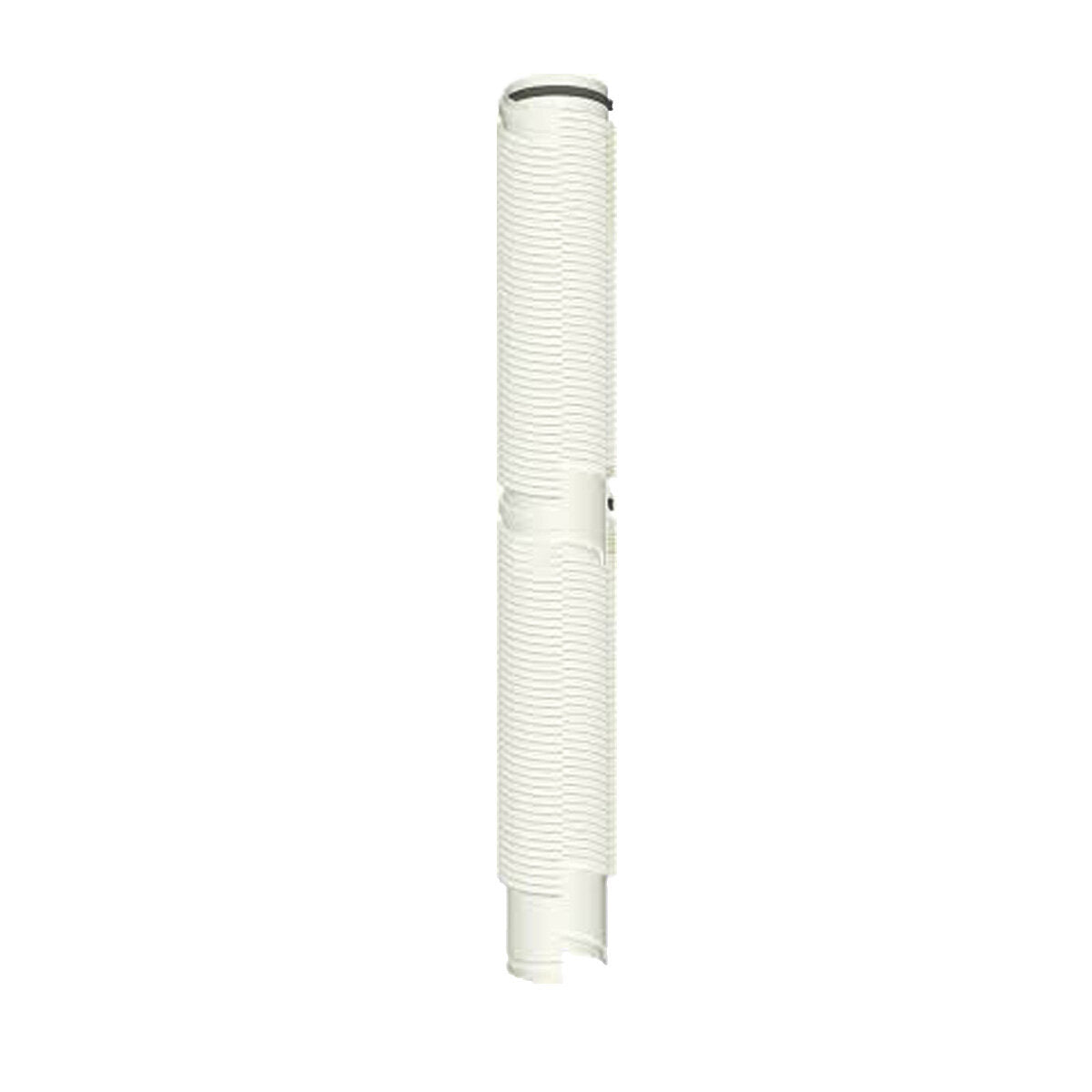

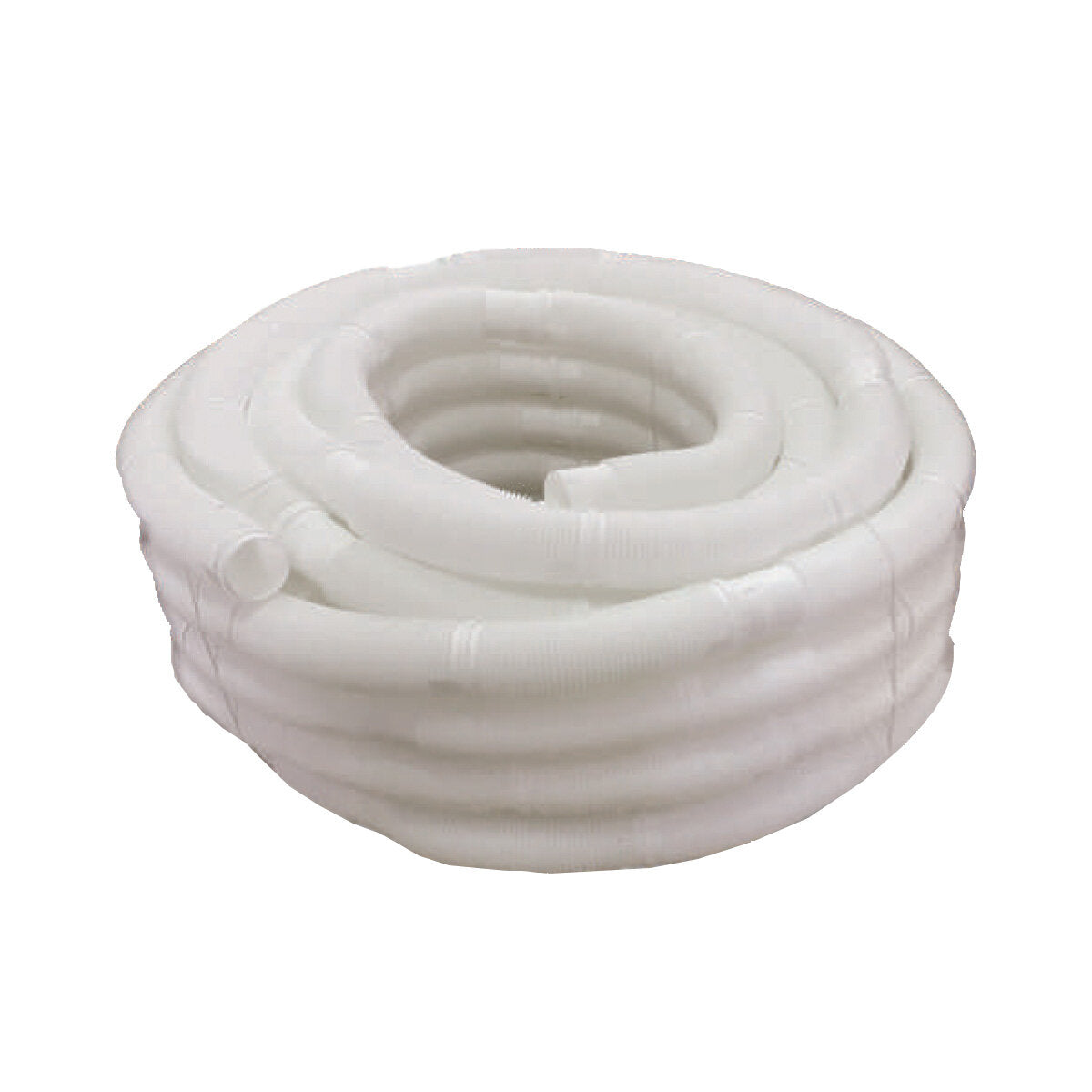

Flexible pipe for condensing boiler fumes ø 80 in PP

Polypropylene (PP) diameter ø 80 mm flue gas discharge hose for condensing boilers

Code: PAFX 02 D80

The flexible pipe proposed here is the Stabile brand solution for the simple and quick construction of flues/exhaust pipes of condensing boilers and, in general, of other heat generators for which the fume discharge temperature does not exceed 120 °C . The flexible pipe can also be used for kitchen hoods and air supply or extraction ducts, as long as the fume expulsion temperature does not exceed 120°C.

This flexible pipe is part of the PP Flex System of the SMF Stabile family and is an intelligent and economical idea especially for intubating old flues avoiding the use of more complex systems with metal or other types of pipes.

The hose presented here has a nominal diameter of 80 mm . It is purchased by the meter according to the length required and has male-female ends for connection to the other components of the exhaust system. The male end has a locking bayonet connection, on the female side it will be necessary to purchase the appropriate gasket (code PAGT 70 D80) for connection to other elements or sections of pipe.

PAFX 02 D80 hose complies with EN 14471:2013+A1:2015.

Installation and maintenance are fairly simple operations but must always be carried out by qualified personnel and in accordance with current regulations.
