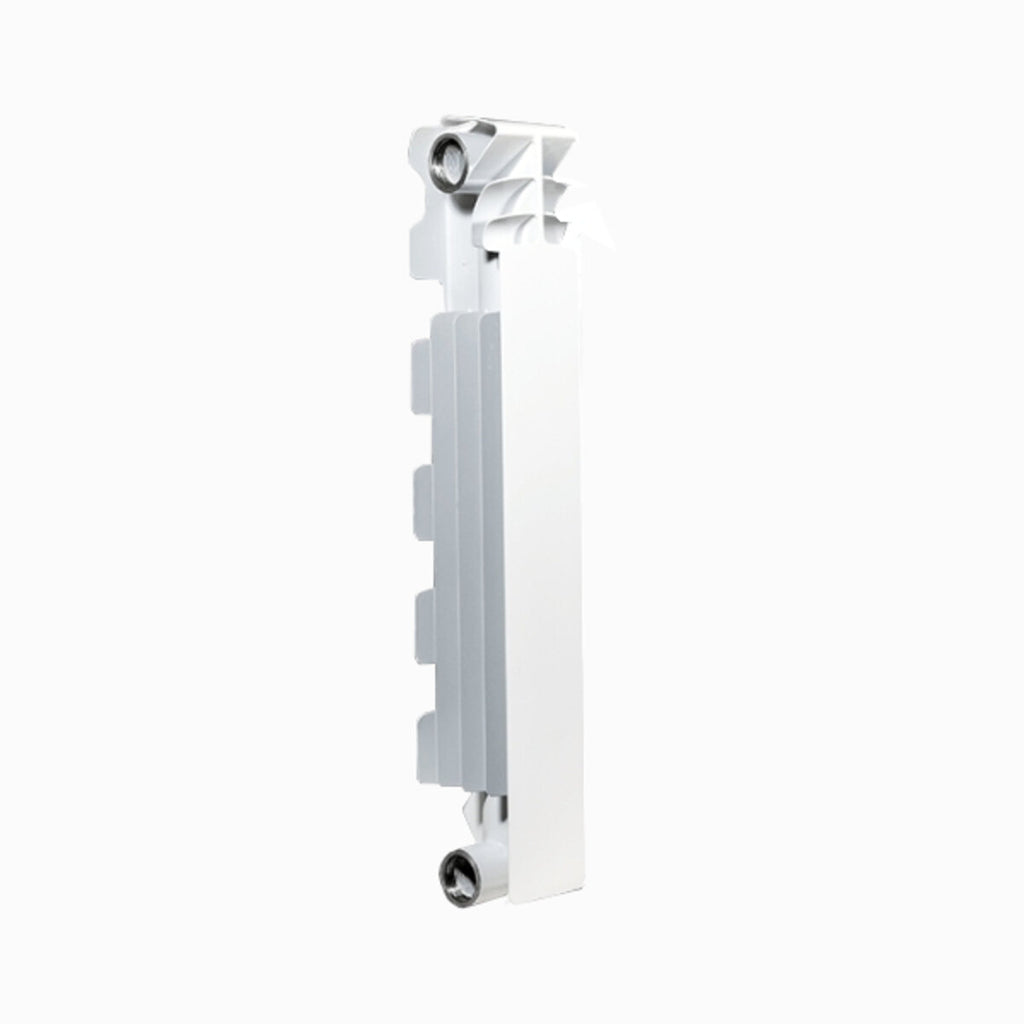

Fondital radiator in die-cast aluminum exclusive D3 single element center distance 600 mm
THE RADIATOR
The Fondital Exclusivo radiator is the brand's new project; with the Exclusivo model, Fondital has managed to further optimize the already remarkable performances offered by aluminum radiators.
It is a completely new product, a radiator that offers excellent energy and mechanical performance.
Exclusivo boasts 3 international patents ; among these, the numerous heat exchange fins and the openings on the back of the radiator which determine a greater heat exchange than the others and make it excellent even for low temperature systems .
The construction features are of the highest level. The radiator can work in operation up to a nominal pressure of 16 BAR and is tested up to a pressure of 24 BAR while the bursting pressure is 60 BAR. The thermo-electric fusion of the cork is carried out at controlled temperatures, the process is very effective and avoids the formation of porosity and welding residues to the advantage of duration over time so that the product therefore appears as a 100% single body. in particularly resistant and reliable aluminum . The treatments with chemical anticorrosion protection, the anaphoresis painting and the final double powder coating also make it unalterable to the eye.
Its modularity allows you to compose it with as many elements as necessary and to always have a particularly easy handling and great ease of installation .
The design is simple and clean, Fondital Exclusivo radiators are perfect for any space and adapt to any environment, be it domestic, office or hotel.
ENERGY SAVING
Fondital Exclusivo is equipped with a new technology with an innovative conformation that allows to obtain a high thermal yield , such as the openings on the back of the elements that allow to increase the convective heat exchange , this allows a better yield and helps to save on heating costs.
TECHNICAL FEATURES
No. of elements: 1
Wheelbase: 600
Thermal output ΔT 50: 133.5 W
Thermal output ΔT 30: 68.9 W
PLUS
No dirt deposits in the cap area
Absence of welds inside the water chamber (rust does not form)
Better aesthetics without external burrs
Superior mechanical resistance
Ecological process without waste of material
DIMENSIONS
Height: 6.57 cm - Width 8.0 cm - Depth 9.7 cm.
WARRANTY
The Fondital Exclusivo radiator has the official Fondital Italia WARRANTY of 10 YEARS from installation.
