Ø 60/100 ALUMINUM/PP HORIZONTAL WALL COAXIAL FLUE EXHAUST KIT FOR BOSCH JUNKERS CONDENSING BOILERS
The Stabile PACKIT 7 D60-100 horizontal wall coaxial kit is used as a flue outlet for Bosch (Junkers Bosch) branded consation boilers.
The fume exhaust and air intake kit consists of an internal polypropylene pipe resistant to acid condensation and an external aluminum pipe painted white RAL 9003; the kit is tested to withstand fume temperatures up to 120°C.

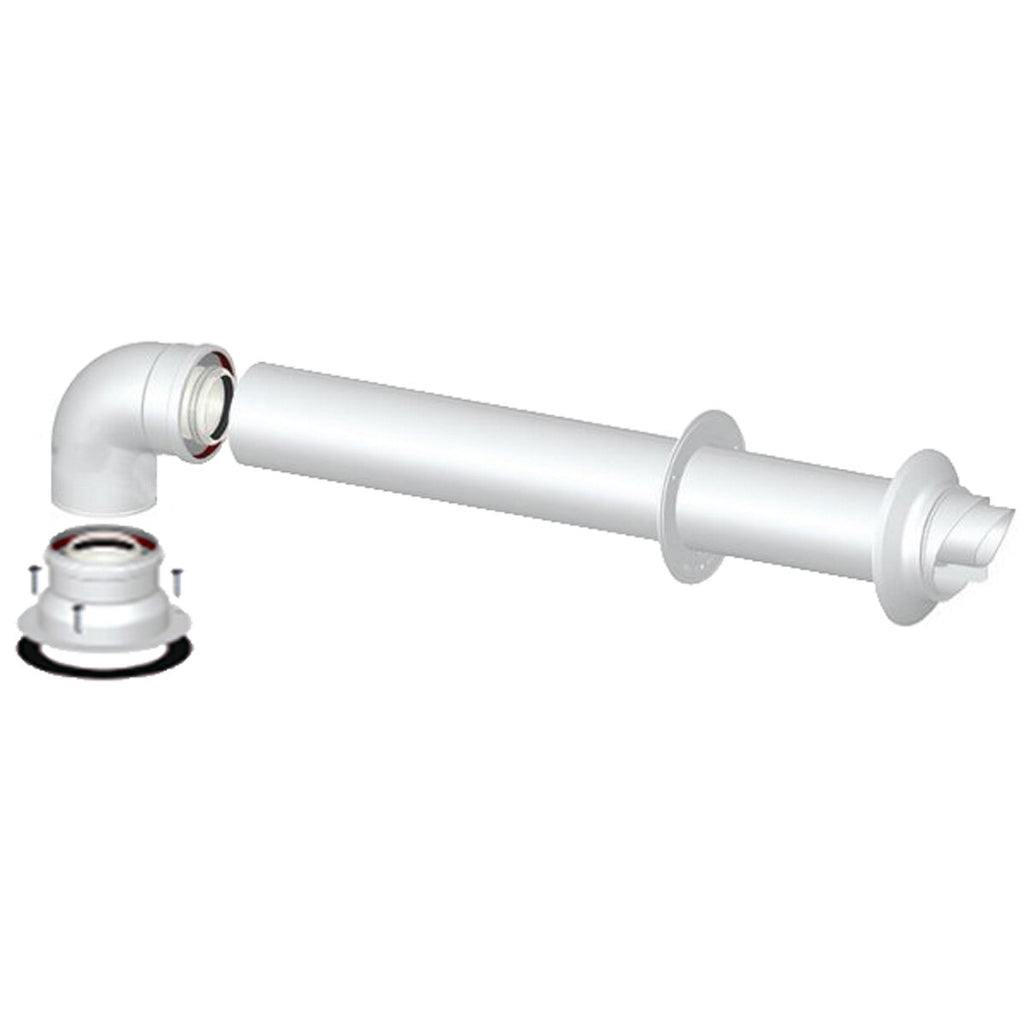

The coaxial kit, 1 m long, is composed of:
- Pcs. 1 - External pipe with a diameter of 100 mm for the flue gas discharge which contains an internal pipe with a diameter of 60 mm for the air intake; complete with windproof terminal
- Pcs. 1 - Concentric curve
- Pcs. 1 - Internal rosette
- Pcs. 1 - External rosette
- Pcs. 1 - Clamp for 100 mm diameter pipe
- Pcs. 1 - Pack of screws and gaskets
- Pcs. 1 - Assembly instructions.
The kit complies with EN 14471:2013+A1:2015.
