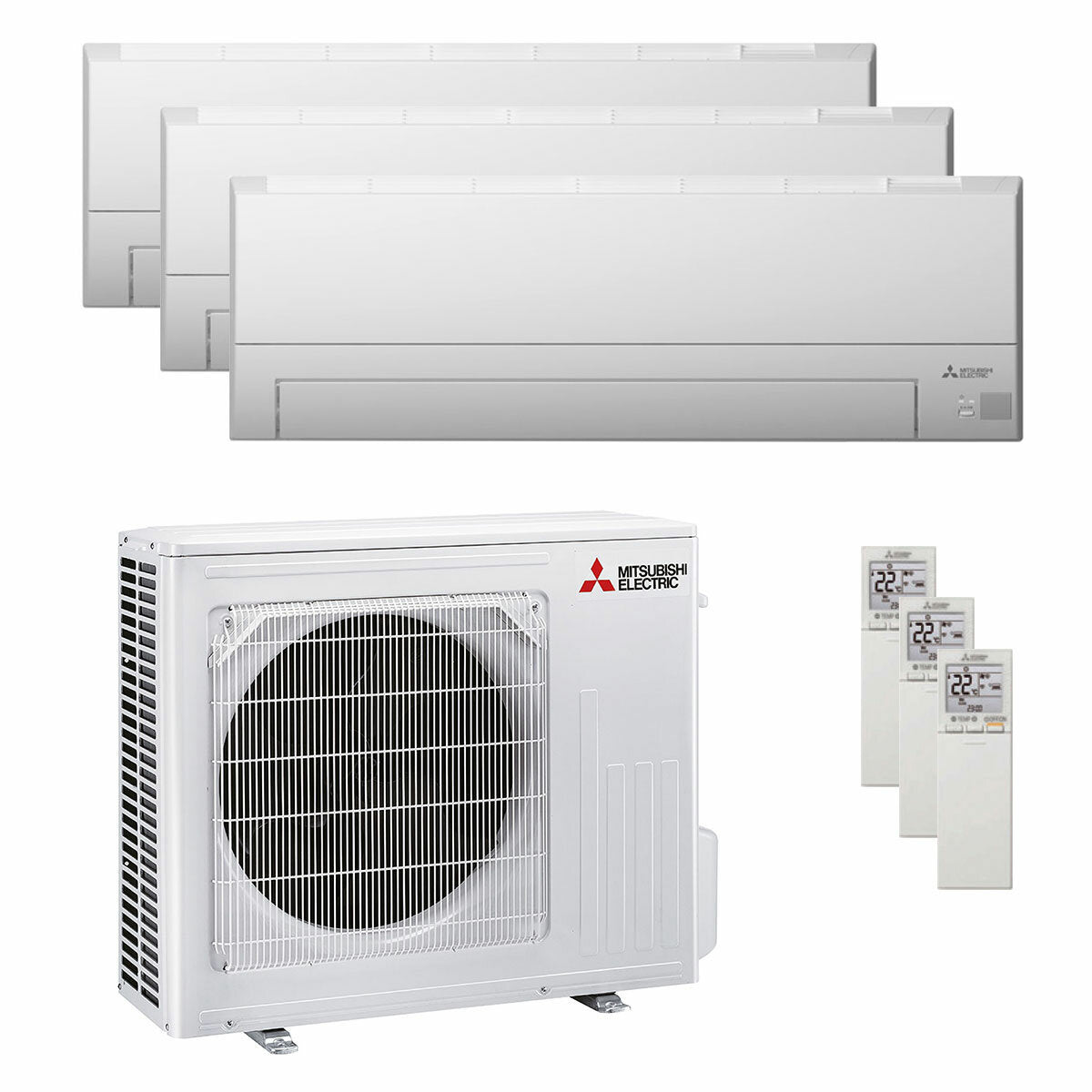

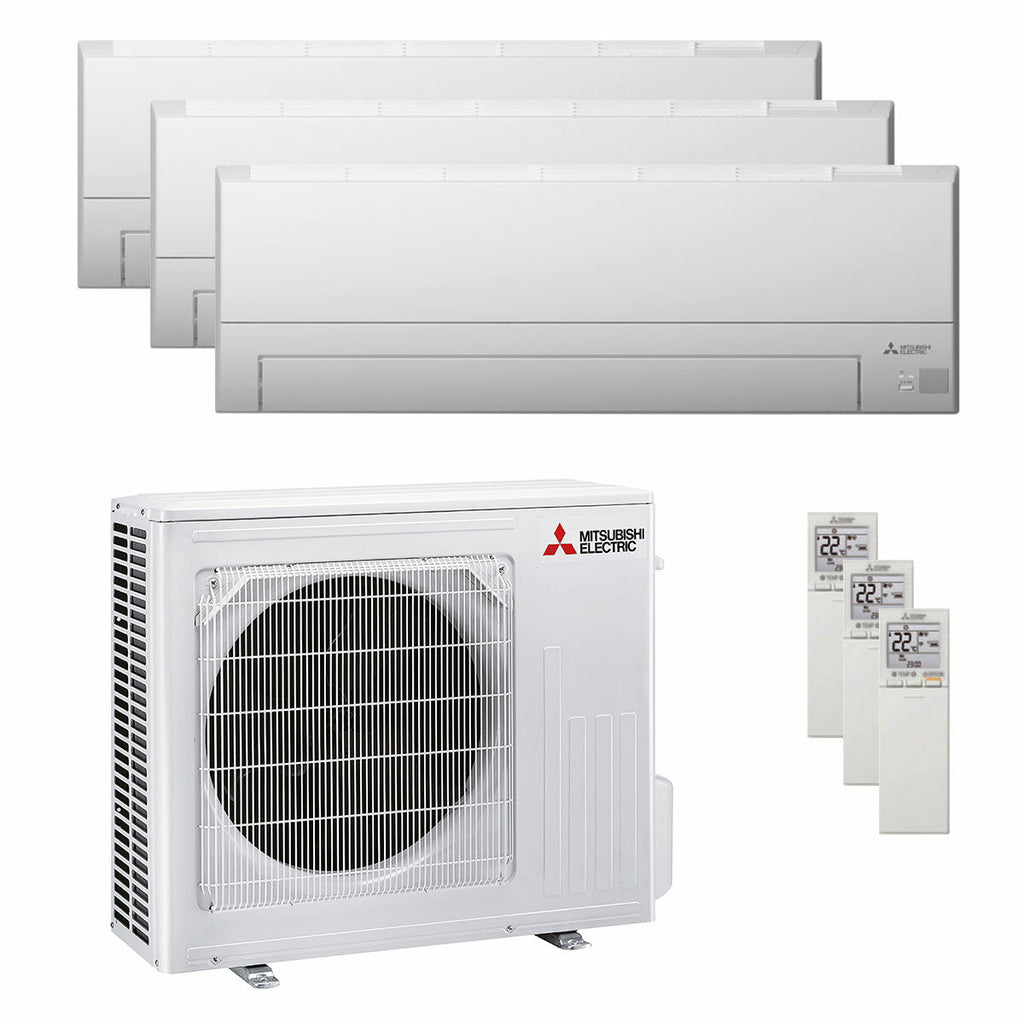

Mitsubishi Electric Air Conditioner Series BT trial split 9000+12000+12000 BTU R32 Inverter A++ WiFi outdoor unit 5.4 kWThe air conditioner kit is equipped with the following indoor units:
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
- 2 x 12000 BTU - Ideals for rooms from 25 to 40 sqm with an average height of 2.7 m

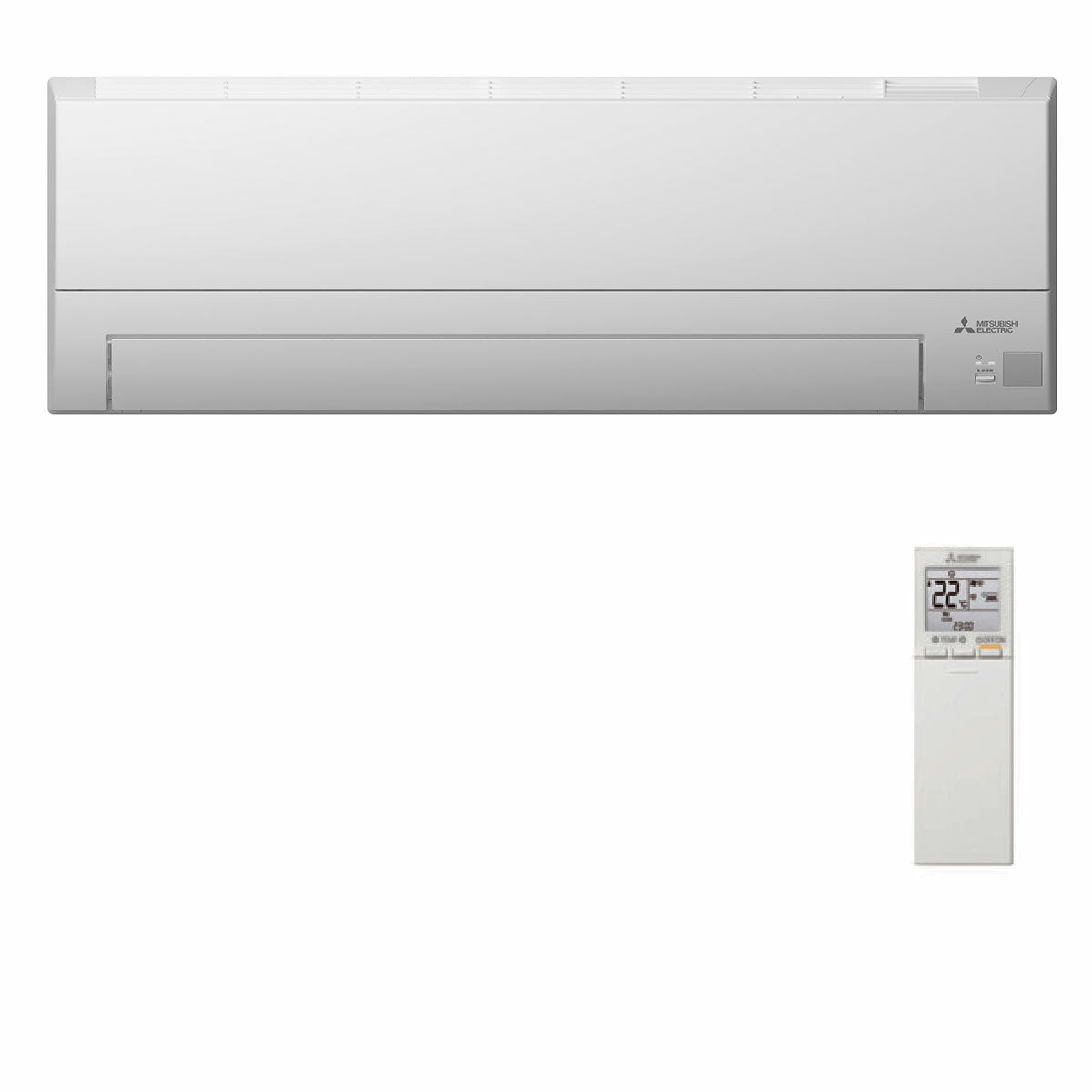

The Mitsubishi Electric MSZ-BT Linea Plus air conditioner represents a new level in the world of air conditioning. With a modern and linear aesthetic, velvety finish, acoustic comfort with its 19dB(A) of sound pressure, integration of V Blocking and Standard active air filtration devices (included) and Ready predisposition for the Plasma Quad filtering system Plus , the new MSZ-BT series of air conditioners encloses the best Mitsubishi Electric technology in ultra-compact dimensions. Furthermore, thanks to the use of R32 refrigerant gas, the efficiency of the new MSZ-BT units reaches class A++ in cooling and in heating.
DESIGN

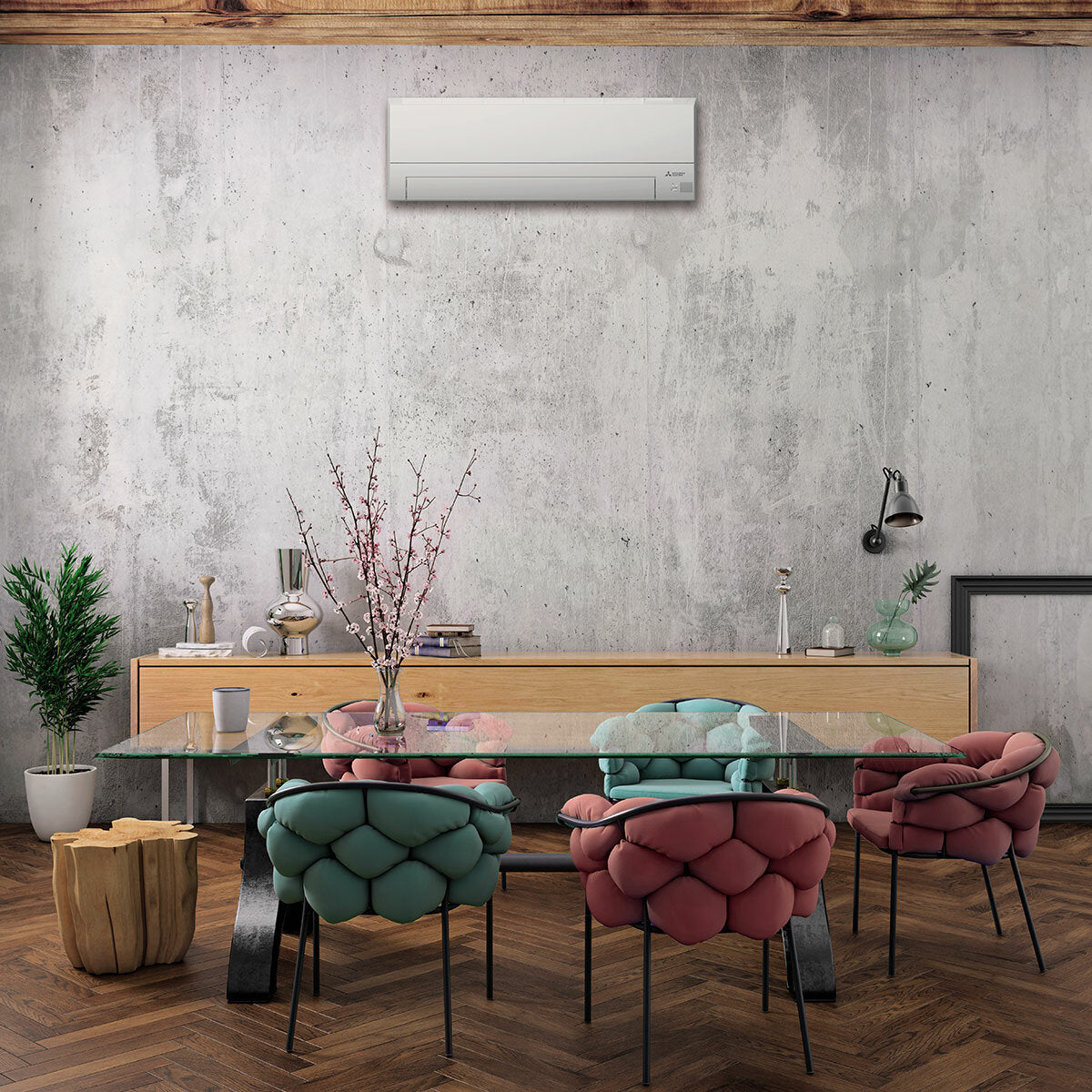

The new Mitsubishi Electric PLUS MSZ-BT air conditioners make any environment elegant and modern thanks to the new matt finish with velvet effect , the completely flat surface and rounded edges. The compact dimensions make them versatile and suitable for satisfying all tastes and space and furnishing needs: classic or modern, elegant or informal, discreet or more eye-catching. Furthermore, they are the ideal solution for any type of application: residential, office or small commercial establishment . The remote control, with a minimalist design, backlit allows easy viewing even at night.
BREATHE CLEAN AIR
The Mitsubishi Electric MSZ-BT air conditioner is the ideal choice for sanitizing environments, making them healthy and comfortable. It is in fact equipped with a V Blocking air purifying filter, which improves the previous silver ion filtering system by adding an antiviral action capable of inhibiting viruses, bacteria, molds and allergens; it also includes the standard purifying filter which eliminates dust and impurities with antibacterial, anti-mould and anti-odour effects. This air conditioner also has a Ready type predisposition (without the use of additional accessories) for the installation of the revolutionary Quad Connect Plasma Filter capable of inhibiting up to 99% of viruses, bacteria, molds and PM2.5 present in the air, up to 98% of allergens and pollen and up to 99.7% of mites and dust. The PLASMA QUAD filter works as an electrical barrier capable of capturing and neutralizing microscopic particles in suspension: by forming a high-potential electric field and subsequently discharging it, this air filtration system captures and inactivates viruses and removes pollutants that pass through it. The PLASMA QUAD air filtration system is tested against viral activation of SARS-CoV-2 . The tests were conducted at the Microbial Testing laboratory Kobe Testing Center of the QTEC – Japan Textile products Quality and Technology Center.
In addition, this air conditioner allows for optimal air distribution within domestic environments by virtue of the advanced oscillation system designed by Mitsubishi and automatic ventilation; the motorized deflector scans two modes of oscillation, vertical and horizontal, which allow the air flow to be continuous and uniform, reaching every corner of the room for a livable environment in the name of comfort and healthiness.
COMFORT AND EFFICIENCY
The indoor unit of the Mitsubishi MSZ-BT air conditioner is equipped with a new installation template . The new template has a large central hole which makes installation easier especially in the presence of predisposition boxes.
Environmental comfort is also linked to the sound level and is especially important in bedrooms or studios. The MSZ-BT line allows you to guarantee the ideal climate all year round with a sound level that is virtually imperceptible to the human ear. The 19 dB(A) achieved by the MSZ-BT model of the PLUS Line are quieter than the noise generated by the rustling of leaves, making the air conditioner effectively inaudible to the occupants of the room. This is why the MSZ-BT air conditioner is particularly suitable for domestic environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.
A series of features enrich these air conditioners: by activating the Night Mode function from the remote control it is possible to prepare the air conditioner for night-time operation: LED brightness reduction, beep sound deactivation, reduction of 3dB(A) sound emission of the external unit; with the On/Off Timer you can program automatic switching on and off with one-hour intervals; weekly programming is also possible; the I-Save function allows you to recall all the pre-set favorite functions by simply pressing a button; with the Auto Restart system, the air conditioner restarts automatically in the event of an accidental power cut.
The Mitsubishi Electric MSZ-BT air conditioner of the Plus Line offers the user experience of MelCloud integrated into the air conditioner, allowing the user to remotely manage, thanks to the Wi-Fi controller , the main functions of the air conditioner, monitoring its operation and consumption energetic. Thanks to the Energy Monitoring function available on MelCloud, the user can monitor the consumption of his air conditioning units from mobile devices such as smartphones and tablets. The system is also compatible with Amazon Alexa and Google Home. Furthermore, thanks to the new integrated wifi adapter, connection with the router is even easier!

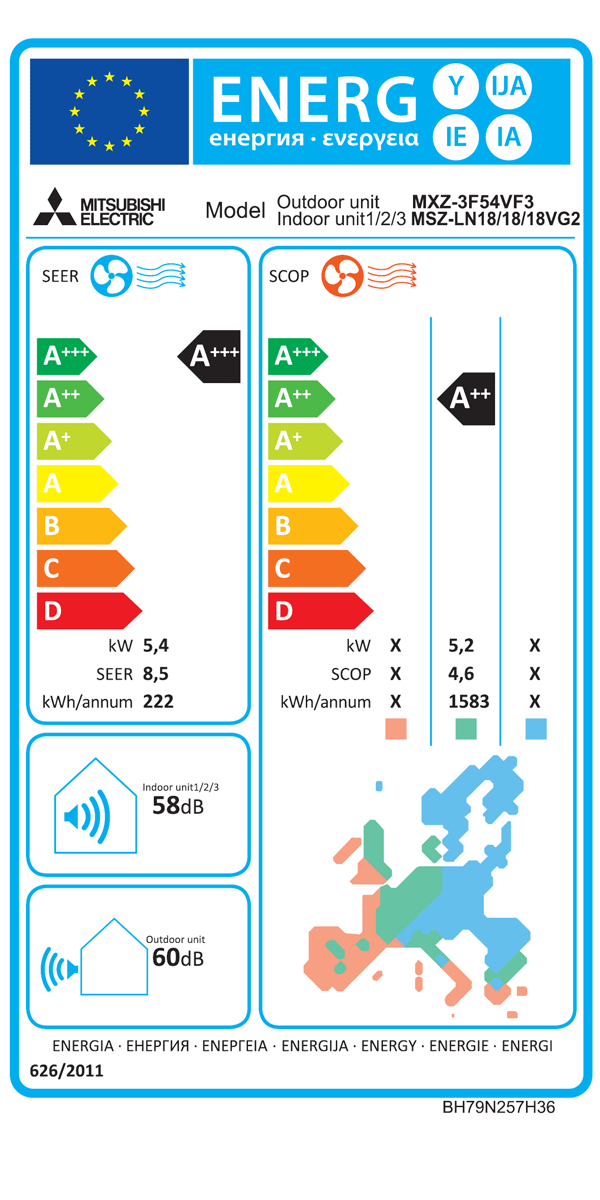

Mitsubishi Electric MSZ-BT air conditioners exploit the top of technology to ensure energy efficiency at the highest levels in compliance with European Directives on energy saving and product classification.
ACCESSORIES SUPPLIED AS STANDARD WITH EACH SINGLE INDOOR UNIT
- Remote control
- Integrated wifi card.
WARRANTY
The warranty is the official Mitsubishi Electric one and has a duration of 24 months.
THE OUTDOOR UNIT
The MITSUBISHI MXZ-F outdoor units for multi-split air conditioners are equipped with DC Inverter and Heat Pump technology.
The MXZ-F is a truly versatile series of outdoor units offering the possibility of connection to most of the indoor units of the MITSUBISHI Residential and Commercial lines. The one presented here allows you to connect and power two or three internal units of the brand, even of different models and powers; the internal units will always operate independently and each will be equipped with its own control.
Multisplit outdoor units offer the great advantage of air conditioning multiple rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this air conditioning component on the facade of the building.
GUARANTEED SAVINGS
The MITSUBISHI MXZ-F outdoor unit always delivers the right power based on the real air conditioning needs of the environments in which its indoor units are located, moment by moment. The high performance and great comfort both when used for cooling and heating make it one of the most popular on the market. Thanks to the Inverter system, the unit allows for high energy savings and particular attention to the environment. It allows you to always obtain the highest Energy Classes, up to A+++ , and reduces waste . The Inverter compressor always offers significant savings and great well-being because it always keeps the temperature constant . The Heat Pump allows you to use the air conditioner both in summer for cooling and in winter for heating.
The MITSUBISHI Electric Outdoor Units are equipped with a particularly silent latest generation compressor so as to respect your own sleep and that of others; they have great efficiency and the innovative construction technology makes them particularly robust so that they can last for a long time.
For operation they use R32 gas , with low environmental impact which helps to respect nature.
They are all very resistant to bad weather and atmospheric agents.
Installation is always particularly easy and fast thanks to the automatic connection correction , which autonomously corrects any installation errors.
Thanks to the integration with Mitsubishi's MELCluod system it is also possible to monitor the consumption of these external units.
WARRANTY
The warranty is the official MITSUBISHI Electric one and lasts 2 years .
