Natural circulation solar panel Cordivari Panarea Universale 300/4 - 2 PANELS - 300 LITERS

BEST OFFERS -5%
CordivariSKU: 3410316605108 ID: 93692E

Price:
Sale price€1.600,10 Regular price€3.466,10
code
3410316605108
id
93692E
precodice
CRV
short description

NATURAL CIRCULATION SOLAR PANEL WITH 300 LITRE BOILER WITH UNIVERSAL FIXING - FOR SANITARY HOT WATER READY TO USE NATURAL CIRCULATION THERMAL SOLAR PANEL FOR FLAT AND PITCHED ROOFS WITH 300 LITRE BOILER

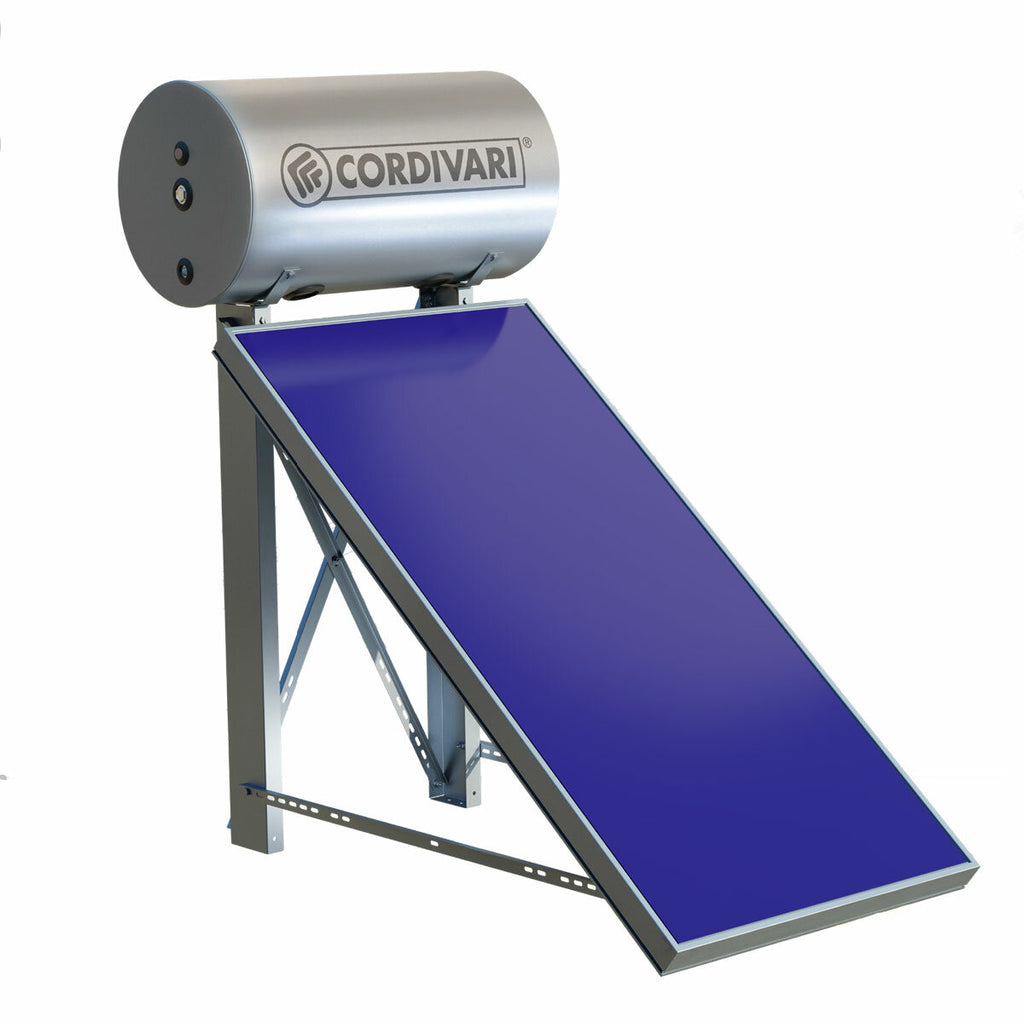

The kit is equipped with 2 panels. The published photograph is indicative of the model with only one panel

brand
Cordivari
category
Solar panels
type
series
Panarea
Download technical specifications

Description

Natural Circulation Solar Panel - 2 solar panels + 300 litre boiler.

Ideal for the water needs of 6 people

Cordivari products comply with the most important international certifications and approvals, issued by the most authoritative research institutes.
and accredited testing. All boilers, thermoaccumulators and expansion vessels are built in compliance with the provisions of the PED Directive (Pressure Equipment Directive). All items intended for the containment of sanitary water are certified for the use of drinking water according to the most stringent Italian and foreign regulations (ACS - SSICA - DVGW W270 - WRAS). Solar thermal systems are built and certified in compliance with the provisions of the most stringent regulations in force such as EN12975 – EN 12976 – SOLAR KEYMARK.
Care for quality combined with attention to the environment have always been considered strategic activities. Cordivari was the first company in the plumbing and heating sector to obtain the management system certification according to the UNI EN ISO 9001 standard integrated with the environmental management certification UNI EN ISO 14001. This production philosophy, which is now a lifestyle for the company, means reducing emissions and energy inefficiencies, reducing waste through their differentiation and recycling. Thanks to these choices, the company can operate with respect for man and the environment. With the Quality & Environment management system, Cordivari uses clean energy from renewable sources and uses only recyclable and eco-friendly materials, from raw materials to packaging.

The PANAREA natural circulation system for the production of ACS is composed of the INTERKA SOLARE interspace boiler combined with flat solar collectors. Supplied with a universal fixing kit.


CHARACTERISTICS OF THE SOLAR COLLECTOR
- Mineral wool insulation
- Anodized aluminum frame
- HIGHLY SELECTIVE absorber
- Tempered anti-hail glass in accordance with EN 12975 / ISO 9806 (impact resistance using a 150g steel ball, maximum fall height 2 metres).
- Complies with UNI EN 12975 standards

FEATURES OF THE KETTLE
- INTERKA PANAREA 300 litres
- Carbon steel
- Polywarm ® internal coating , suitable for drinking water according to Ministerial Decree no. 174 of 06.04.04, Polywarm ® internal treatment potability certifications : ACS - SSICA - DVGW - W270
- UBA - WRAS
- Provision for electrical integration
- Jacket heat exchanger
- Insulation in rigid polyurethane foam, with high thermal insulation. External sheet metal covering protected by a special anti-corrosion treatment.

STANDARD SYSTEM COMPONENTS -2 Highly selective solar collectors
-INTERKA PANAREA Kettle

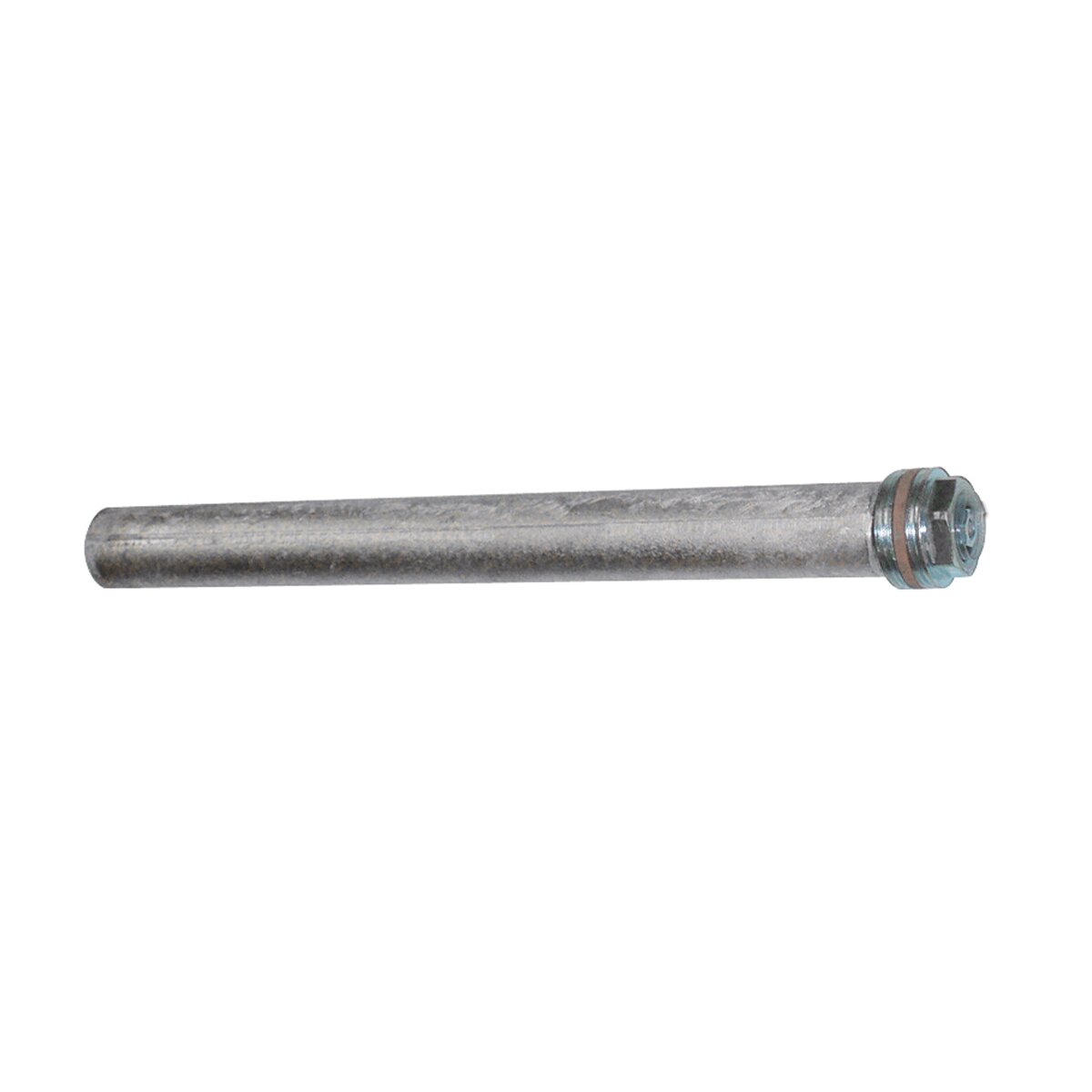

-Cathodic protection with magnesium anode
-Primary circuit safety valve and check valve
-Non-toxic heat transfer fluid
-Connectors
-Universal fixing kit for both flat surfaces (40° inclination) and pitched roofs.     NB: the product image is purely indicative.       DIMENSIONS Width: 2.2 m Length: 1.98 m Height: 2.01 m Surface area: 4 m2   WARRANTY
The guarantee is the official Cordivari one and lasts 2 years.
