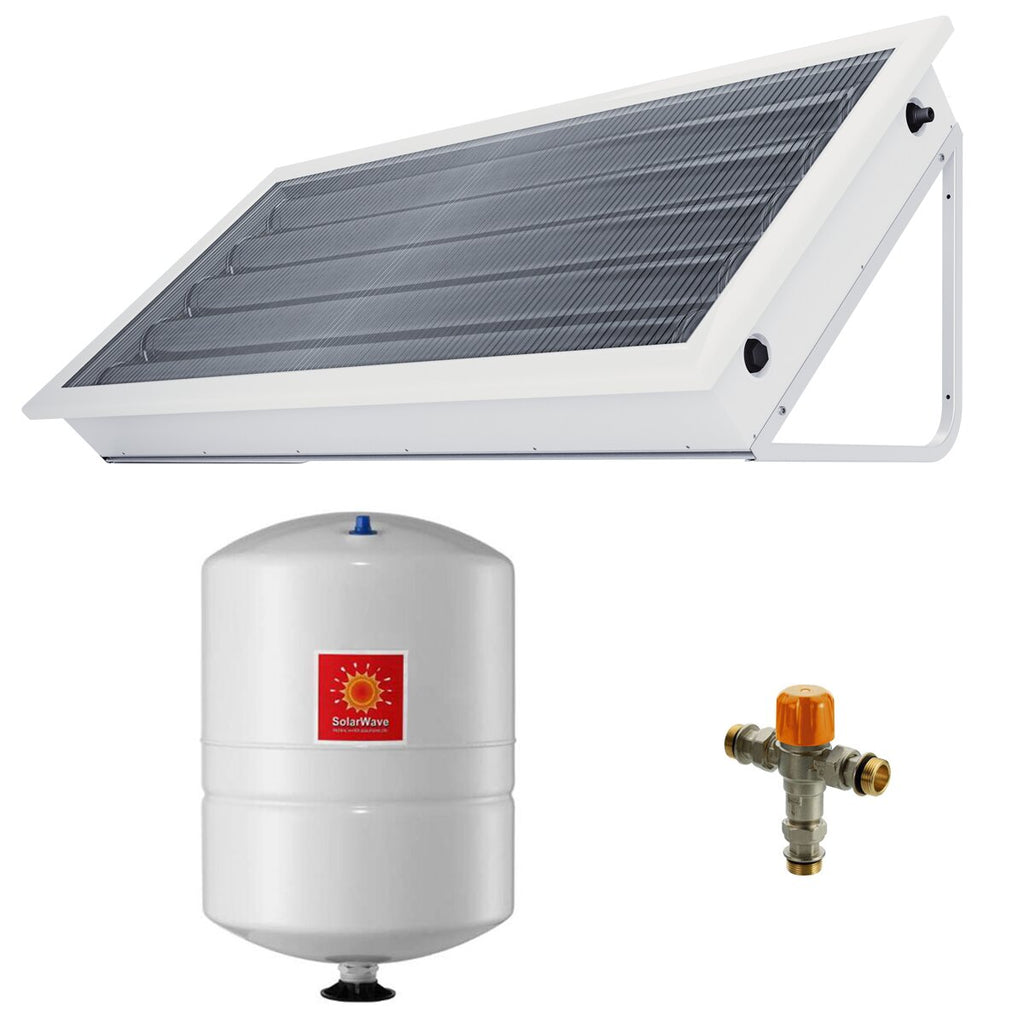

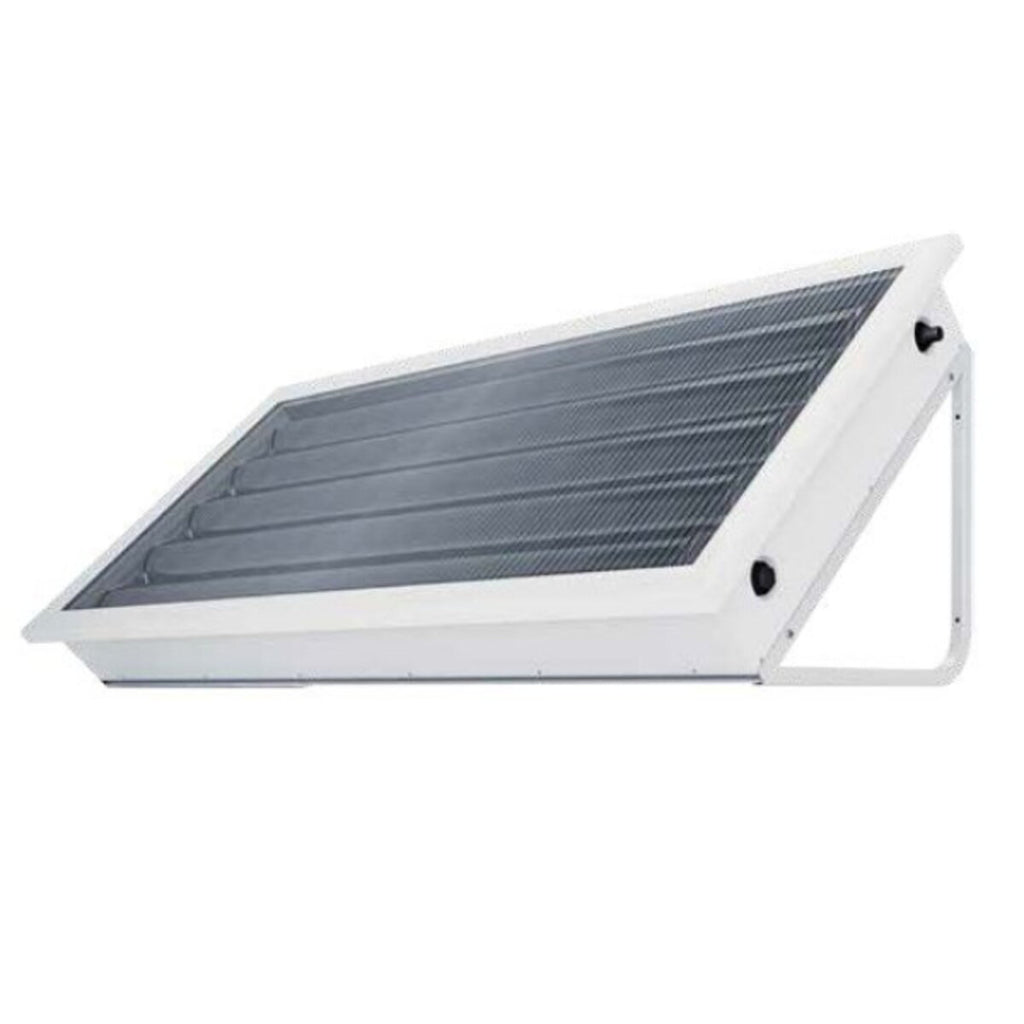

Natural Circulation - 2.77 SQM solar panel, 210 liter capacity, pitched roof fixings and flat roof bracket.
EGO 220
Ideal for the water demand of 4-5 people
THE SOLAR THERMAL SYSTEM
Finally he has arrived !

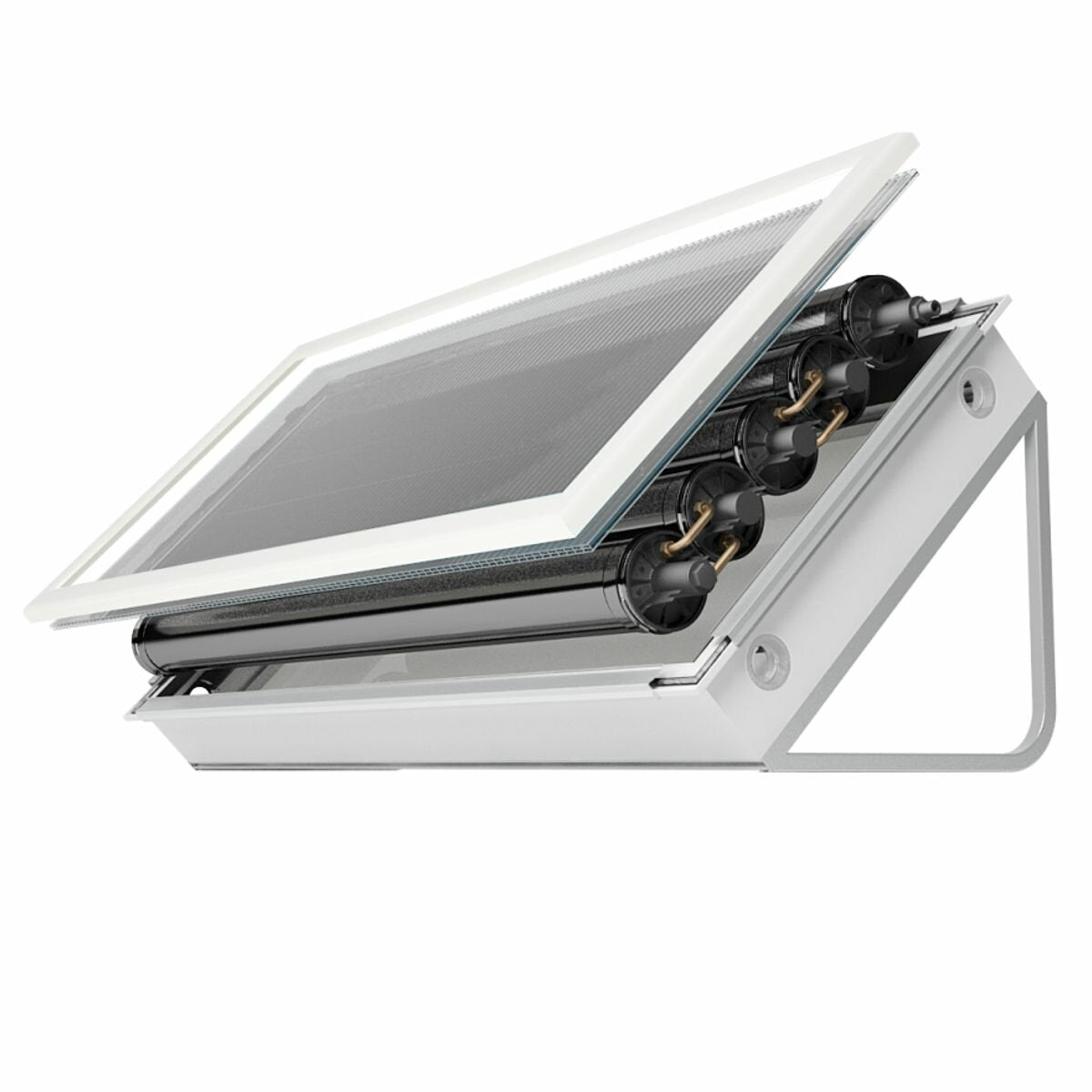

The era of unsightly solar panels with cylindrical tanks which, however efficient and convenient, horribly disfigure the aesthetics of buildings, is over. The PLEION EGO solar collector (SMART SOLAR. BOX.) is the natural circulation solar system without visible storage ; beautiful to look at because it has the shape of a roof window and because it is offered with a frame which as standard can be colored "lunar white" or "brown tile", which can be perfectly integrated anywhere because it is extremely thin. PLEION has succeeded where only a few had simply dared: EGO represents the great innovation of natural circulation solar systems because it is an all-in-one integrated solution that eliminates the unsightly external boiler and replaces it with the special steel tubes through which the Water flows and is heated by the sun's rays. It is available in five sizes that vary in storage capacity and overall dimensions. Designed to offer maximum efficiency and built to last, all materials used are of the highest quality . The domestic hot water storage tank is made of stainless steel for marine applications and is suitable for storing drinking water , it is integrated into the panel and is made with a highly corrosion-resistant alloy; the innovative Lexan sheet reduces heat dispersion, eliminates the condensation effect and makes the PLEION EGO collector particularly resistant to atmospheric agents because it is hailproof; the insulation was made with top quality materials and with great care; the PVC structure makes the whole block compact, light, thin and resistant.
Ideal for both flat and sloping roofs, it is equipped with support brackets made of 100% recyclable material, lightweight and with an elegant design. The EGO solar kit is lightweight, ready to use and installs easily and very quickly; the installation kit already includes as standard the mounting brackets for installation on the pitched roof , the basic supports for installation on the flat roof , the air ventilation valve and the safety valve .
GUARANTEED SAVINGS AND HIGH COMFORT
The PLEION EGO natural circulation solar panel allows incredible savings on the production of domestic hot water which will truly be supplied at " zero cost ". It does not require any electrical connection unless you choose to integrate it with the electrical resistance (optional). The possibility of choosing the capacity size best suited to the number of occupants in the home allows you to easily find the model best suited to your needs.
TECHNICAL FEATURES
- High efficiency eco-sustainable green system
- Complete, ALL-IN-ONE (STORAGE + COLLECTOR)
- Natural circulation (uses gravity)
- Weight 57 kg
- Removable, interchangeable frame
- Tubes in special steel or plastic material
- Corrosion resistant alloy accumulation
- Basic support brackets
- LEXAN® sheet which significantly reduces heat dispersion
- Dimensions: mm. 2136x1296x220
- Gross surface area 2.77 m²
- Opening surface 2.25 m²
- Absorption surface 1.69 m²
- Empty weight 57 kg
- Operating weight 267 kg
- Number of internal pipes 6x35 lt
- Maximum inlet water pressure 3 bar
- Maximum operating pressure 400 kPa
- Bottom and side insulation 30/25 mm
- Maximum temperature 90°C
- Thermal integration electric resistance (optional): power 1.0/2.0 kW, voltage-frequency 220-50 V-Hz, regulation +48:+53 °C
- Antifreeze electric heater (optional): power 300 W, voltage-frequency 220-50 V-Hz, regulation +4:+8 °C
- Tilt range 15°-60°
- Recommended number of people: 4-5.
DIMENSIONS
Length 2136 mm - Width 1296 mm - Height 220 mm.
WARRANTY
The guarantee is the official PLEION one and lasts 2 years.

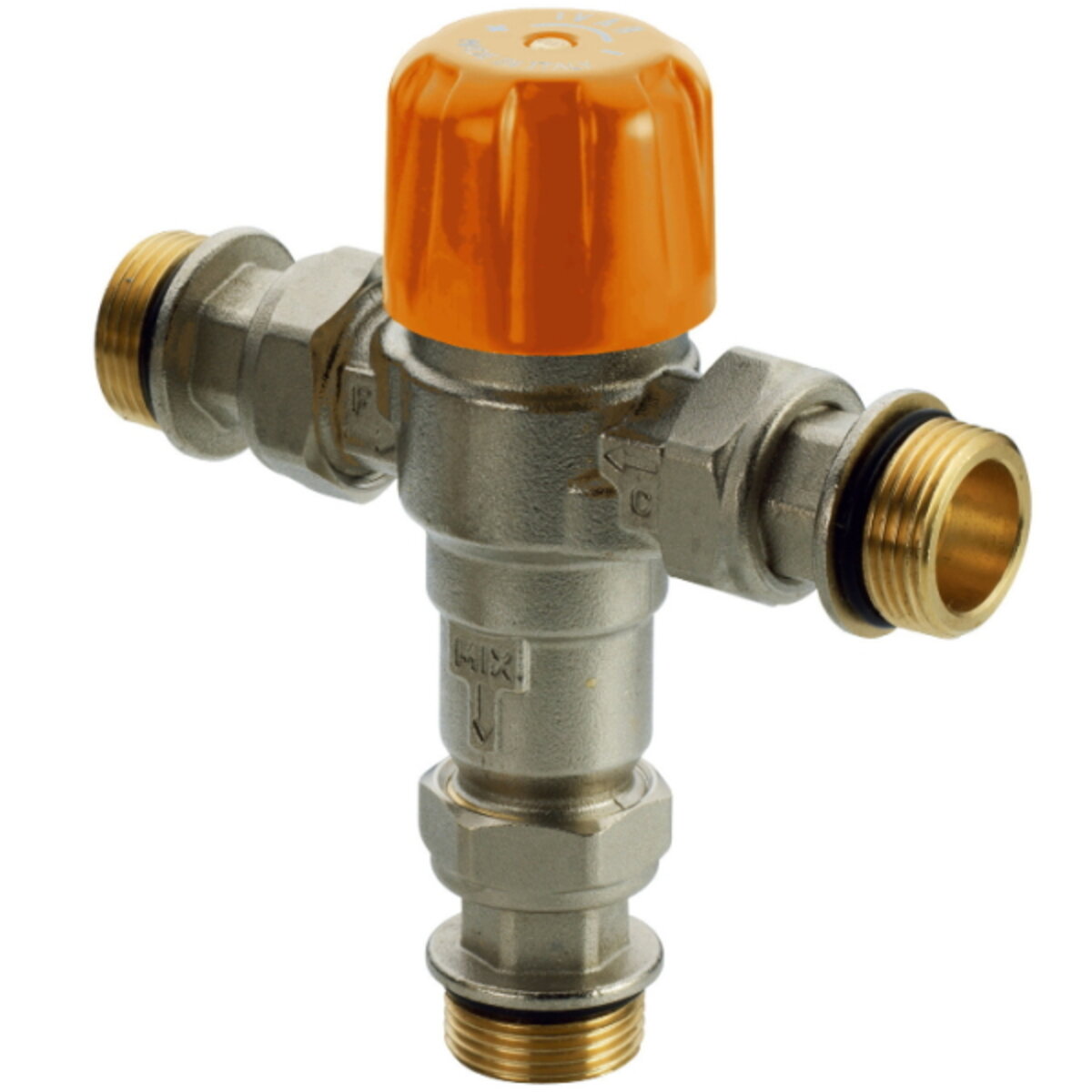

THERMOSTATIC MIXER FOR SOLAR APPLICATIONS 3/4" M
Code 507035SOL
The Ivar Thermostatic Mixer is a component capable of keeping the set value of the water supply temperature constant, by means of a thermostatic element, in the face of variations in pressure and/or temperature at the inlets. Its use assumes primary importance in domestic hot water distribution systems, in which it is necessary to prevent water at too high a temperature from reaching the terminals of the system.
It guarantees maximum comfort thanks to an always constant temperature; in the absence of cold water, the device closes automatically, avoiding burns for the user. It is a recommended product in the presence of DHW accumulations where the accumulated water can undergo thermal shocks due to the anti-legionella cycle.
The Ivar Thermostatic Mixer is an adjustable sanitary mixer; the temperature can be adjusted using a special knob from 36 to 50°C; The body is in CW617N brass, nickel-plated only externally; the spring in stainless steel, the obturator in polyetherimide plus silicone and the cap/adjustment knob are made in ABS.
Ivar is one of the three companies in the world to have received the prestigious French mark NF 8NF 079 doc. 08) by the CSTB certification laboratory for thermostatic mixing valves.
WARRANTY
The guarantee is the official IVAR one and has a duration of 2 years.

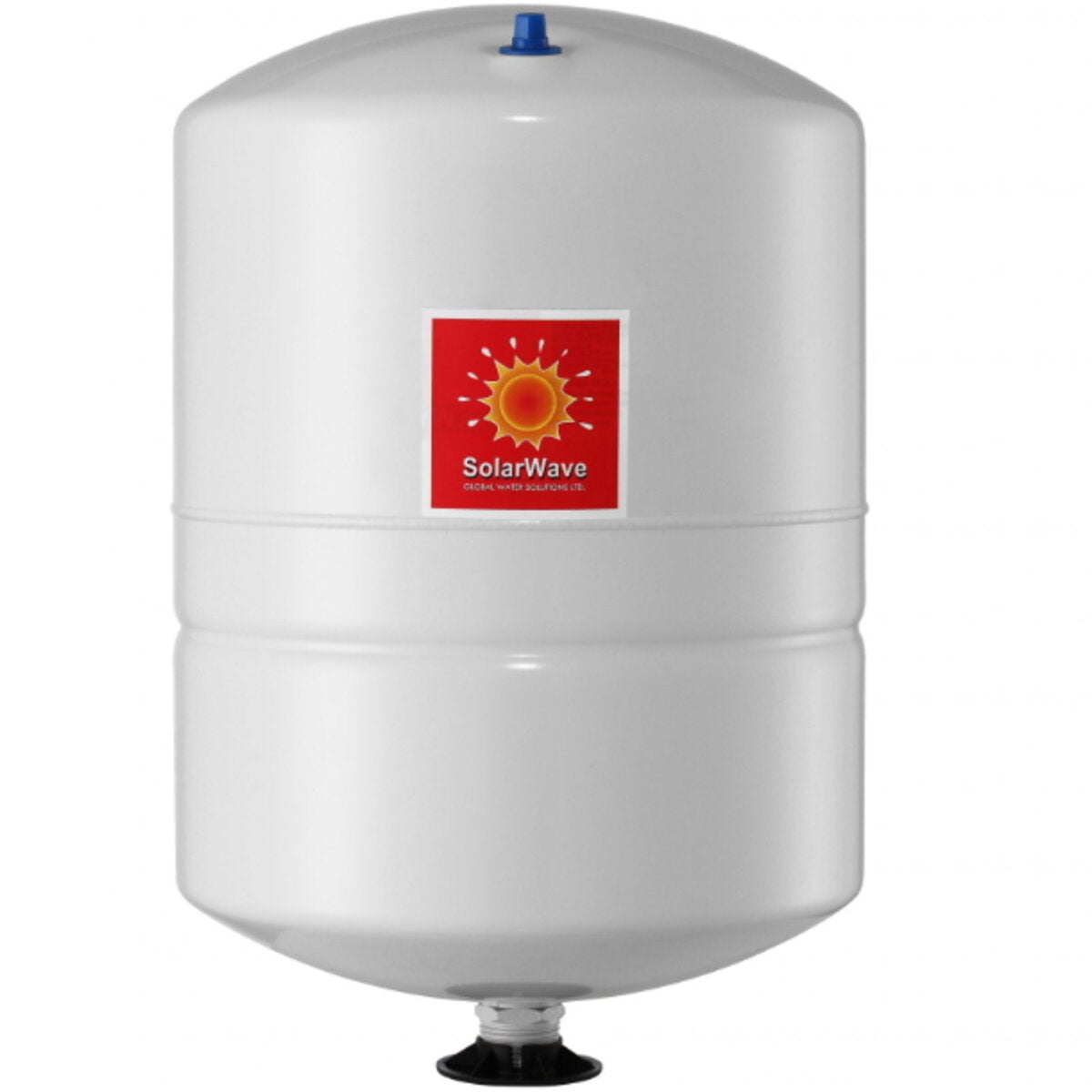

18 LITER EXPANSION TANK ATT. 3/4” SOLAR-WAVE
The SolarWave™ SWB-18LX tank is part of the extensive Global Water Solution product range that offers a complete line of expansion vessels ideal for various applications, including closed loop solar systems, solar thermal expansion hot water. SolarWave™ expansion vessels are designed to control the expansion and contraction of heat transfer fluids in solar heating systems to keep the entire system efficient and operational.
On the outside, the two-component almond-coloured polyurethane paint applied to an epoxy primer guarantees high resistance to atmospheric agents and durability over the years.
SolarWave™ tanks undergo individual quality testing during the manufacturing phase to ensure the structural integrity of each tank.
SolarWave™ tanks represent, to date, the best expansion tanks for solar applications available on the market; suitable for a wide range of applications, they do not require any maintenance.
TECHNICAL FEATURES
Special butyl diaphragm for high temperatures
High expansion factor
Patented stainless steel connection
Two-component polyurethane paint on epoxy base
Air leak-proof shut-off valve
Precharge in the vessel: 1.9 bar / 28 psi
Maximum operating pressure: 10 bar / 150 psi
Maximum system temperature: 130°C / 266°F.
DIMENSIONS
Height: 364 mm - Width 279 mm
Weight 3.8 kg.
WARRANTY
The warranty is the official SOLARWAVE one and lasts 2 years.
