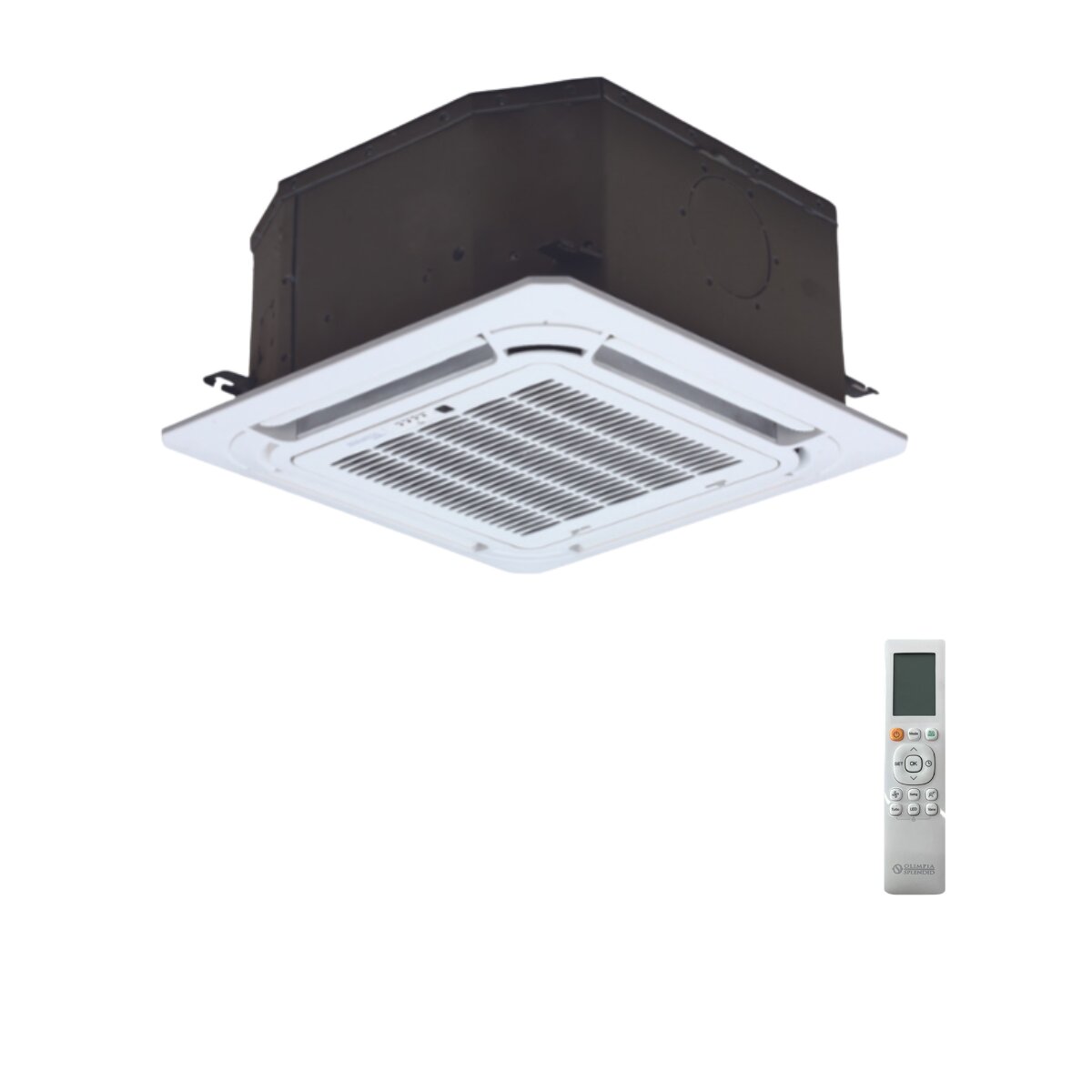

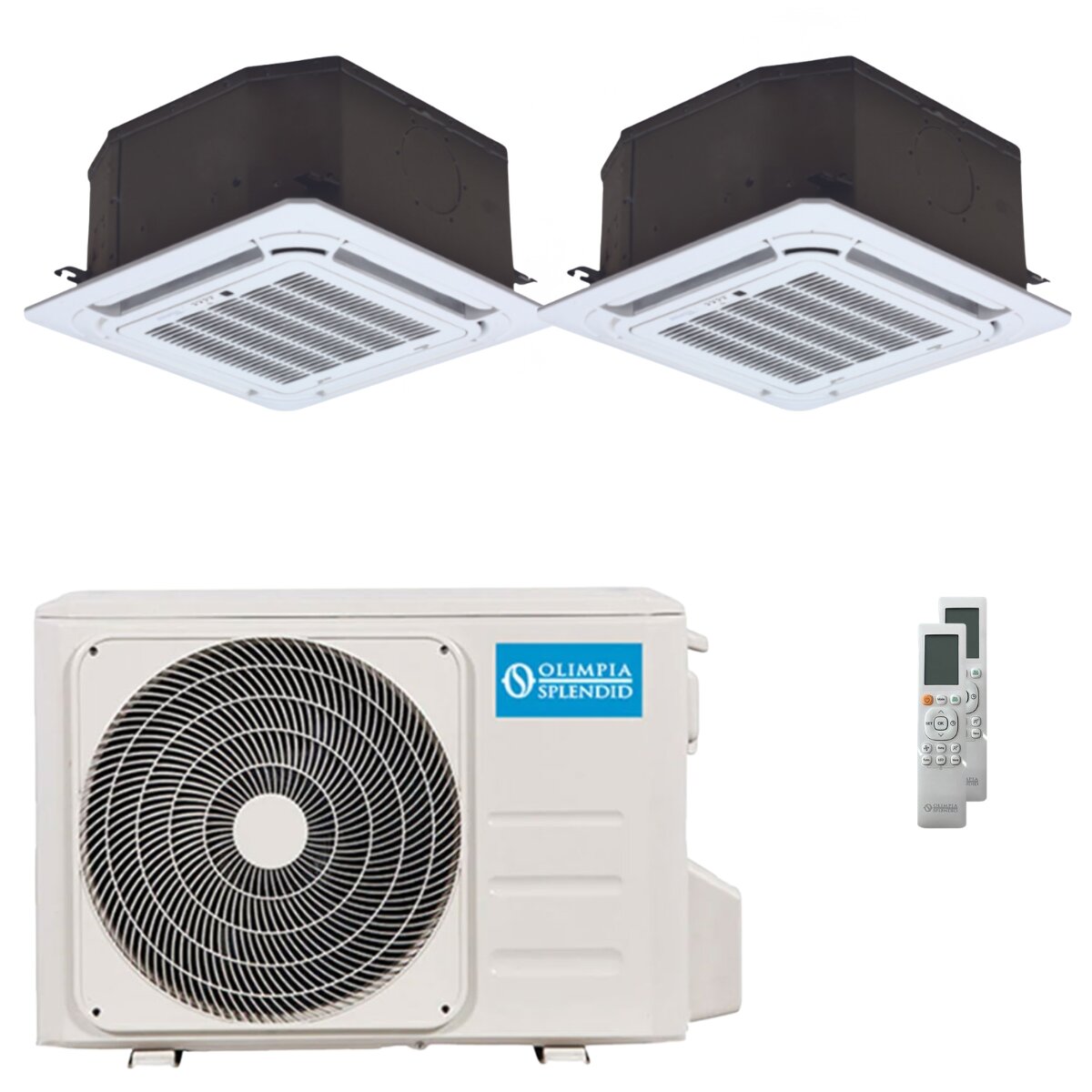

Olimpia Splendid Nexya S6 E Cassette dual split air conditioner 12000+12000 BTU inverter A++ external unit 5.3 kW The air conditioner kit is equipped with the following indoor units:
- 2 x 12000 BTU - Ideals for rooms from 25 to 40 sqm with an average height of 2.7 m
The Olimpia Splendid Nexya S6 E Cassette [OS5/S6+IS5/S6] range of inverter cassette air conditioners is designed for the climate control of commercial environments, offices, showrooms, and large professional spaces. Thanks to high-efficiency DC Inverter technology and the eco-friendly, low-GWP R32 refrigerant, the system guarantees high cooling and heating performance, optimized consumption, and quiet operation.
Ceiling installation with a cassette unit allows for uniform air distribution throughout the room, leaving only the decorative panel integrated into the false ceiling visible. This solution improves climate comfort, reduces the air conditioner's aesthetic impact, and optimizes air diffusion even in large spaces.
The Nexya S6 E Cassette range also stands out for its ultra-compact dimensions , especially the Compact 18 size, which occupies just 62x62 cm , facilitating installation even in suspended ceilings with limited space. All the monosplit outdoor units in the series are also single-fan, a solution that helps to reduce overall dimensions.
Design, air distribution and environmental quality
The Nexya S6 E Cassette indoor units are designed to ensure uniform comfort and optimised airflow distribution.
The internal unit is equipped with:
- decorative panel with integrated digital display
- independent flap management
- air exhaust vents even at the corners.
This configuration improves the diffusion of air in the room, reduces climate shadow areas and increases perceived comfort even in large or particularly busy rooms.
To improve indoor air quality, the system integrates:
- dust filtration
- dedicated outlets for the introduction of external or fresh air
-
Self Clean function, designed to automatically clean and dry the evaporator, helping to reduce residual humidity and the formation of internal impurities.
The internal units are also equipped with:
- integrated condensate lifting pump
- provision for remote ON/OFF control
- Alarm contact for synchronization with external systems.
Technology, functions and system management
The Olimpia Splendid Nexya S6 E Cassette cassette air conditioners offer numerous advanced functions dedicated to climate comfort, intelligent system management and energy optimisation.
The air conditioner manages: cooling, heating, dehumidification, ventilation; Auto Mode: The Auto Mode function automatically selects the most suitable operating mode based on the room temperature, optimizing comfort and energy consumption; Sleep Mode: Sleep mode automatically adjusts temperature and ventilation during the night to improve comfort and reduce energy consumption; Silent Mode: The Silent Mode function reduces the noise of the indoor unit to ensure maximum acoustic comfort during operation; Turbo Mode : Turbo mode allows you to quickly reach the desired temperature by temporarily increasing the power of the air conditioner; Eco Mode : The Eco Mode function optimizes energy consumption by reducing electricity consumption during continuous operation; Power Gear: The Power Gear function allows you to select different power levels to balance performance and energy consumption according to the needs of the room; Temperature Sensor: The system uses the integrated temperature sensor to detect the climatic conditions of the room more precisely and improve automatic regulation; Vertical Swing: The Vertical Swing function automatically manages the orientation of the flaps to improve air distribution and uniform air conditioning throughout the room; Self-diagnosis : the self-diagnosis function detects any operating anomalies, facilitating maintenance and technical assistance; Auto-restart : in the event of a power failure, the Auto-restart function automatically restarts the system, maintaining the last stored settings; Automatic defrost : the automatic defrost function optimizes heat pump operation during the winter season, improving operational continuity and energy efficiency; Timer : the Timer allows you to program the air conditioner to automatically turn on and off based on daily usage needs.
The system is also designed for:
- remote control ON/OFF
- alarm synchronization
- integration with external system management devices.
The Nexya S6 E cassette air conditioner can be managed via the infrared remote control supplied as standard , and is also compatible with various optional remote control and management systems (to be purchased separately), including: 4-wire wireless wall control B1234, wall wired control B0969 , wireless split kit B1020 .
ACCESSORIES INCLUDED AS STANDARD
- Remote control
- Decorative panel with integrated digital display.
WARRANTY
The warranty is the official Olimpia Splendid one and lasts 2 years.

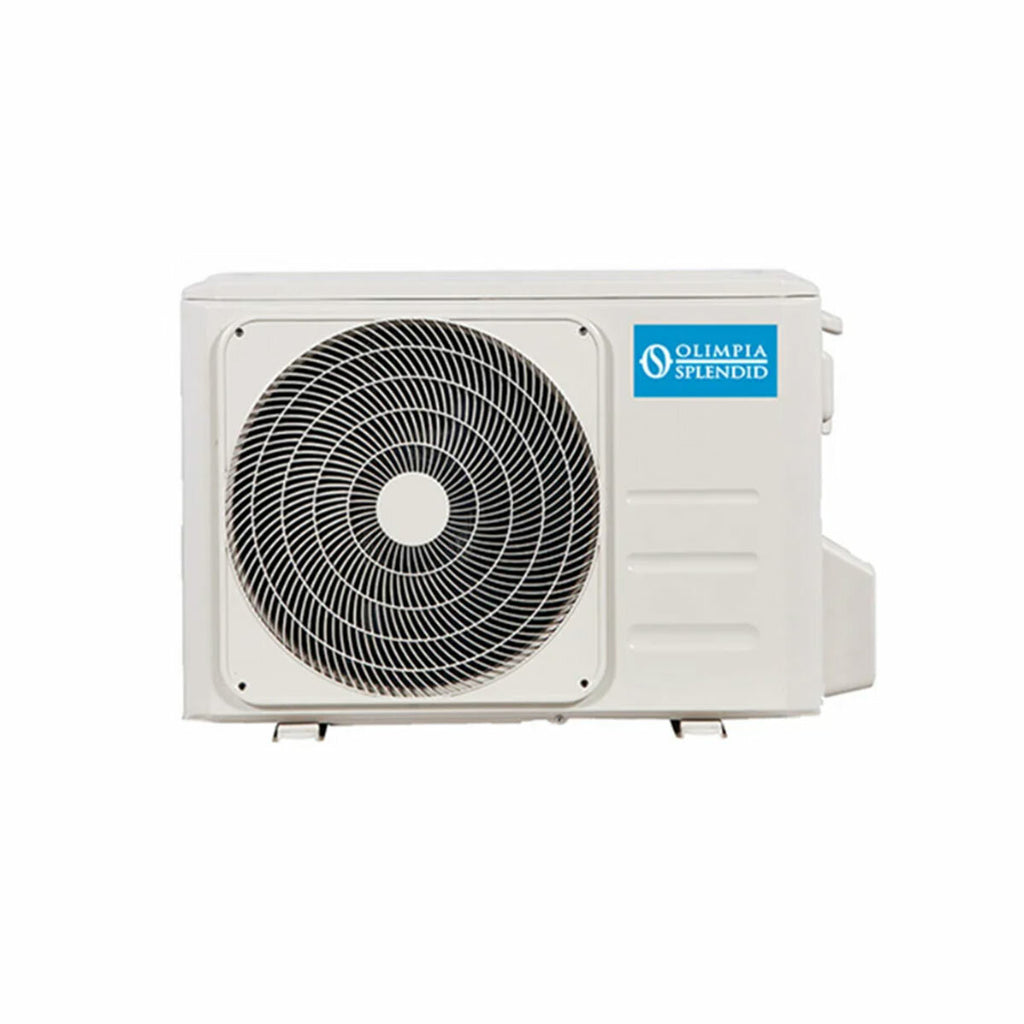

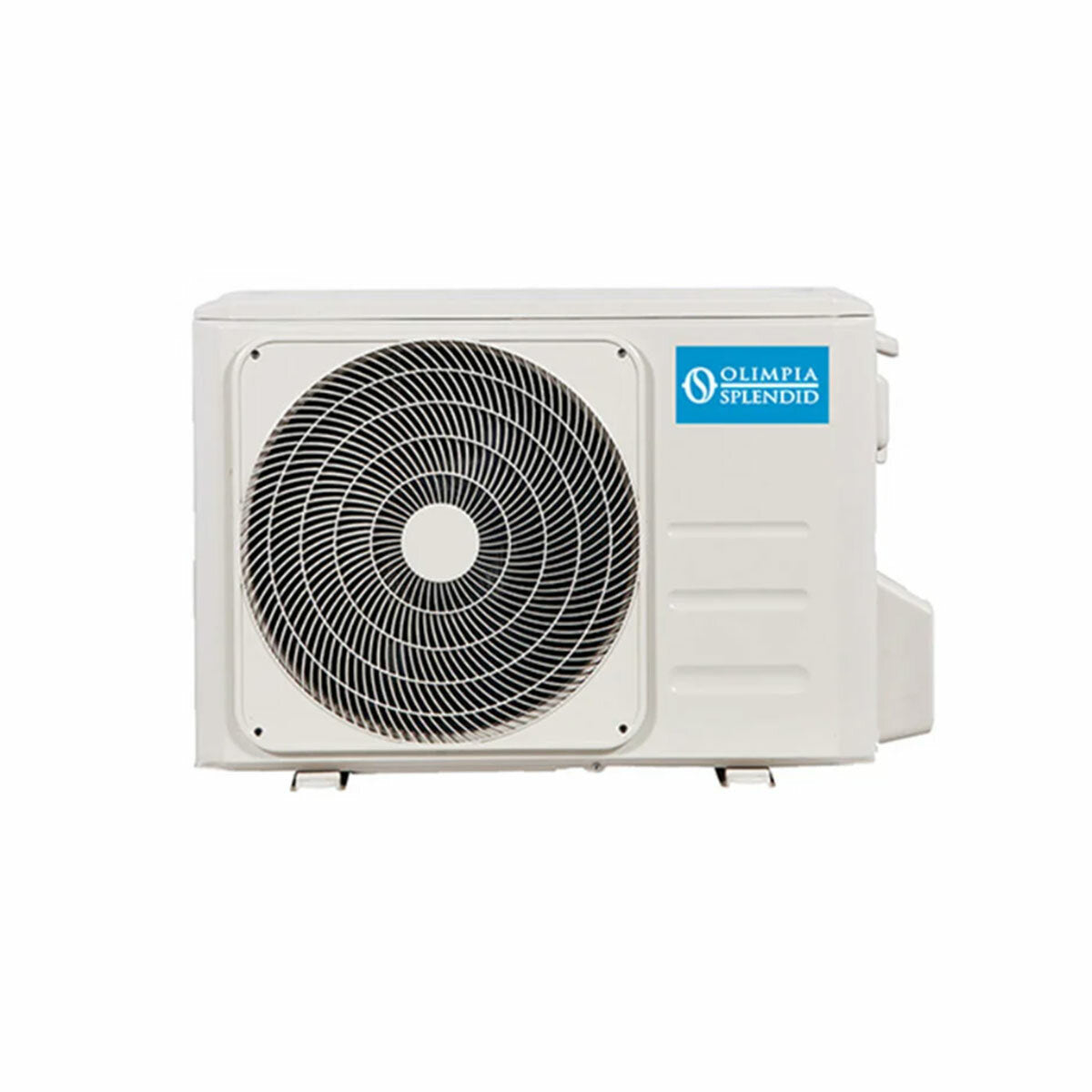

THE OUTDOOR UNIT
The Olimpia Splendid multi-split outdoor unit for air conditioners with two connections is equipped with a heat pump and inverter technology and represents the true heart of air conditioning.
Multisplit outdoor units offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space available for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. This outdoor unit allows you to connect and power two OLIMPIA SPLENDID indoor units of all compatible series, even of different powers; the indoor units will always operate independently and each will have its own control.
Nexya S5 E Dual Inverter 18 gives the possibility to make the most suitable combinations for one's needs: systems can be designed using wall-mounted, duct or cassette units and selecting the right size based on the thermal load of the system.
GUARANTEED SAVINGS AND COMFORT
The OLIMPIA SPLENDID multi-split outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. The remarkable performance of the Outdoor Unit allows the connected Indoor Units to offer great comfort to users, both by using the system in the summer cooling function and in the winter heating function. The high-efficiency compressor of the Olimpia Splendid allows you to always obtain high performance up to class A++ in cooling and class A+ in heating with low consumption for optimal management of your energy costs; the Inverter system further promotes energy savings by avoiding annoying sudden changes in temperature and keeping temperatures constant to the full advantage of the pleasure of use. The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating, thus allowing year-round use in the name of comfort and relaxation.
It offers many advantages in managing the heating system, thanks to the many functions available such as for example the AUTO function which adapts the operating parameters to the room temperature, favoring constant internal comfort and the SLEEP function which gradually modulates the set temperature favoring nocturnal well-being and also that of the neighborhood by virtue of the reduced noise that distinguishes it and places it among the quietest multi-split on the market.
The rotary compressor at its disposal highlights its high silence , only 65 db(A) of sound power.
It uses low environmental impact R32 gas to protect public health and the environment, with reduced energy consumption to the full advantage of bill spending.
The Nexya S5 Dual Inverter 18 outdoor unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The guarantee is the official Olimpia Splendid one and has a duration of 2 years.
