Pellet stove EK63 SPY110+ - Edilkamin group - 10.5 kW sealed with ducted air Bordeaux
Ek63 is the brand new Edilkamin brand created to offer modern and economical solutions without sacrificing efficiency and quality, as demonstrated by its vast range of ducted and Smart stoves, which includes the Spy110+ in the burgundy version proposed here.
Ducted air pellet stoves are certainly the best solution for those who need to integrate or replace the traditional heating system of medium-sized houses, as they are able to optimally heat the rooms in which they are installed and also other rooms, even on different floors , through special ducts (Spy110+ can duct the air to only one other room other than the installation one). Furthermore, thanks to the sealed chamber, total " Air Tight" sealing with respect to the installation environment is guaranteed, therefore the stove draws the combustion air from outside and not from the domestic environment, bringing benefits in terms of heat, emissions reduction and safety.
The EK63 SPY110+ pellet stove is the perfect combination of practicality, elegance and power and is configured in all respects as an intelligent and environmentally friendly investment by virtue of the use of an economic and ecological fuel, the pellet, which will bring immediate savings in consumption and management costs and a comfortable environment without sudden changes in temperature.
DESIGN

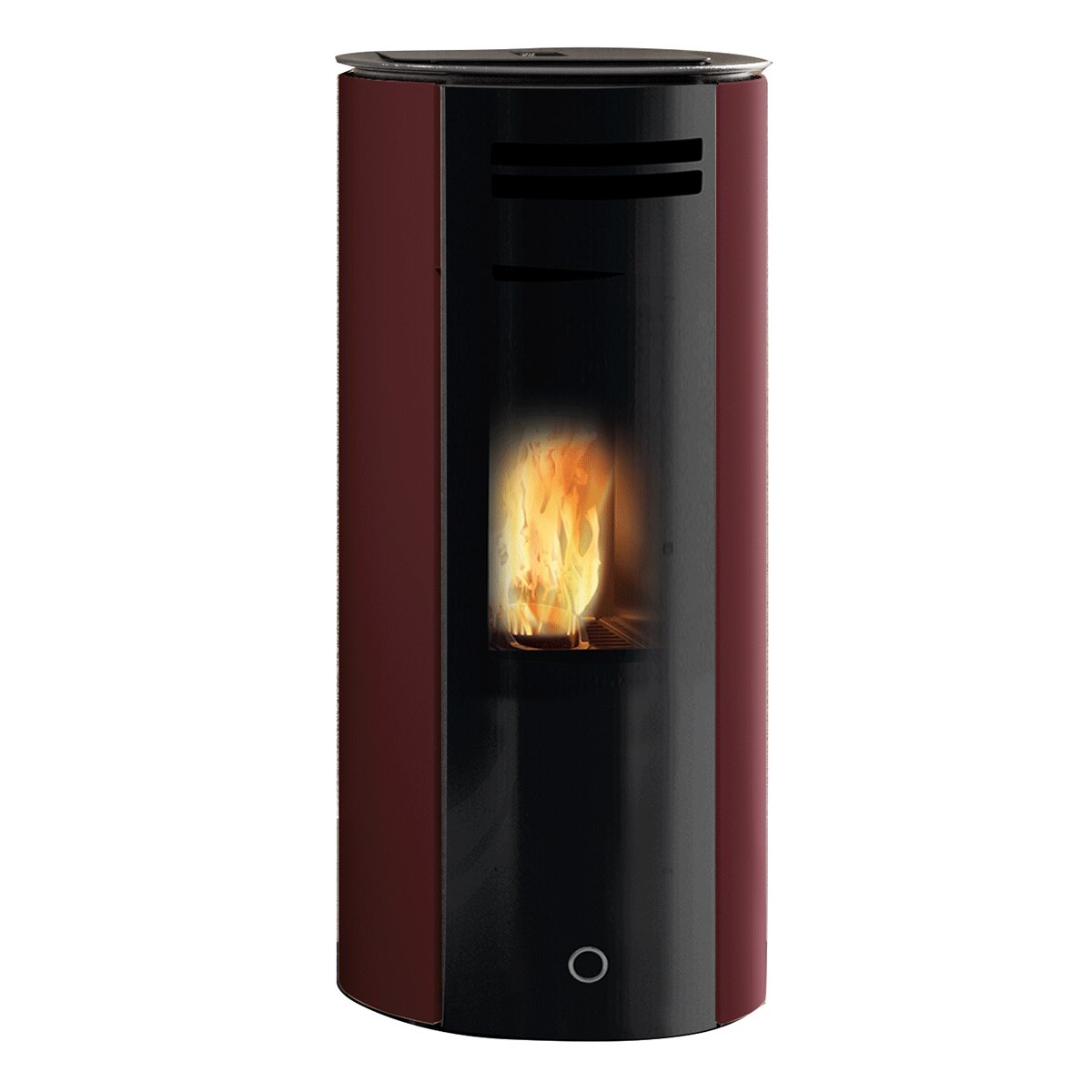

The EK63 SPY110+ pellet stove is aesthetically very beautiful, with an elegant design capable of enhancing any environment thanks to that particular touch of modernity and style. Round section, with steel and glass sides and double central door, internal in cast iron and external in “Magic” glass. The peculiarity of Magic glass is that it is totally invisible when the insert is off, not letting the interior leak out and appearing black, while when the insert is on, it shows a lively and enveloping flame, capable of creating suggestive atmospheres in the home.
TECHNOLOGY, COMFORT AND SAVINGS
The EK63 SPY110+ pellet stove is a concentrate of efficiency and practicality, in fact it not only guarantees energy performance up to class A+ but has also been certified 5 stars as a quality class (DM 186 - 7/11/17).
Multiple technical features make this pellet stove one of the most interesting and innovative, perfect both for heating and for furnishing your rooms with style. Equipped with a highly resistant and durable Vermiculite hearth; ceramic glow plug; frontal hot air ventilation; Ø 8 cm rear smoke outlet with the possibility of installation with Ø 13 coaxial rear smoke outlet (optional).
Spy110+ EK63 has a convenient display on the top, therefore positioned on the upper part of the machine to be able to easily manage and monitor, automatically or manually, the various functions and the temperature, but not only that, there are many qualities and functions that can be set from discover that they simplify its general use by making it accessible to any user. For example, possibility of daily and/or weekly programming; Easy Timer function that simplifies delayed on/off programming; Relax function which allows you to deactivate the hot air ventilation; Fire Control function, which provides for automatic modulation of combustion to avoid waste; Comfort Clima , makes sure that the stove switches off when the desired temperature is reached; Autoclean for automatic cleaning of the crucible and cold Autocheck which allows to identify any problems. Further functions and technical characteristics can be known and explored in the use, installation and maintenance manual duly supplied with the product.
Particularly silent and manageable from your smartphone by downloading the SmartEK63 App as it is equipped as standard with a Smart System with integrated Wi-Fi and also the possibility of remote management via Smart radio control (optional) .
The installation must be carried out by authorized and qualified technical personnel and if it is decided not to channel the stove, the use of the 15 mm air diverter to be purchased separately will be mandatory for installation purposes.
The EK63 SPY110+ pellet stove has obtained CE, EN 14785, ECODSIGN 2022 and 5-star environmental class DM 186 certifications.
Technical features
- 1 Ø 8 cm rear ductable hot air outlet
- Ø 8 cm rear smoke outlet
- Useful power: 3.7 – 10.5 kW
- Efficiency: 91.9%
- Fuel consumption: 0.8 – 2.4 kg/h
- Tank capacity: 22kg
- Autonomy: 9 – 28 hours
- Smoke outlet Ø: 8/13 cm
- Ø air intake: 5 cm
- Heatable volume: 275 m³
Dimensions
- Width: 55cm
- Depth: 56cm
- Height: 120.5cm
- Total weight: 130 kg
Warranty
The guarantee is the official one EK63 Edilkamin Italia and has a duration of 2 years .
