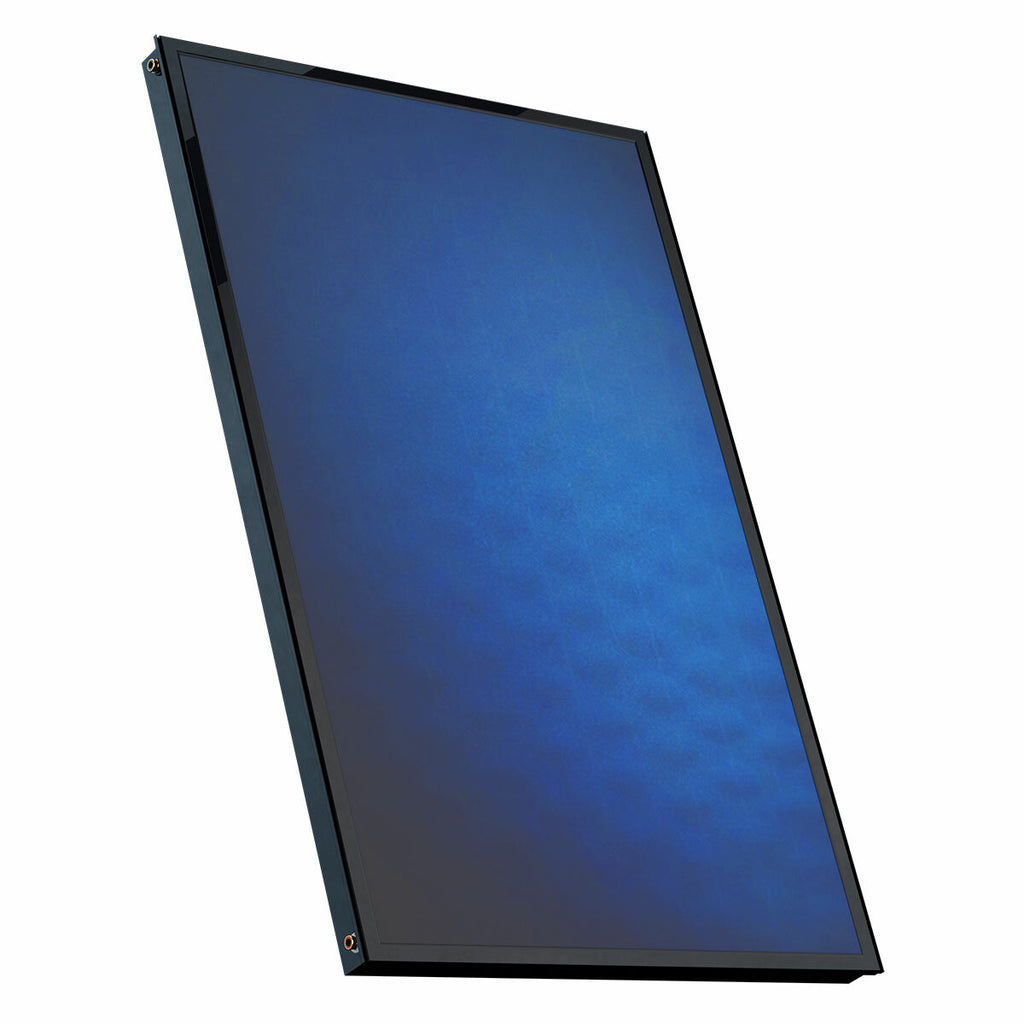

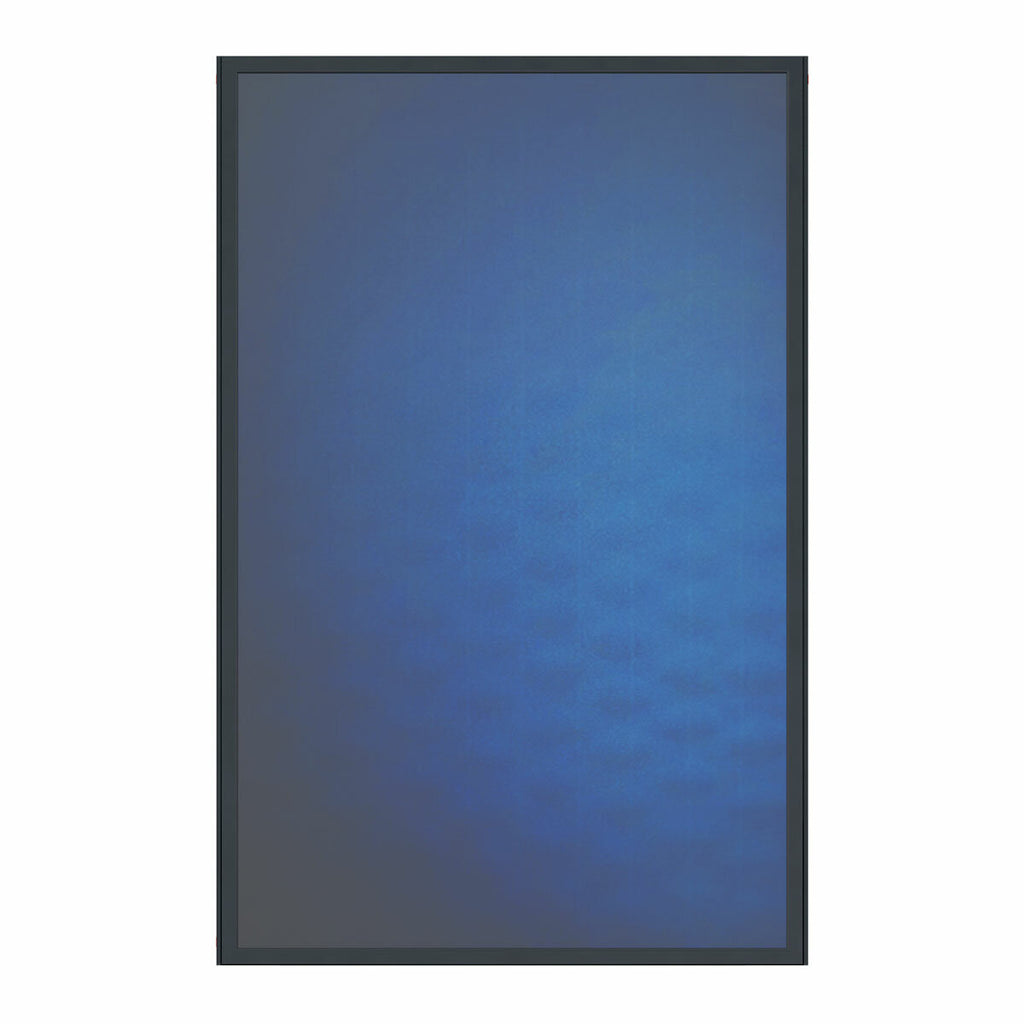

Solar panel Pleion KSF-P26 flat anti-reflection, without tank.
The solar panel is the main component of a solar thermal system thanks to which it is possible to convert solar radiation into thermal energy intended for the production of domestic hot water, and in this context, the Pleion KSF-P26 solar panel is a true champion, forced circulation without visible accumulation and with very high efficiency: 589 kWh/m2 year given Wurzburg 50th. Pleion KSF-P26 is the perfect integration for a boiler or heat pump heating system, to be combined with an accumulator (traditional or heat pump, subject to compatibility check) with variable accumulation capacity in relation to one's needs; for example the connection to a boiler with a storage capacity of 300 litres, will require 2 Pleion KSF-P26 collectors, an ideal integrated system for the production of sanitary water intended for the needs of 3-5 people.
The operating principle of a thermal solar panel consists in transferring the heat generated by it through solar radiation to the water contained in a connected tank, and once the desired temperature is reached, it is introduced into the housewife circulation.
The Pleion KSF-P26 solar panel is a high efficiency collector with a large flat surface made with an innovative prismatic glass that maximizes the amount of absorbed energy. Aluminum frame, with welded profiles, of increased thickness which gives a particular strength and durability over time and single sheet absorber also in aluminum, welded with laser technology to the copper circuit and with high performance thanks to the highly selective titanium BLUETEC. Single harp internal copper circuit equipped with horizontal supply and return distributors with harp equipped with 13 vertical channels.
Internal insulation in extremely long-lasting rock wool and hydraulic circuit characterized by low pressure drop values capable of creating strings of up to 8 collectors as well as reducing the consumption of the system circulator with consequent energy savings. Hydraulic connections with 4 ¾'' fittings with sealing O-Ring to be made using the hydraulic connection accessories to be purchased separately.
Cover with 3.2 mm anti-reflection glass with high mechanical resistance and low iron content to ensure maximum light transmission, the seal of which is guaranteed by the shaped gasket made of EPDM resistant to UV solar rays and high temperatures.
The KSF-P26 manifold is reversible for vertical or horizontal installation thanks to the hydraulic accessories, while fixing requires suitable fixing systems which vary according to the type of cover, which must also be purchased separately.
Technical characteristics
- Dimensions: 2020x1295x90 mm
- Gross area: 2.62 m²
- Opening area: 2.47 m²
- Empty weight: 41.8 kg
- Liquid content: 1.1 l
- Maximum working pressure: 10 bar
- Mineral wool insulation: 40 Inf. – 10 lat mm
- Linear transmission coefficient a1: 3.541 W/m²K
- Quadratic transmission coefficient a2: 0.015 W/m²K²
- Minimum inclination: 15°
- Maximum inclination: 75°
- Collector Peak Power: 2072W
- Distribution header pipe: ¾” M x 4 mm
- Maximum stagnation temperature: 196.6 °C
- Absorption coefficient - harp type: 95%
Warranty
The warranty is the official Pleion one and has a duration of 2 years.
